Assembly (2)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove transaxle housing and differential gear assembly from transaxle case.

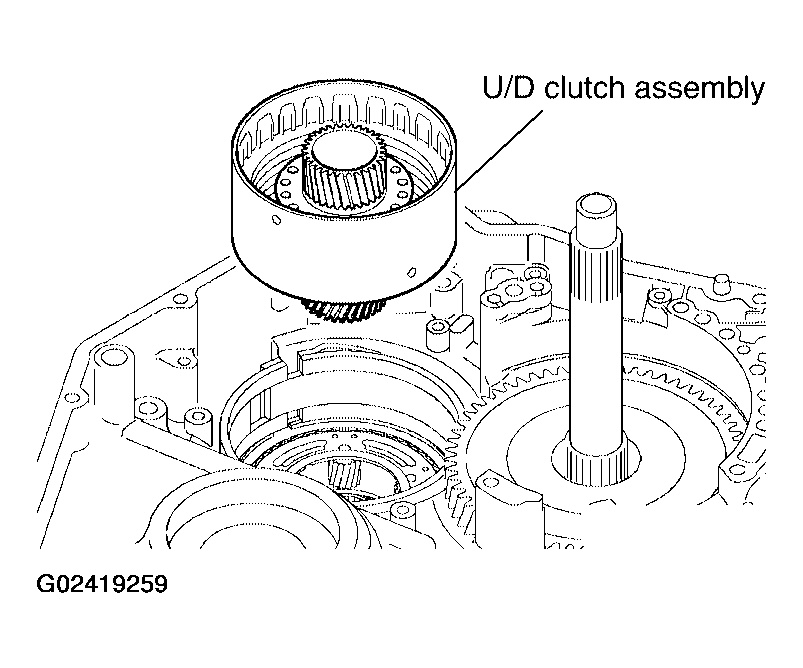

Install U/D clutch assembly.

Fig 1: Installing U/D Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

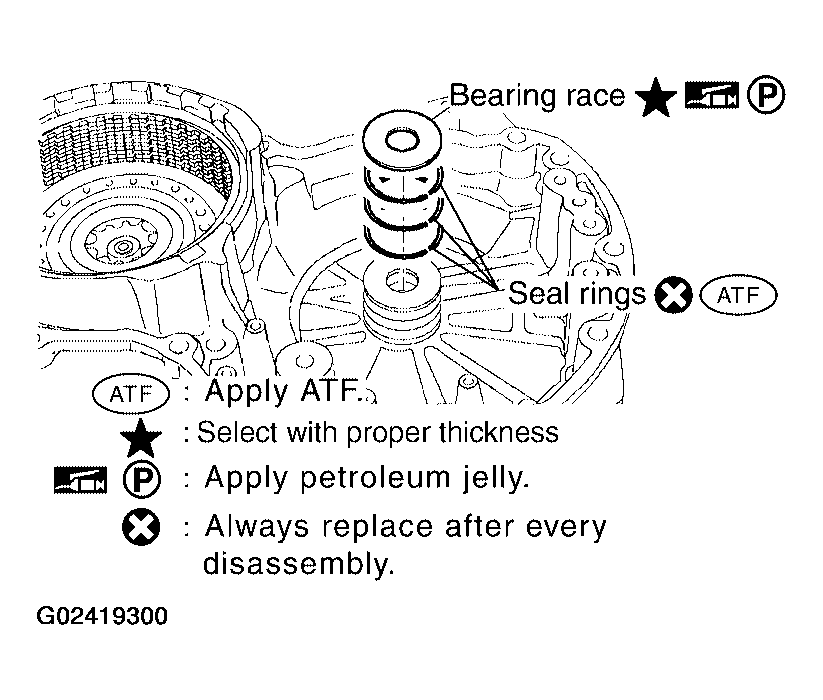

Install new seal rings in U/D gear assembly.
NOTE:
- Do not reuse seal rings.
- Apply ATF to seal rings.

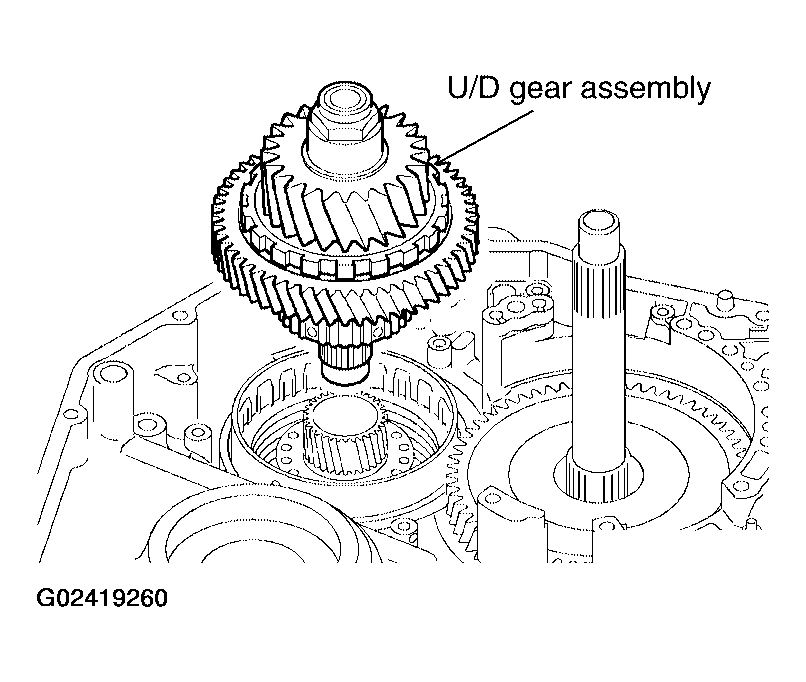

Install U/D gear assembly.

Fig 2: Installing U/D Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

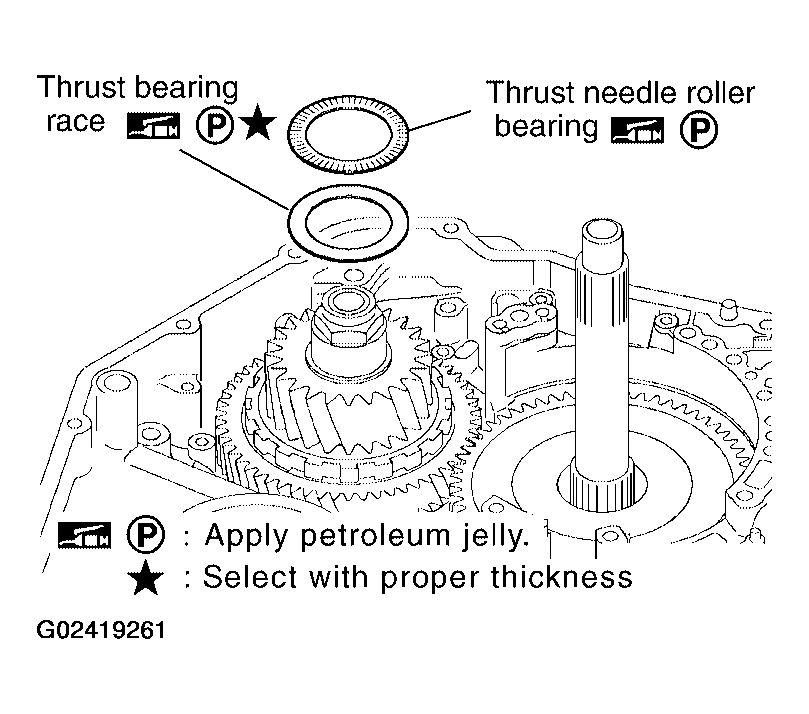

Install thrust needle roller bearing and thrust bearing race in U/D gear assembly.
NOTE: Apply petroleum jelly to thrust needle roller bearing and thrust bearing race.

Fig 3: Installing Thrust Needle Roller Bearing & Thrust Bearing Race
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Make sure that measurement "E" is within the specifications.
  Specification "E": 1.269 -1.645 mm

  (0.0500 - 0.0648 in)

  Fig 4: Locating Measurement
  Courtesy of NISSAN MOTOR CO., U.S.A.

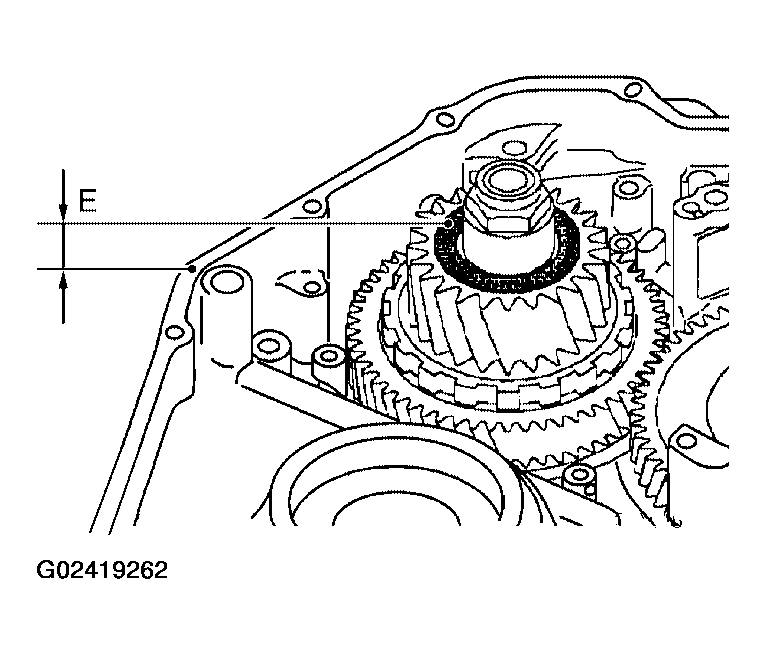

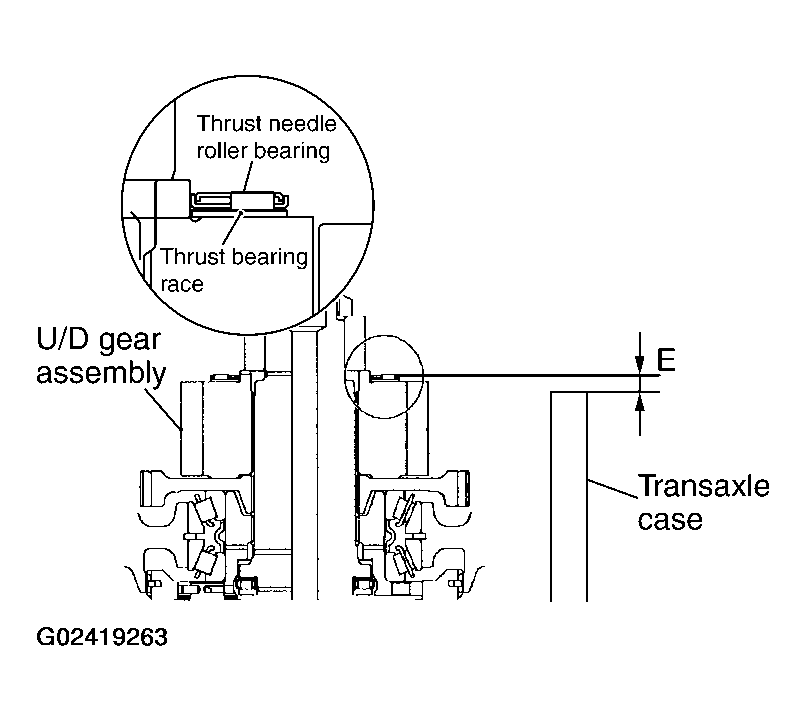

  NOTE: "E" is the height between the edge of the transaxle case and the roller part of thrust needle roller bearing.

  Fig 5: Identifying Height Between Edge Of Transaxle Case & Roller Part
  Courtesy of NISSAN MOTOR CO., U.S.A.

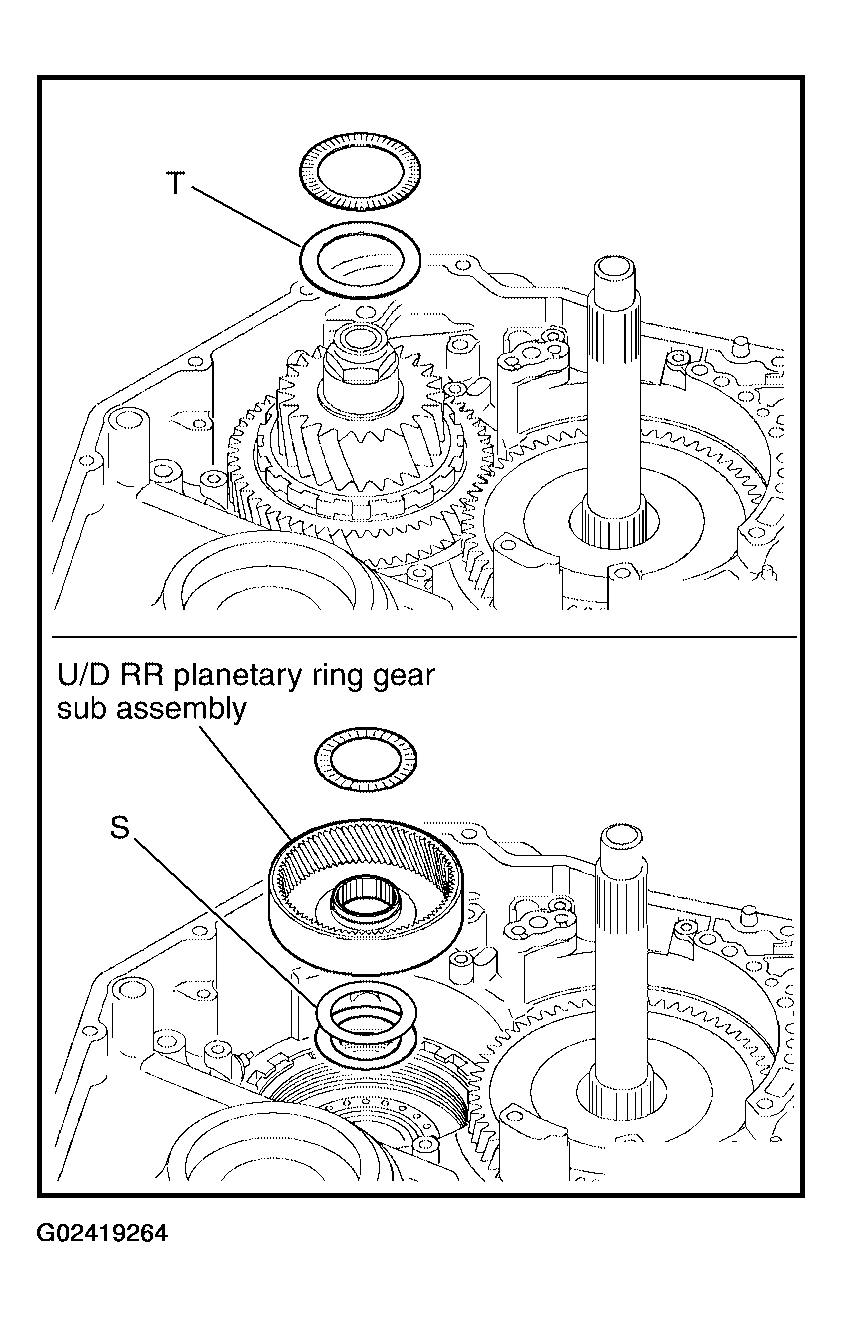

2. If measurement "E" is outside the specification, replace "T" with a one that has applicable thickness. Refer to U/D BRAKE .
  CAUTION: When adjusting "T", use "S" of thickness 0.81 mm (0.32 in).
3. If all of "T" do not fit "E" within the specifications, replace "S" with a one that has applicable thickness. Refer to U/D BRAKE .
  CAUTION: When adjusting "S", use "T" of thickness 0.80 mm (0.31 in).

  Fig 6: Installing Shim
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Make sure that measurement "E" is within specifications.

  Fig 7: Locating Measurement
  Courtesy of NISSAN MOTOR CO., U.S.A.

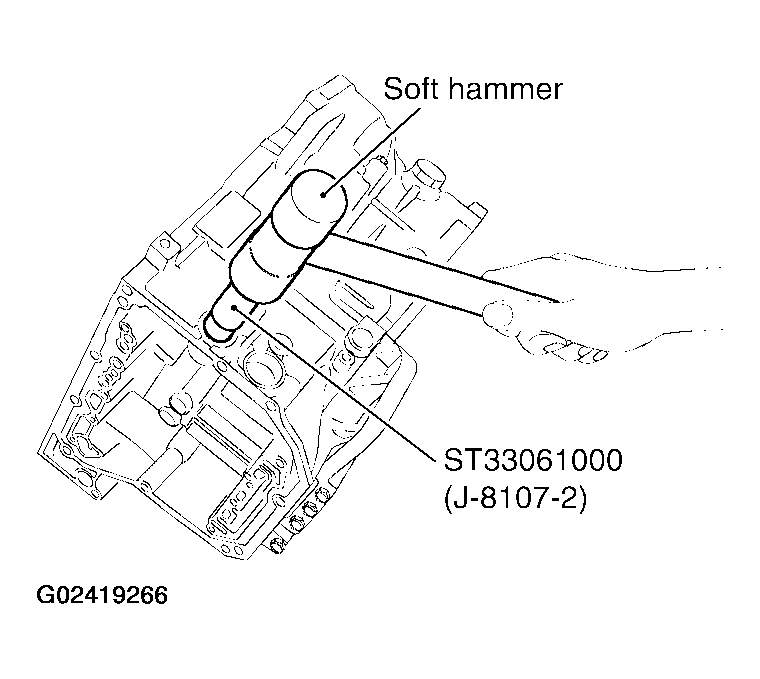

Install new manual valve oil seal into transaxle case until it is flush with the transaxle case face, using Tool.
Tool number: ST33061000 (J-8107-2)
NOTE:
- Do not reuse manual valve oil seal.
- Apply ATF to manual valve oil seal.

  Fig 8: Installing Manual Valve Oil Seal Into Transaxle Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

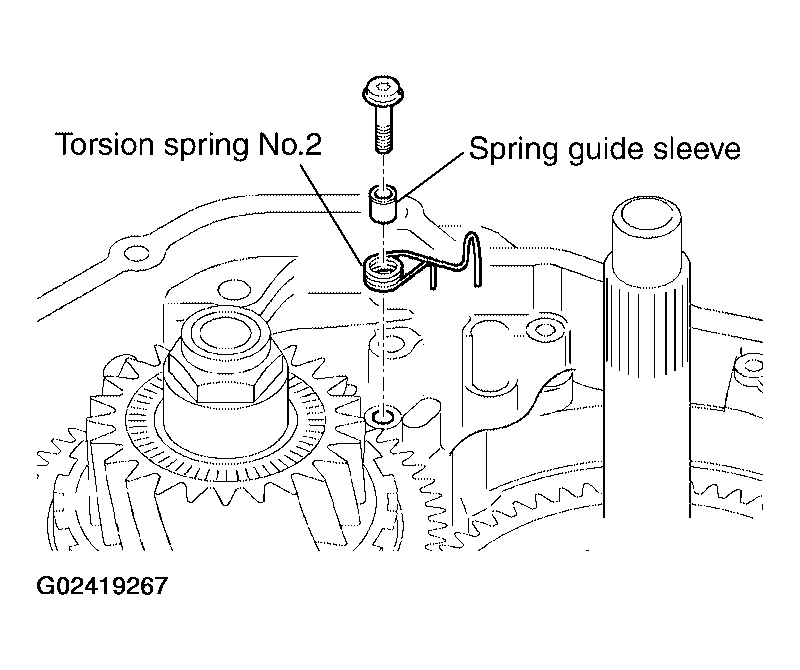

Install spring guide sleeve and torsion spring No.2 in transaxle case.
Tighten spring guide sleeve and torsion spring No.2 torx bolt to specified torque. Refer to COMPONENTS .

Fig 9: Installing Spring Guide Sleeve & Torsion Spring No. 2 In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

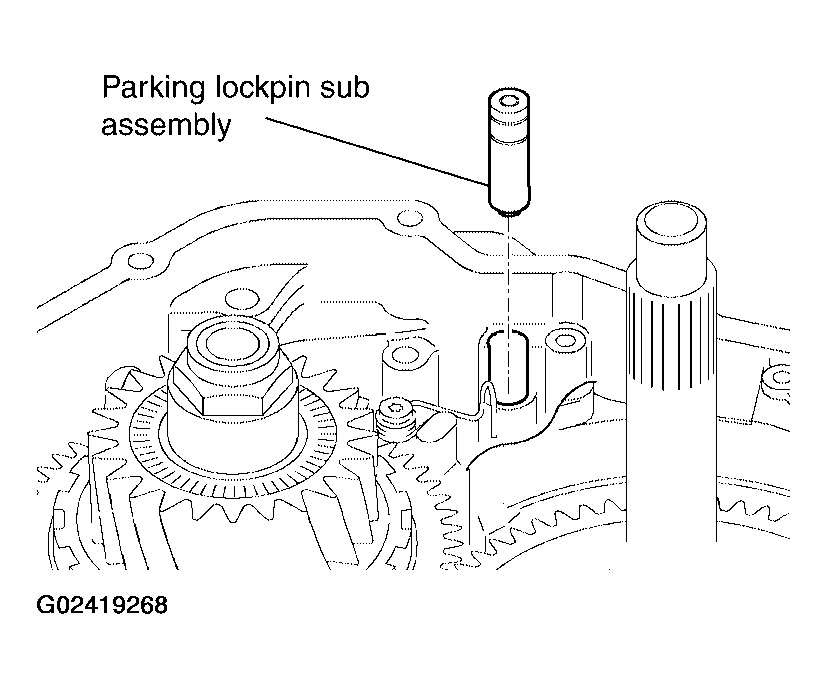

Install parking lockpin sub assembly.

Fig 10: Installing Parking Lockpin Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

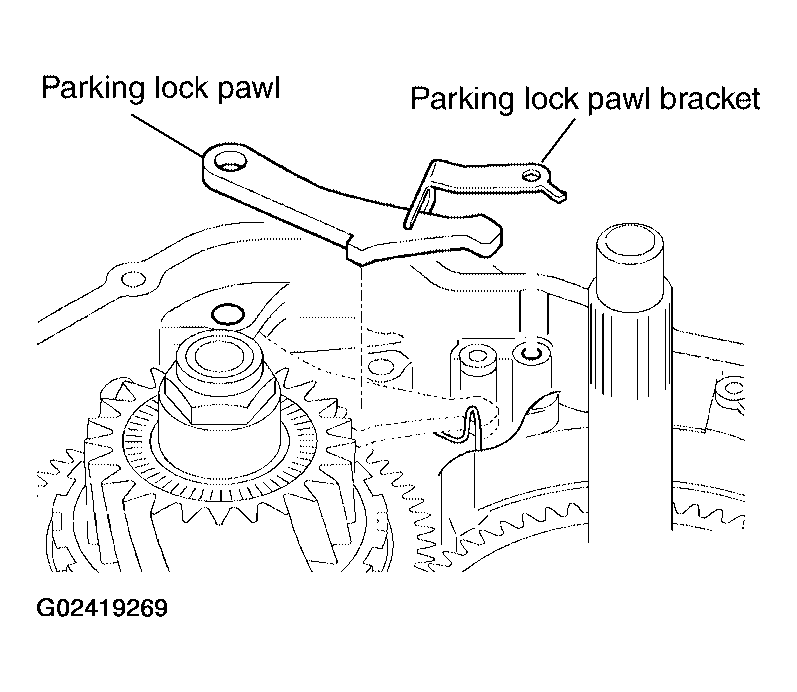

Install parking lock pawl bracket and parking lock pawl.

Fig 11: Installing Parking Lock Pawl Bracket & Parking Lock Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.

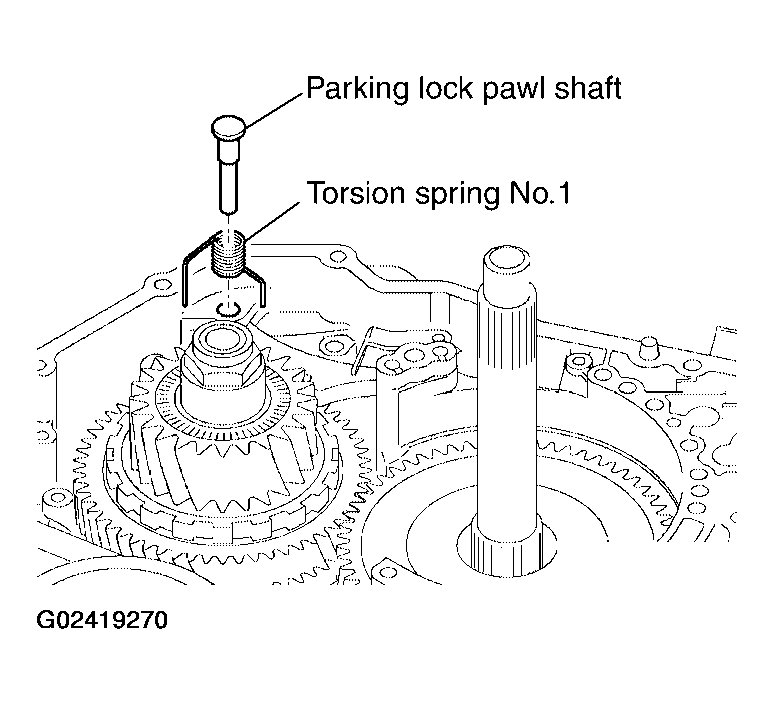

Install parking lock pawl shaft and torsion spring No.1.

Fig 12: Installing Parking Lock Pawl Shaft & Torsion Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

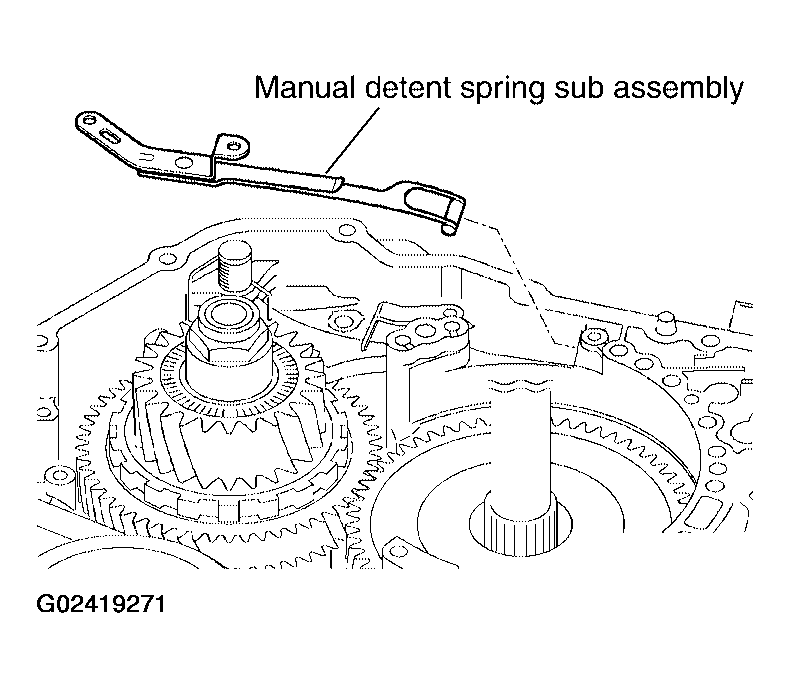

Install manual detent spring sub assembly.

Fig 13: Installing Manual Detent Spring Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

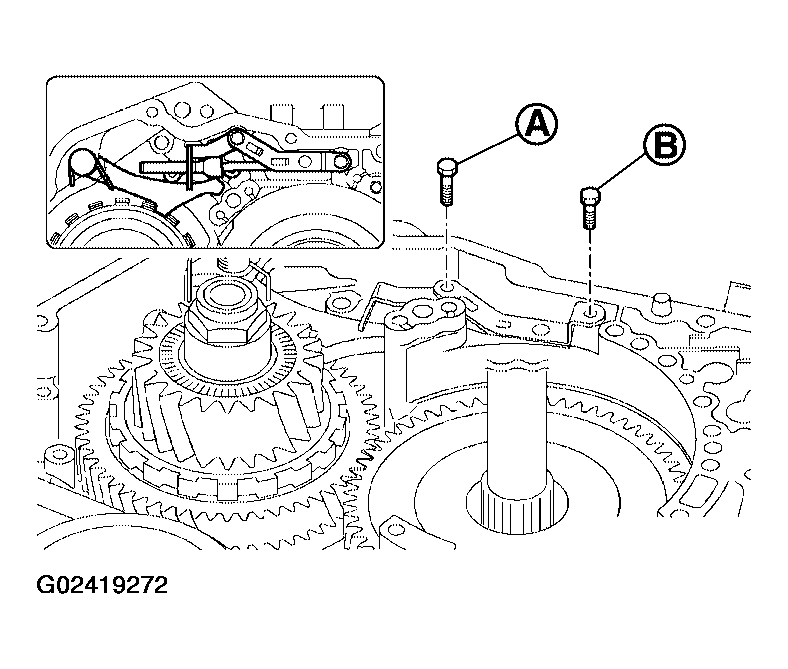

Temporary tightening the bolts.

BOLT SYMBOL SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	16.7 (0.657)	1
B	14.0 (0.551)	1

Fig 14: Tightening Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

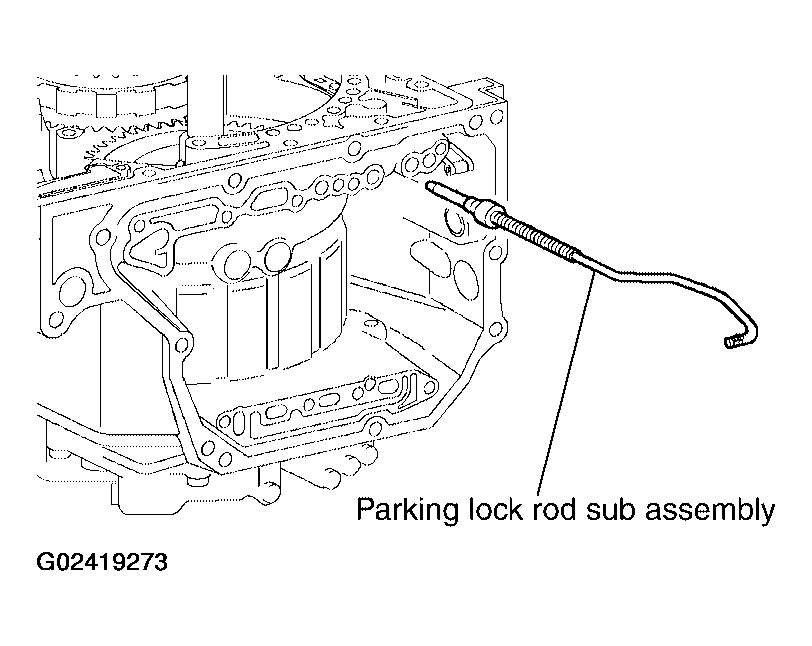

Install parking lock rod sub assembly.

Fig 15: Installing Parking Lock Rod Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

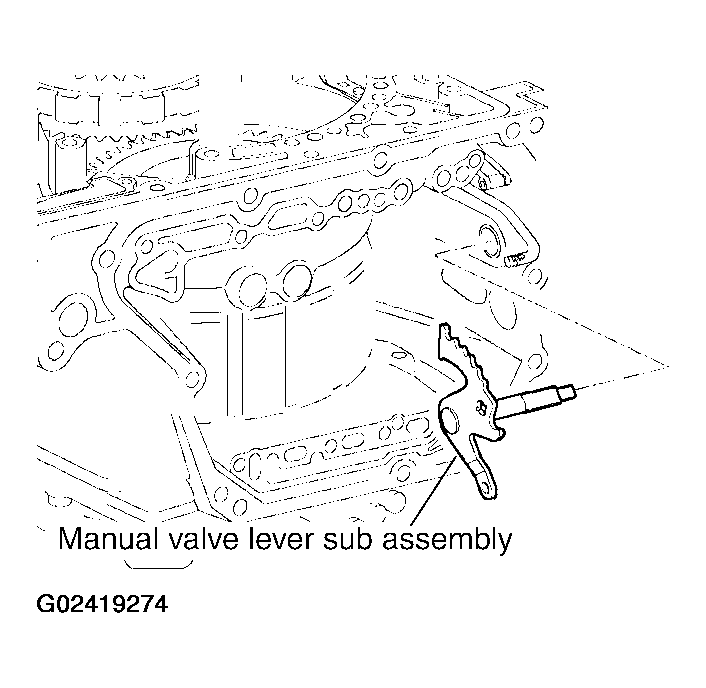

Install manual valve lever sub assembly connect parking lock rod sub assembly to it.

Fig 16: Installing Manual Valve Lever Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect manual detent spring sub assembly to manual valve lever sub assembly using a flat-bladed screwdriver.

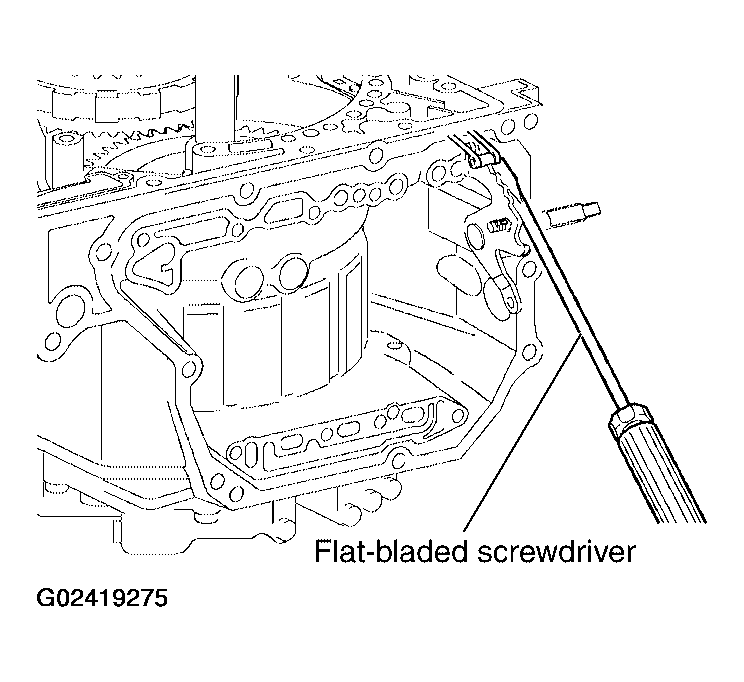

Fig 17: Connecting Manual Detent Spring Sub Assembly To Manual Valve Lever Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten manual detent spring sub assembly bolts to specified torque. Refer to COMPONENTS .

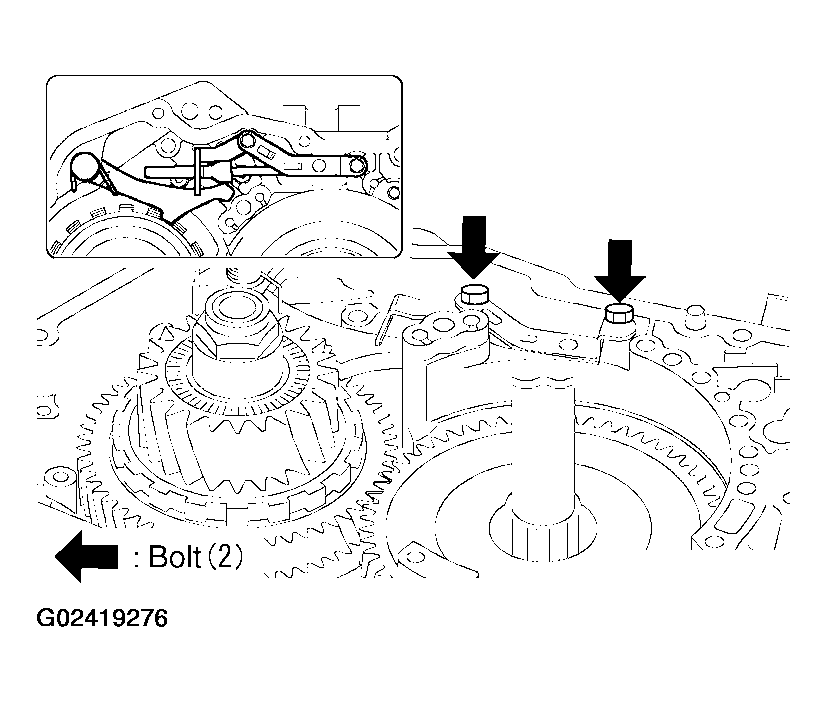

Fig 18: Tightening Manual Detent Spring Sub Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

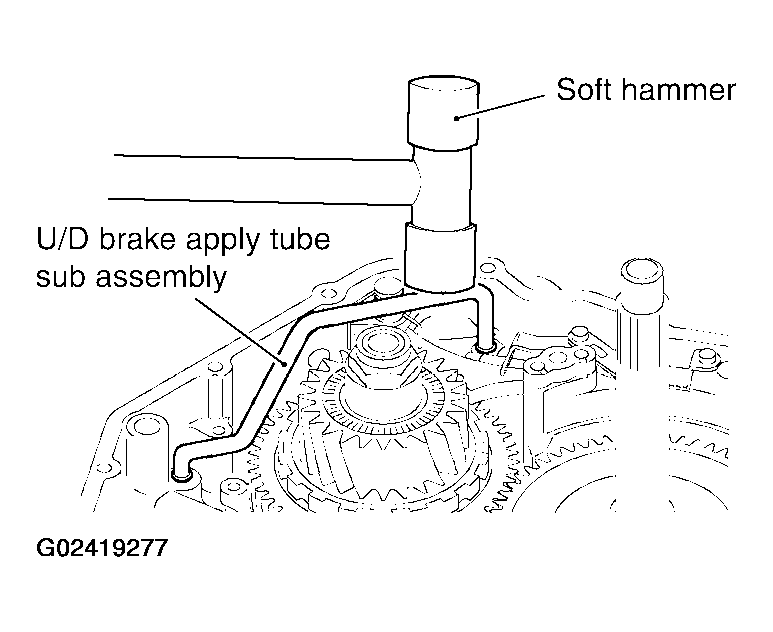

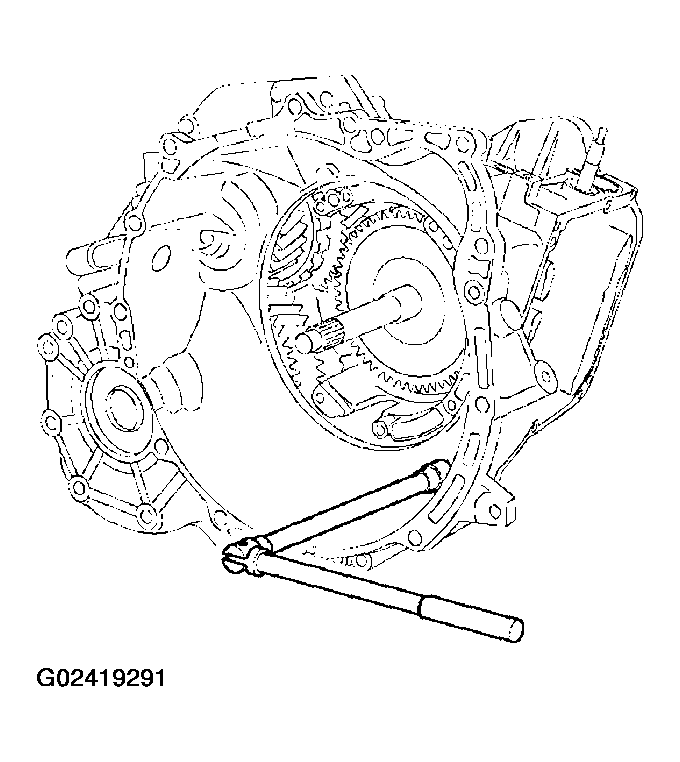

Install U/D brake apply tube sub assembly using a soft hammer.
CAUTION: Be careful not to damage U/D brake apply tube sub assembly.

Fig 19: Installing U/D Brake Apply Tube Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

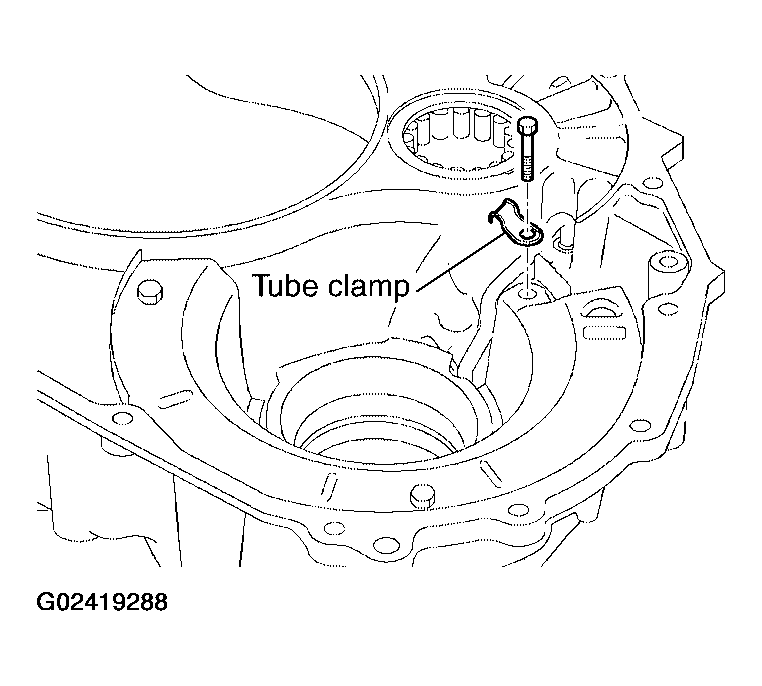

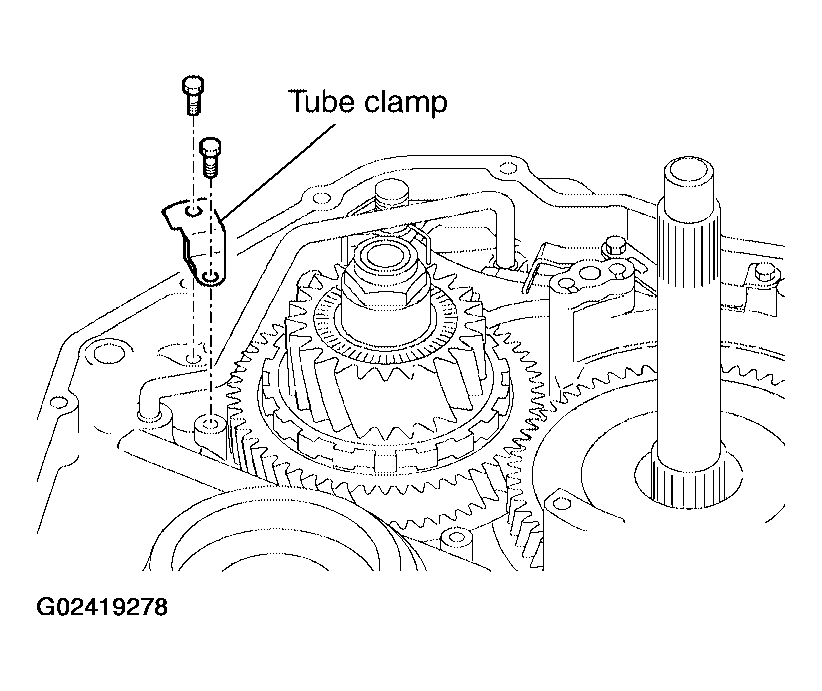

Tighten tube clamp bolts to specified torque. Refer to COMPONENTS .

Fig 20: Tightening Tube Clamp Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

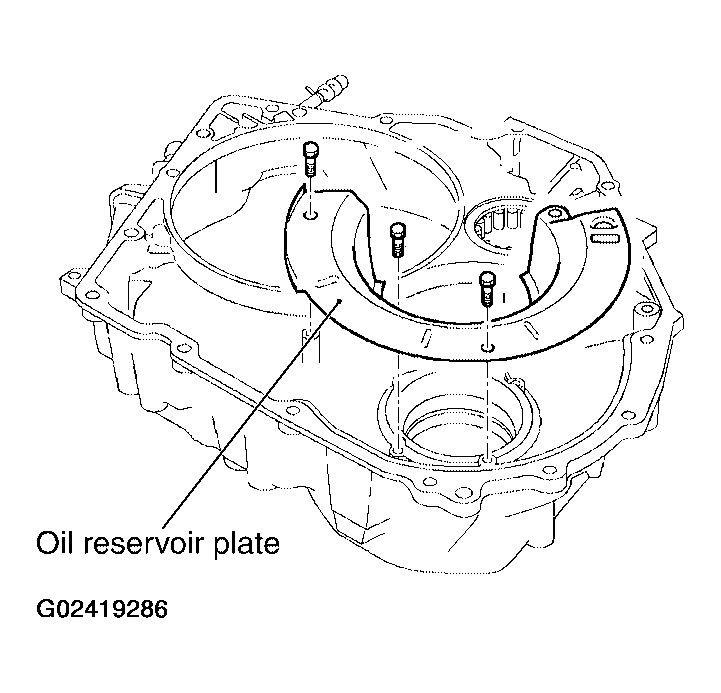

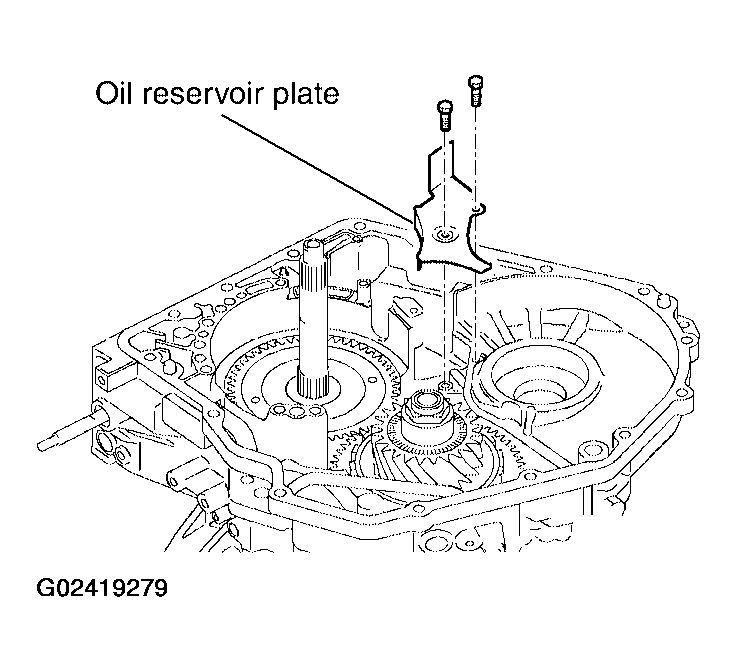

Install oil reservoir plate in transaxle case.
Tighten oil reservoir plate bolts to specified torque. Refer to COMPONENTS .

Fig 21: Installing Oil Reservoir Plate In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

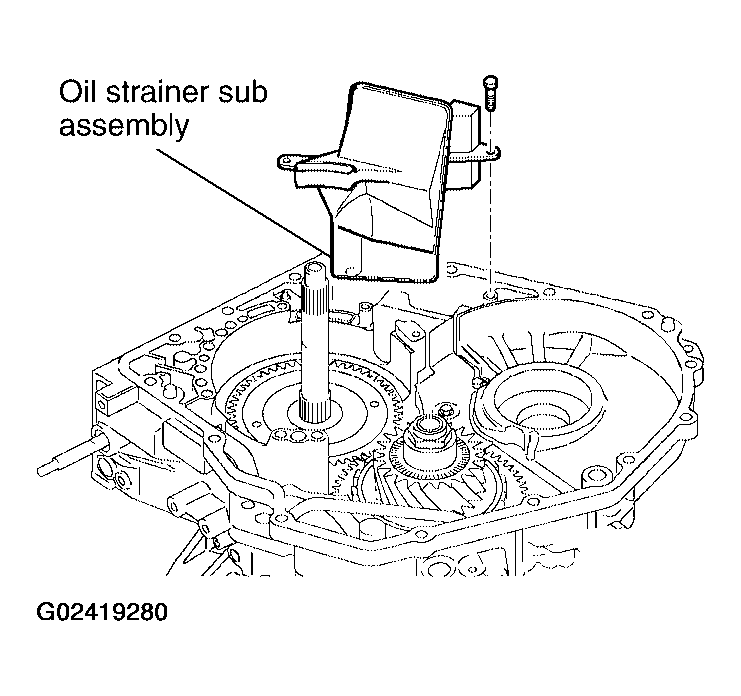

Install oil strainer sub assembly in transaxle case.
Tighten oil strainer sub assembly bolt to specified torque. Refer to COMPONENTS .

Fig 22: Installing Oil Strainer Sub Assembly In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

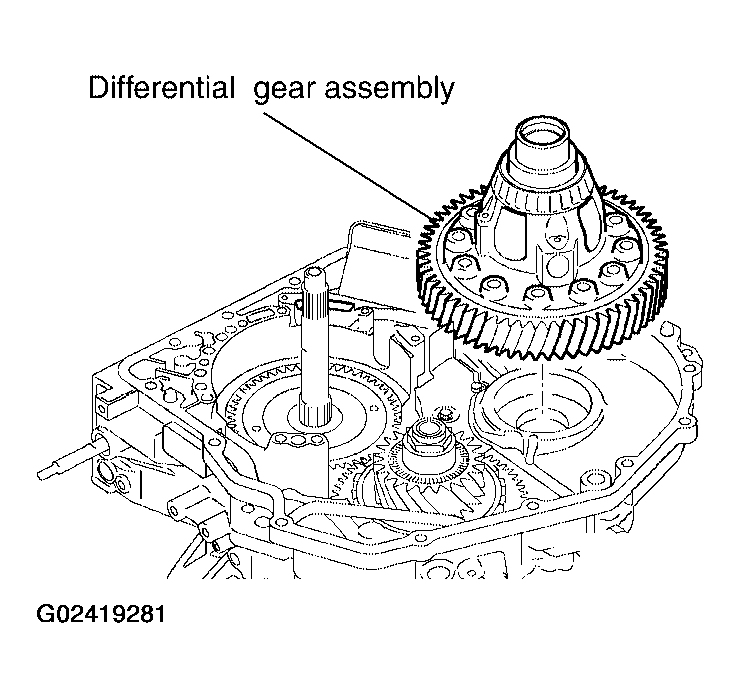

Install differential gear assembly.

Fig 23: Installing Differential Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

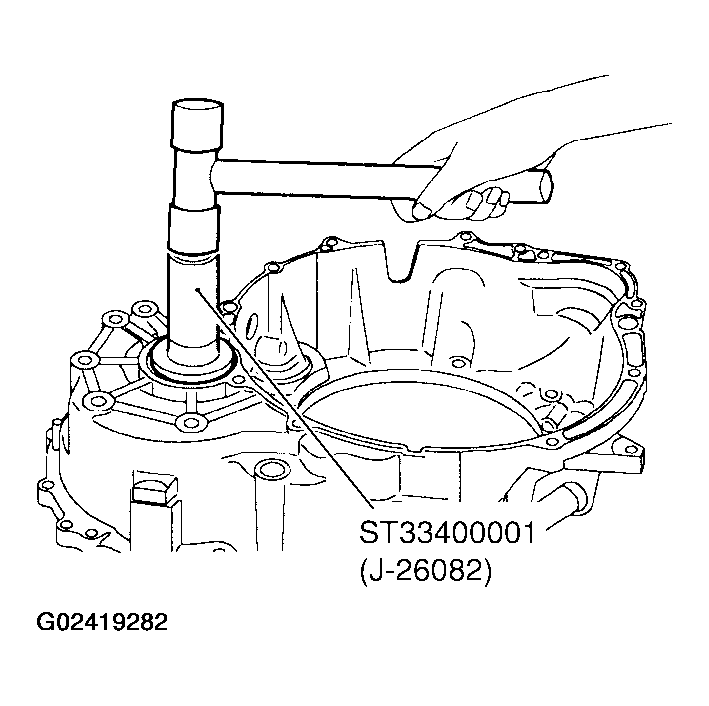

Install new differential side oil seal into transaxle housing as specified using Tool.
Tool number: ST33400001 (J-26082)

Distance: 14.8 - 15.8 mm (0.583 - 0.622 in)
NOTE:
- Do not reuse differential side oil seal.
- Apply ATF to differential side oil seal.

  Fig 24: Installing Differential Side Oil Seal Into Transaxle Housing
  Courtesy of NISSAN MOTOR CO., U.S.A.

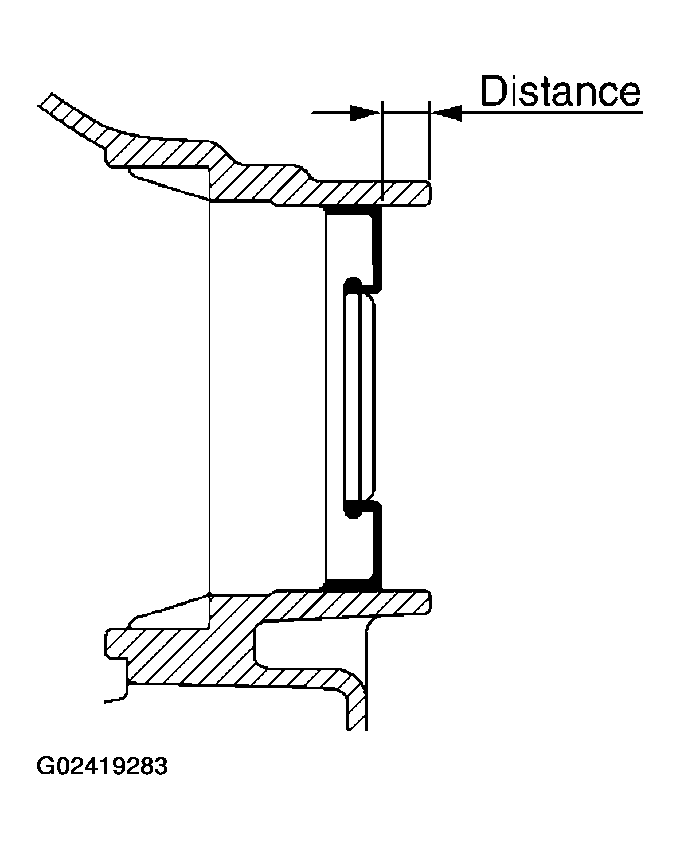

  Fig 25: Identifying Differential Side Oil Seal Clearance
  Courtesy of NISSAN MOTOR CO., U.S.A.

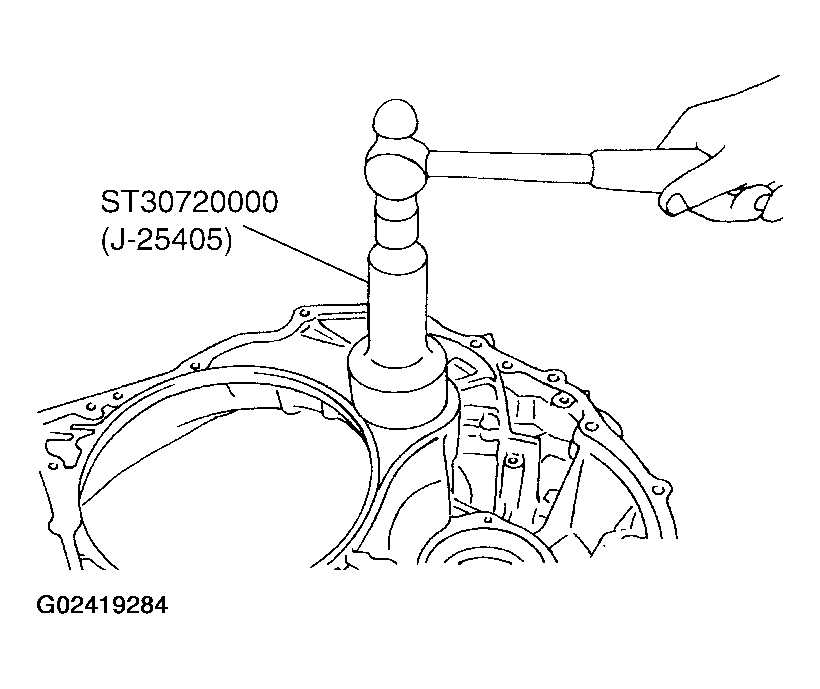

Install new thrust roller bearing in transaxle housing using Tool.
Tool number: ST30720000 (J-25405)

NOTE: Do not reuse thrust roller bearing.

Fig 26: Installing Thrust Roller Bearing In Transaxle Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

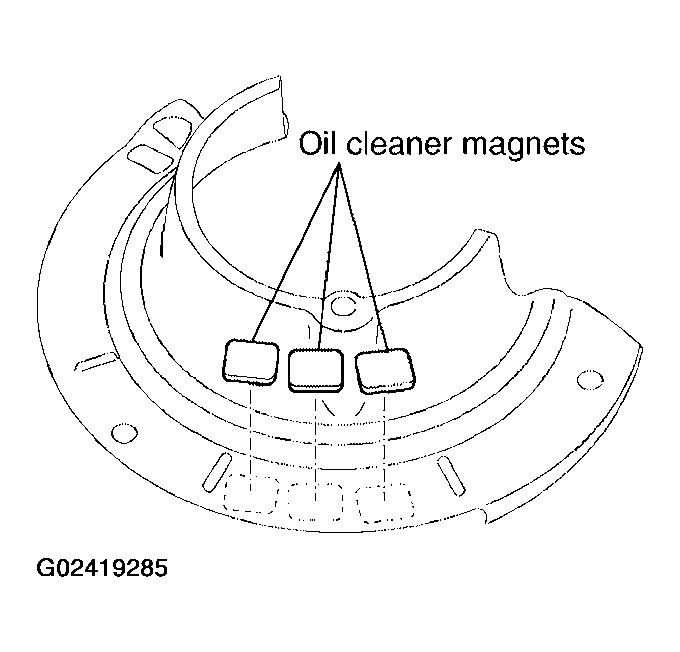

Install oil cleaner magnets on oil reservoir plate.

Fig 27: Installing Oil Cleaner Magnets On Oil Reservoir Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil reservoir plate in transaxle housing.
Tighten oil reservoir plate bolts to specified torque. Refer to COMPONENTS .

Fig 28: Installing Oil Reservoir Plate In Transaxle Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

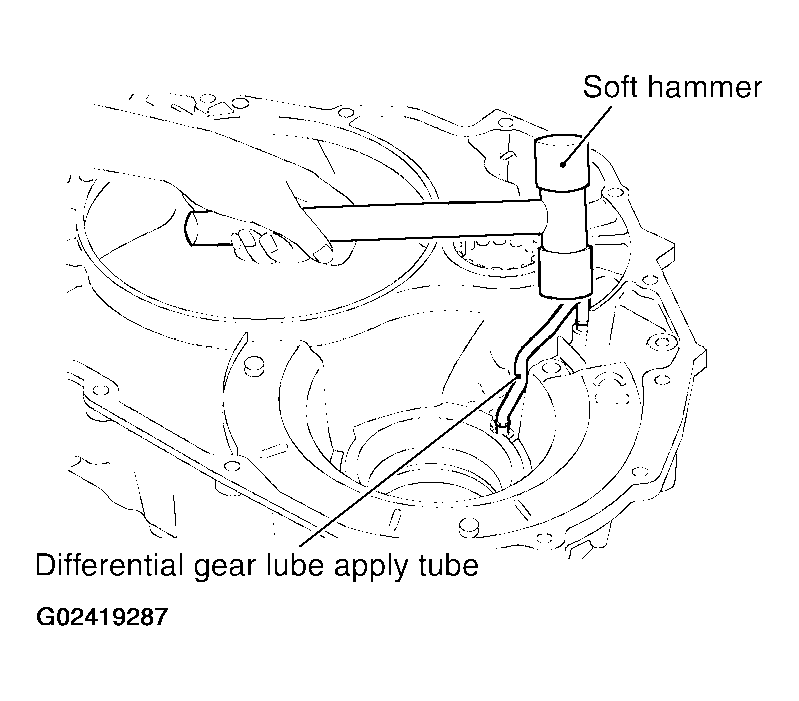

Install differential gear lube apply tube using a soft hammer.
CAUTION: Be careful not to bend or damage differential gear lube apply tube.

Fig 29: Installing Differential Gear Lube Apply Tube
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten tube clamp bolt to specified torque. Refer to COMPONENTS .

Fig 30: Tightening Tube Clamp Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

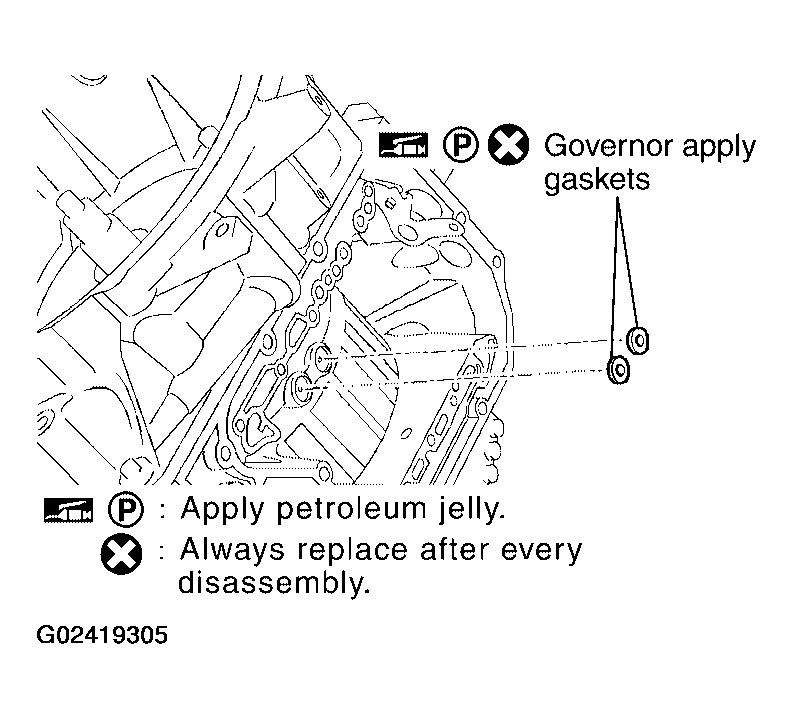

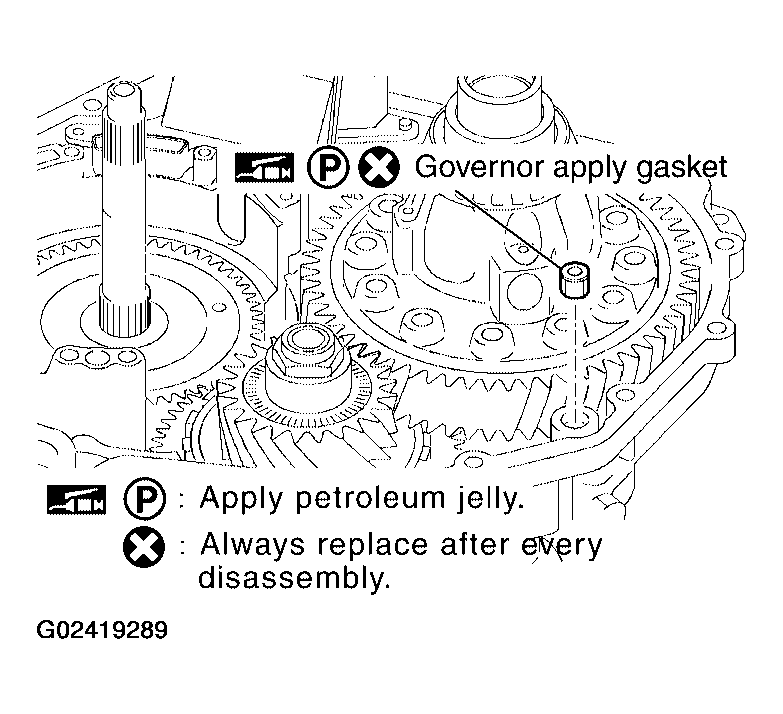

Install new governor apply gasket.
NOTE:
- Do not reuse governor apply gasket.
- Apply petroleum jelly to governor apply gasket.
Install new seal ring.
NOTE:
- Do not reuse seal ring.
- Apply ATF to seal ring.

  Fig 31: Installing Seal Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.

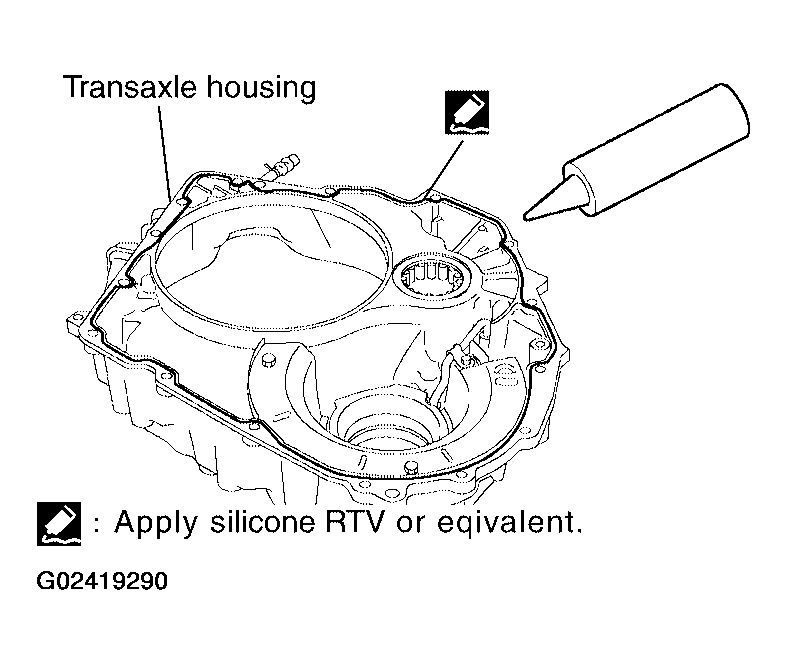

Apply silicone RTV to transaxle housing as shown. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
CAUTION: Complete remove all moisture, oil and sealant, etc. From transaxle housing and transaxle case.

Fig 32: Applying Silicone RTV To Transaxle Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install transaxle housing in transaxle case.

Fig 33: Installing Transaxle Housing In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

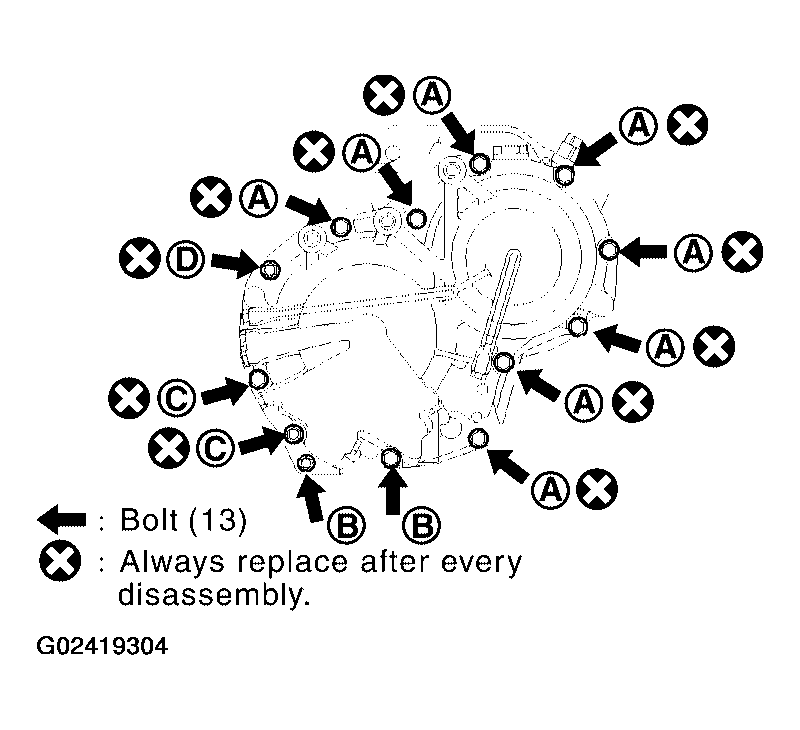

Tighten transaxle housing bolts to specified torque. Refer to COMPONENTS .

NOTE: Do not reuse seal bolt.

BOLT SYMBOL SPECIFICATION

Bolt symbol

Length mm (in)

Number of bolts

30 (1.18)

35 (1.38)

45 (1.77)

D⁽¹⁾

⁽¹⁾

Torx bolt

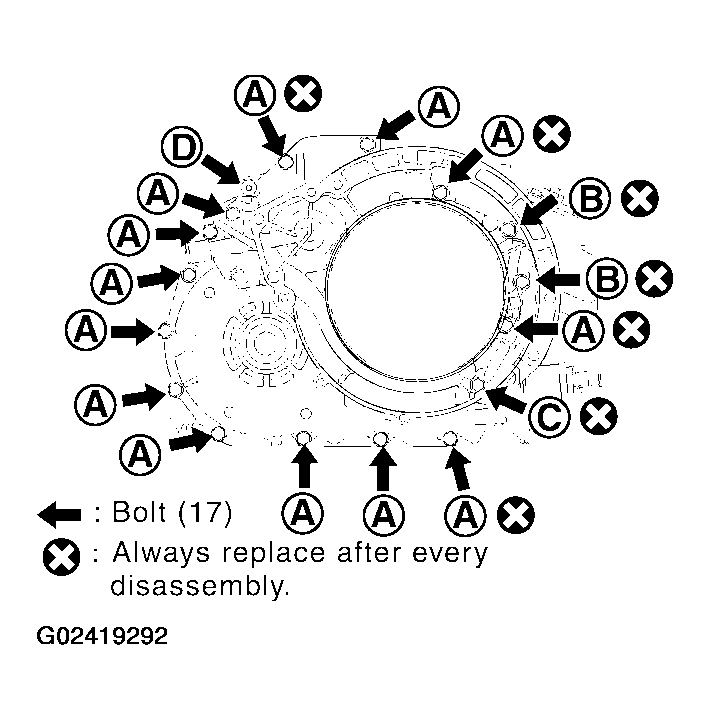

Fig 34: Tightening Transaxle Housing Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

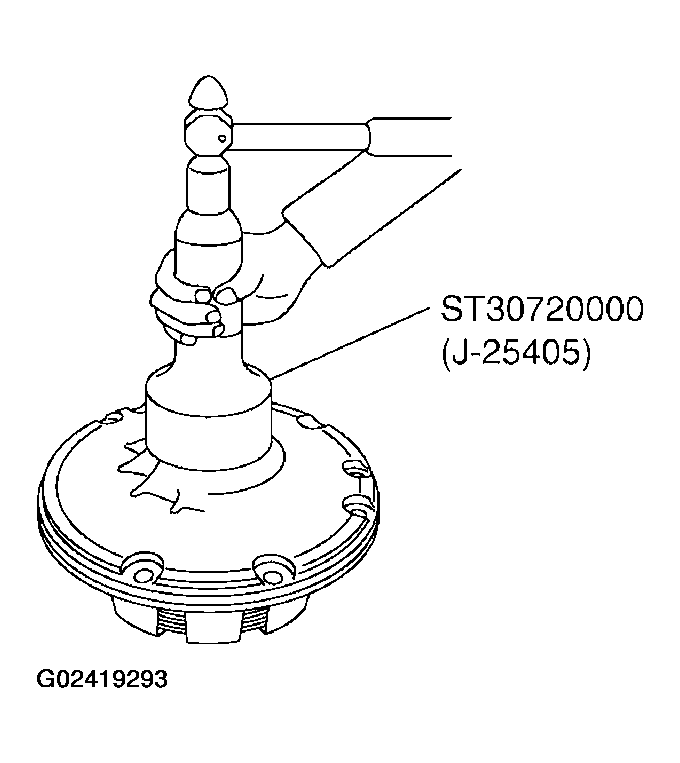

Install new oil seal into oil pump assembly until it is flush with oil pump face using Tool.
Tool number: ST30720000 (J-25405)
NOTE:
- Do not reuse oil seal.
- Apply ATF to oil seal.

  Fig 35: Installing Oil Seal Into Oil Pump Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

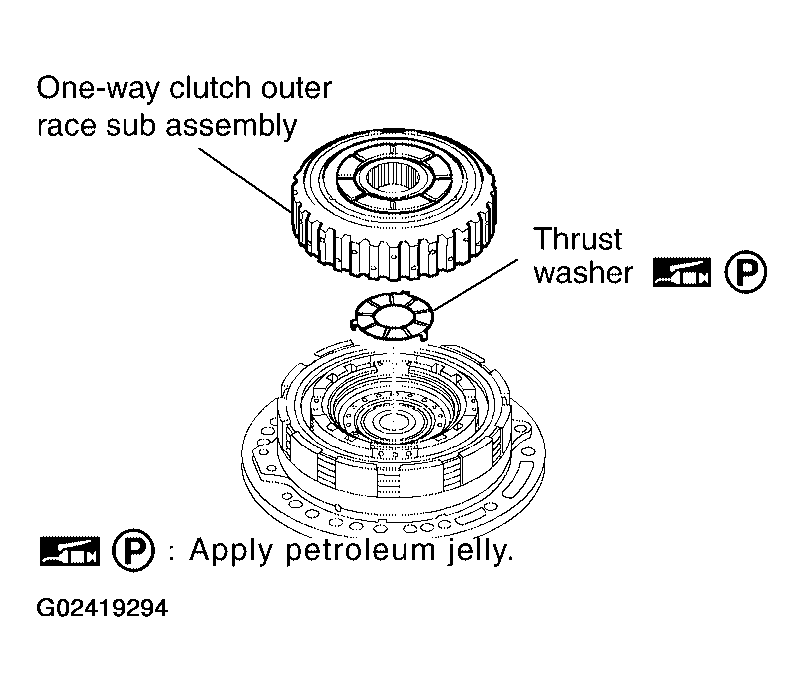

Install thrust washer and one-way clutch outer race sub assembly in oil pump assembly.
NOTE: Apply petroleum jelly to thrust washer.

Fig 36: Applying Petroleum Jelly To Thrust Washer
Courtesy of NISSAN MOTOR CO., U.S.A.

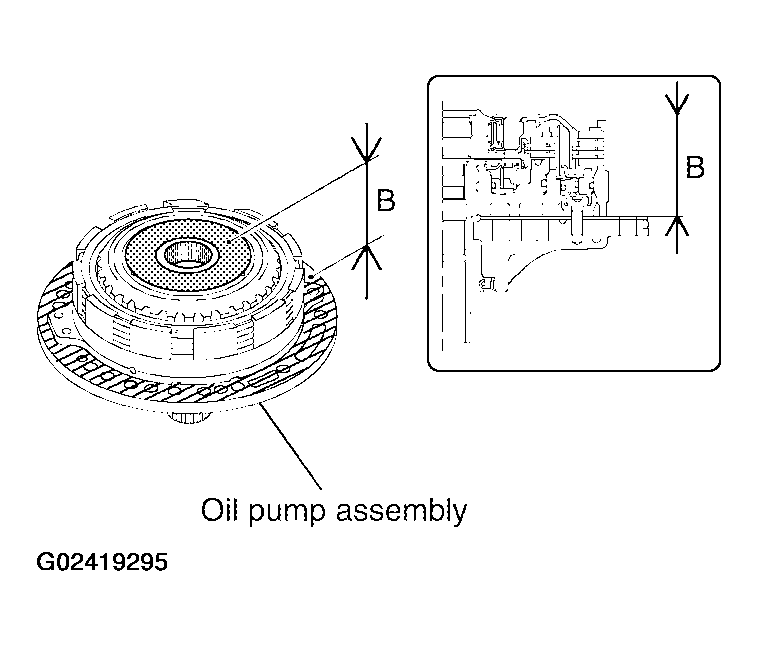

Check the distance of "B".
"B": 51.09 - 51.71 mm (2.0114 - 2.0358 in)

CAUTION: If the distance is out of standards, adjust within standards again.

Fig 37: Checking Distance Of "B"
Courtesy of NISSAN MOTOR CO., U.S.A.

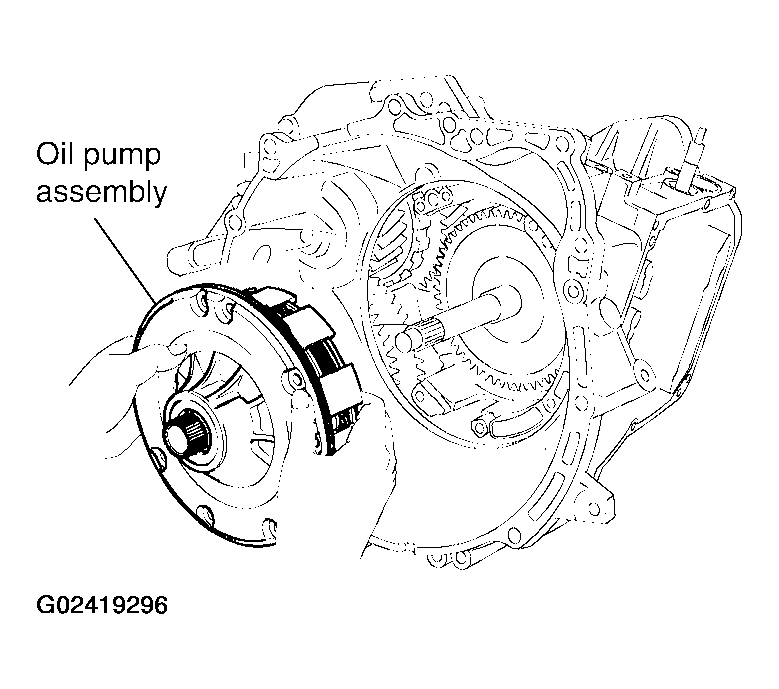

Place oil pump assembly through the input shaft in horizontal position, and align the bolt holes of the oil pump assembly with transaxle case. Lightly press oil pump assembly.
CAUTION: Be careful not to drop one-way clutch outer race sub assembly.

Fig 38: Placing Oil Pump Assembly Through Input Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

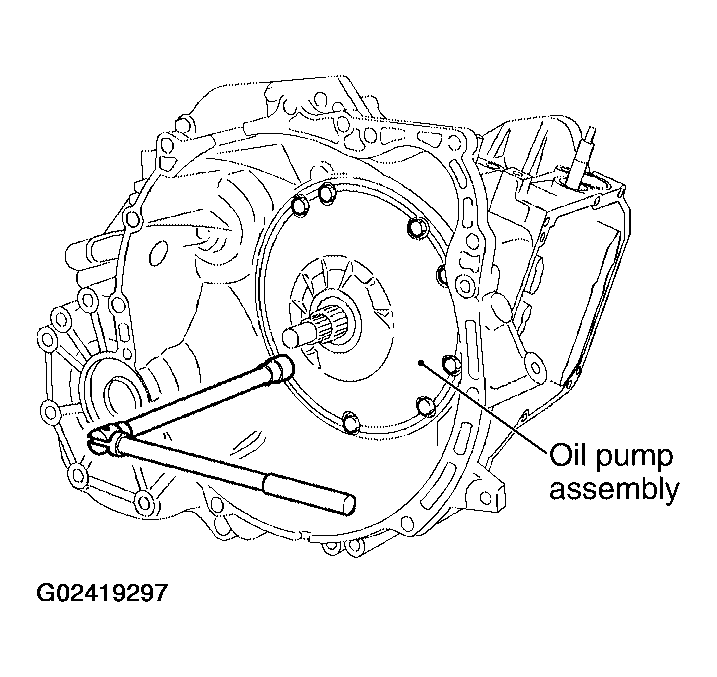

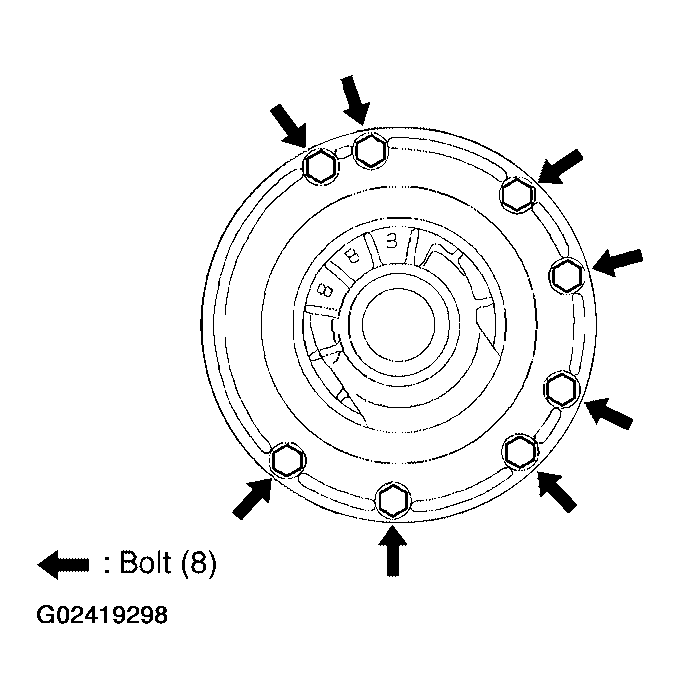

Tighten oil pump assembly bolts to specified torque. Refer to COMPONENTS .

Fig 39: Tightening Oil Pump Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 40: Tightening Oil Pump Assembly Bolts In Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.

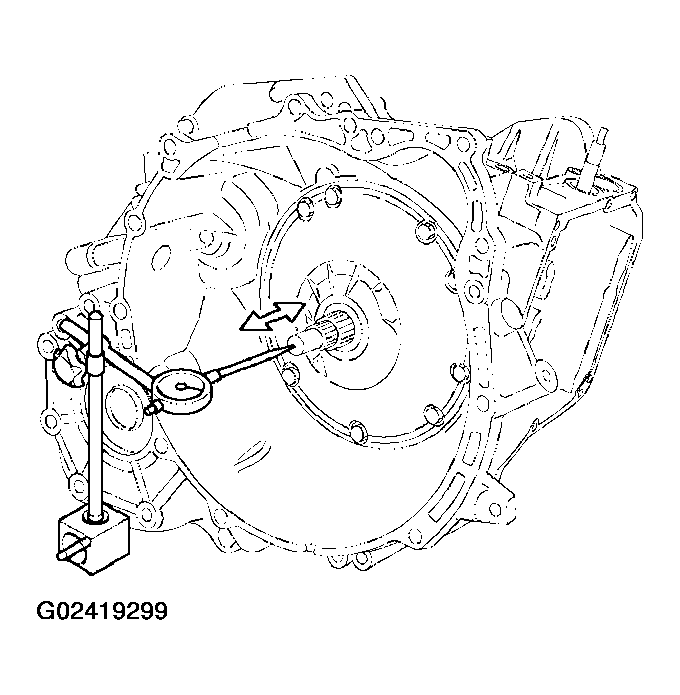

Set a dial indicator as shown, move the input shaft and measure the end play.
End play: 0.188 - 0.570 mm (0.0074 - 0.00224 in)

Fig 41: Measuring Input Shaft End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

If end play is out of standards, select another thrust bearing race. Refer to FORWARD AND DIRECT CLUTCH ASSEMBLY .

Fig 42: Installing Thrust Bearing Race
Courtesy of NISSAN MOTOR CO., U.S.A.

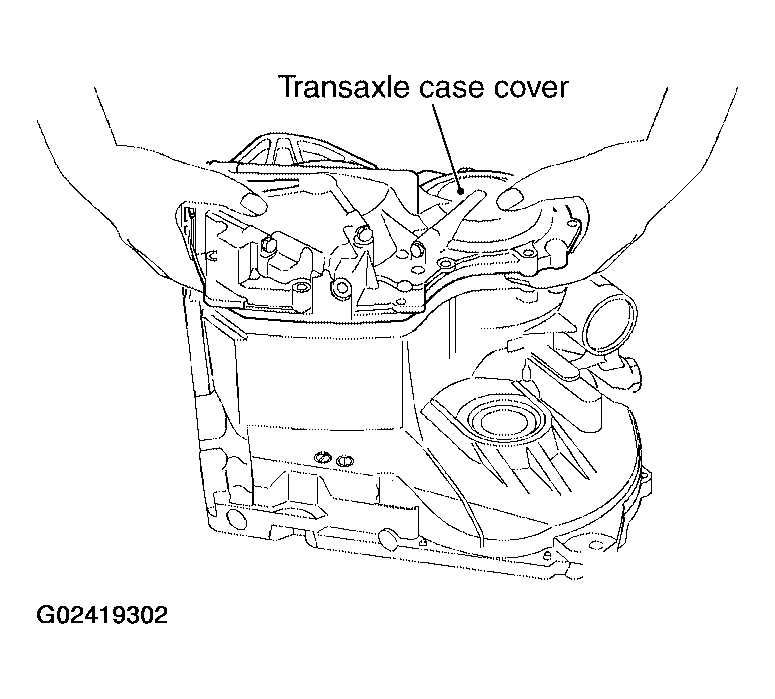

Remove transaxle case cover.

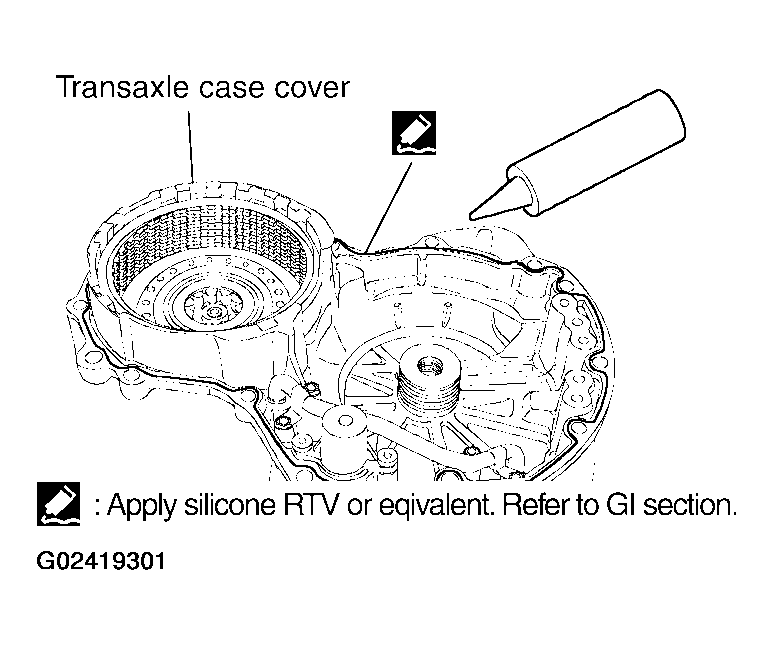

Apply silicone RTV to transaxle case cover as shown in illustration. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

Fig 43: Applying Silicone RTV To Transaxle Case Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Install transaxle case cover in transaxle case.

Fig 44: Installing Transaxle Case Cover In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten transaxle case cover bolts to specified torque. Refer to COMPONENTS .

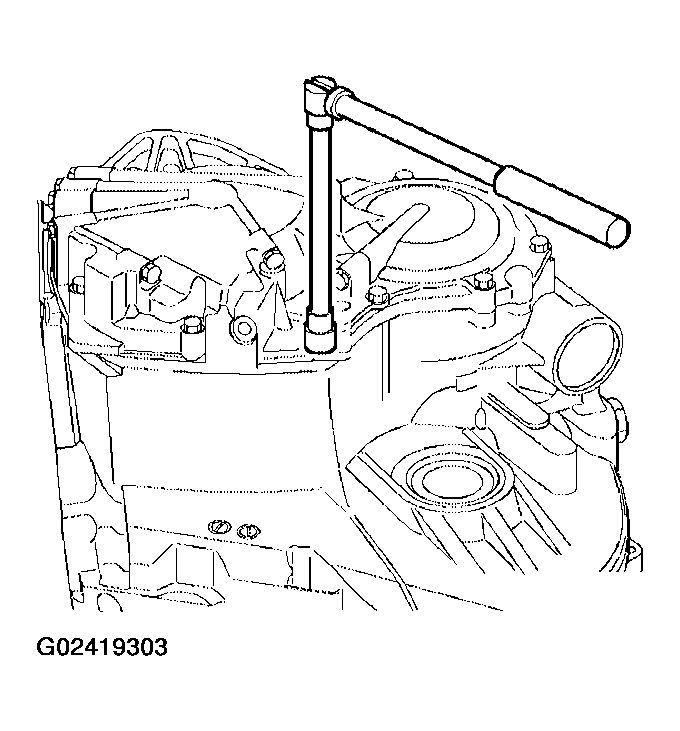

Fig 45: Tightening Transaxle Case Cover Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse seal bolts.

BOLT SYMBOL SPECIFICATION

Bolt symbol

Length mm (in)

Number of bolts

30 (1.18)

45 (1.77)

48 (1.89)

D⁽¹⁾

⁽¹⁾

Stud bolt

Fig 46: Tightening Transaxle Case Cover Bolts In Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Install new governor apply gasket.
NOTE:
- Do not reuse governor apply gaskets.
- Apply petroleum jelly to governor apply gaskets.

  Fig 47: Installing Governor Apply Gasket
  Courtesy of NISSAN MOTOR CO., U.S.A.

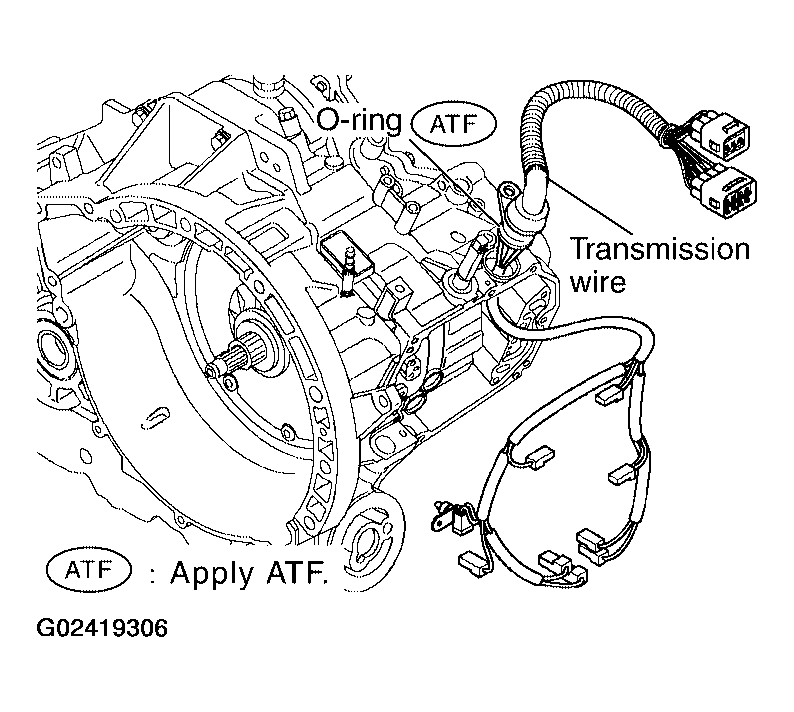

Install terminal cord assembly.
CAUTION:
- Be careful not to break the solenoid connector and A/T fluid temperature sensor.
NOTE: Apply ATF to O-ring.

Fig 48: Applying ATF To O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

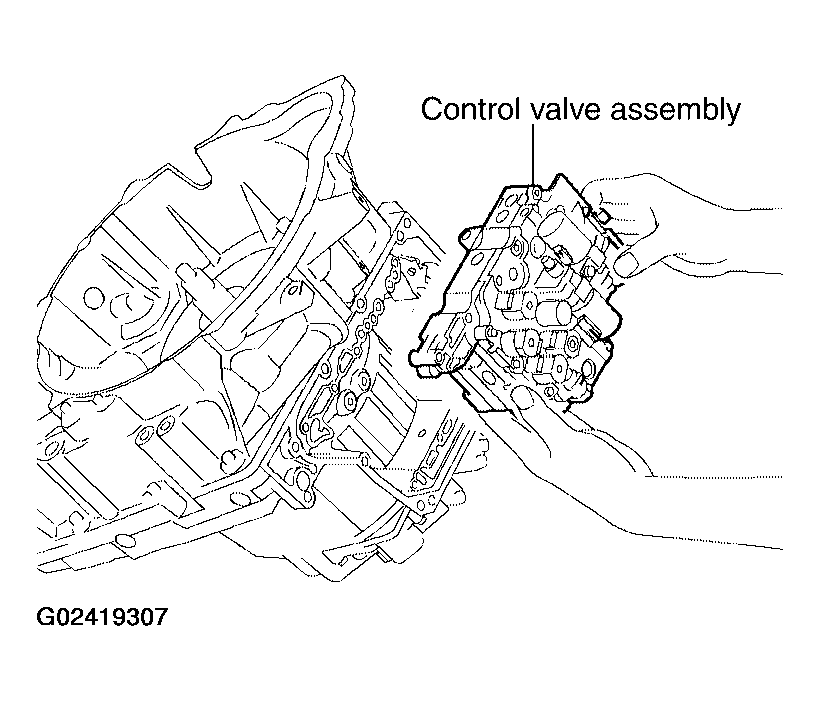

While holding control valve assembly, connect the parking lock rod sub assembly to manual valve lever sub assembly.
NOTE: Shift position is "N".

Fig 49: Holding Control Valve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

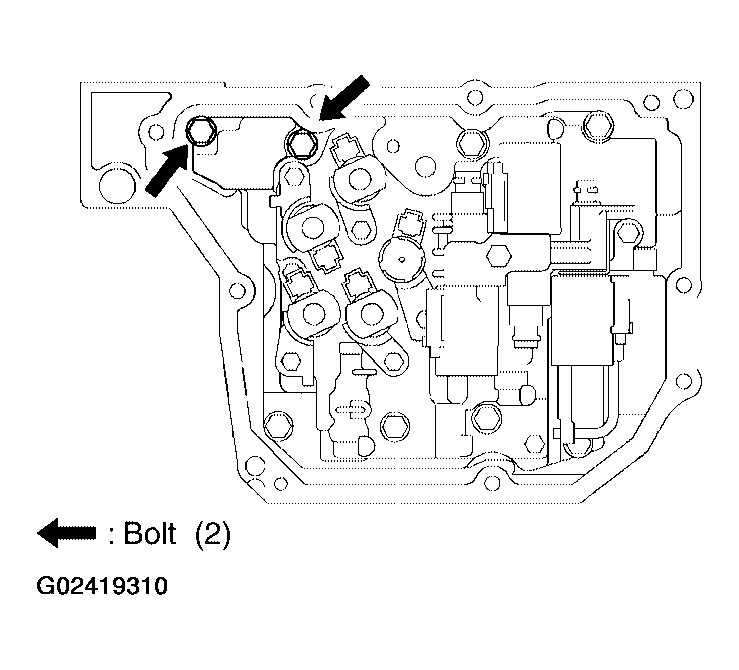

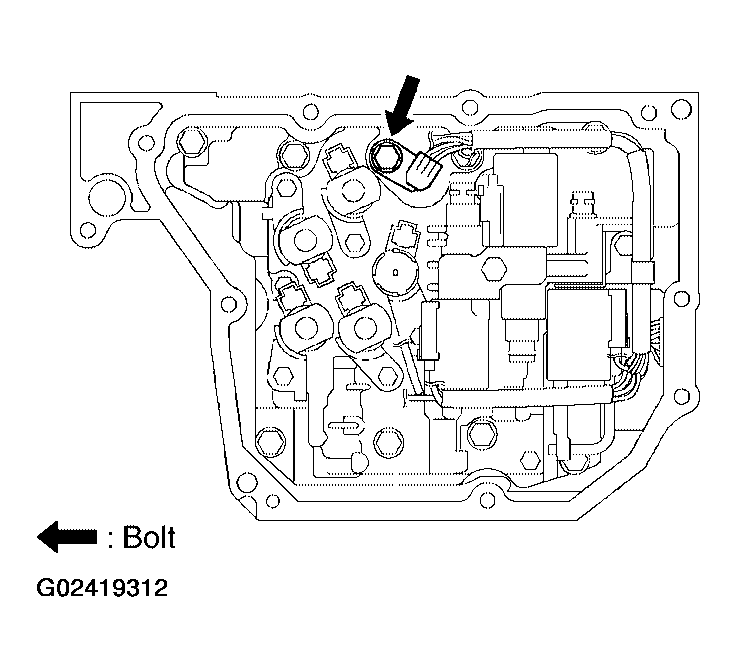

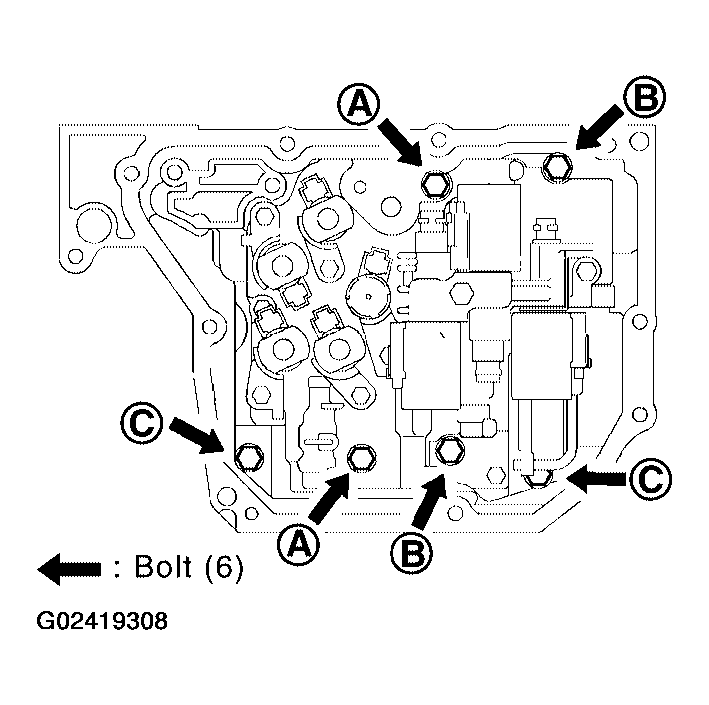

Tighten control valve assembly bolts to specified torque. Refer to COMPONENTS .

BOLT SYMBOL SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	55 (2.17)	2
B	50 (1.97)	2
C	16 (0.63)	2

Fig 50: Tightening Control Valve Assembly Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

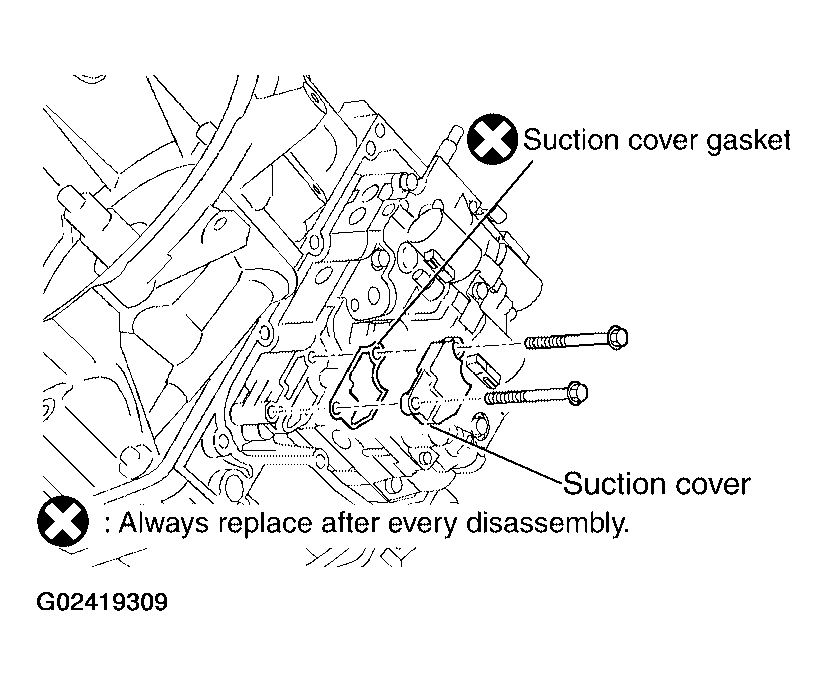

Install suction cover and new suction cover gasket in control valve assembly.
NOTE: Do not reuse suction cover gasket.

Fig 51: Installing Suction Cover & New Suction Cover Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten new suction cover gasket and suction cover bolts to specified torque. Refer to COMPONENTS .

Fig 52: Tightening Suction Cover Gasket & Suction Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

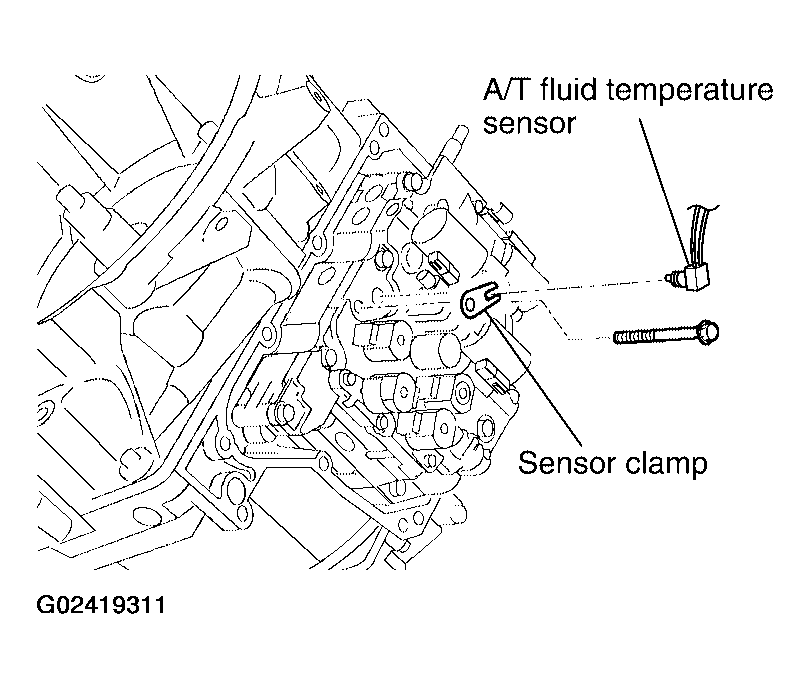

Install sensor clamp and A/T fluid temperature sensor in control valve assembly.

Fig 53: Installing Sensor Clamp & A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten sensor clamp bolts to specified torque. Refer to COMPONENTS .

Fig 54: Tightening Sensor Clamp Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

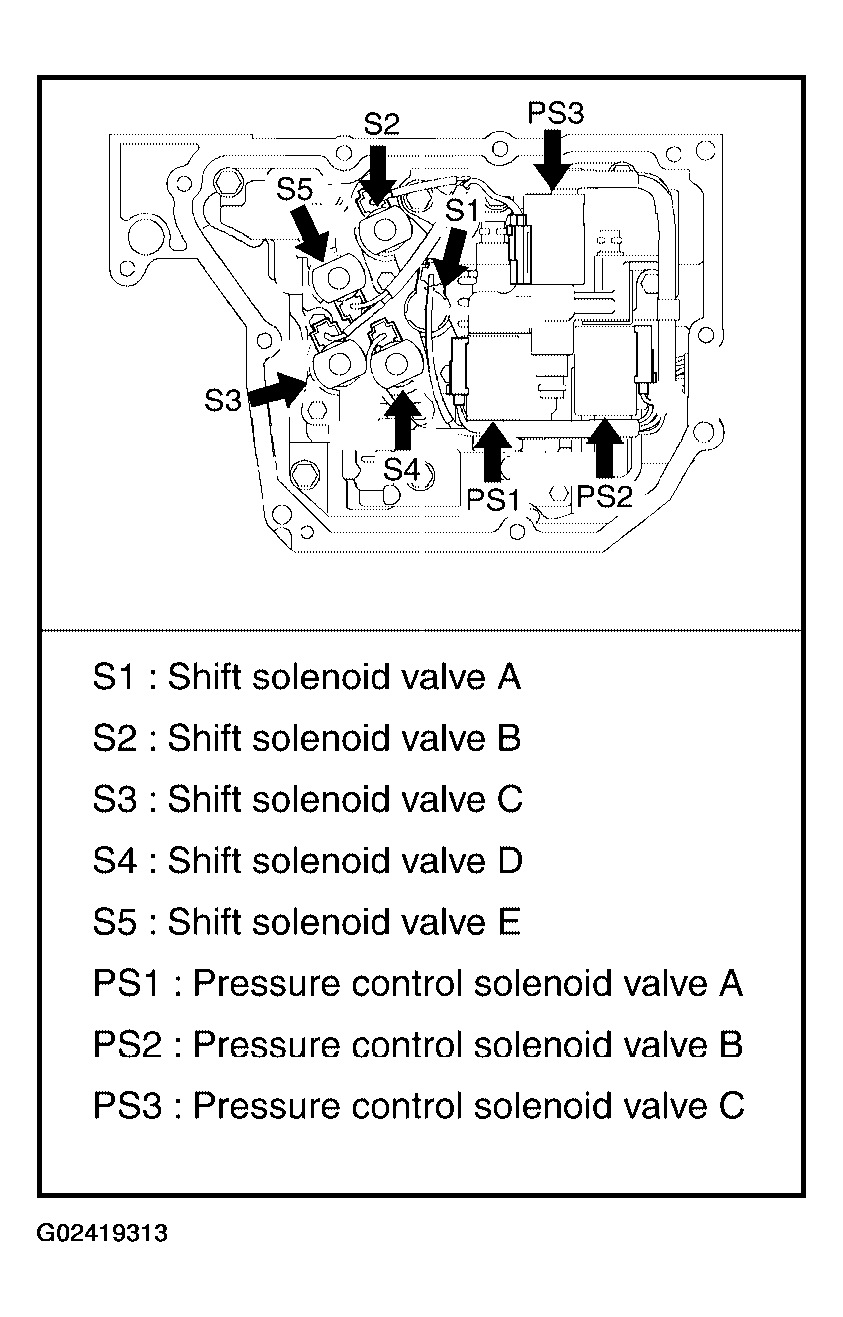

Connect the solenoid connectors.

Fig 55: Connecting Solenoid Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

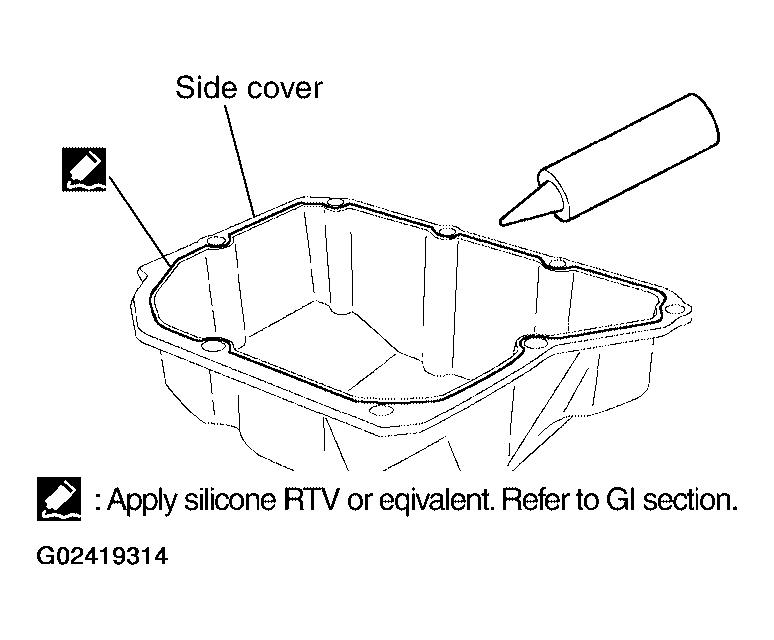

Apply silicone RTV to side cover as shown. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
CAUTION: Complete remove all moisture, oil and sealant, etc. From side cover and transaxle case.

Fig 56: Applying Silicone RTV To Side Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Install side cover in transaxle case.

Fig 57: Installing Side Cover In Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

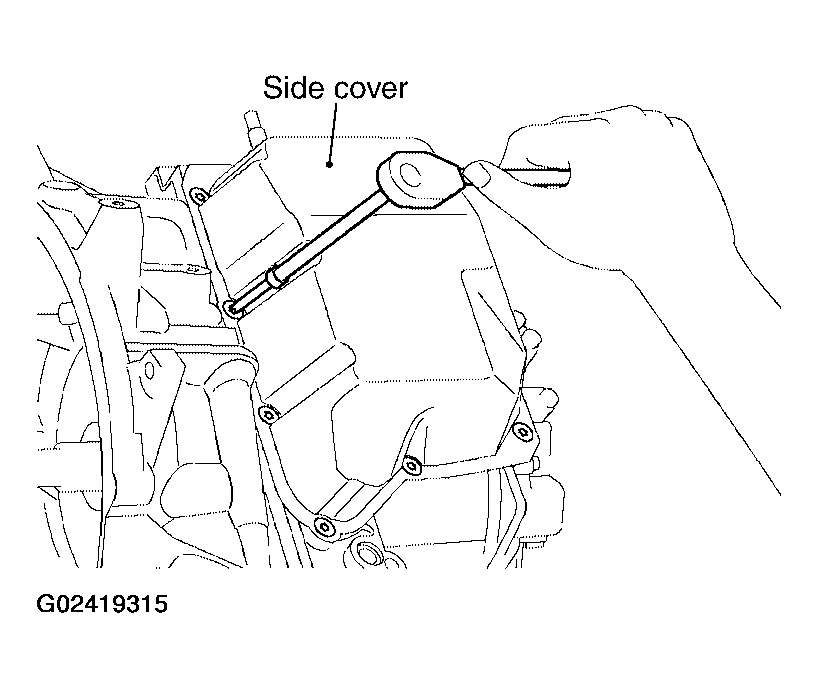

Tighten side cover torx bolts to specified torque. Refer to COMPONENTS .
NOTE: Do not reuse seal bolt.

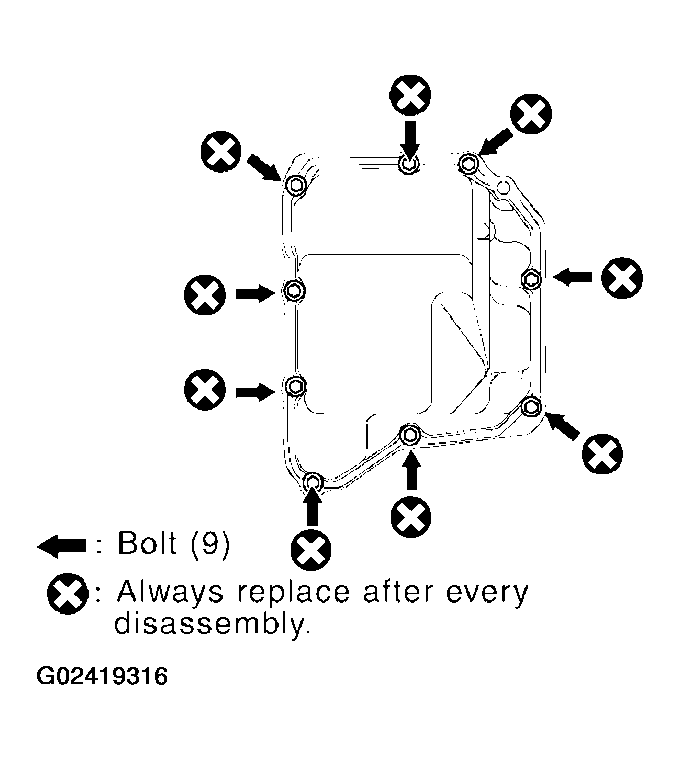

Fig 58: Tightening Side Cover Torx Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

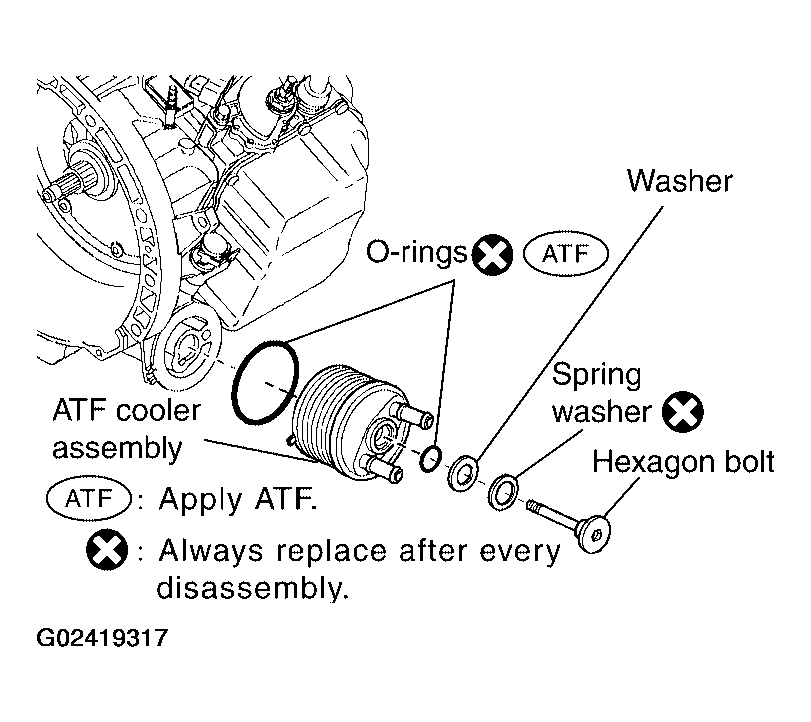

Install new O-rings in ATF cooler assembly.
NOTE:
- Do not reuse O-rings.
- Apply ATF to O-rings.

  Fig 59: Installing O-Rings In ATF Cooler Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install ATF cooler assembly, washer and new spring washer.
CAUTION: Do not reuse spring washer.
Tighten hexagon bolt specified torque. Refer to COMPONENTS .

Fig 60: Tightening Hexagon Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

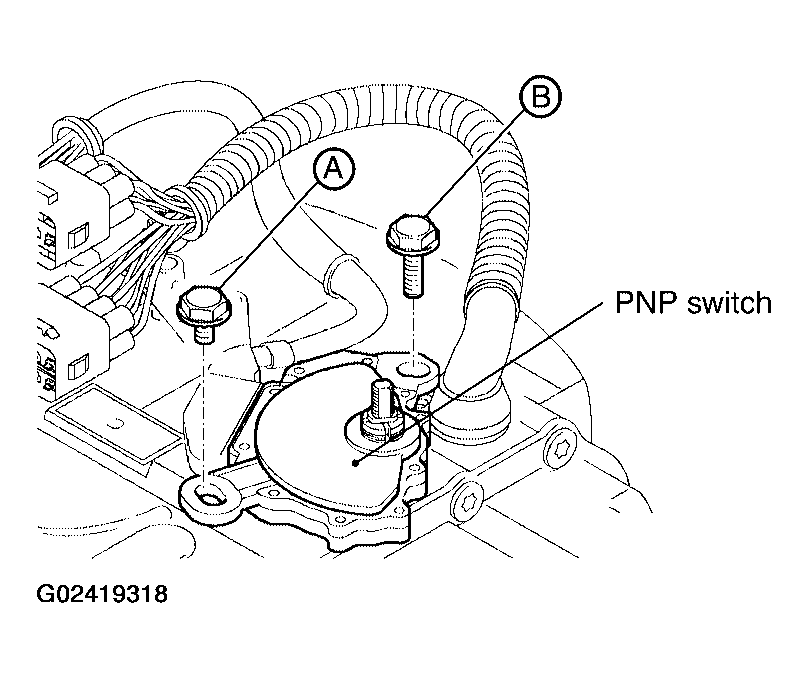

Install PNP switch to manual valve lever sub assembly.

Temporary tightening the bolts.

BOLT SYMBOL SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	20 (0.79)	1
B	33 (1.30)	1

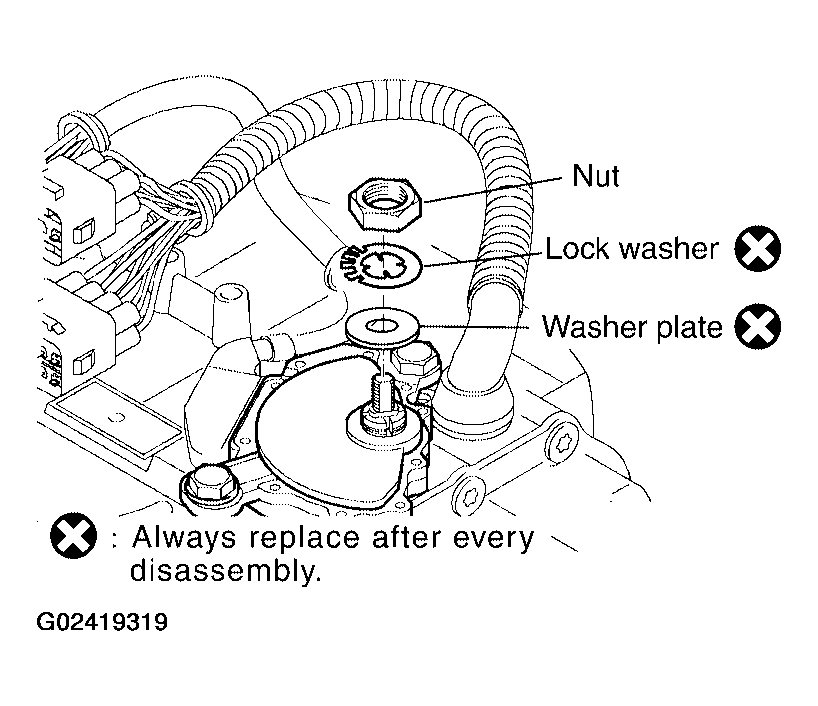

Install washer plate and lock washer.
NOTE: Do not reuse washer plate and lock washer.
Tighten nut specified torque. Refer to COMPONENTS .

Fig 61: Installing Washer Plate And Lock Washer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install Tool.
Tool number: - (J45404)

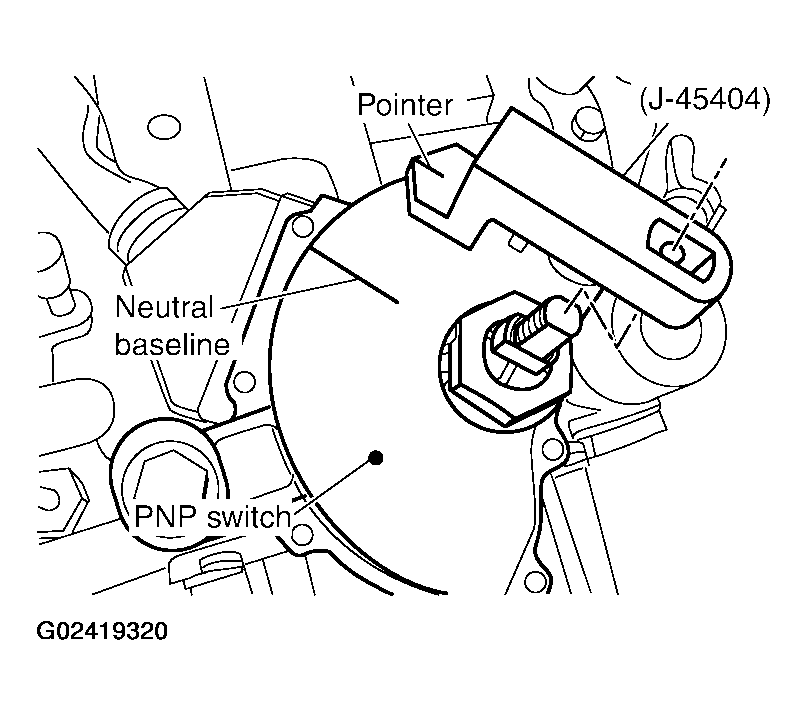

Adjust PNP switch so that Tool pointer aligns with neutral base line on PNP switch body.

Fig 62: Adjusting PNP Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

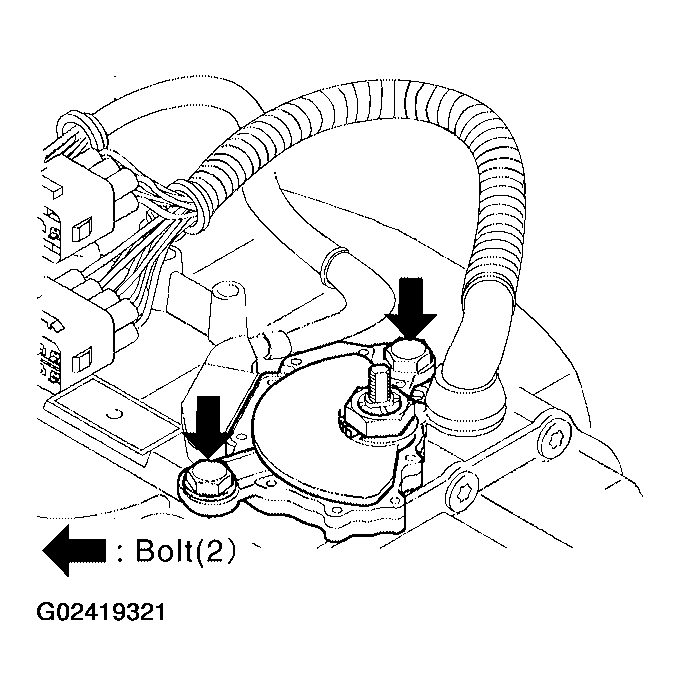

Tighten PNP switch bolts to specified torque. Refer to COMPONENTS .

Fig 63: Tightening PNP Switch Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

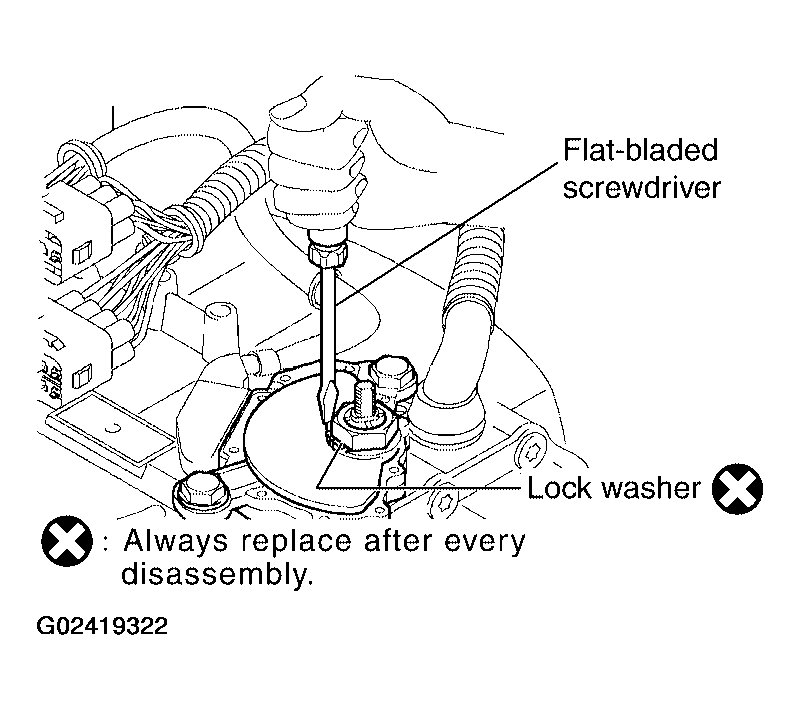

Bend the lock washer using a flat-bladed screwdriver.

Fig 64: Bending Lock Washer Using Flat-Bladed Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.

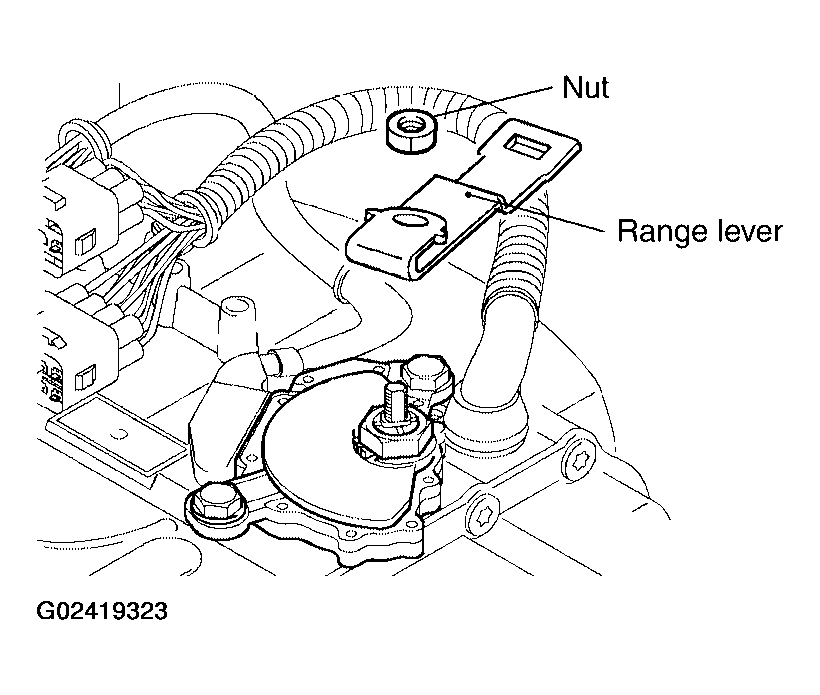

Install range lever in manual valve lever sub assembly.
Tighten range lever nut to specified torque. Refer to COMPONENTS .

Fig 65: Installing Range Lever In Manual Valve Lever Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install turbine revolution sensor in transaxle case.
Tighten turbine revolution sensor bolt to specified torque. Refer to COMPONENTS .
NOTE:
- Do not reuse seal bolt.
- Apply ATF to O-ring.

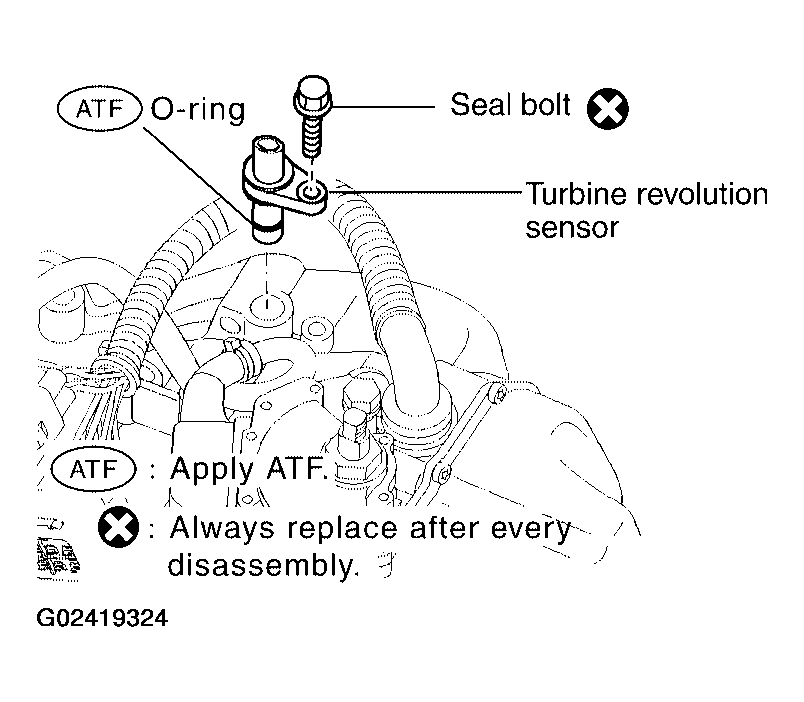

  Fig 66: Applying ATF To O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.

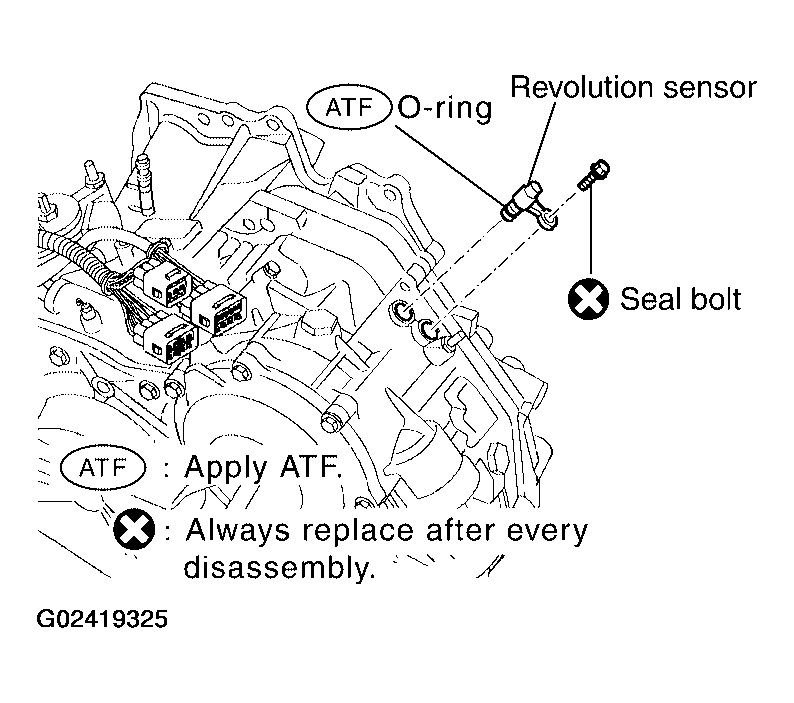

Install revolution sensor in transaxle case.
Tighten revolution sensor bolt to specified torque. Refer to COMPONENTS .
NOTE:
- Do not reuse seal bolt.
- Apply ATF to O-ring.

  Fig 67: Applying ATF To O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-ring in A/T fluid charging pipe.
NOTE:
- Do not reuse O-ring.
- Apply petroleum jelly to O-ring.
Install A/T fluid charging pipe in transaxle housing.
Install A/T fluid cooler tube.
NOTE: Do not reuse copper washer.
Tighten A/T fluid cooler tube union to specified torque. Refer to COMPONENTS .

Fig 68: Tightening A/T Fluid Cooler Tube Union
Courtesy of NISSAN MOTOR CO., U.S.A.
Install air breather hose.

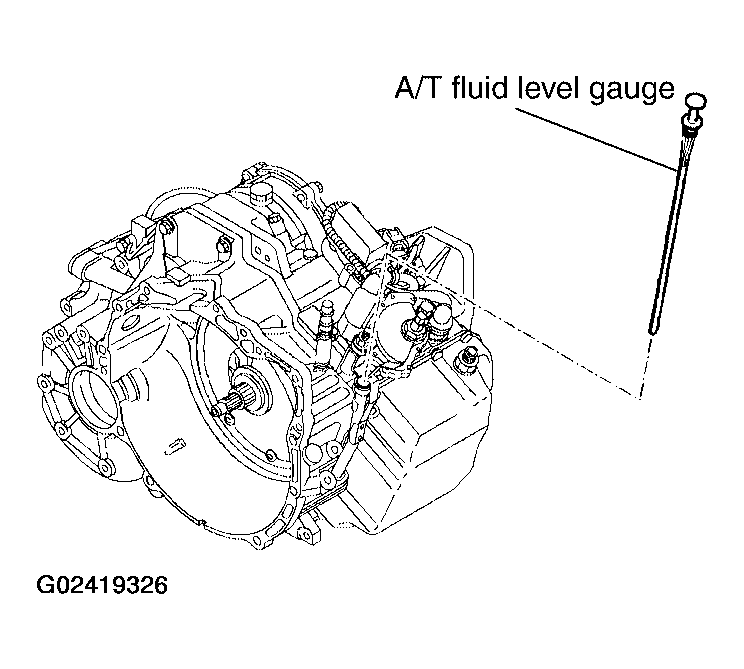

Install A/T fluid level gauge.
Install drain plug in transaxle housing.
Tighten drain plug to specified torque. Refer to COMPONENTS .
NOTE: Do not reuse drain plug gasket.
Install torque converter.

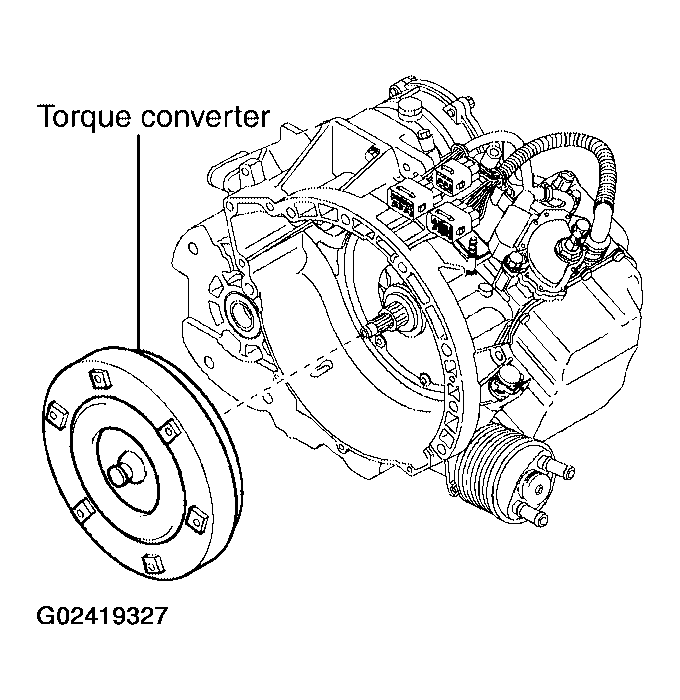

Fig 69: Installing Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the dimension of "C".
Dimension "C": 14.0 mm (0.55 in)

CAUTION: If the distance is out of standards, adjust within standards again.

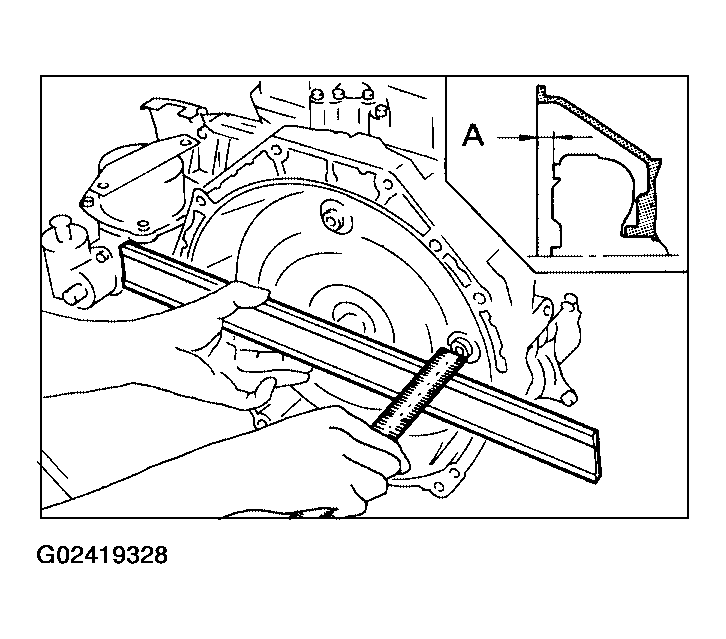

Fig 70: Checking Dimension Of "C"
Courtesy of NISSAN MOTOR CO., U.S.A.
