Adjust Preload Of Tapered Roller Bearing

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Install adjust shim and outer race in transaxle case using Tool.
Tool number: KV40100621 (J-25273)

: ST30022000 ( - )

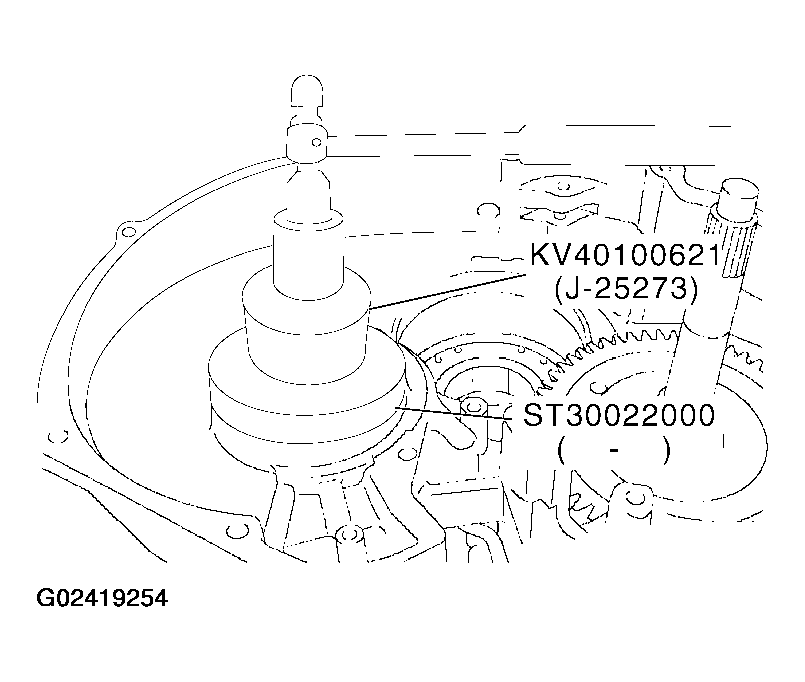

Fig 1: Installing Adjust Shim & Outer Race In Transaxle Case Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential gear assembly in transaxle case.
Install transaxle housing into transaxle case.

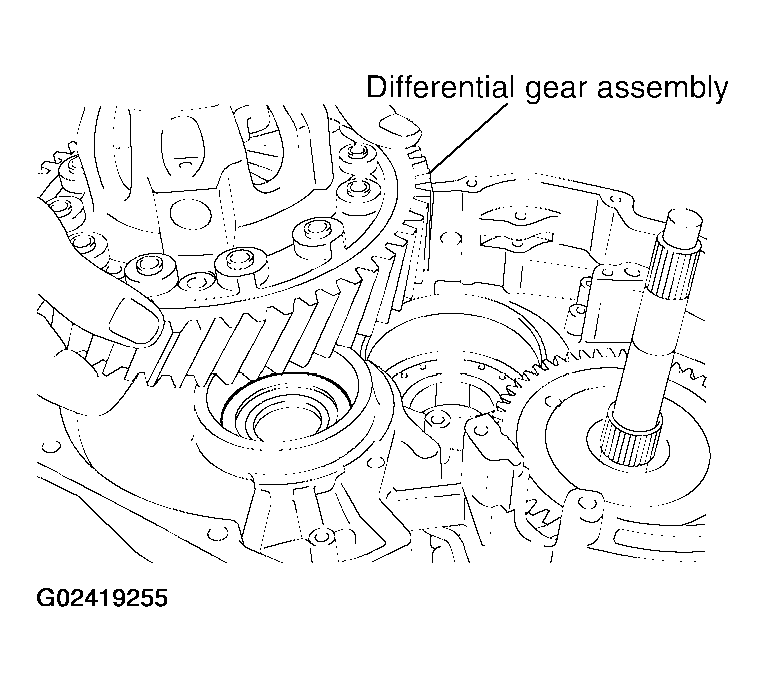

Fig 2: Installing Transaxle Housing Into Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten transaxle housing and transaxle case bolts to specified torque. Refer to COMPONENTS .

CAUTION: Use old self-sealing bolts during preload checking and adjustment procedures.

BOLT SYMBOL SPECIFICATION

Bolt symbol

Length mm (in)

Number of bolts

30 (1.18)

35 (1.38)

45 (1.77)

D⁽¹⁾

⁽¹⁾

Torx bolt

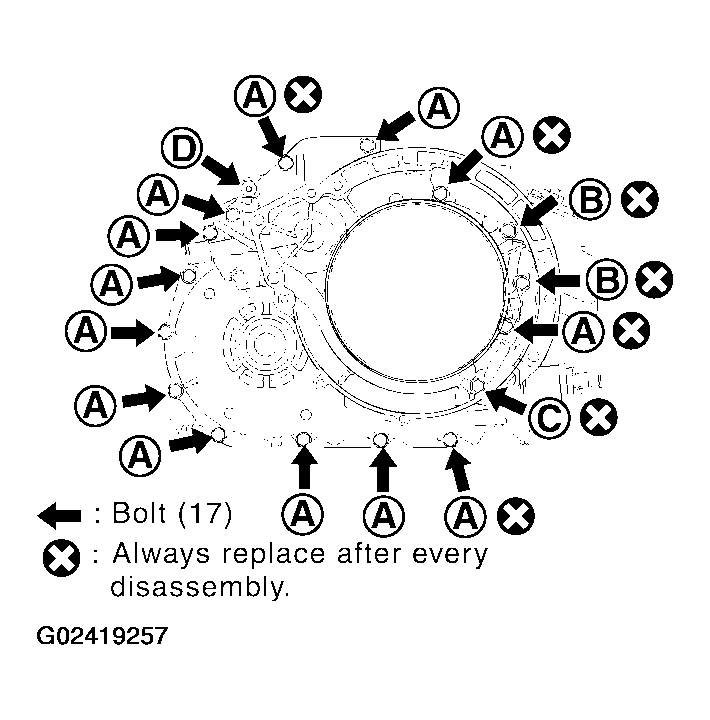

Fig 3: Tightening Transaxle Housing & Transaxle Case Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

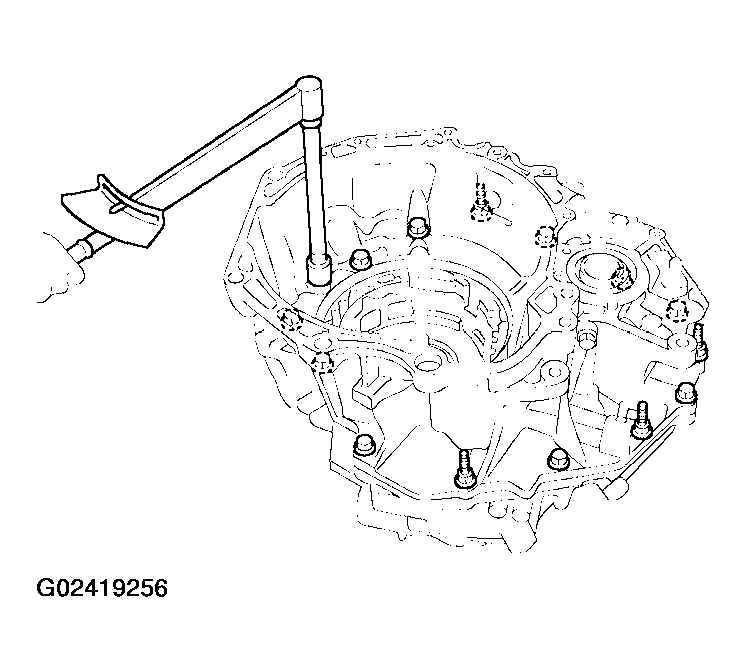

Fig 4: Tightening Transaxle Housing & Transaxle Case Bolts In Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Measure turning torque of differential gear assembly using Tool.
Tool number: KV40102500 (J-28815)

: ST3127S000 (J-25765-A)
Turn differential gear assembly in both directions several times to seat bearing rollers correctly.
Turning torque: 0.7 - 1.2 N.m

(New bearing) (0.08 - 0.12 kg-m, 7 - 10 in-lb)

If the preload is not within specification, remove differential gear assembly from transaxle case. Re-select adjust shim. Refer to DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS .

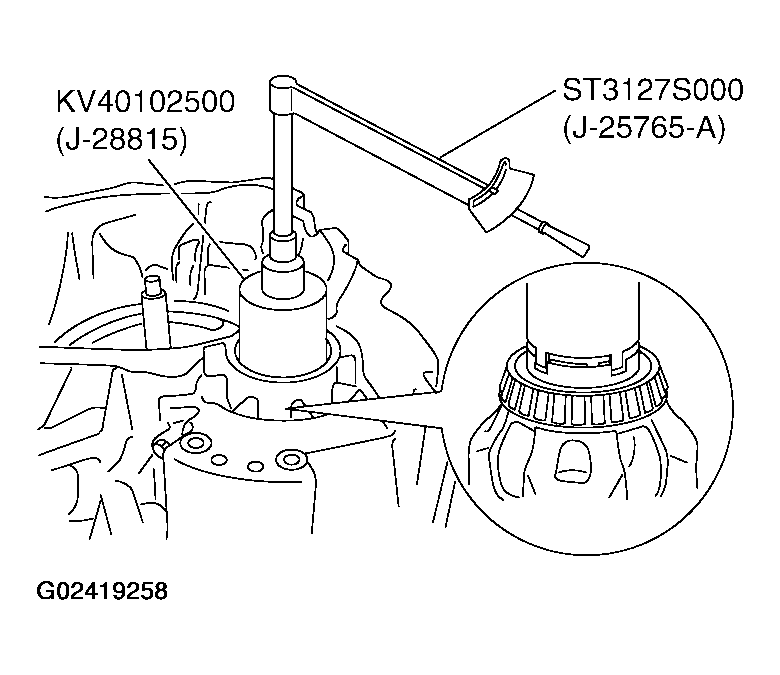

Fig 5: Measuring Turning Torque Of Differential Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
