Wiring Diagram - Shift -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

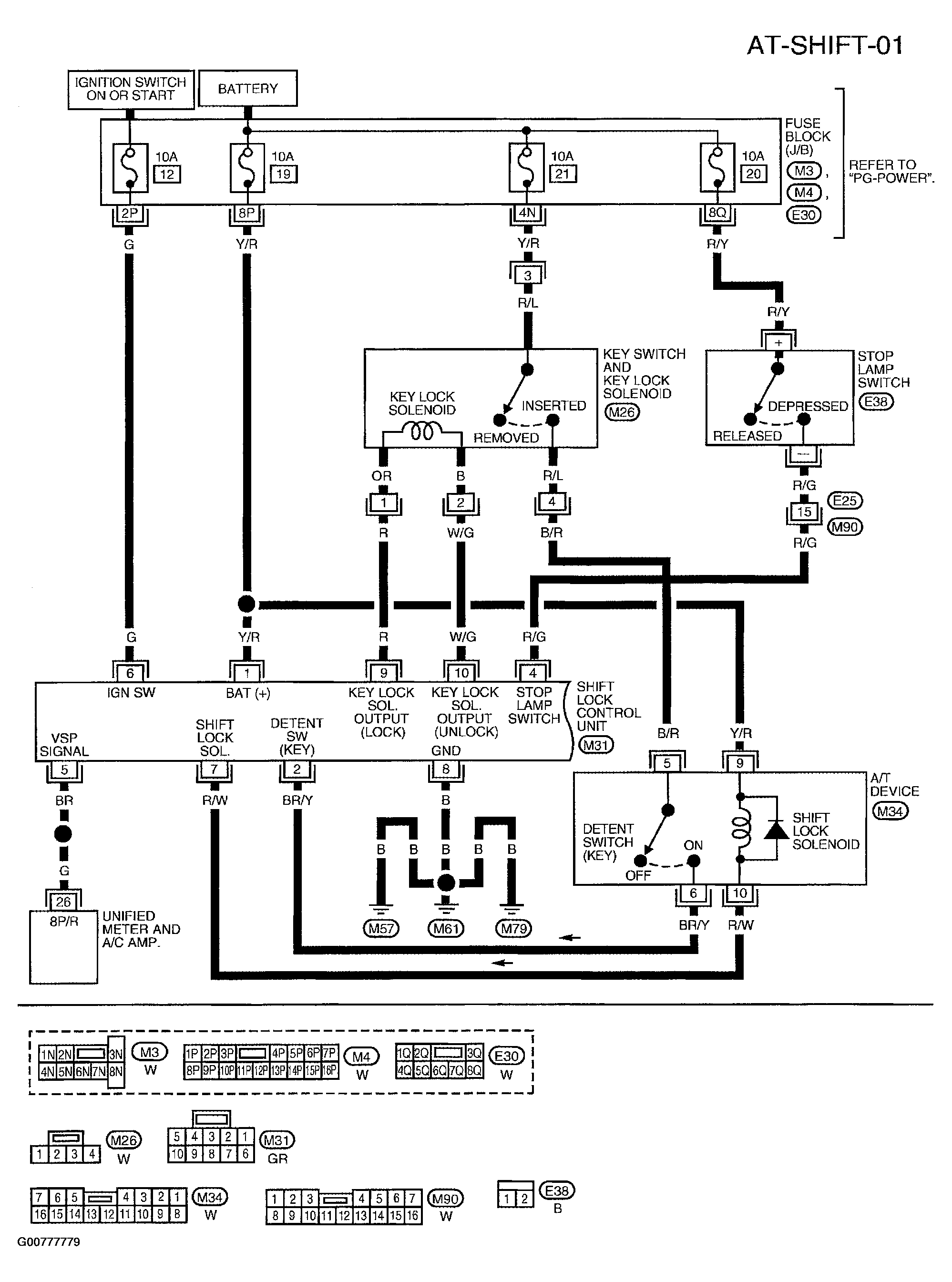

Fig 1: Wiring Diagram - AT-SHIFT-01

Courtesy of NISSAN MOTOR CO., U.S.A.
