6. Detect Malfunctioning Item

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the following items:

3rd position switch M34.
- Check continuity between A/T device (3rd position switch) harness connector M34 terminals 1 (L/W) and 2 (B) with selector lever in 3rd position.
Harness for short or open between meter and 3rd position switch
Harness of ground circuit for 3rd position switch for short or open

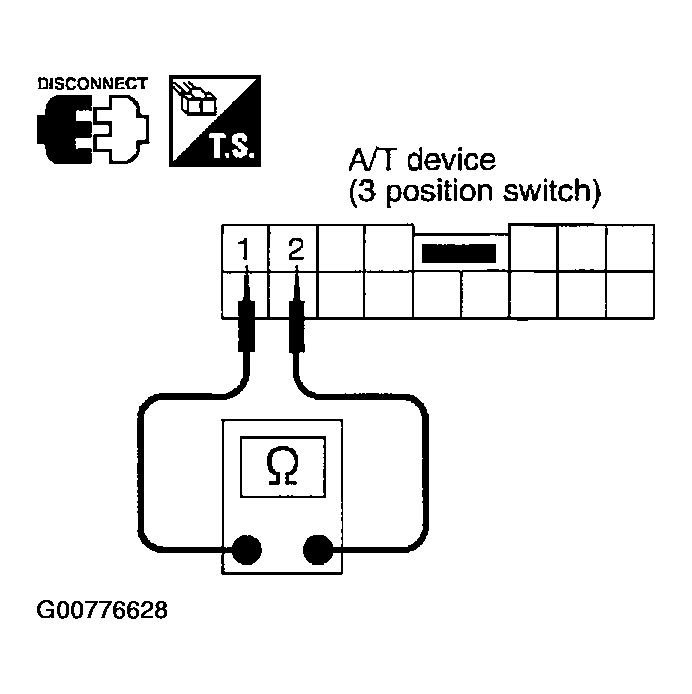

Fig 1: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 7.
NG : Repair or replace damaged parts.
