With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Does self-diagnosis show damage to park/neutral position (PNP) switch, 3rd position switch, A/T fluid temperature sensor, vehicle speed sensor A/T (revolution sensor), shift solenoid valve A or B, vehicle speed sensor MTR circuits?

Yes or No

  1. Yes : Check damaged circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ", "DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT ", "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR) ", "DTC P0750 SHIFT SOLENOID VALVE A ", "DTC P0755 SHIFT SOLENOID VALVE B " or "DTC VEHICLE SPEED SENSOR MTR ".
  2. No : GO TO 3.

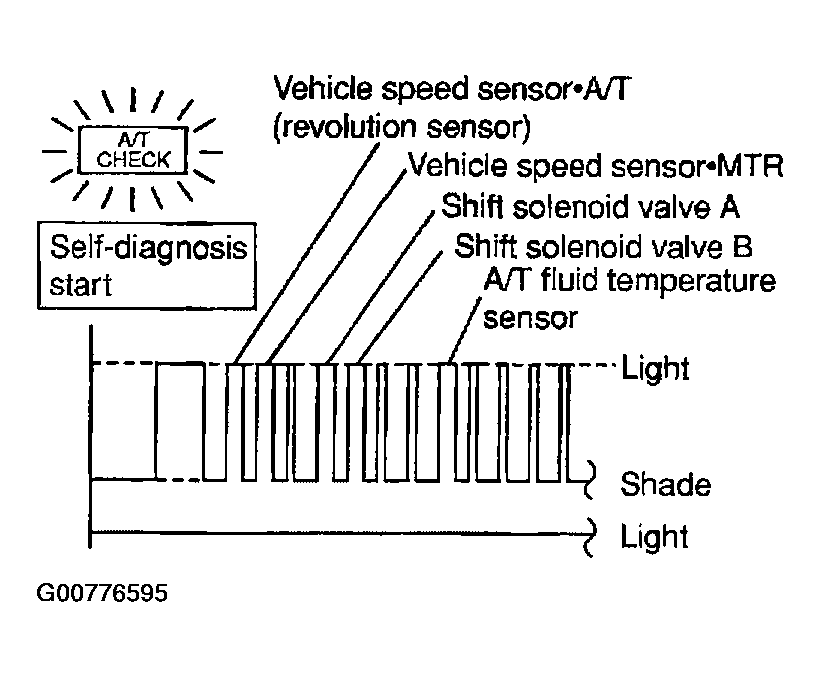

Fig 1: Performing Self-Diagnosis
G00776595Courtesy of NISSAN MOTOR CO., U.S.A.
