4. Check Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to "DTC P1705 THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR] ".

OK or NG

OK : GO TO 5.
NG : Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].

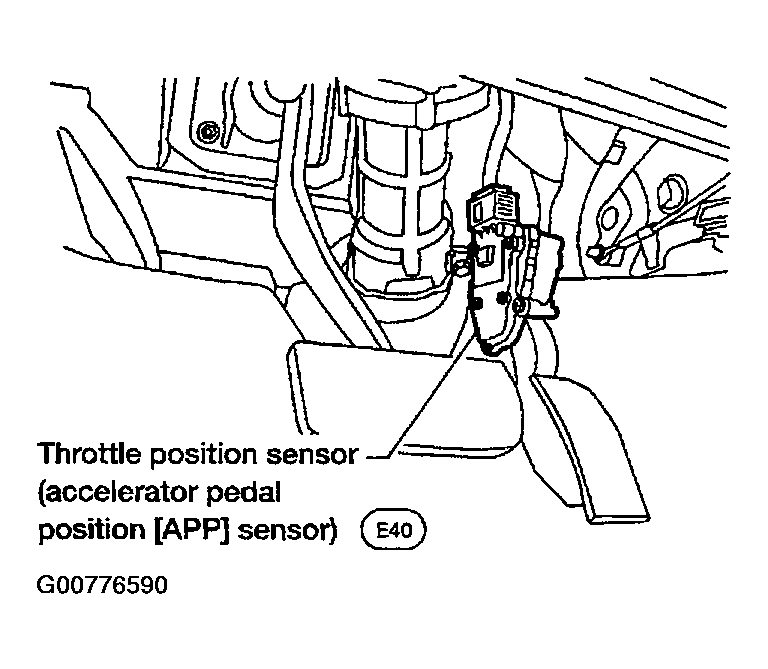

Fig 1: Locating Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]

Courtesy of NISSAN MOTOR CO., U.S.A.
