2. Check Power Source Step 2

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to OFF position.
  2. Check voltage between TCM harness connector F57 terminal 28 (Y/R) and ground.

    Voltage : Battery voltage

OK or NG

  1. OK : GO TO 4 .
  2. NG : GO TO 3.

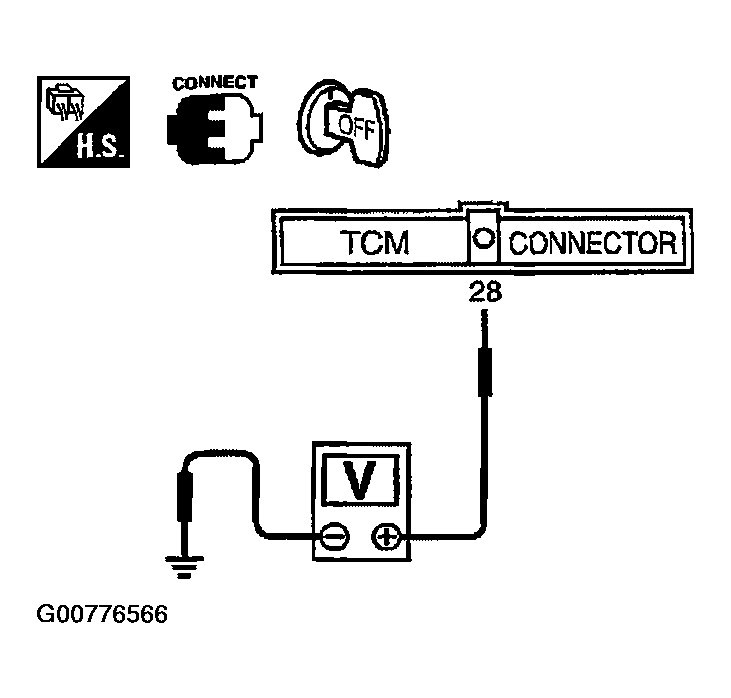

Fig 1: Checking Voltage
G00776566Courtesy of NISSAN MOTOR CO., U.S.A.
