1. Check TCM Power Source

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to ON position. (Do not start engine.)
  2. Check voltage between TCM harness connector F56, F57 terminals 10 (Y), 19 (Y), and 28 (Y/R) and ground.

    Voltage : Battery voltage

OK or NG

  1. OK : GO TO 2.
  2. NG : GO TO 3 .

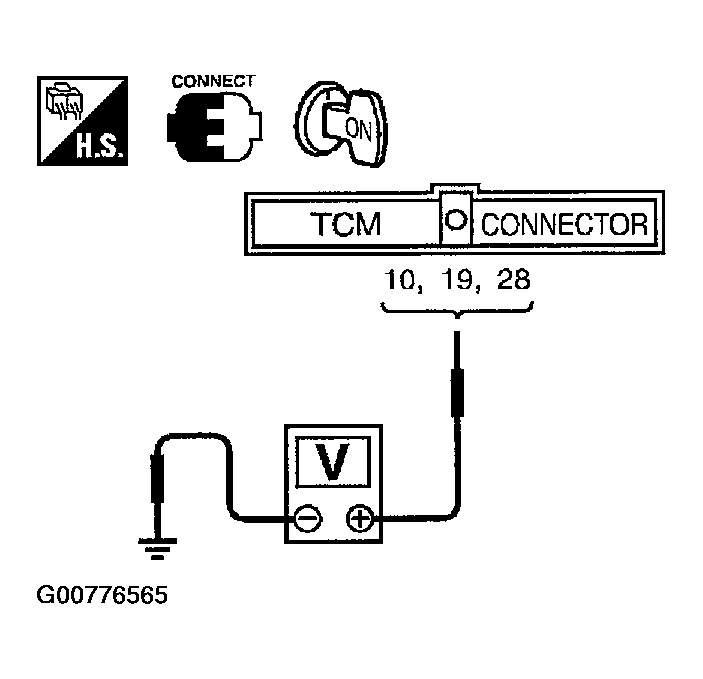

Fig 1: Checking Voltage
G00776565Courtesy of NISSAN MOTOR CO., U.S.A.
