TCM Inspection Table

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

(Data are reference values.)

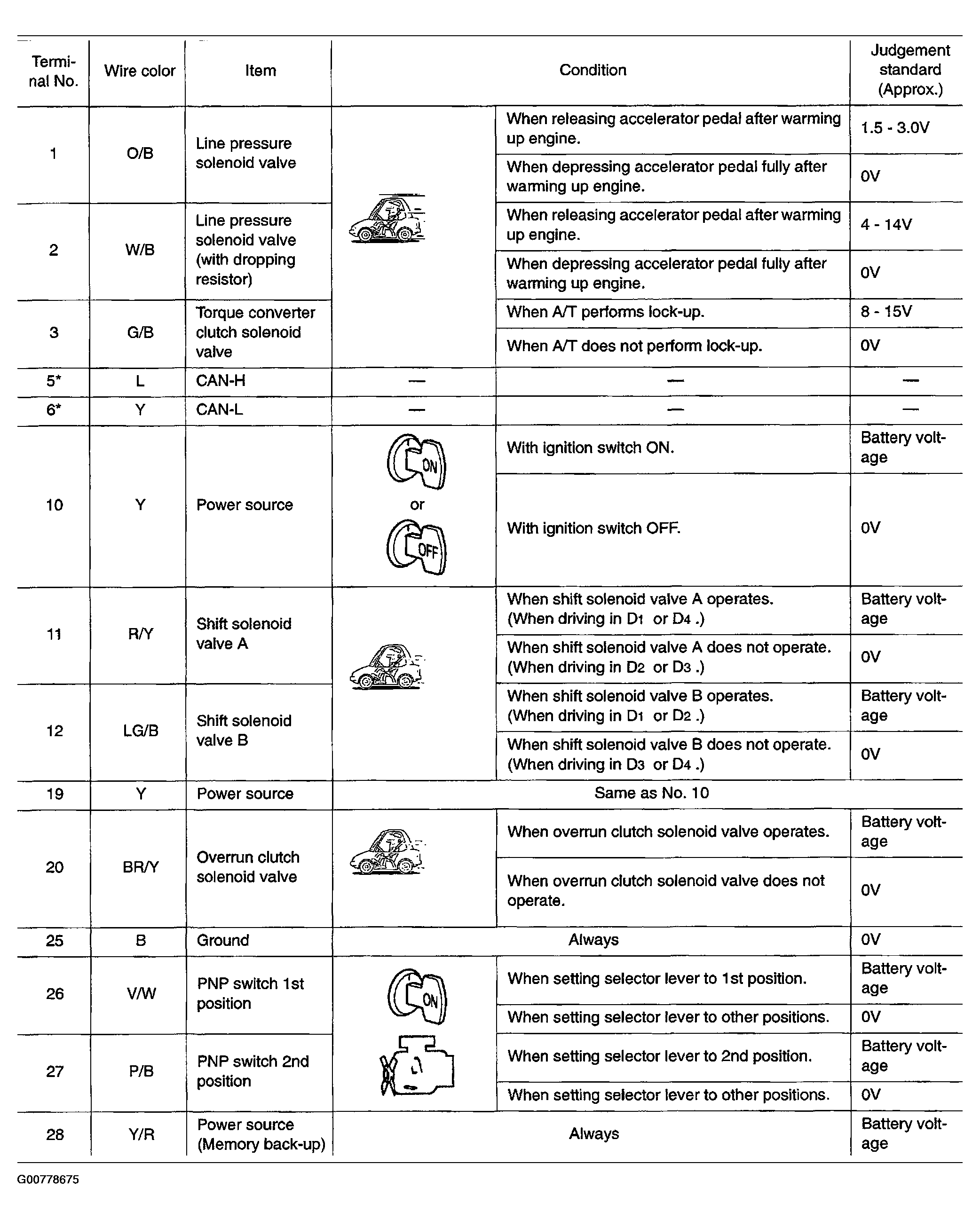

Fig 1: TCM Inspection Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

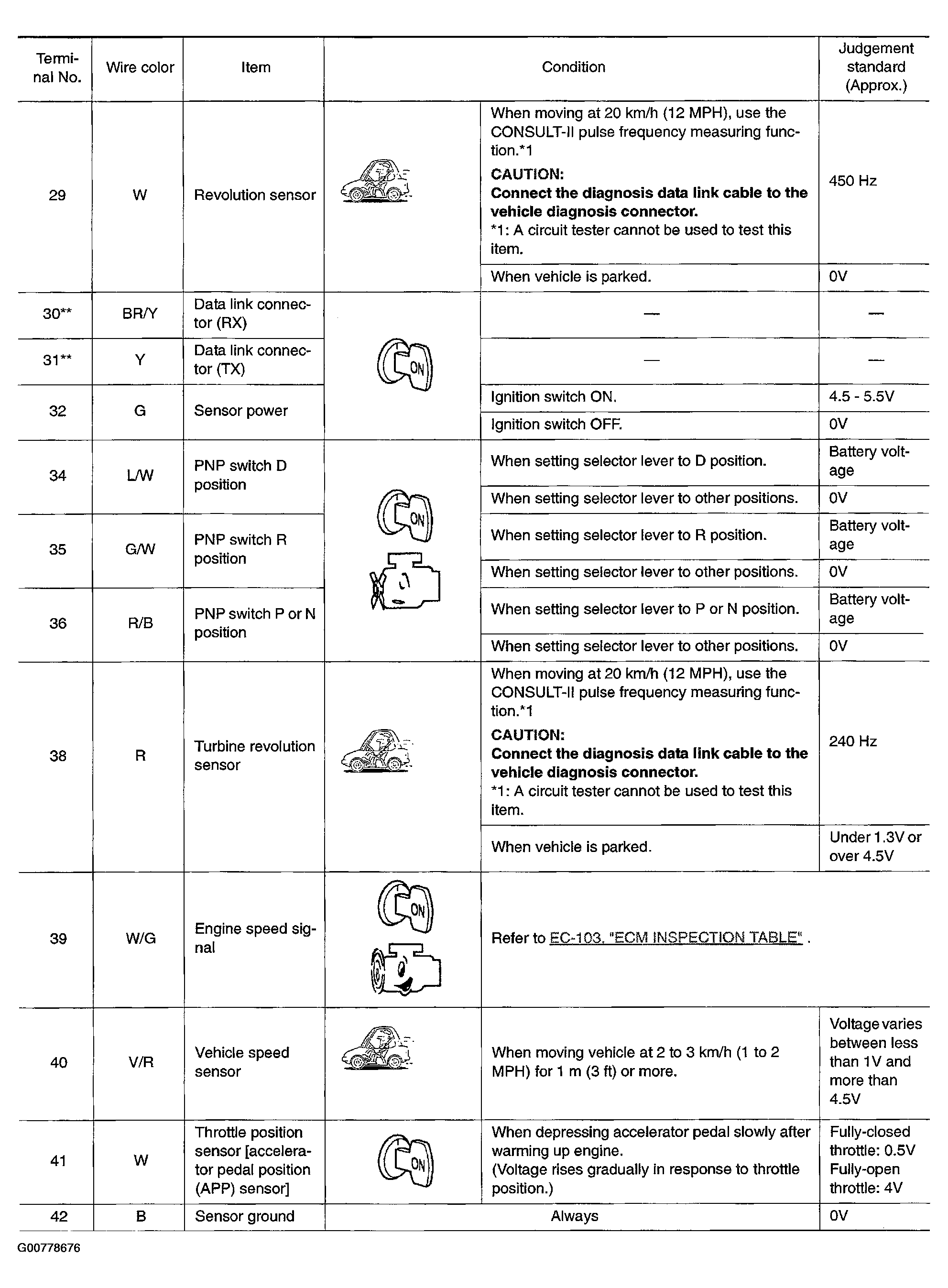

Fig 2: TCM Inspection Table (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

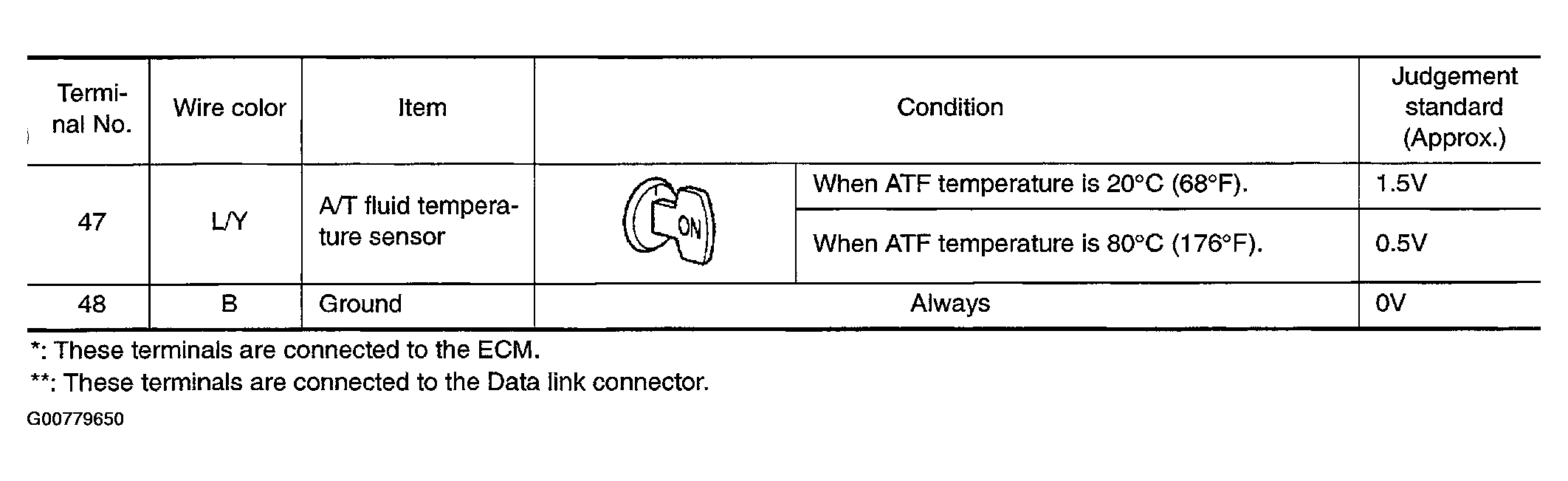

Fig 3: TCM Inspection Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
