Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

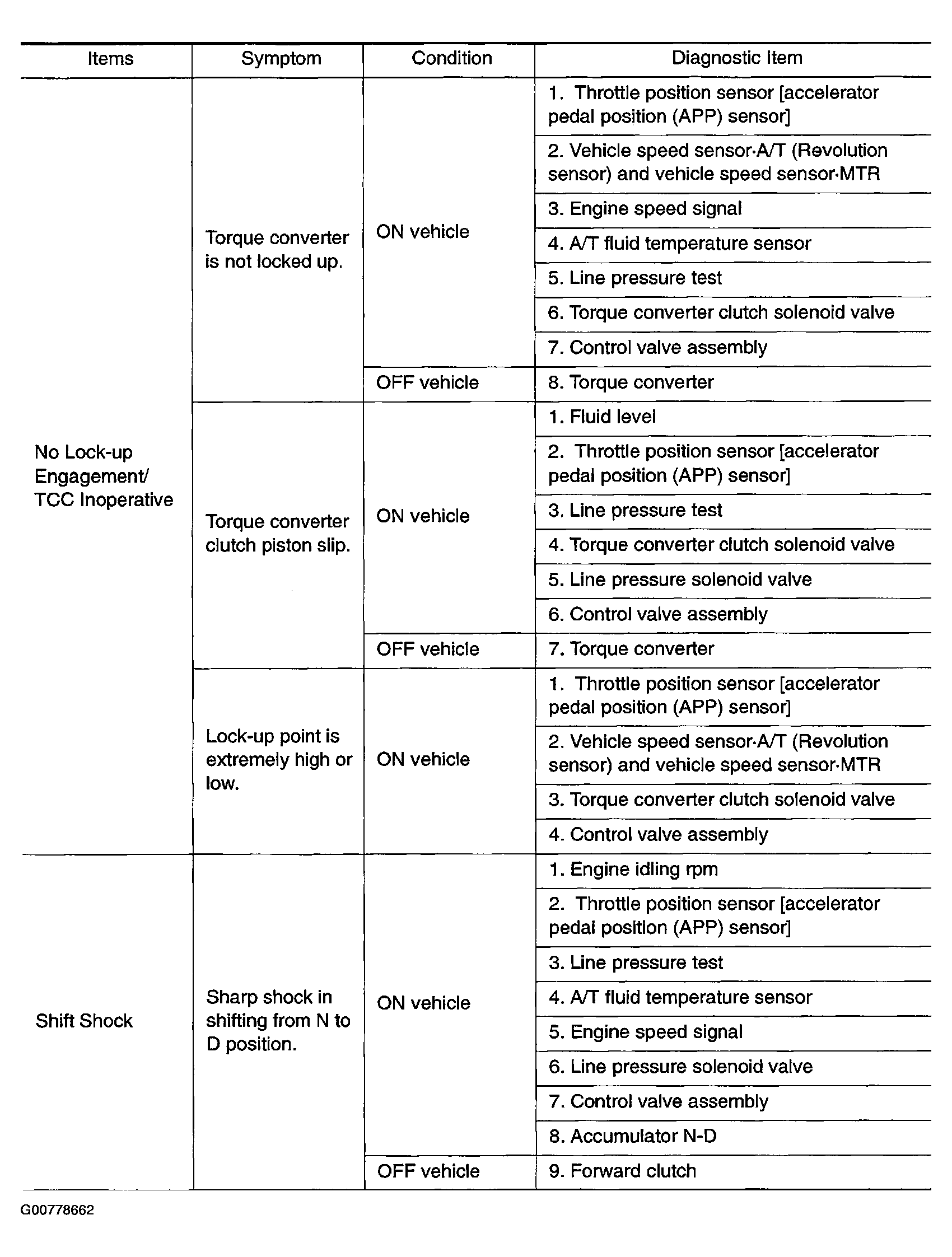

Fig 1: Symptom Chart (1 Of 11)

G00778662

Courtesy of NISSAN MOTOR CO., U.S.A.

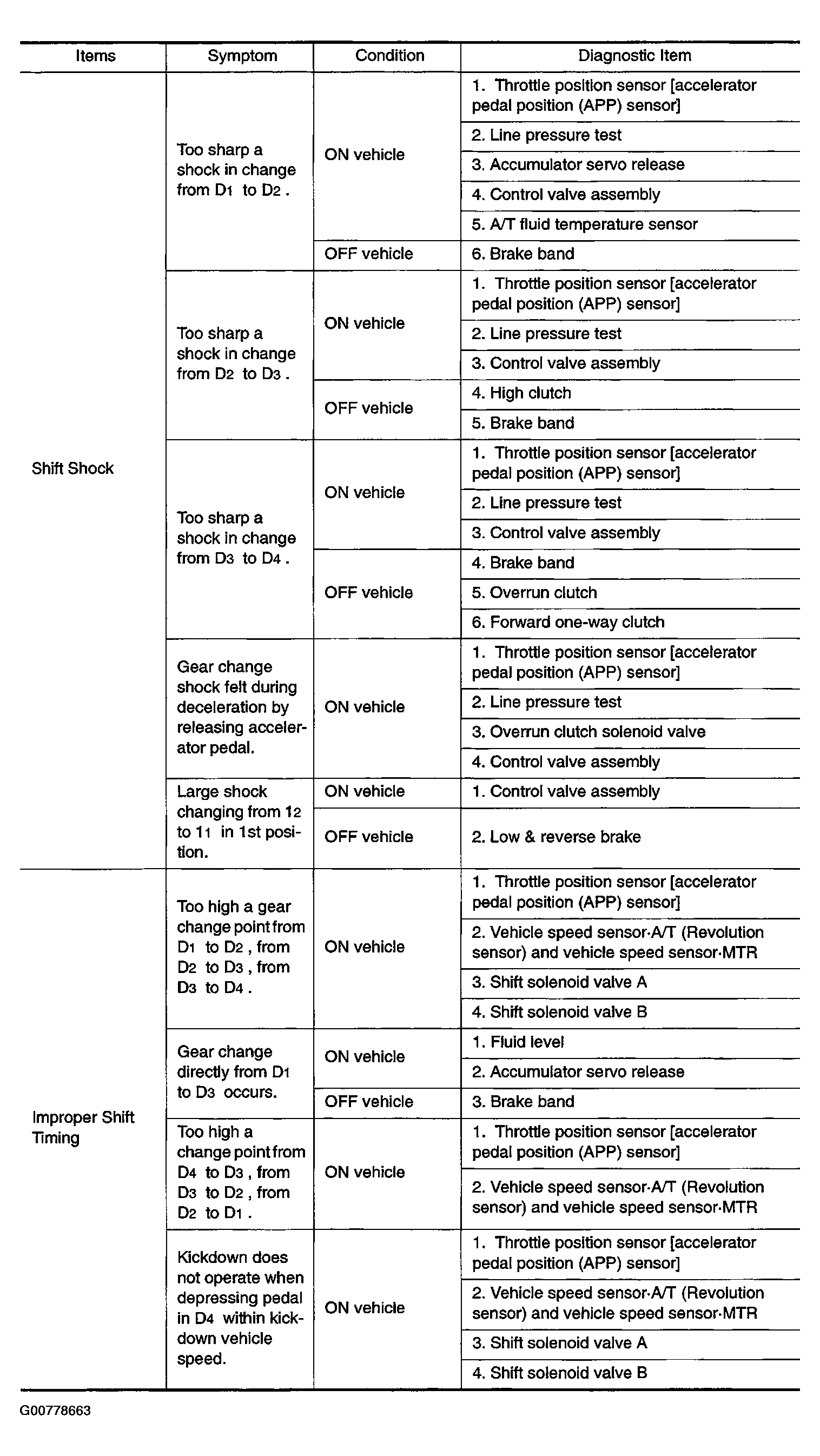

Fig 2: Symptom Chart (2 Of 11)

G00778663

Courtesy of NISSAN MOTOR CO., U.S.A.

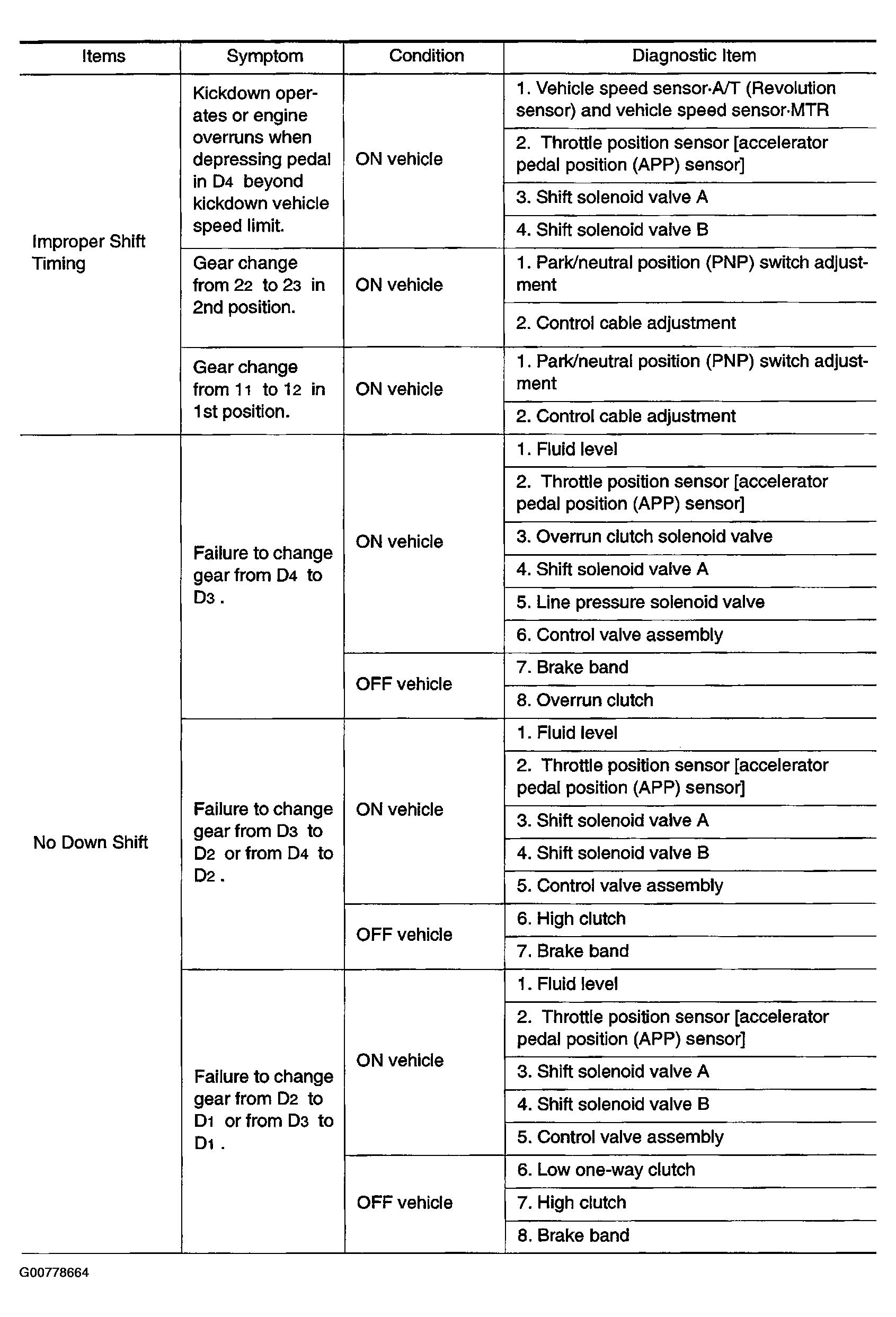

Fig 3: Symptom Chart (3 Of 11)

G00778664

Courtesy of NISSAN MOTOR CO., U.S.A.

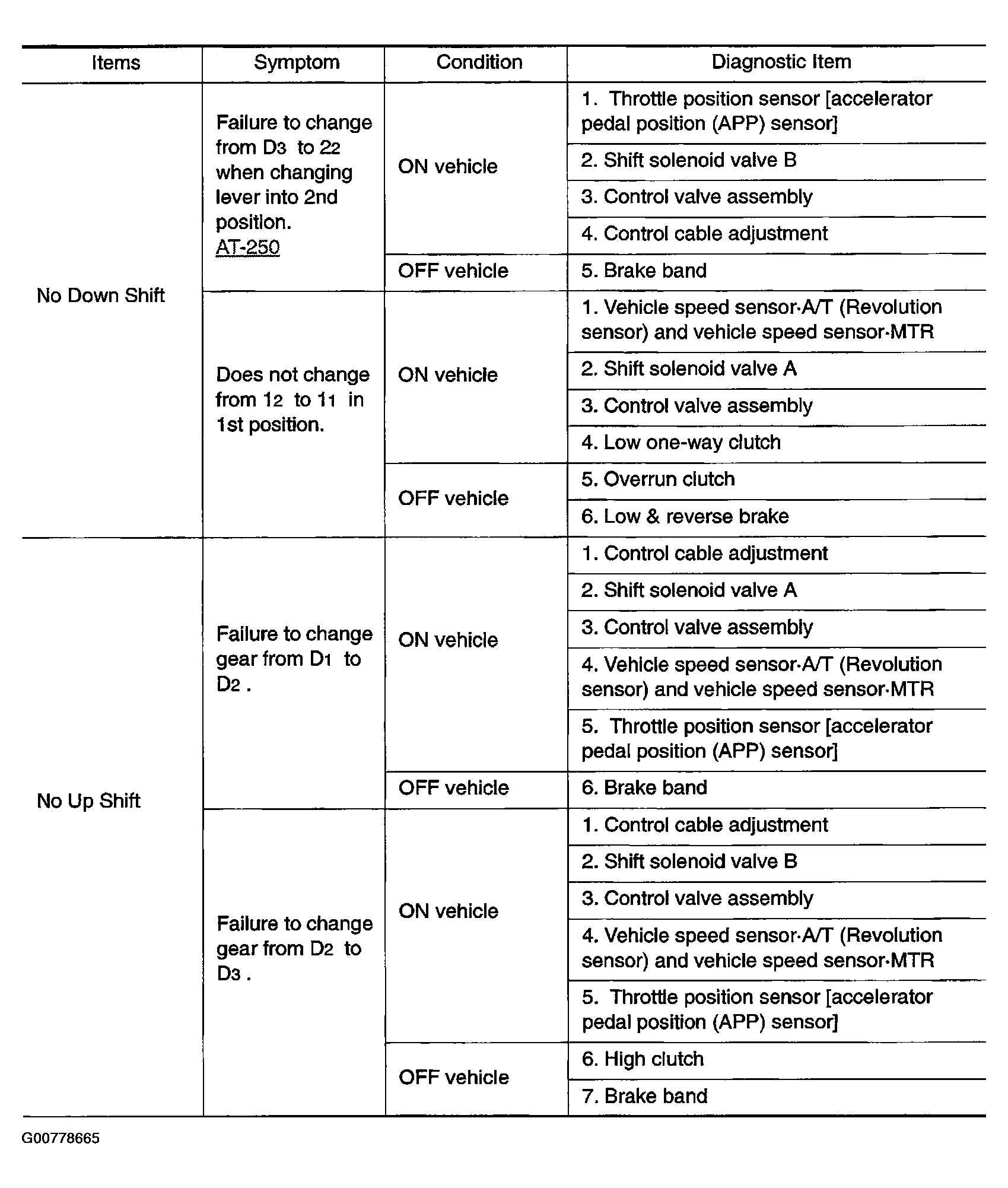

Fig 4: Symptom Chart (4 Of 11)

G00778665

Courtesy of NISSAN MOTOR CO., U.S.A.

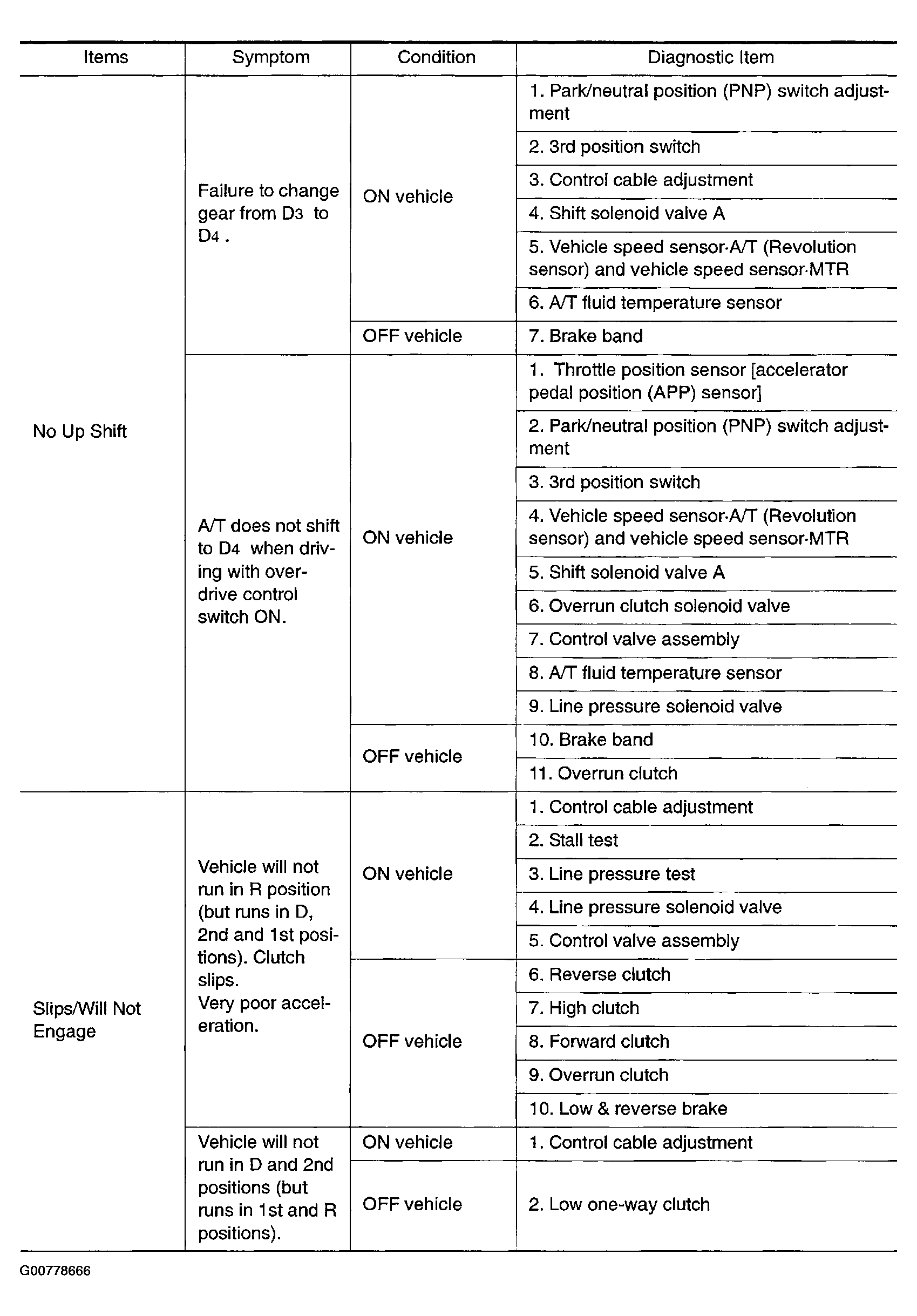

Fig 5: Symptom Chart (5 Of 11)

G00778666

Courtesy of NISSAN MOTOR CO., U.S.A.

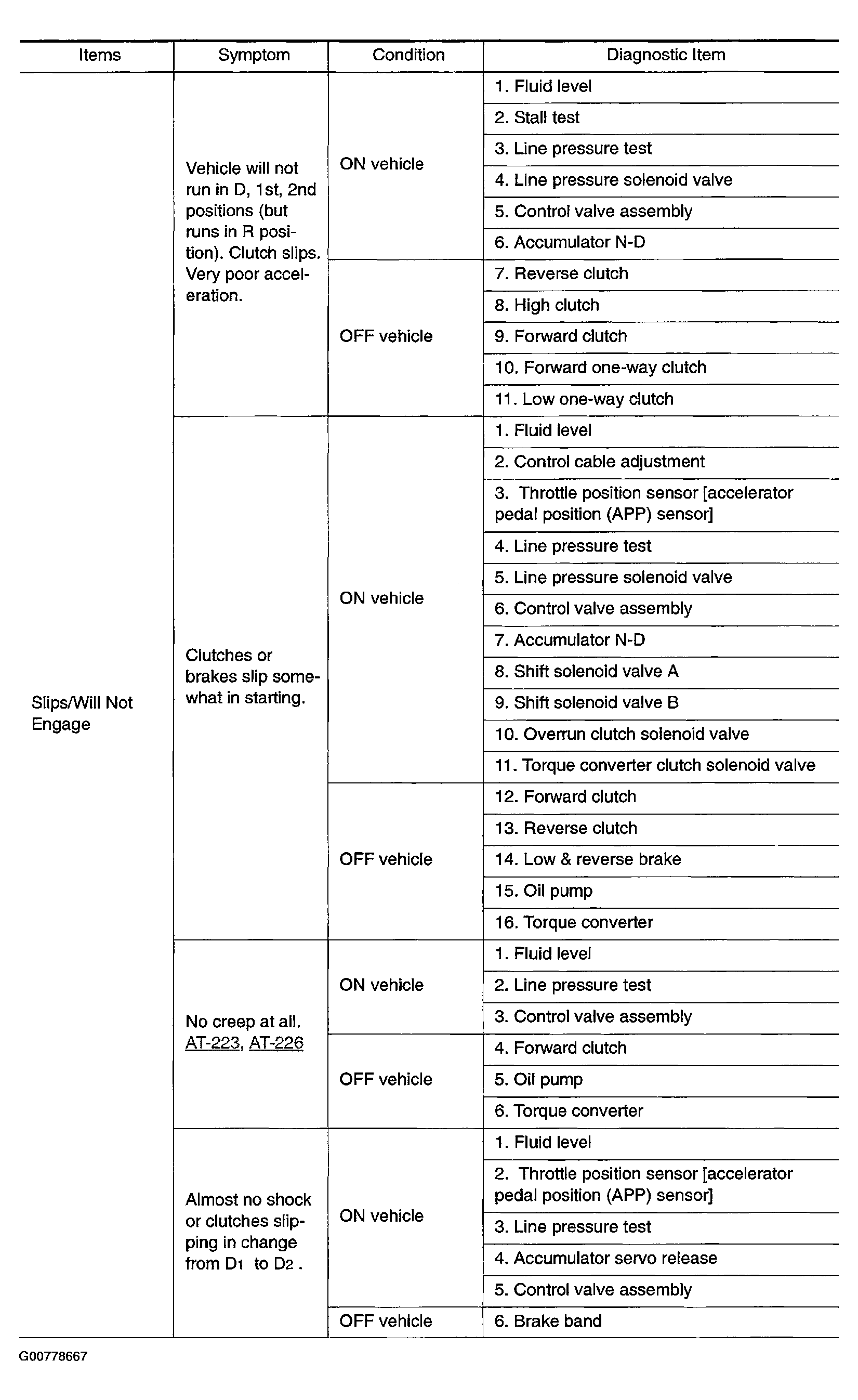

Fig 6: Symptom Chart (6 Of 11)

G00778667

Courtesy of NISSAN MOTOR CO., U.S.A.

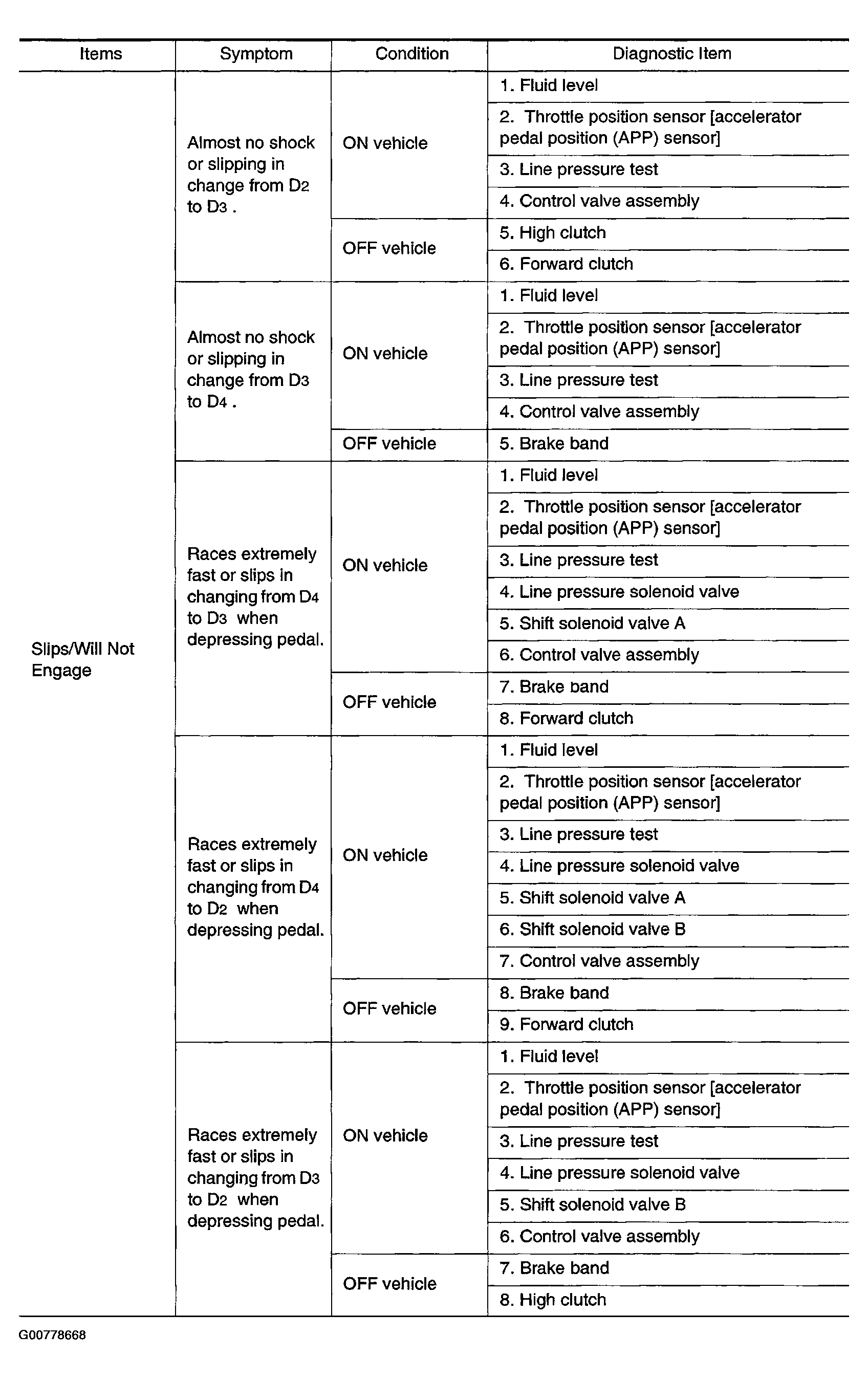

Fig 7: Symptom Chart (7 Of 11)

G00778668

Courtesy of NISSAN MOTOR CO., U.S.A.

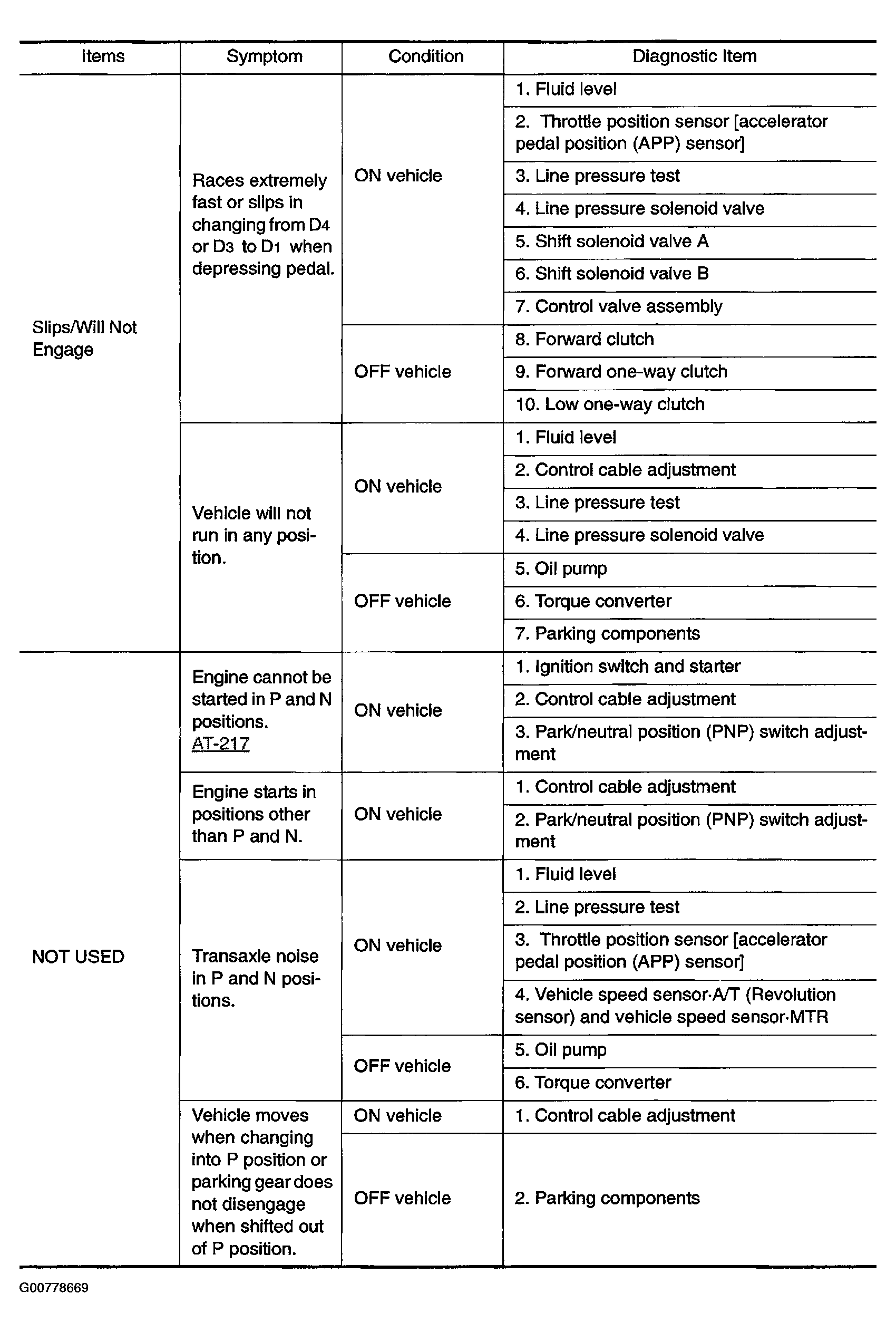

Fig 8: Symptom Chart (8 Of 11)

G00778669

Courtesy of NISSAN MOTOR CO., U.S.A.

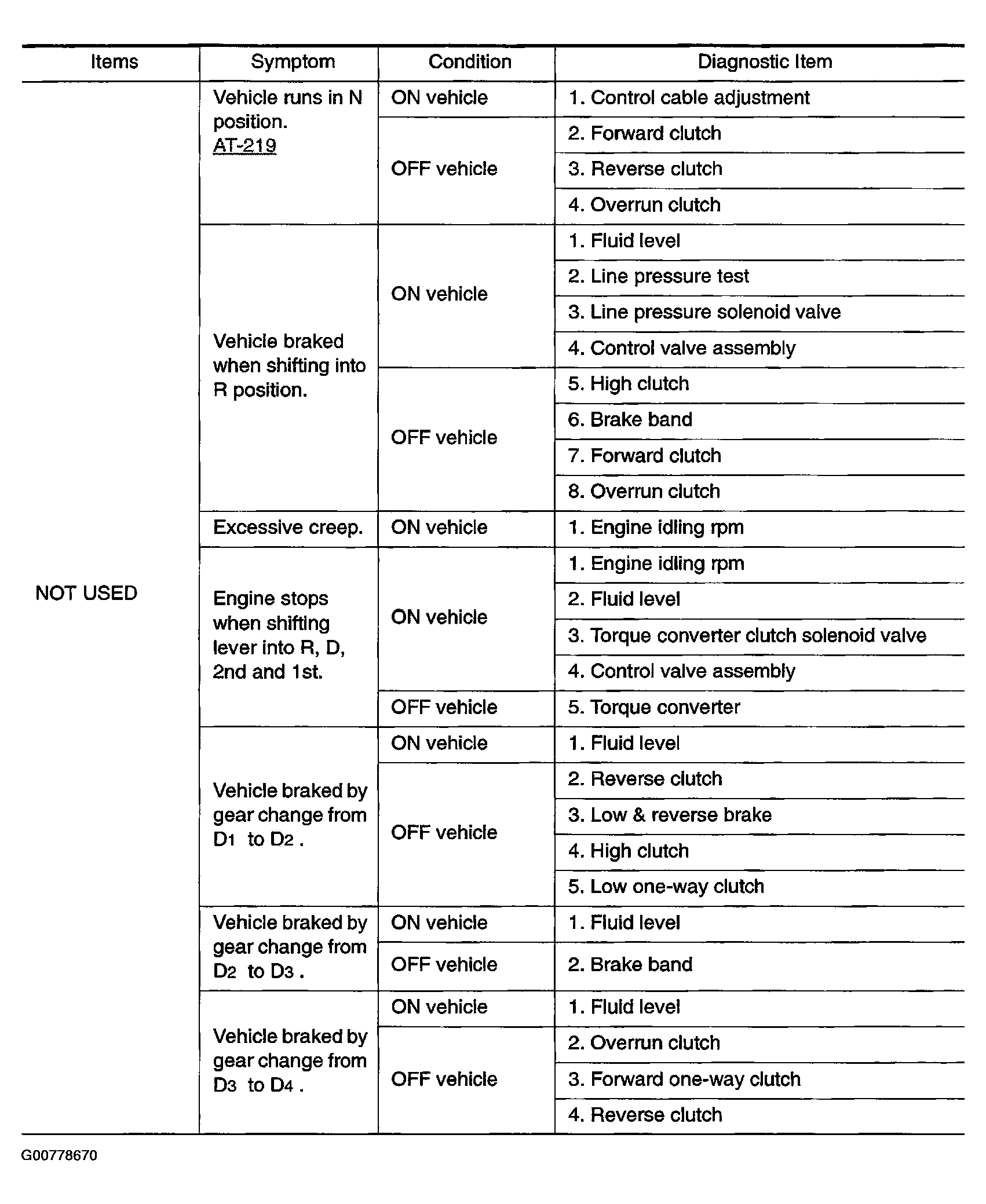

Fig 9: Symptom Chart (9 Of 11)

G00778670

Courtesy of NISSAN MOTOR CO., U.S.A.

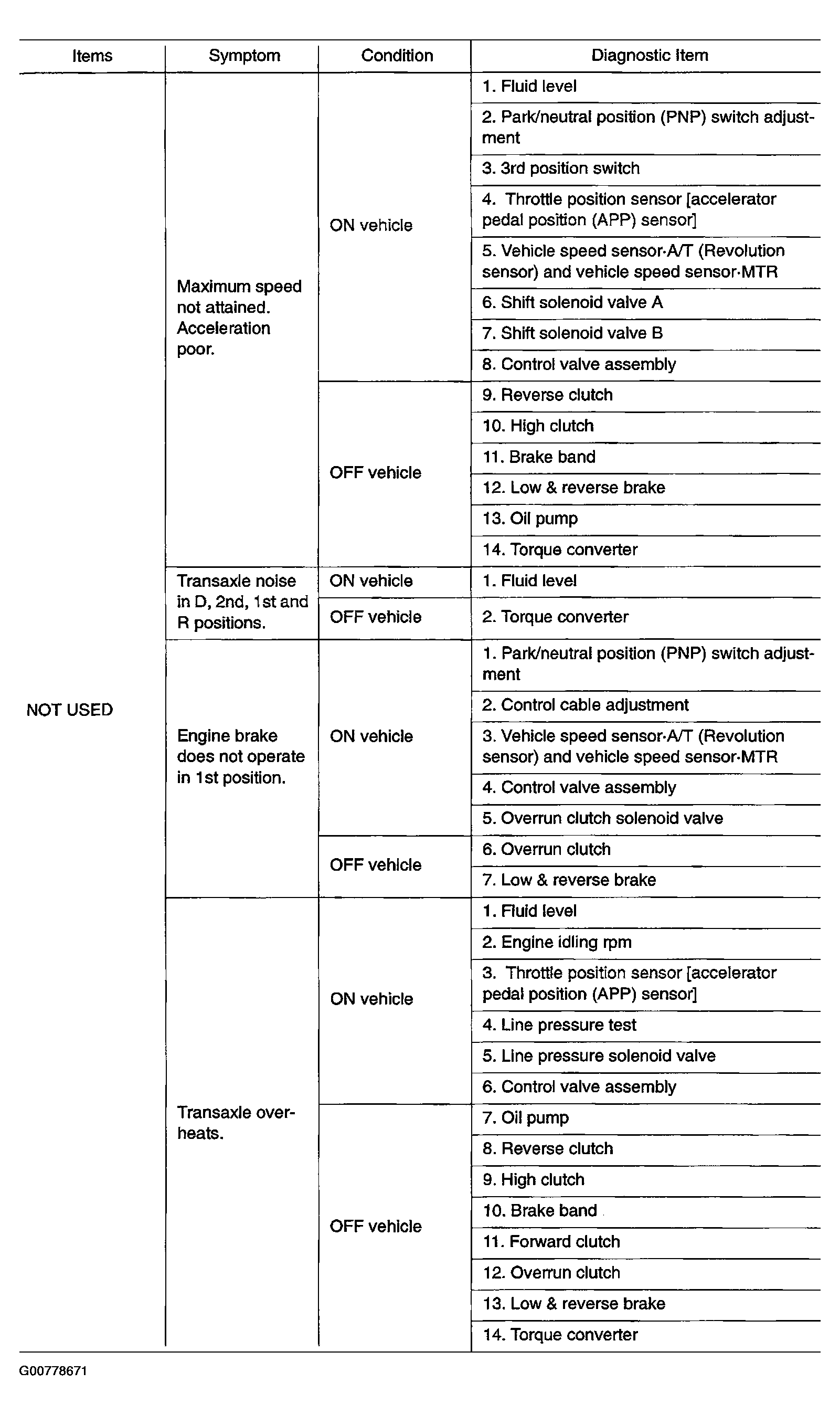

Fig 10: Symptom Chart (10 Of 11)

G00778671

Courtesy of NISSAN MOTOR CO., U.S.A.

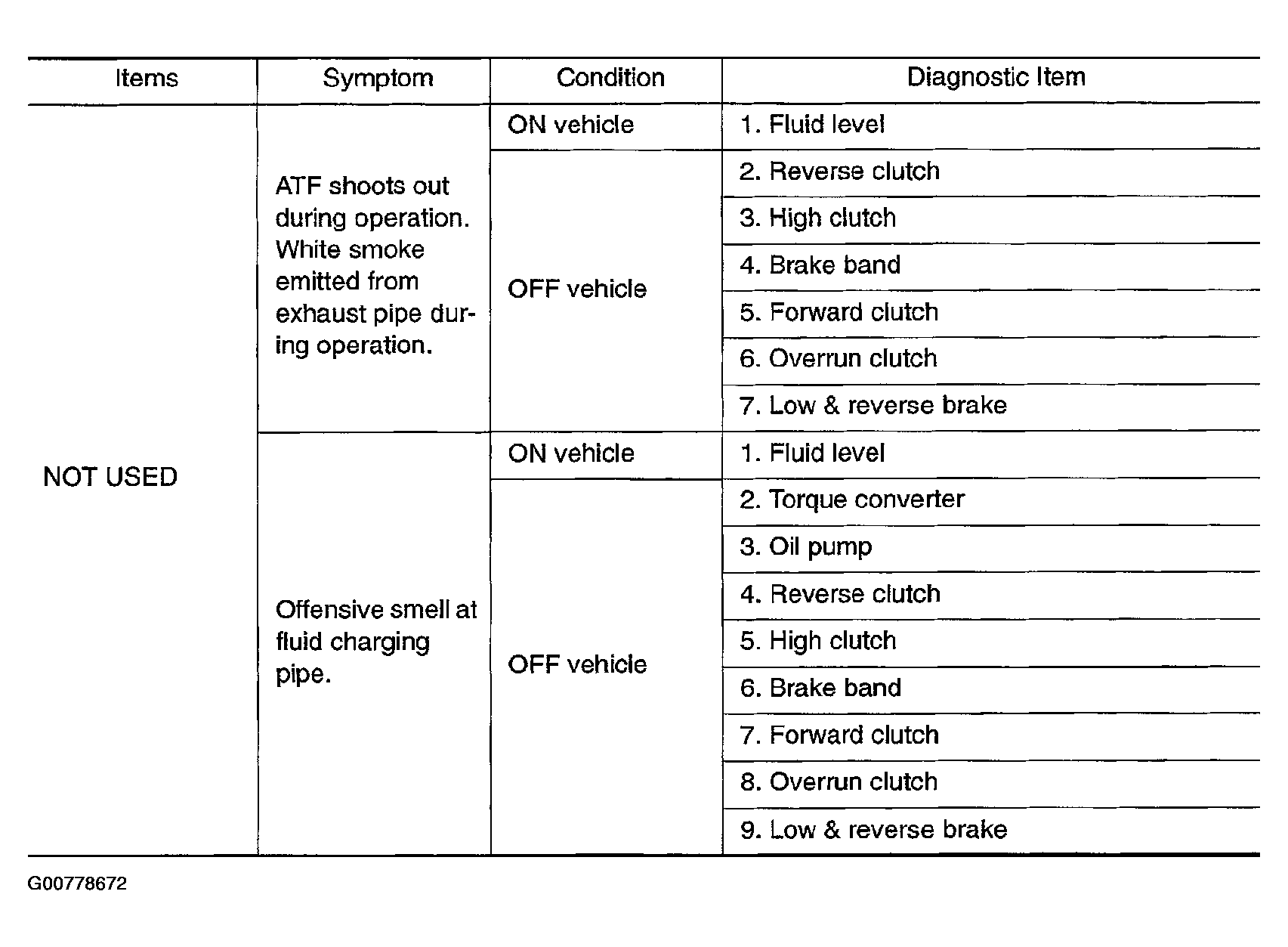

Fig 11: Symptom Chart (11 Of 11)

G00778672

Courtesy of NISSAN MOTOR CO., U.S.A.
