Stall Test Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
Drive vehicle for approximately 10 minutes or until fluid and oil reach operating temperature.
ATF operating temperature :50 - 80°C (122 - 176°F)
Set parking brake and block wheels.
Install a tachometer where it can be seen by driver during test.
- It is good practice to mark the point of specified engine RPM on indicator.

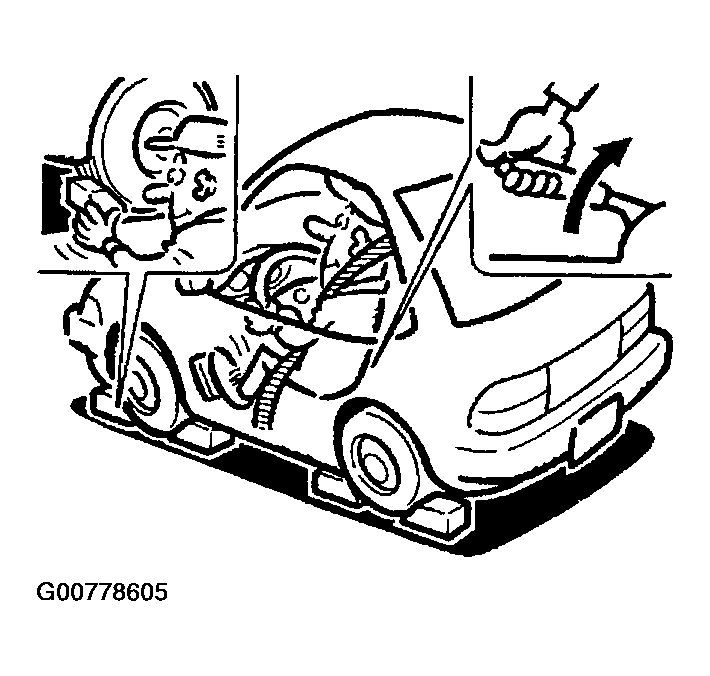

  Fig 1: Set Parking Brake And Block Wheels
  Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine, apply foot brake, and place selector lever in D position.
Accelerate to wide open throttle gradually while applying foot brake.
Quickly note the engine stall revolution and immediately release throttle.
- During test, never hold throttle wide open for more than 5 seconds.
  Stall revolution : 2,550 - 3,050 RPM

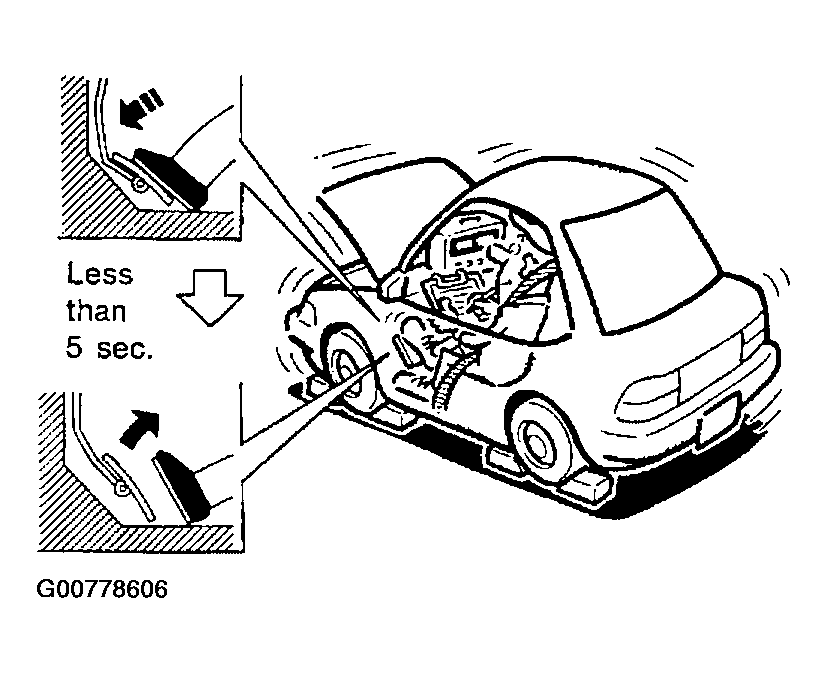

Fig 2: During Test, Never Hold Throttle Wide Open For More Than 5 Seconds
Courtesy of NISSAN MOTOR CO., U.S.A.
Move selector lever to N position.
Cool off ATF.
- Run engine at idle for at least one minute.
Repeat steps 5 through 9 with selector lever in 2nd, 1st and R positions.
