CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in left side dash panel.
Turn ignition switch ON.

Fig 1: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

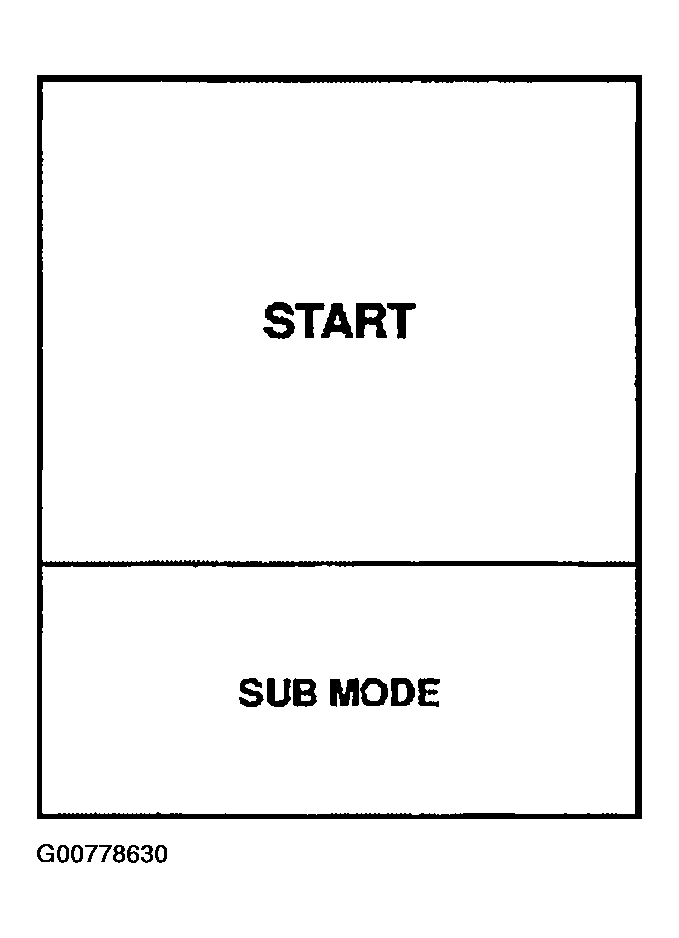

Touch "START".

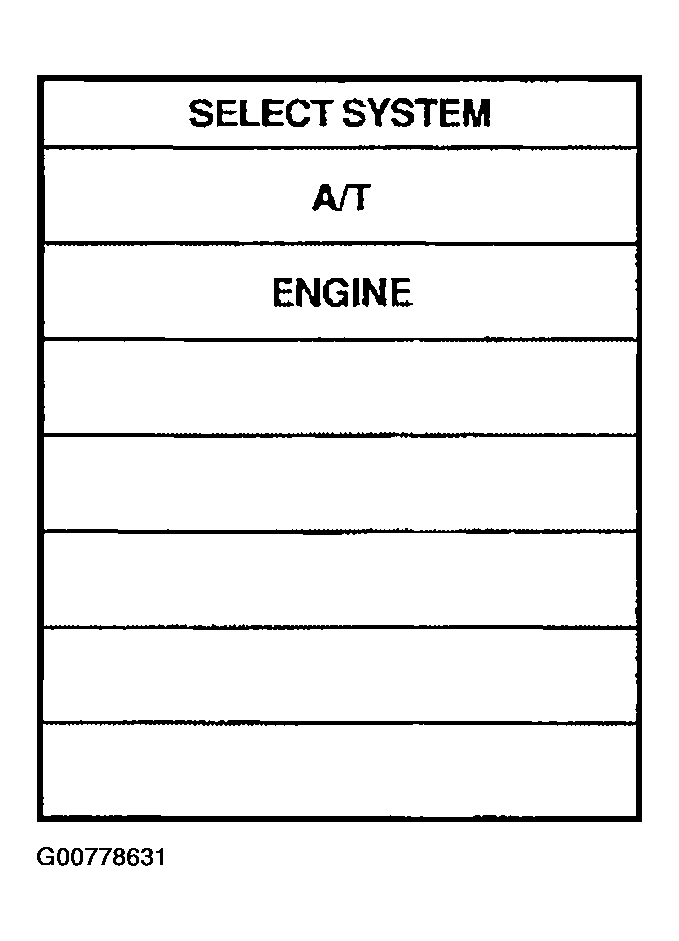

Touch "A/T".
If "A/T" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 2: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

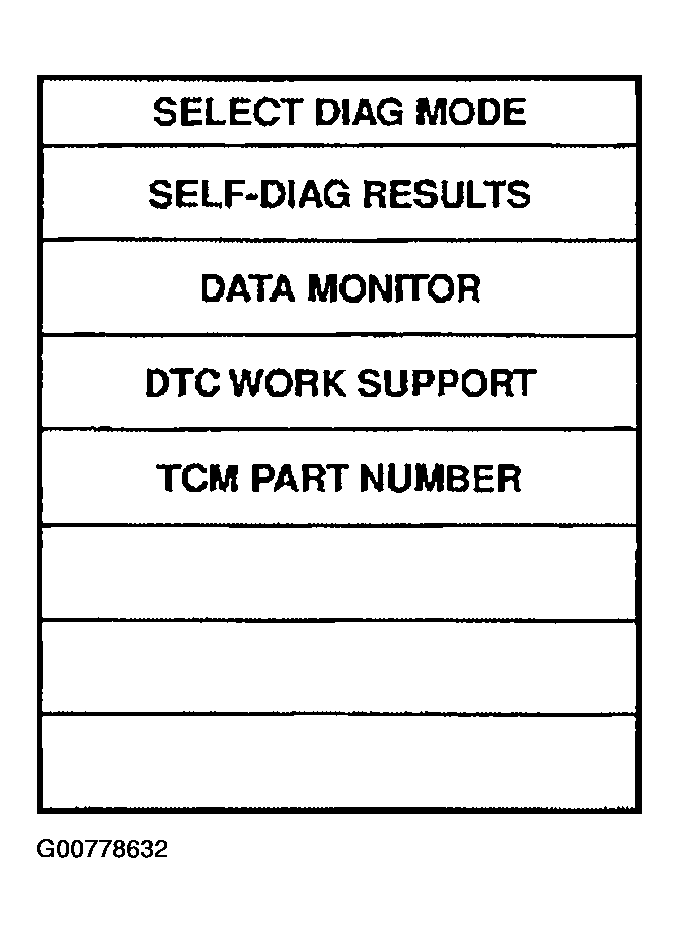

Touch "DATA MONITOR".

Fig 3: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

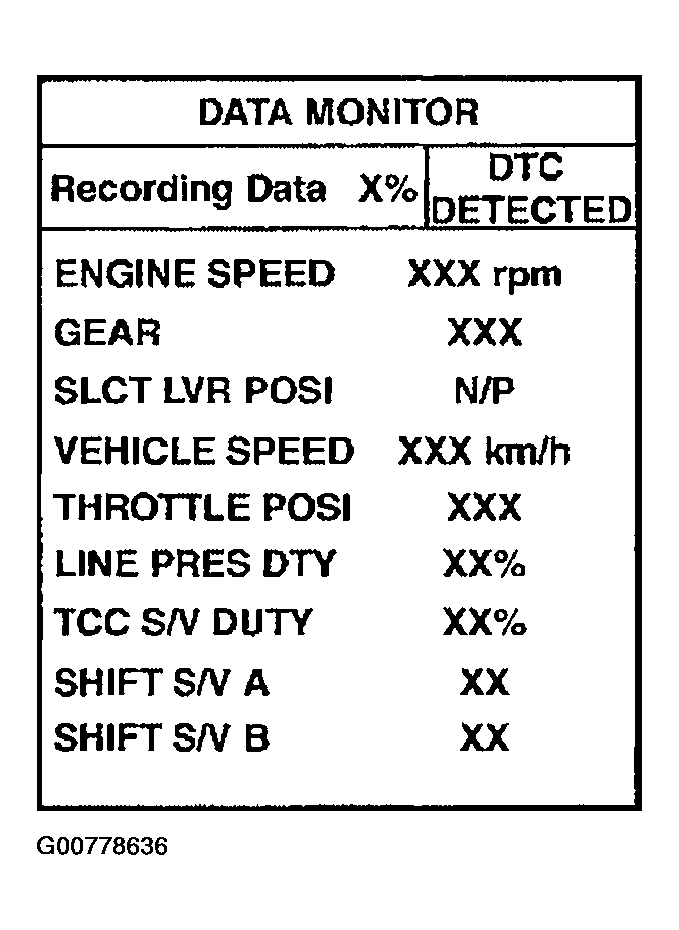

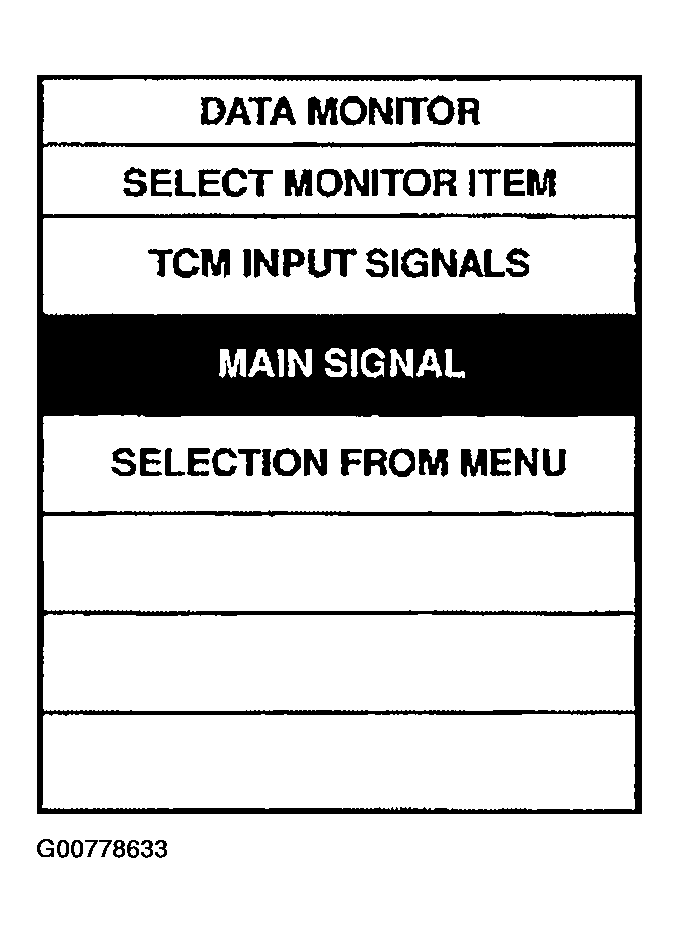

Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".

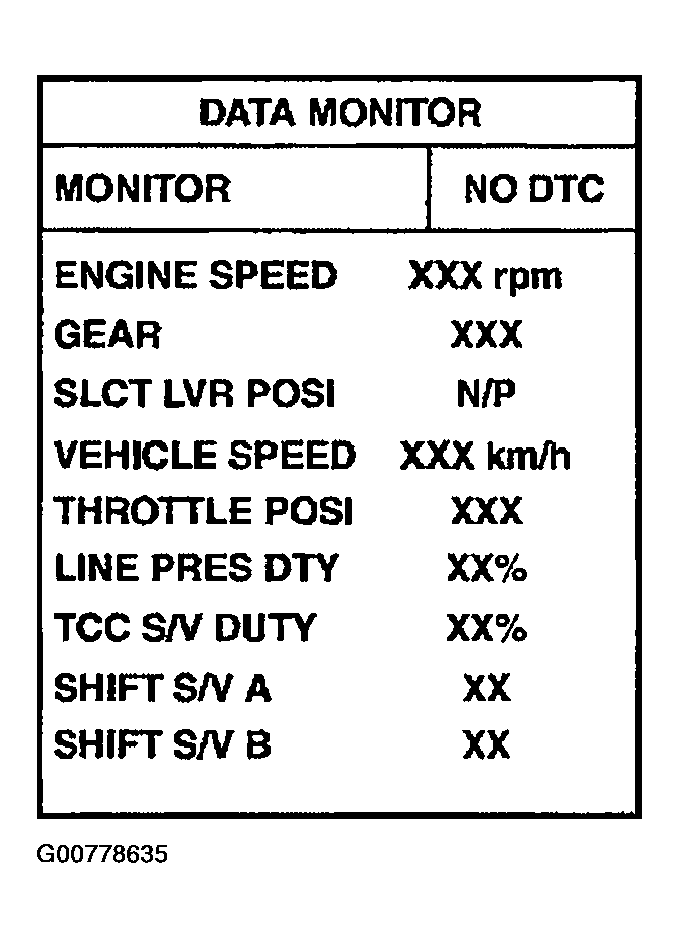

See "Numerical Display", "Barchart Display" or "Line Graph Display".

Fig 4: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

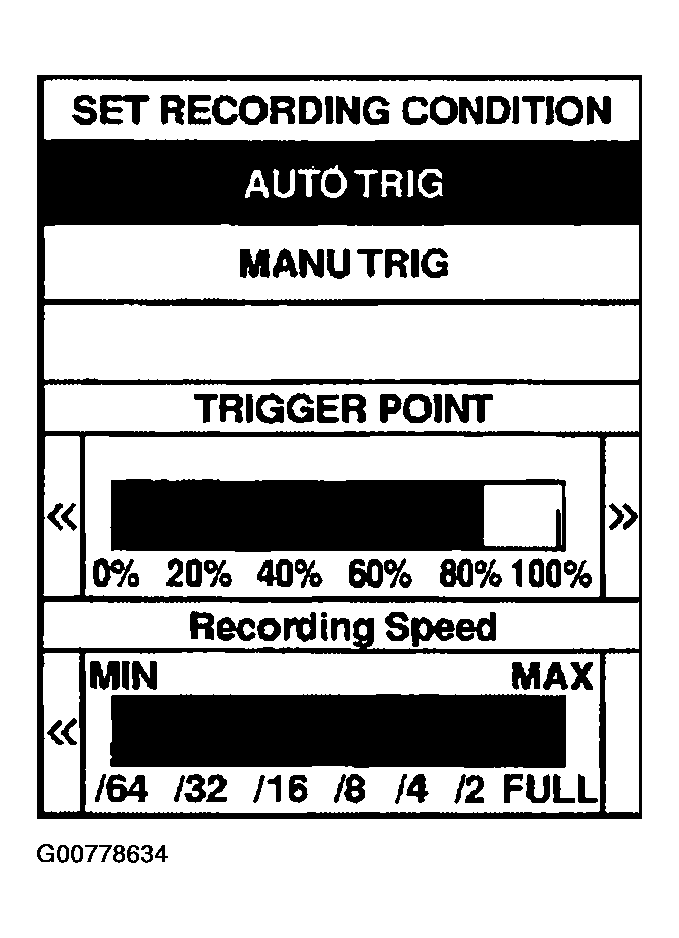

Touch "SETTING" to set recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "Start".

Fig 5: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

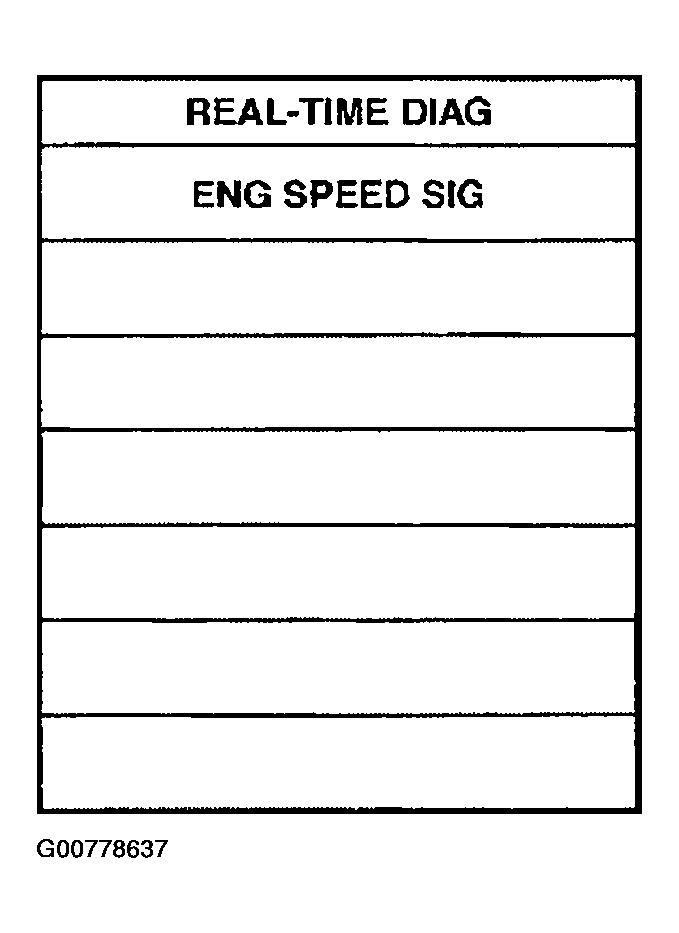

When performing cruise test, touch "RECORD".

Fig 6: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
After finishing cruise test part 1, touch "STOP".

Fig 7: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

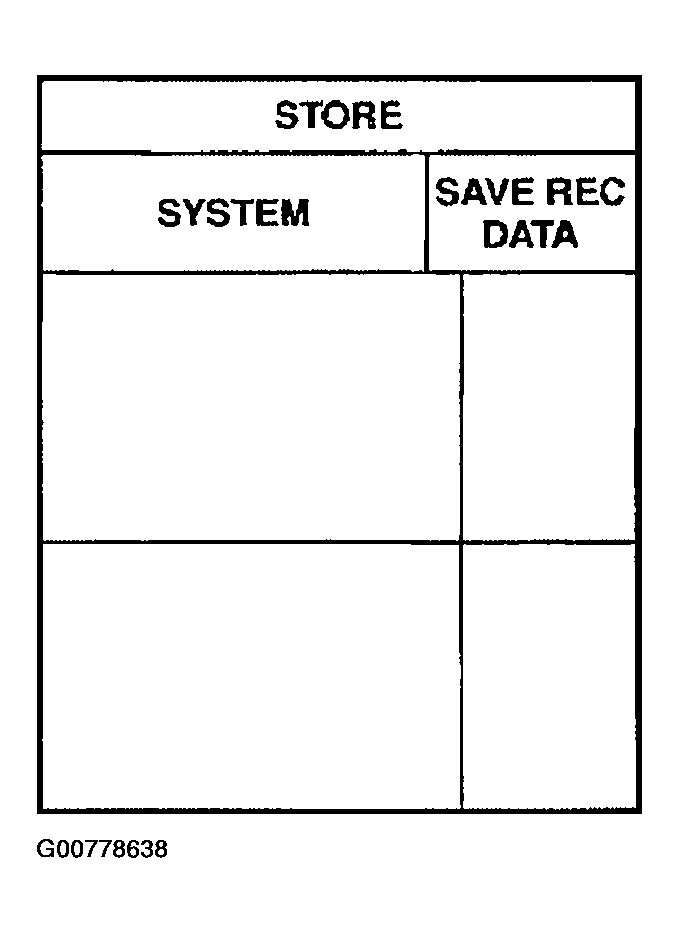

Touch "STORE" and touch "BACK".

Fig 8: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

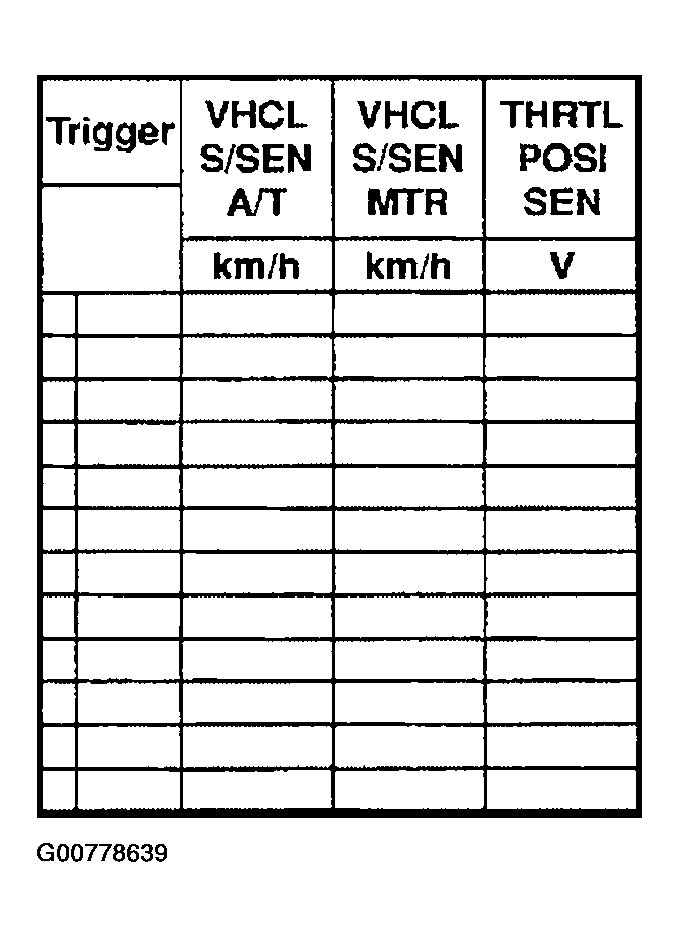

Touch "DISPLAY".
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.

Fig 10: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
