2. Check Engine Start

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to ACC position.
  2. Move selector lever to D, 1st, 2nd or R position.
  3. Turn ignition switch to START position.
  4. Is engine started?

Yes or No

  1. Yes >> Stop ROAD TEST. Mark the box on the DIAGNOSTIC WORKSHEET. Go to "Engine Cannot Be Started In P and N Position ". Continue ROAD TEST.
  2. No >> GO TO 3.

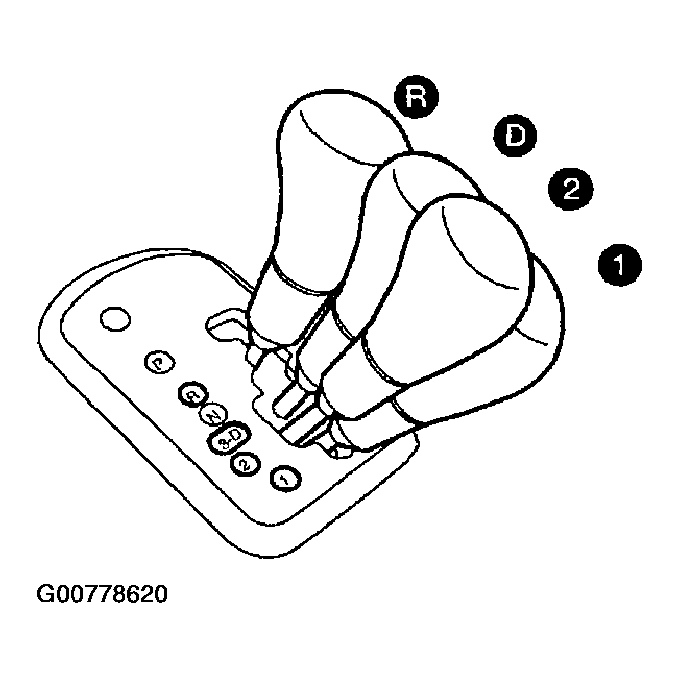

    Fig 1: Ensuring Engine Won't Start In "D", "1st", "2nd" or "R" Positions
    G00778620Courtesy of NISSAN MOTOR CO., U.S.A.
