2. Check A/T Check Indicator Lamp

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Does A/T CHECK indicator lamp flicker for about 8 seconds?

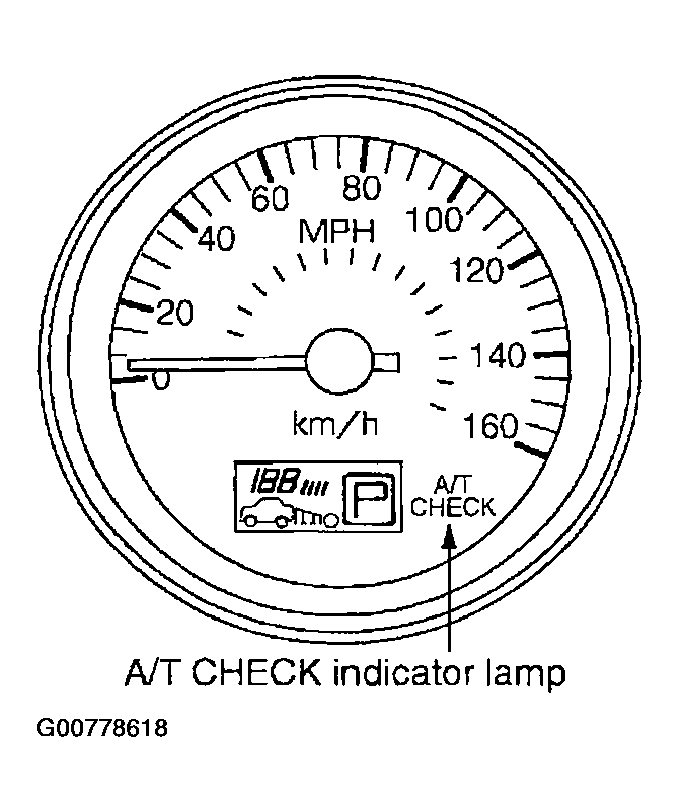

Fig 1: Check A/T Check Indicator Lamp
G00778618Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

  1. Yes >> Perform self-diagnosis and check NG items on the DIAGNOSTIC WORKSHEET . Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
  2. No >>
    1. Turn ignition switch to OFF position.
    2. Perform self-diagnosis and note NG items.

      Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

    3. Go to "2. CHECK AT IDLE ".
