1. Check A/T CHECK Indicator Lamp

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park vehicle on flat surface.
  2. Move selector lever to P position.
  3. Turn ignition switch to OFF position. Wait at least 5 seconds.
  4. Turn ignition switch to ON position. (Do not start engine.)
  5. Does A/T CHECK indicator lamp come on for about 2 seconds?

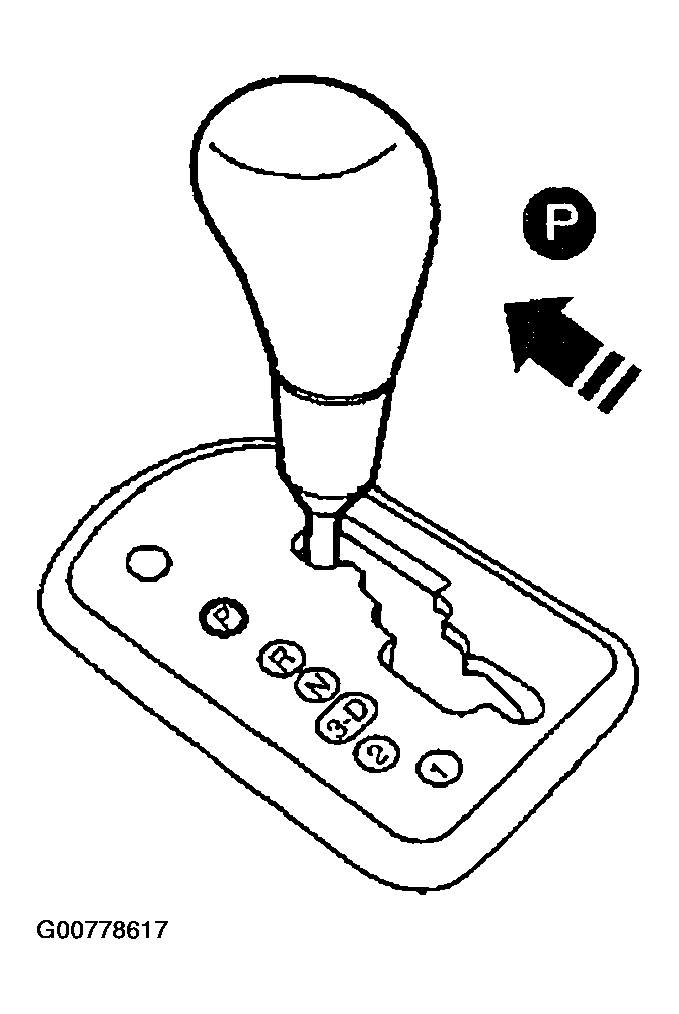

    Fig 1: Check A/T CHECK Indicator Lamps
    G00778617Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

  1. Yes >> GO TO 2.
  2. No >> Stop ROAD TEST. Go to "A/T CHECK Indicator Lamp Does Not Come On ".
