Line Pressure Test Ports

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Location of line pressure test ports are shown in Fig 1 .

Always replace pressure plugs as they are self-sealing bolts.

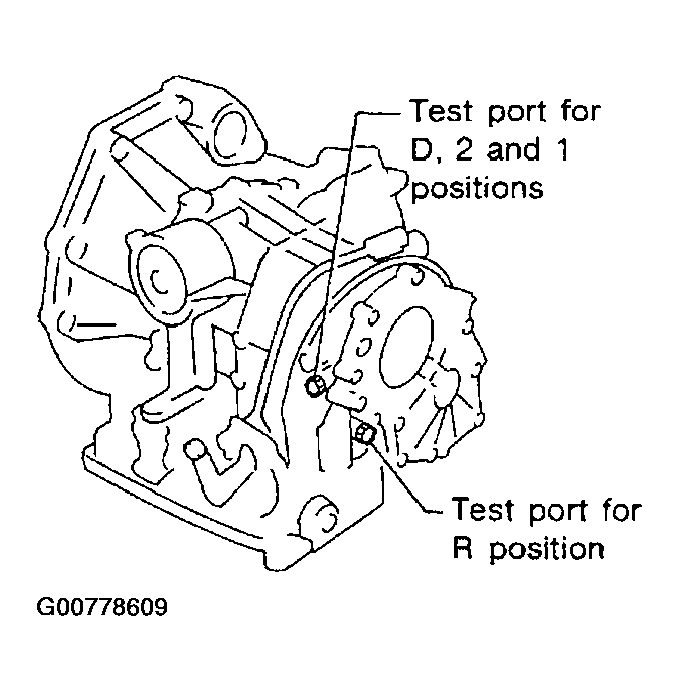

Fig 1: Location Of Line Pressure Test Ports

Courtesy of NISSAN MOTOR CO., U.S.A.
