A/T Fluid Cooler Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the coffee filter for debris.
1. If small metal debris less than 1mm (0.040 in) in size or metal powder is found in the coffee filter, this is normal. If normal debris is found, the A/T fluid cooler/radiator can be re-used and the procedure is ended.

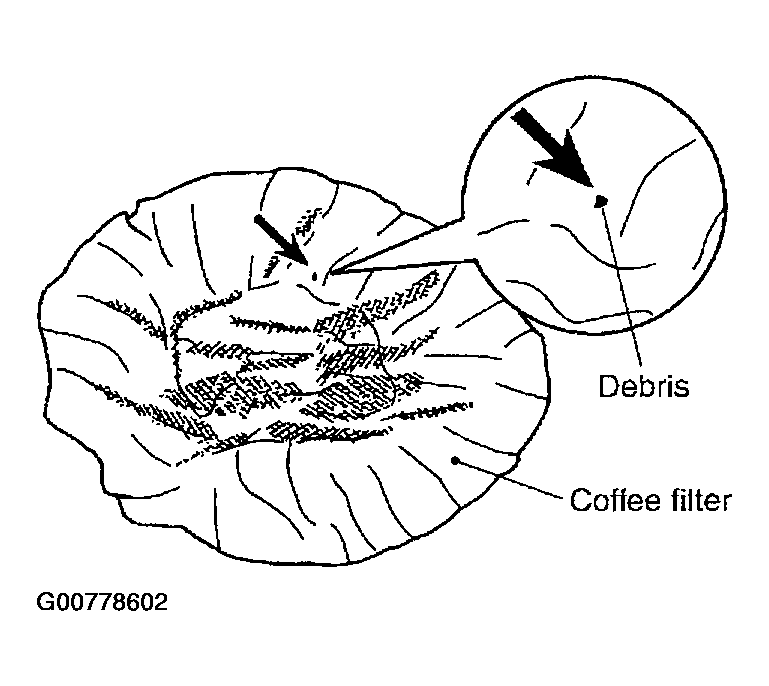

  Fig 1: A/T Fluid Cooler Inspection Procedure (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. If one or more pieces of debris are found that are over 1mm in size and/or peeled clutch facing material is found in the coffee filter, the fluid cooler is not serviceable. The radiator/fluid cooler must be replaced and the inspection procedure is ended.

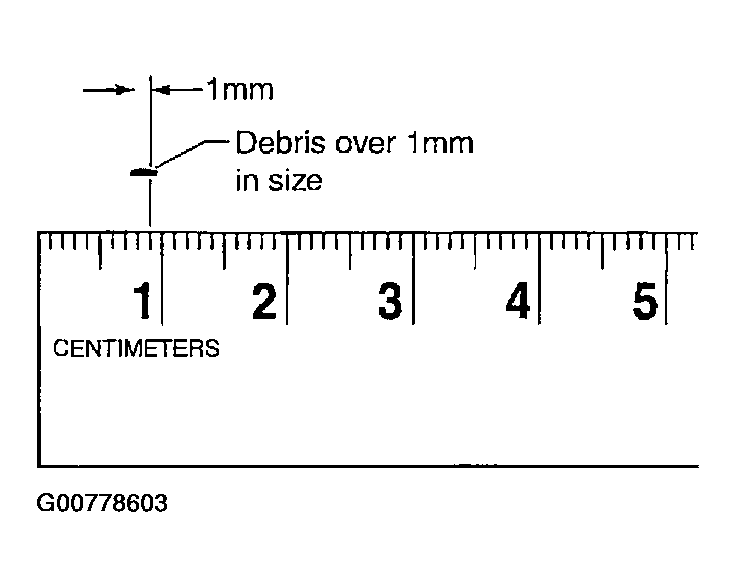

  Fig 2: A/T Fluid Cooler Inspection Procedure (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
