Vehicle Speed When Shifting Gears Throttle Position

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

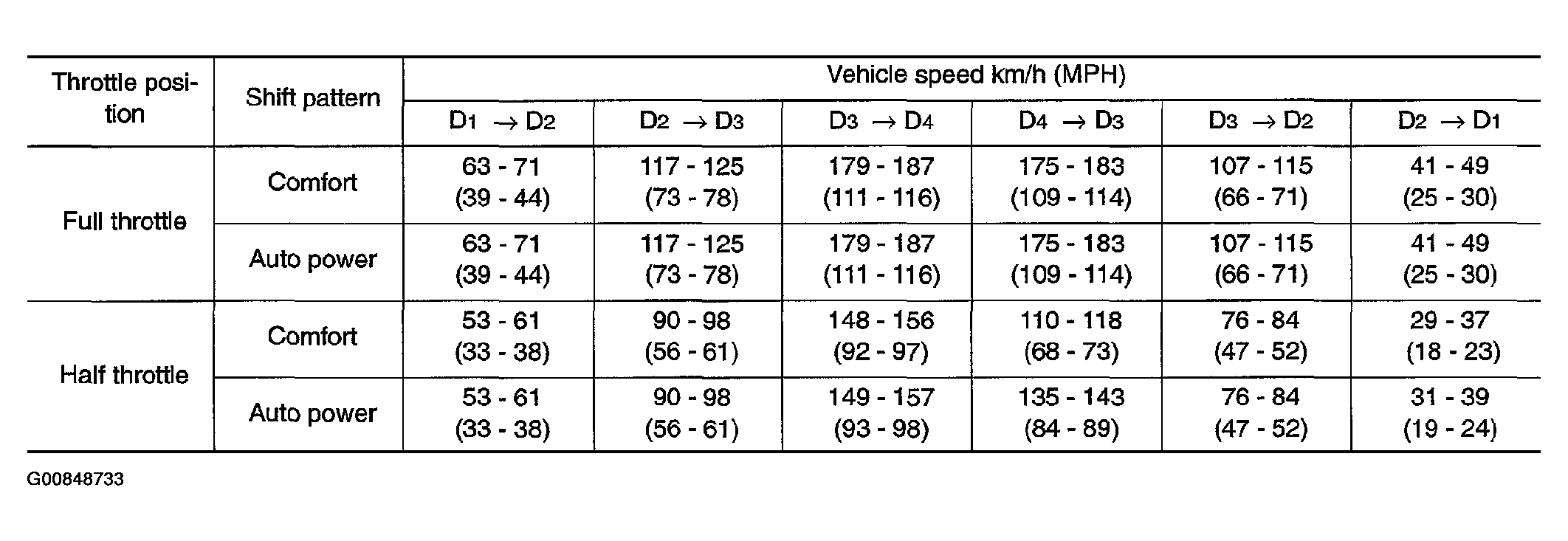

Fig 1: Vehicle Speed When Shifting Gears Throttle Position
G00848733Courtesy of NISSAN MOTOR CO., U.S.A.
