Reverse Clutch Dish Plates
Reverse Clutch Dish Plates
WARNING:
This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Check for deformation or damage.
Measure thickness of dish plate.
Thickness of dish plate : 3.08 mm (0.1213 in)
If deformed or fatigued, replace.

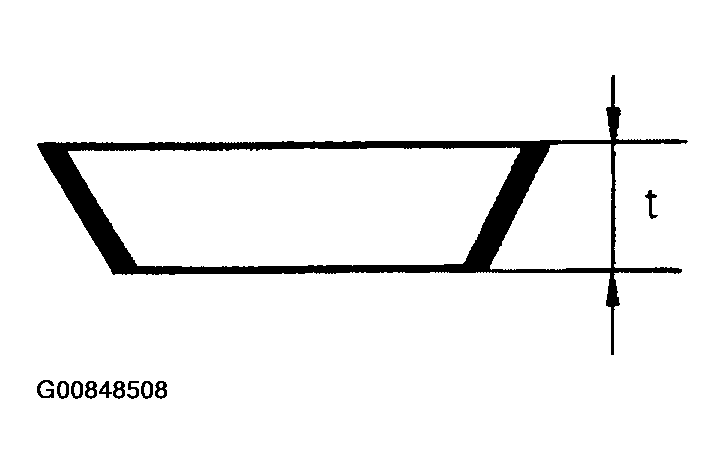

Fig 1: Inspecting Reverse Clutch Dish Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
