Reverse Clutch: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

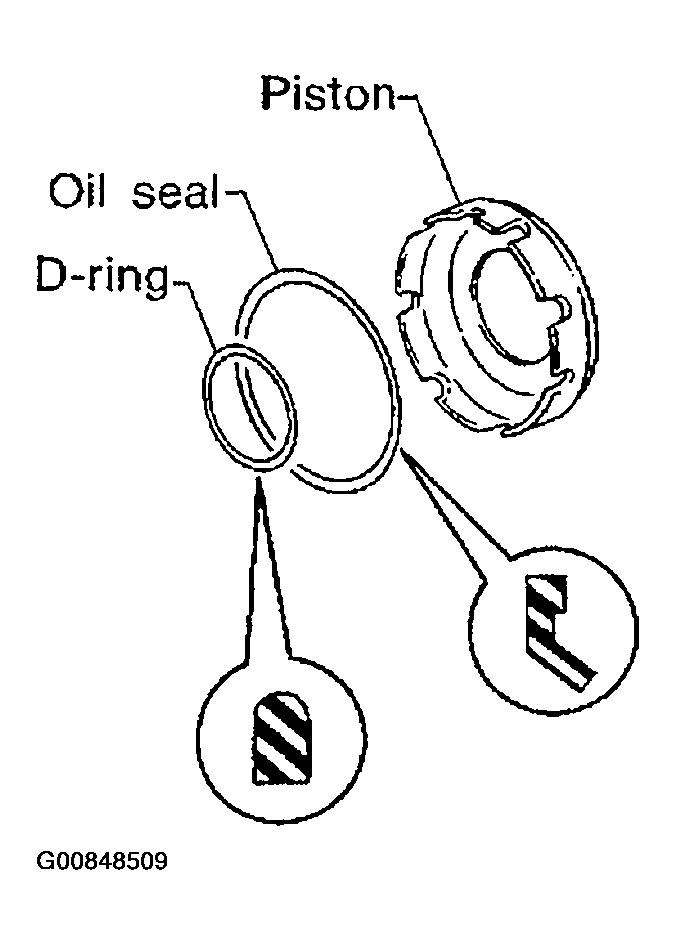

Install D-ring and oil seal on piston.
- Take care with the direction of oil seal.
- Apply ATF to both parts.

  Fig 1: ASSEMBLY (1 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

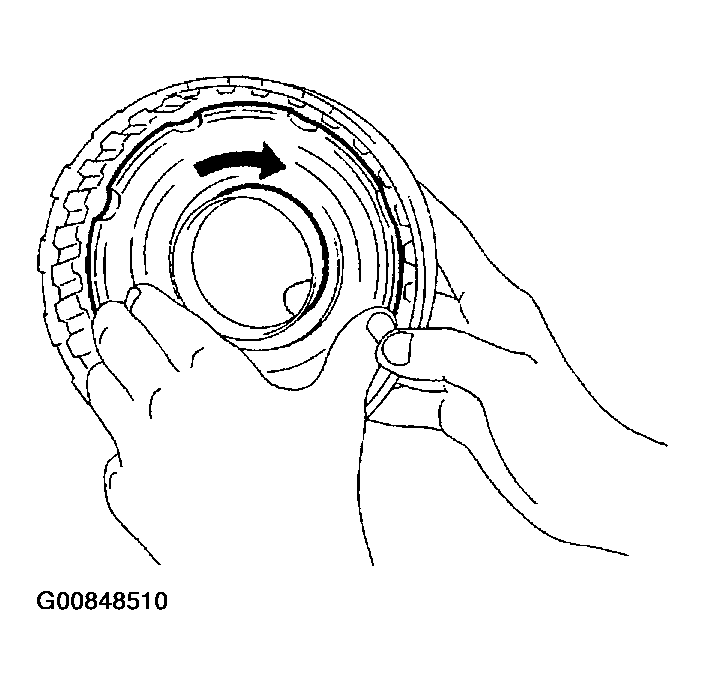

Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.

  Fig 2: Assembly (2 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

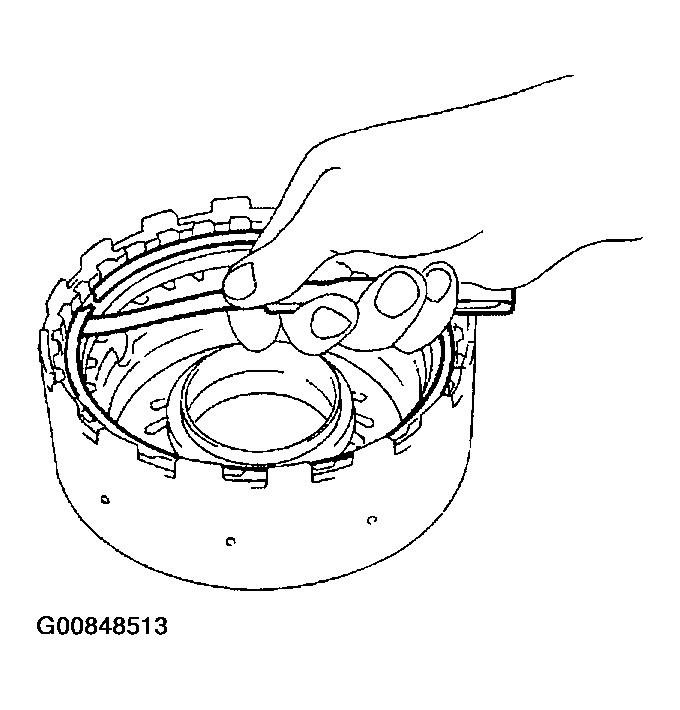

Install return springs and spring retainer on piston.
- Do not expand snap ring excessively.

  Fig 3: Assembly (3 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

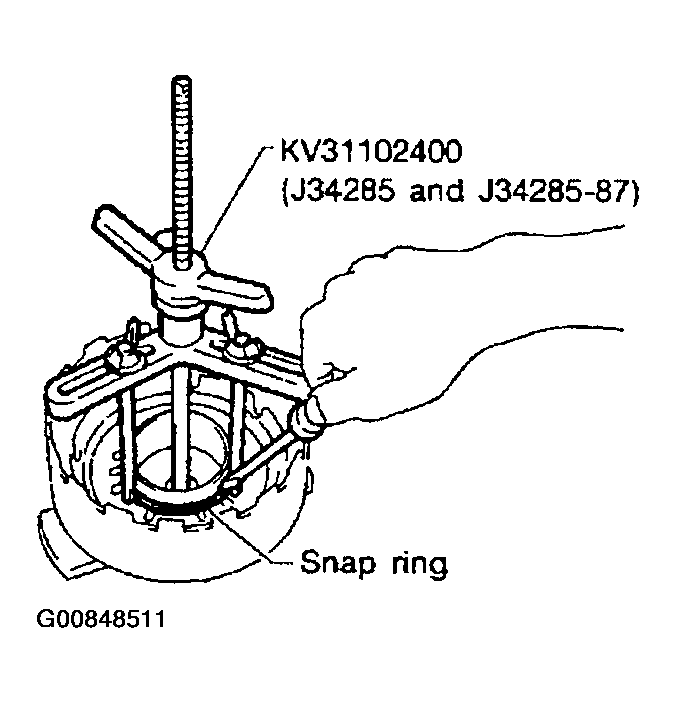

Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly over return springs.
Install drive plates, driven plates, retaining plate and dish plates.
- Take care with order of plates.
Install snap ring.
- Do not expand snap ring excessively.

  Fig 4: Assembly (4 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

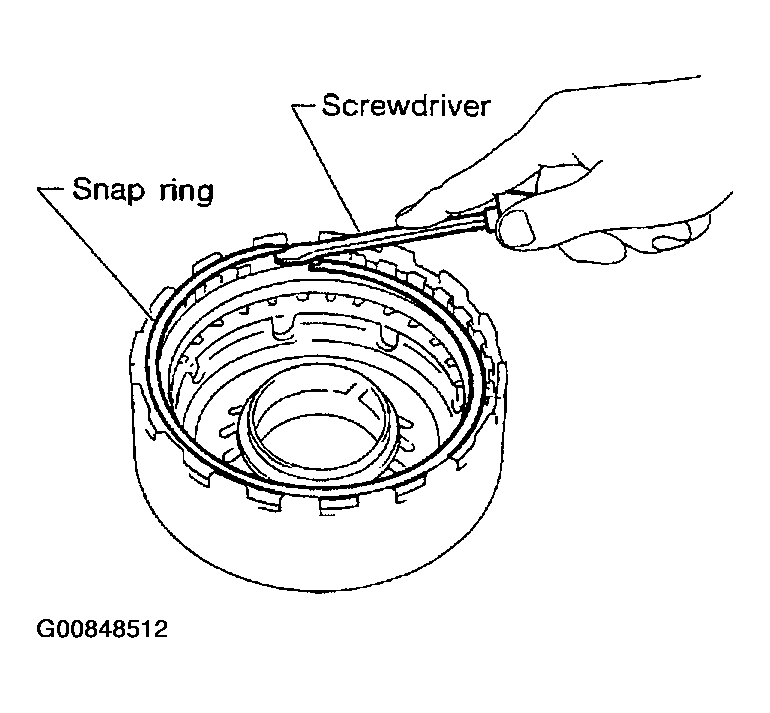

Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
Specified clearance

Standard : 0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit : 1.2 mm (0.047 in)

Retaining plate : Refer to "REVERSE CLUTCH ".

Fig 5: Assembly (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

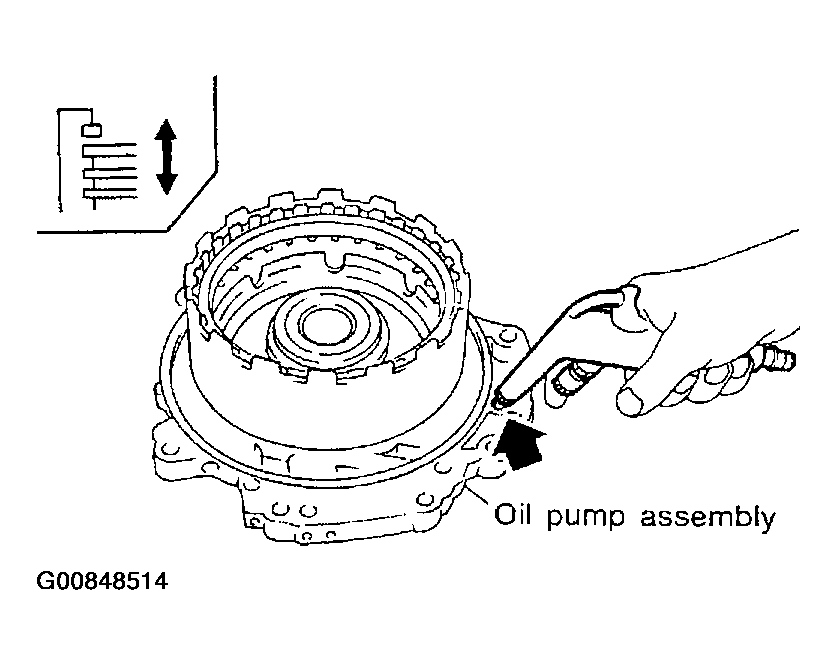

Check operation of reverse clutch.

Fig 6: Assembly (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
