Rear Internal Gear, Forward Clutch Hub And Overrun Clutch Hub: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

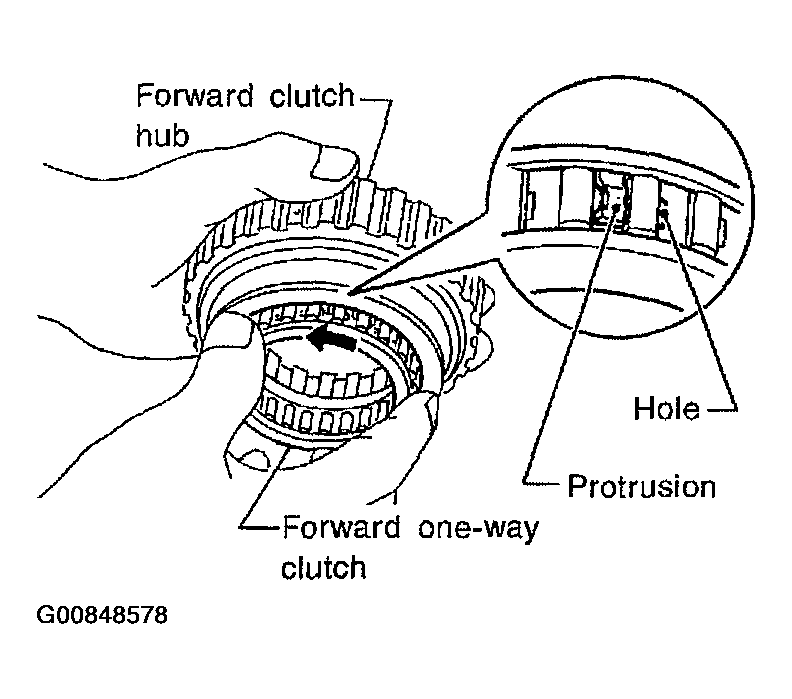

Install forward one-way clutch on forward clutch.
- Take care with the direction of forward one-way clutch.

  Fig 1: Assembly (1 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

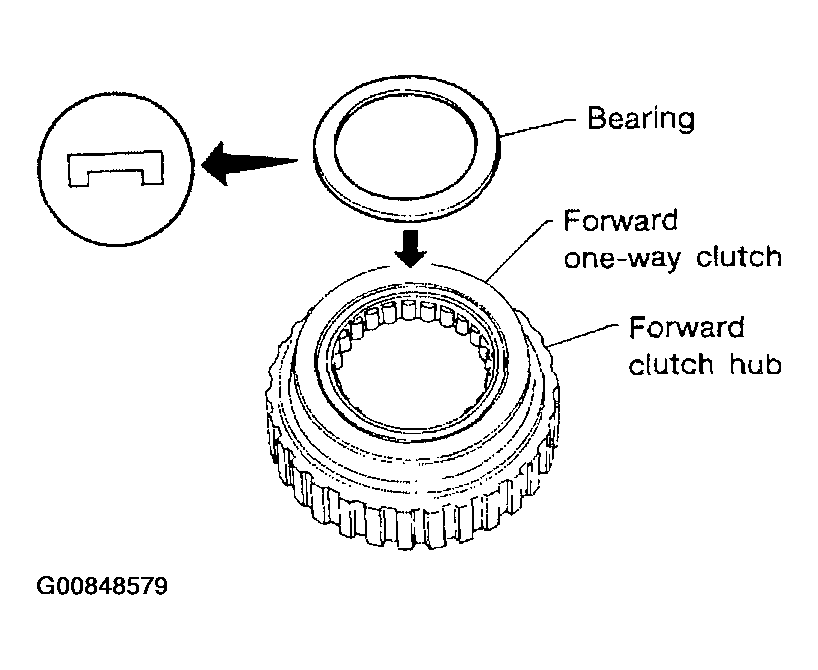

Install bearing on forward one-way clutch.
- Apply petroleum jelly to bearing.

  Fig 2: Assembly (2 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

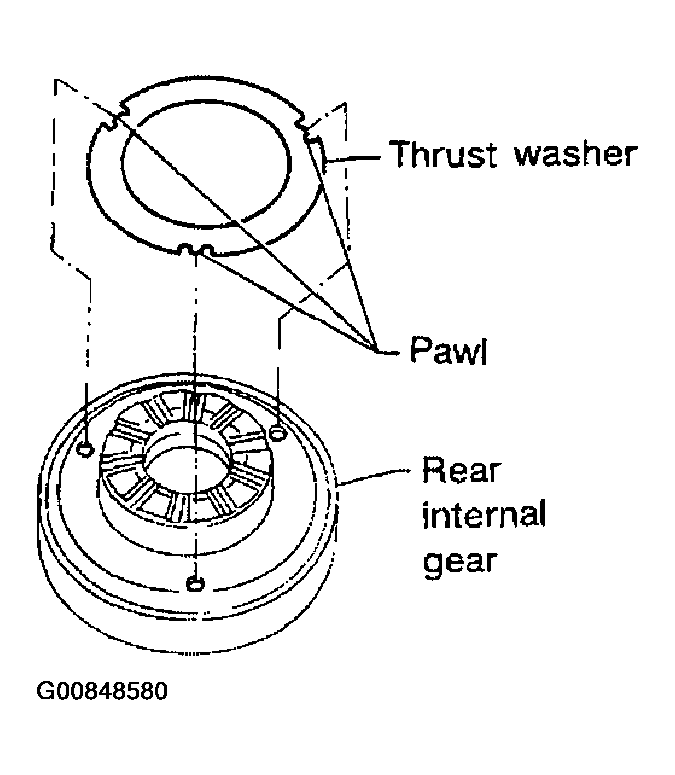

Install thrust washer on rear internal gear.
- Apply petroleum jelly to thrust washer.
- Align hooks of thrust washer with holes of rear internal gear.

  Fig 3: Assembly (3 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

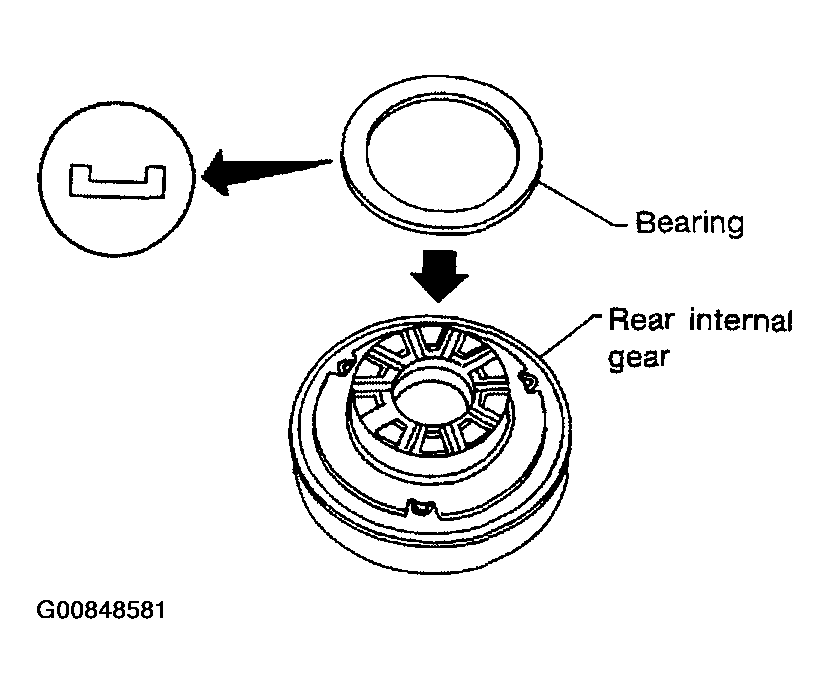

Install bearing on rear internal gear.
- Apply petroleum jelly to bearing.

  Fig 4: Assembly (4 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

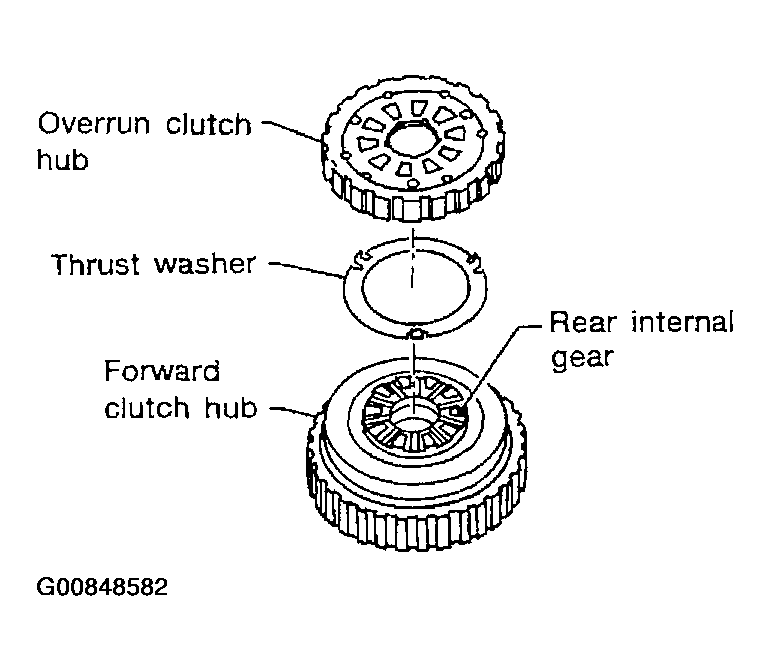

Install thrust washer and overrun clutch hub.
- Apply petroleum jelly to thrust washer.
- Align hooks of thrust washer with holes of overrun clutch hub.
- Align projections of rear internal gear with holes of overrun clutch hub.

  Fig 5: Assembly (5 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

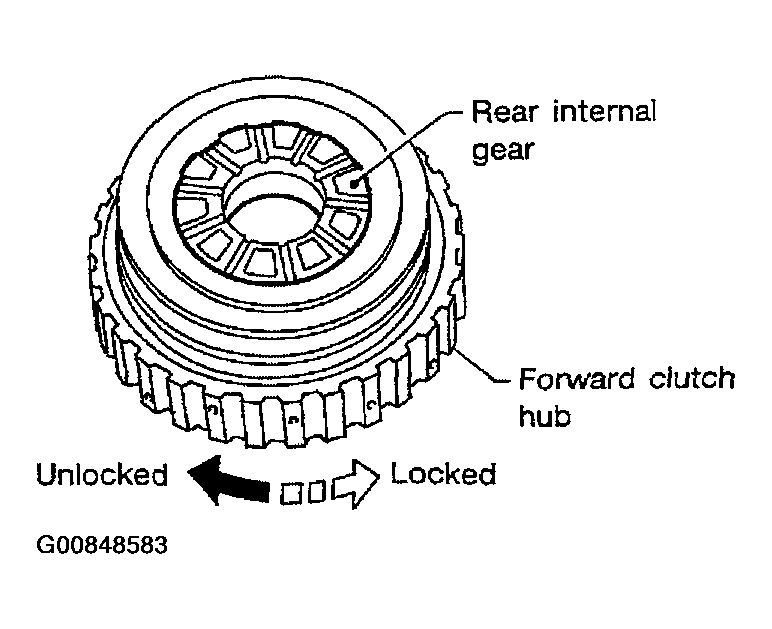

Install forward clutch hub on rear internal gear.
- Check operation of forward one-way clutch. Hold rear internal gear and turn forward clutch hub. Check forward clutch hub for correct locking and unlocking directions.
- If not as shown in illustration, check installation direction of forward one-way clutch.

  Fig 6: Assembly (6 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.
