Output Shaft, Idler Gear, Reduction Pinion Gear And Bearing Retainer: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

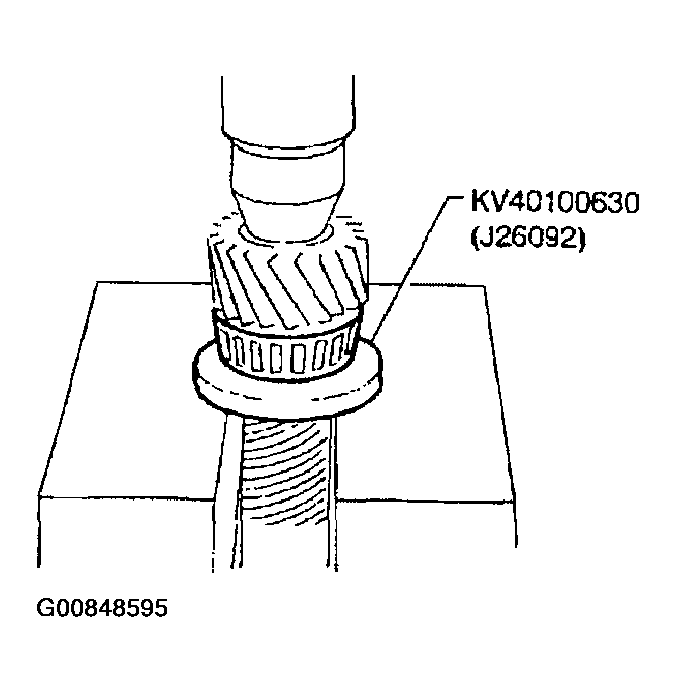

Press reduction pinion gear bearing inner race on reduction pinion gear.

Fig 1: Assembly (1 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

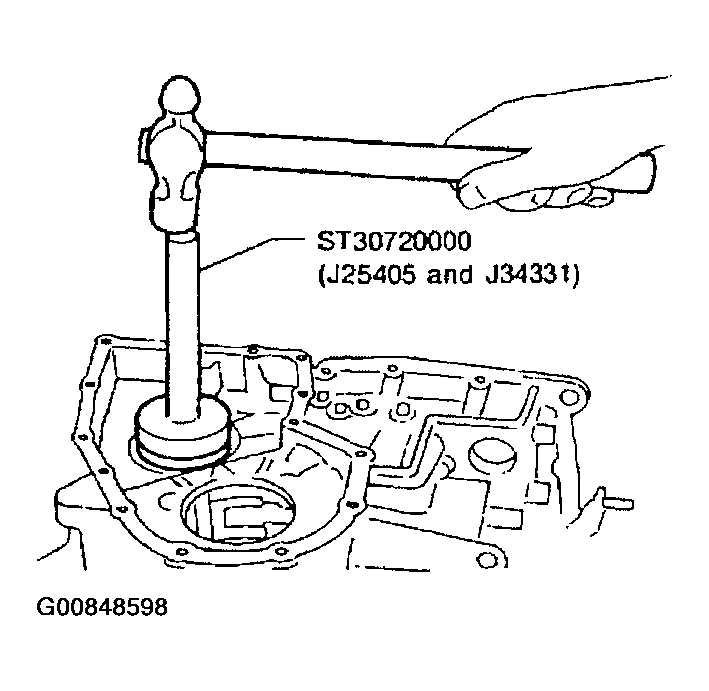

Install reduction pinion gear bearing outer race on transmission case.
: 109 - 123 N-m (11.1 - 12.5 kg-m, 80 - 90 ft-lb)

Fig 2: Assembly (2 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

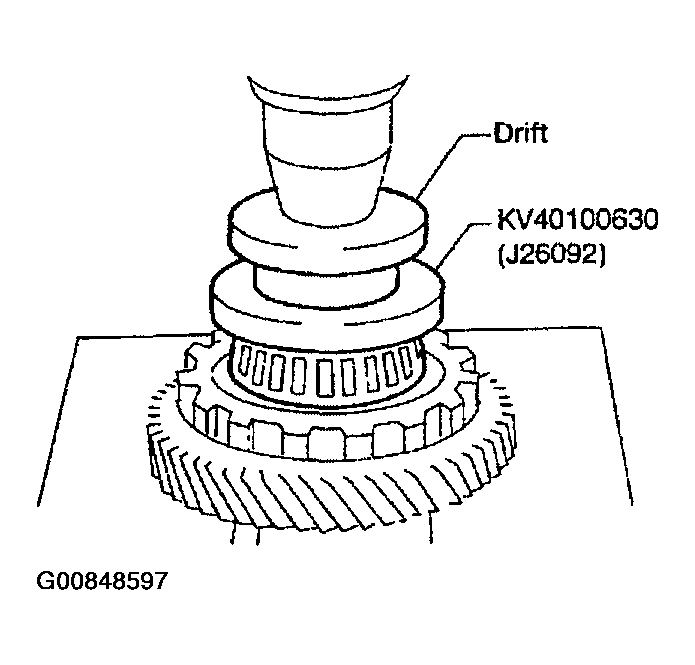

Press idler gear bearing inner race on idler gear.

Fig 3: Assembly (3 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install idler gear bearing outer race on transmission case.

Fig 4: Assembly (4 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

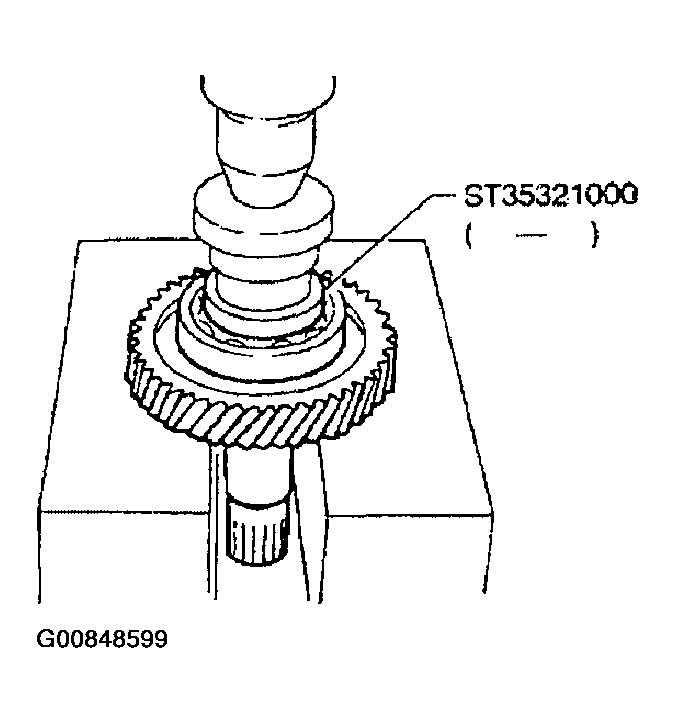

Press output shaft bearing on output shaft.

Fig 5: Assembly (5 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

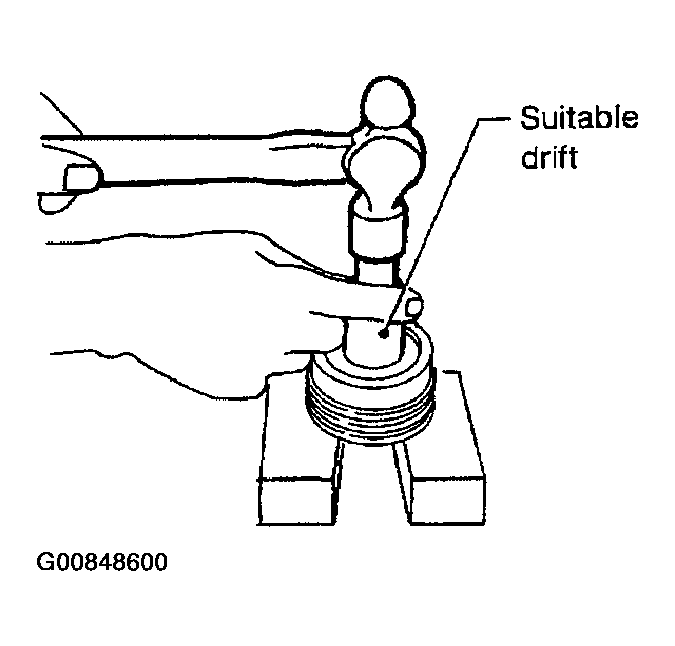

Press needle bearing on bearing retainer.

Fig 6: Assembly (6 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

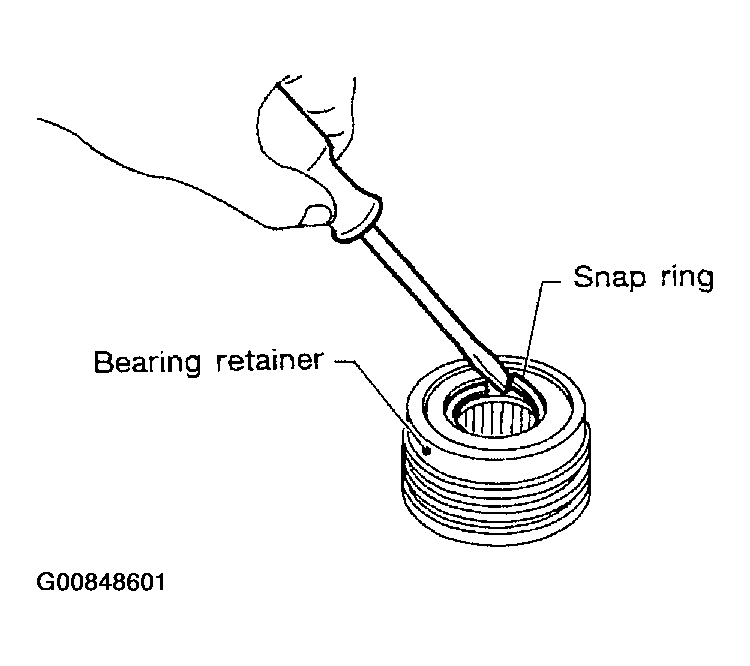

Install snap ring to bearing retainer.
- Do not expand snap ring excessively.

  Fig 7: Assembly (7 Of 9)
  Courtesy of NISSAN MOTOR CO., U.S.A.

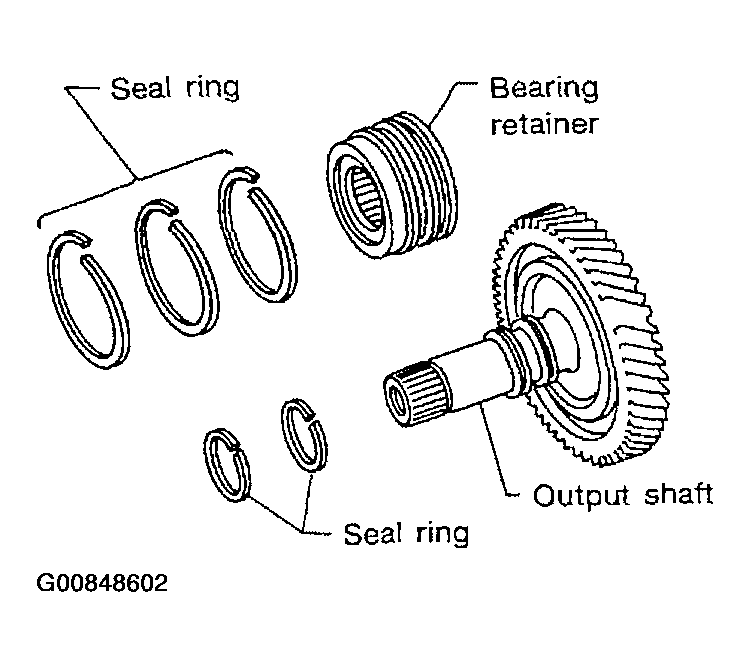

After packing ring grooves with petroleum jelly, carefully install new seal rings on output shaft and bearing retainer.

Fig 8: Assembly (8 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.

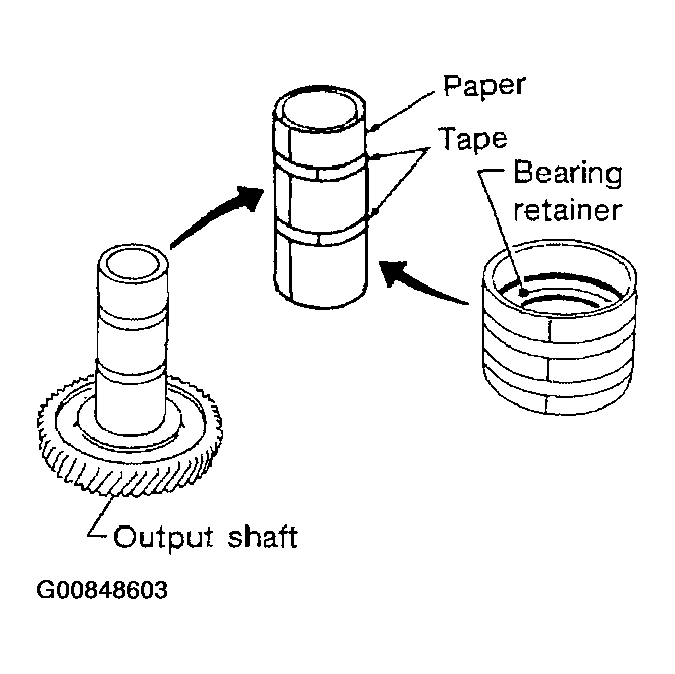

- Roll paper around seal rings to prevent seal rings from spreading.
Fig 9: Assembly (9 Of 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
