Oil Pump: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

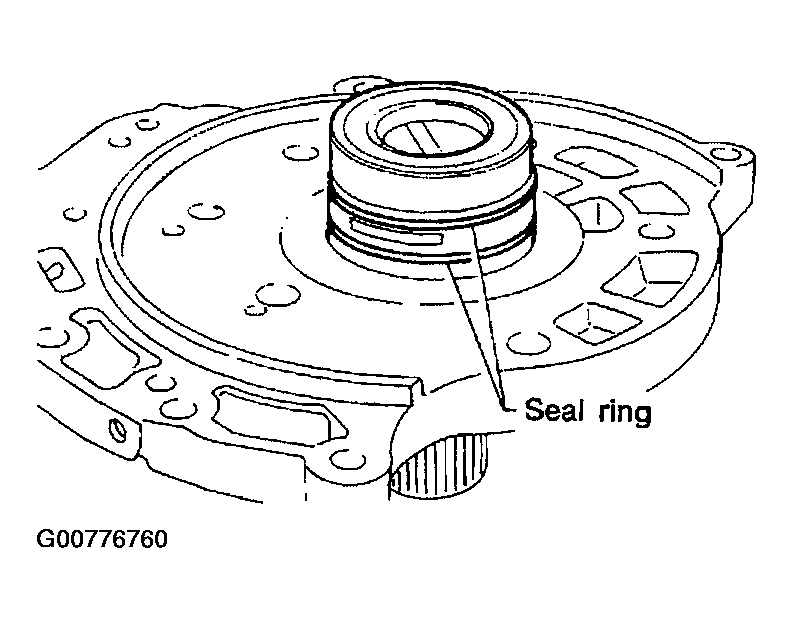

Remove seal rings.

Fig 1: Disassembly (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

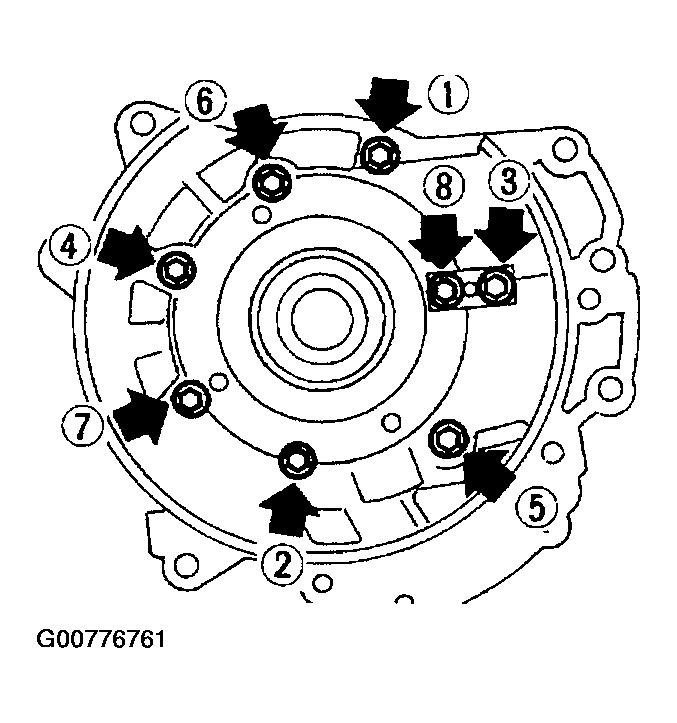

Loosen bolts in a crisscross pattern and remove oil pump cover.

Fig 2: Disassembly (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

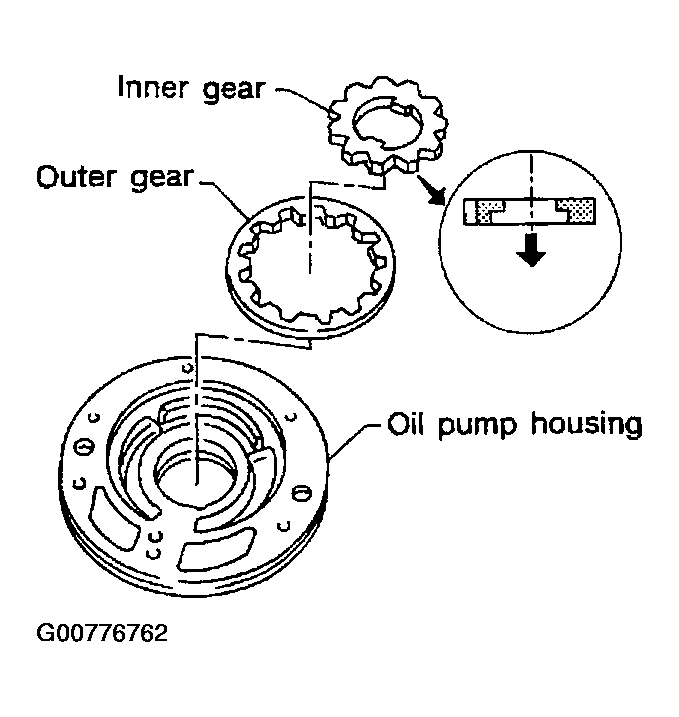

Remove inner and outer gear from oil pump housing.

Fig 3: Disassembly (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

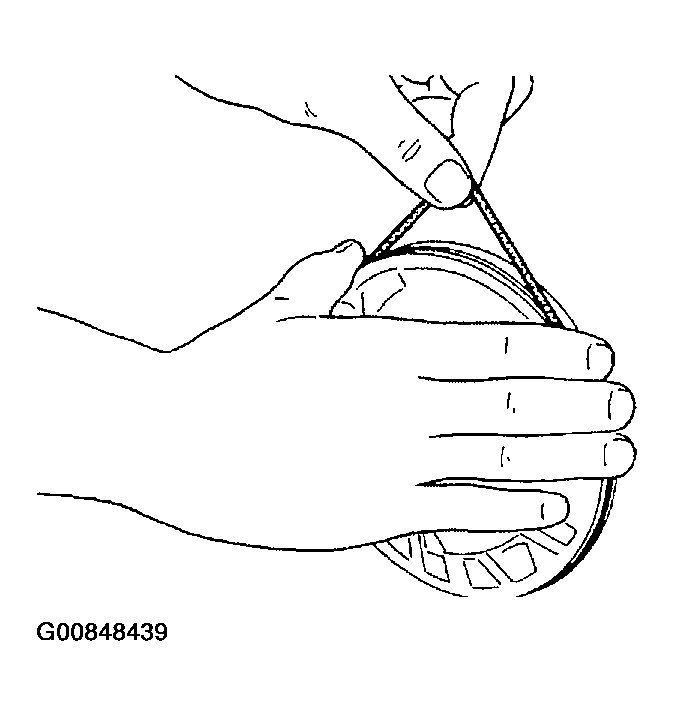

4. Remove O-ring from oil pump housing.

Fig 4: Disassembly (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

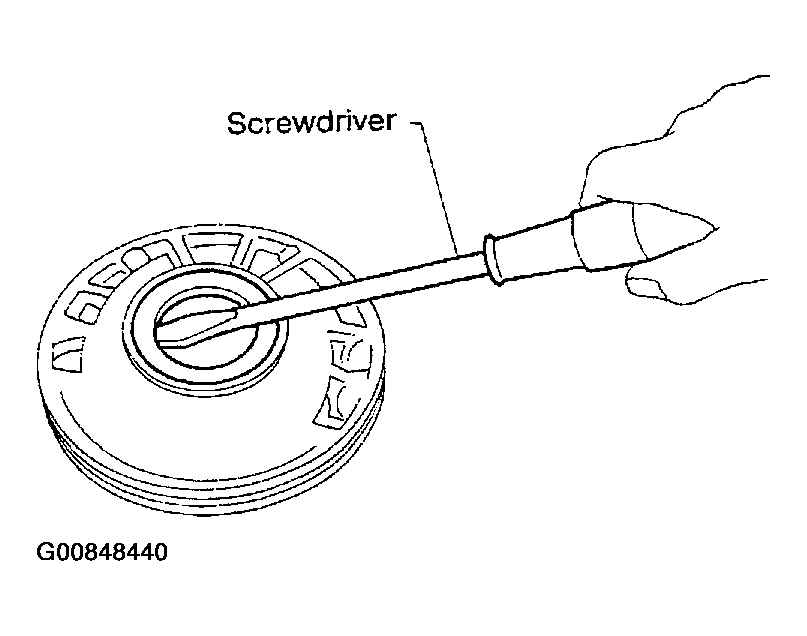

5. Remove oil pump housing oil seal.

Fig 5: Disassembly (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
