Manual Shaft: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

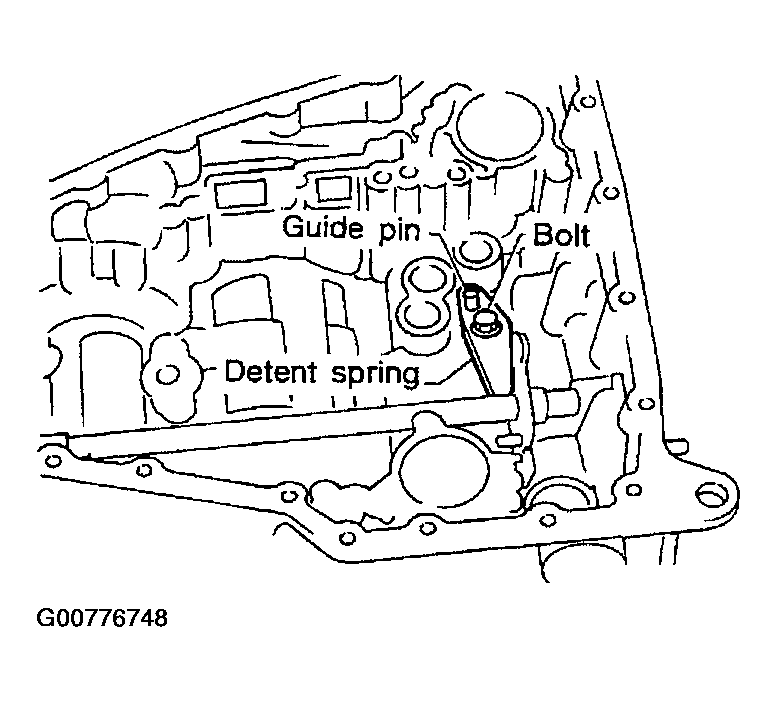

  1. Remove detent spring from transmission case.
    Fig 1: Removal (1 Of 5)
    G00776748Courtesy of NISSAN MOTOR CO., U.S.A.

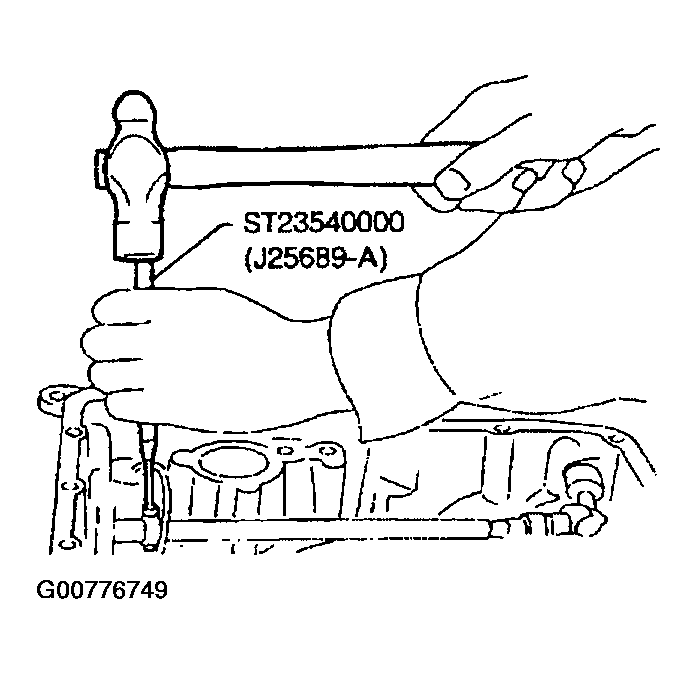

  2. Drive out manual plate retaining pin.
    Fig 2: Removal (2 Of 5)
    G00776749Courtesy of NISSAN MOTOR CO., U.S.A.

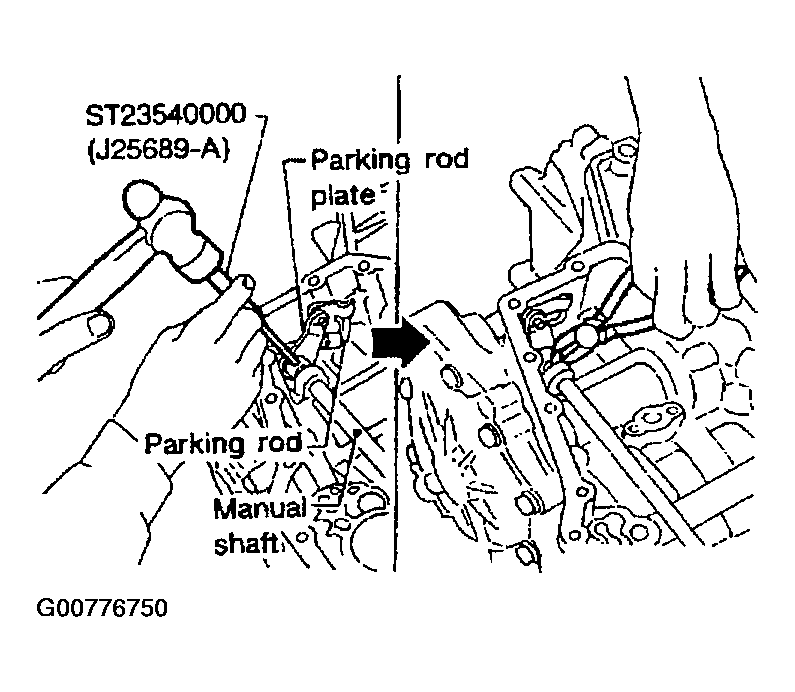

  3. Drive and pull out parking rod plate retaining pin.
  4. Remove parking rod plate from manual shaft.
  5. Draw out parking rod from transmission case.
    Fig 3: Removal (3 Of 5)
    G00776750Courtesy of NISSAN MOTOR CO., U.S.A.

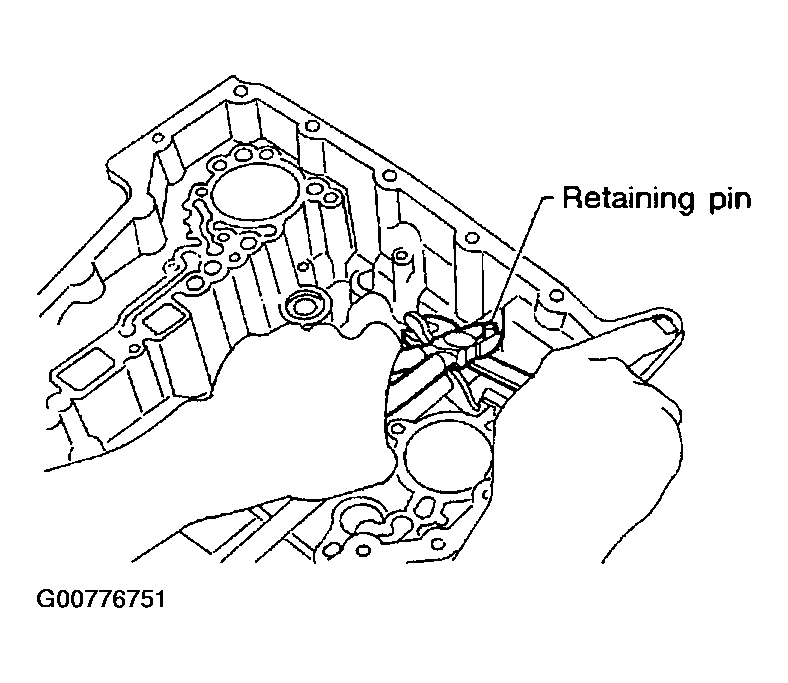

  6. Pull out manual shaft retaining pin.
  7. Remove manual shaft and manual plate from transmission case.
    Fig 4: Removal (4 Of 5)
    G00776751Courtesy of NISSAN MOTOR CO., U.S.A.

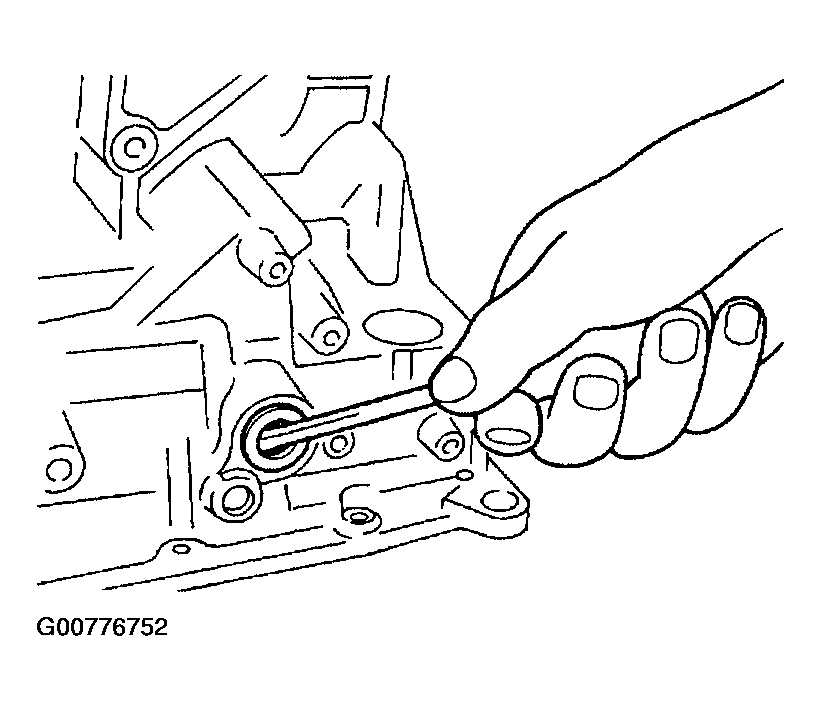

  8. Remove manual shaft oil seal.
    Fig 5: Removal (5 Of 5)
    G00776752Courtesy of NISSAN MOTOR CO., U.S.A.
