Manual Shaft: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

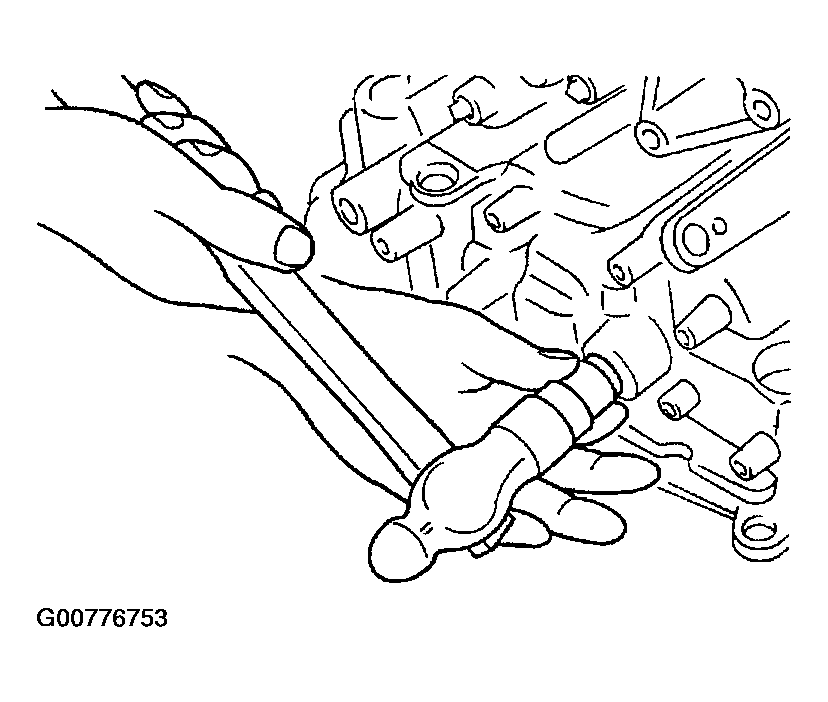

Install manual shaft oil seal.
- Apply ATF to outer surface of oil seal.

  Fig 1: Installation (1 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

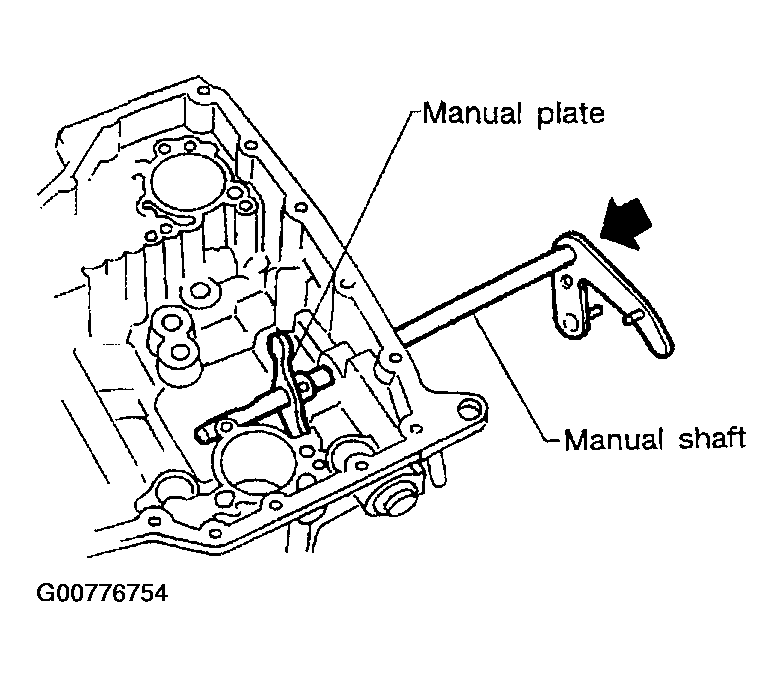

Install manual shaft and manual plate.

Fig 2: Installation (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

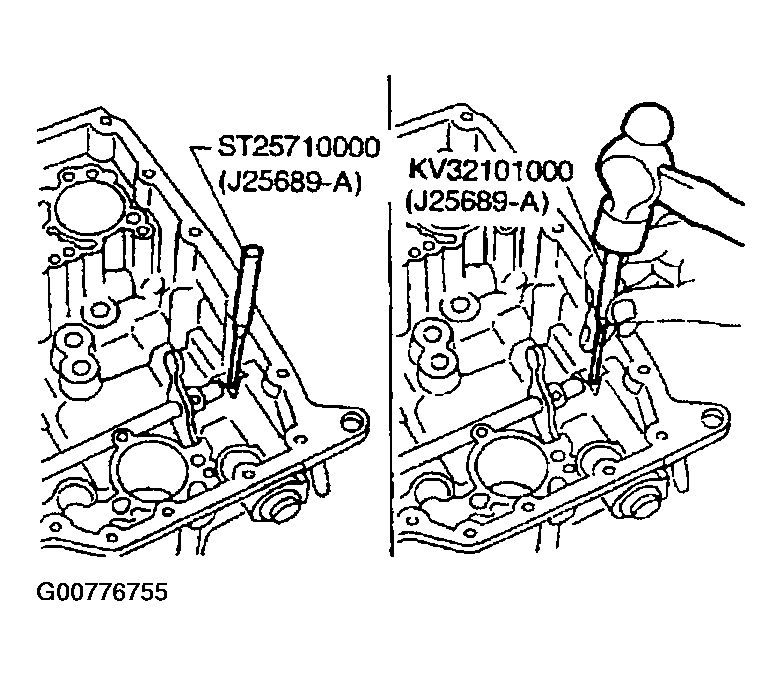

Align groove of manual shaft and hole of transmission case.
Install manual shaft retaining pin up to bottom of hole.

Fig 3: Installation (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

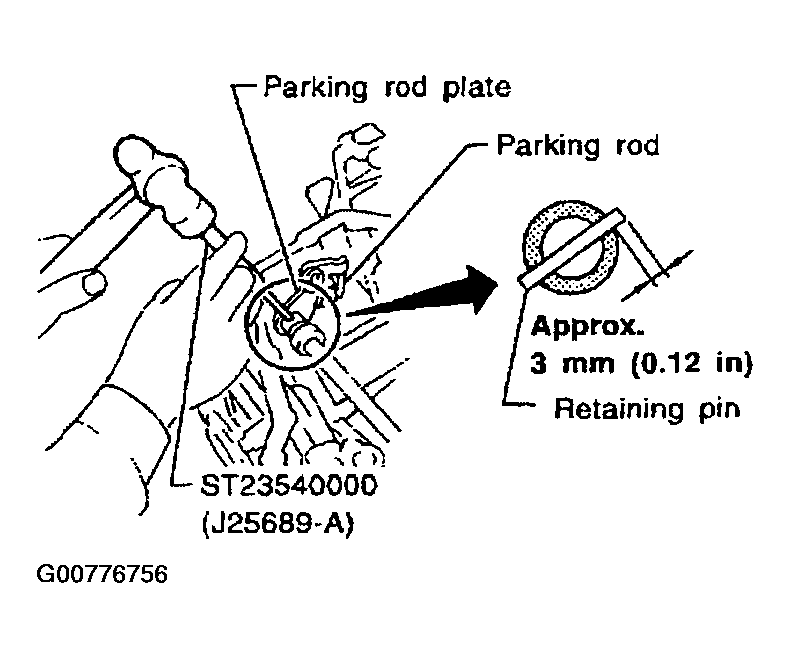

Install parking rod to parking rod plate.
Set parking rod assembly onto manual shaft and drive retaining pin.
- Both ends of pin should protrude.

  Fig 4: Installation (4 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

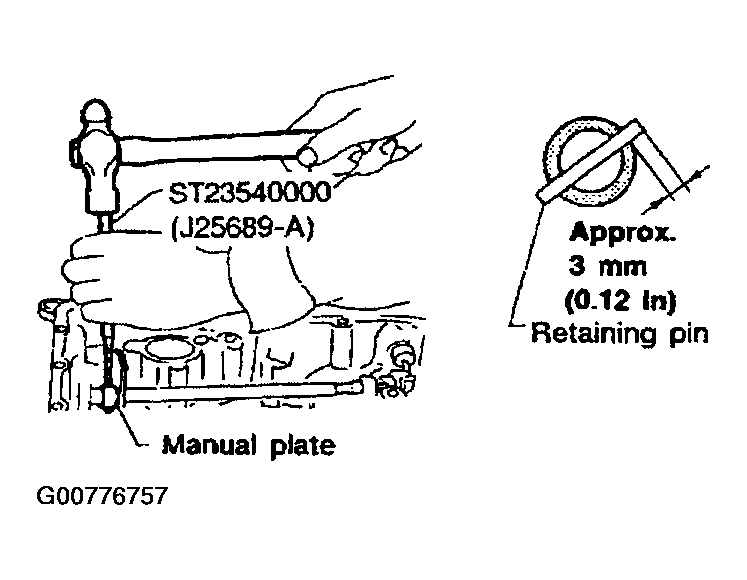

Drive manual plate retaining pin.
- Both ends of pin should protrude.

  Fig 5: Installation (5 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

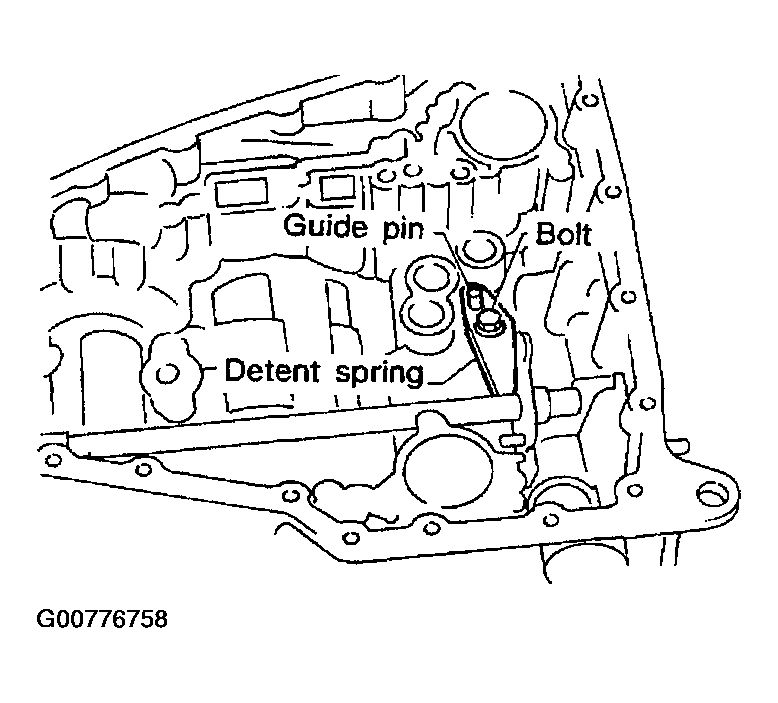

Install detent spring. Tighten detent spring bolts to the specified torque. Refer to "COMPONENTS ".

Fig 6: Installation (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
