High Clutch: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check operation of high clutch.

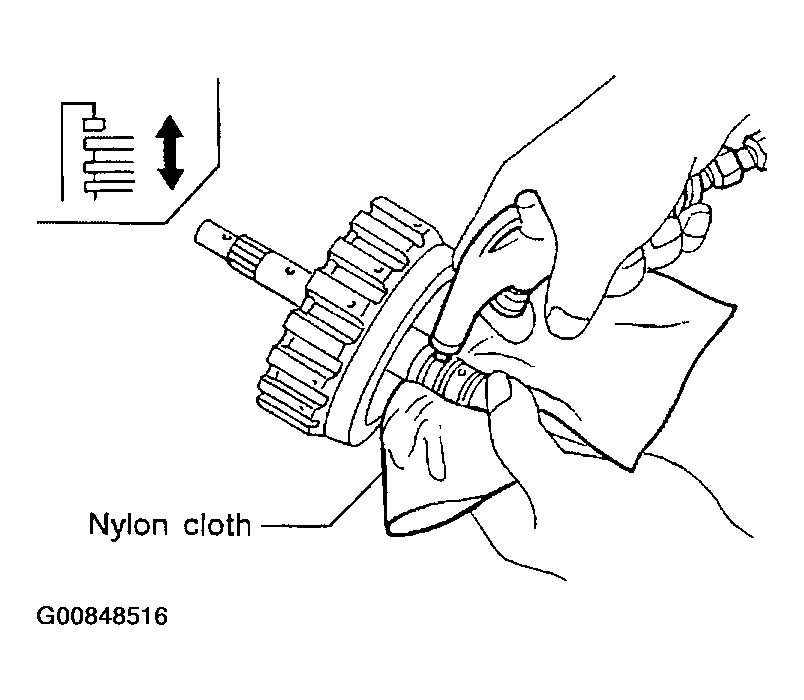

1. Apply compressed air to oil hole of input shaft with nylon cloth.

  Fig 1: Disassembly (1 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Stop up hole on opposite side of input shaft with nylon cloth.
2. Check to see that retaining plate moves to snap ring.
3. If retaining plate does not contact snap ring:
  - D-ring might be damaged.
  - Oil seal might be damaged.
  - Fluid might be leaking past piston check ball.

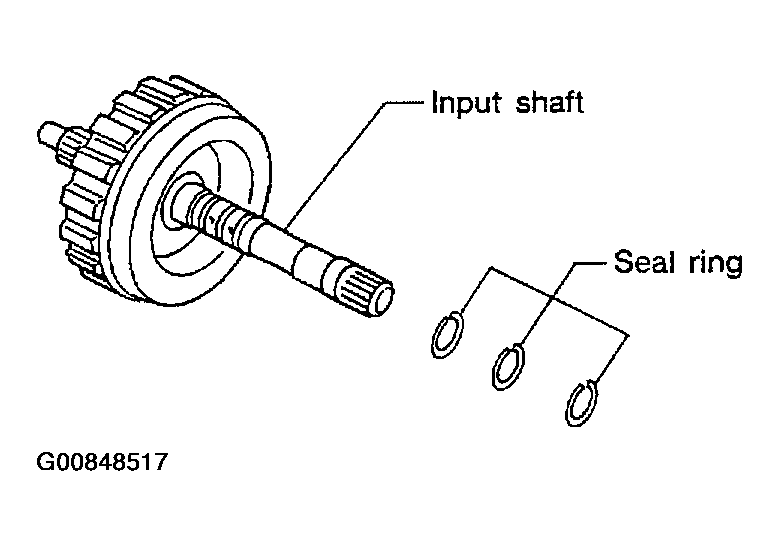

Remove seal rings from input shaft.
- Always replace when removed.

  Fig 2: Disassembly (2 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.

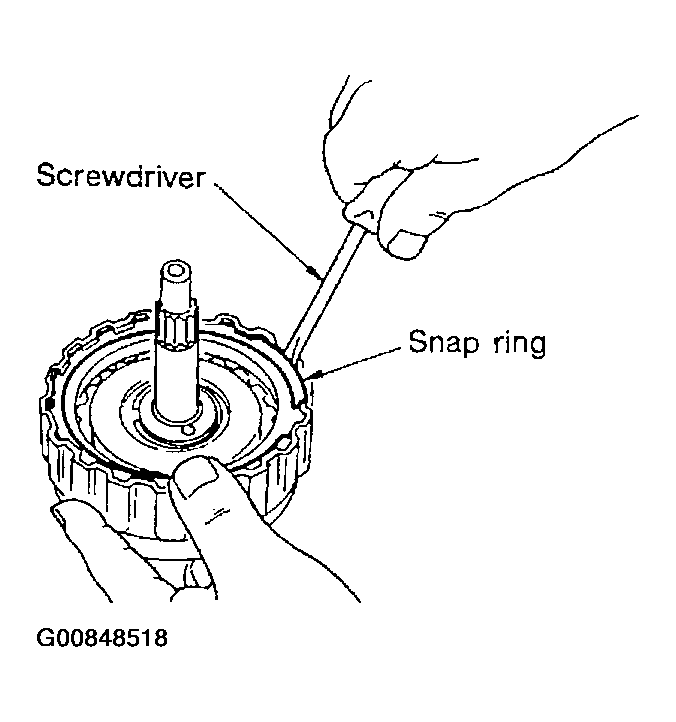

Remove snap ring.

Fig 3: Disassembly (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not expand snap ring excessively.
Remove drive plates, driven plates and retaining plate.

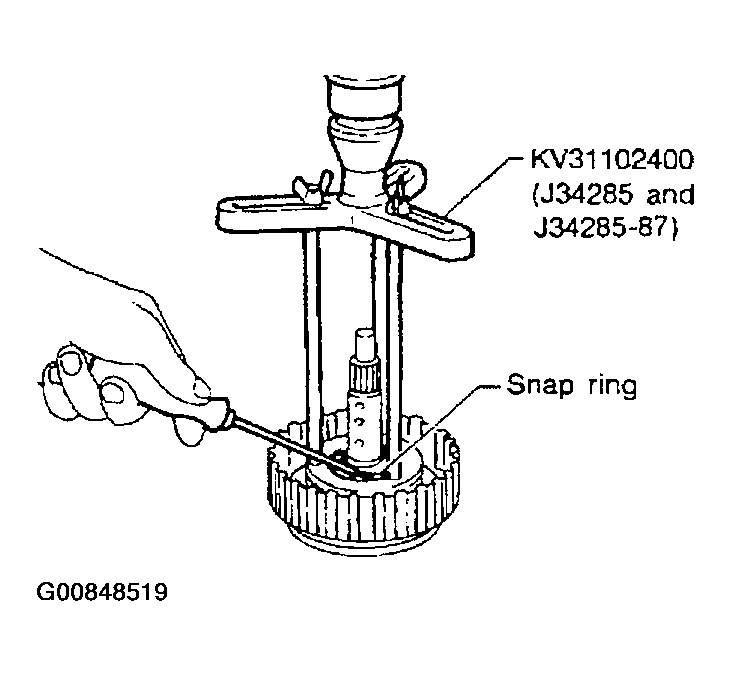

Set Tool on spring retainer and remove snap ring from high clutch drum while compressing return springs.

Fig 4: Disassembly (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Set Tool directly over springs.
- Do not expand snap ring excessively.
Remove spring retainer and return springs.

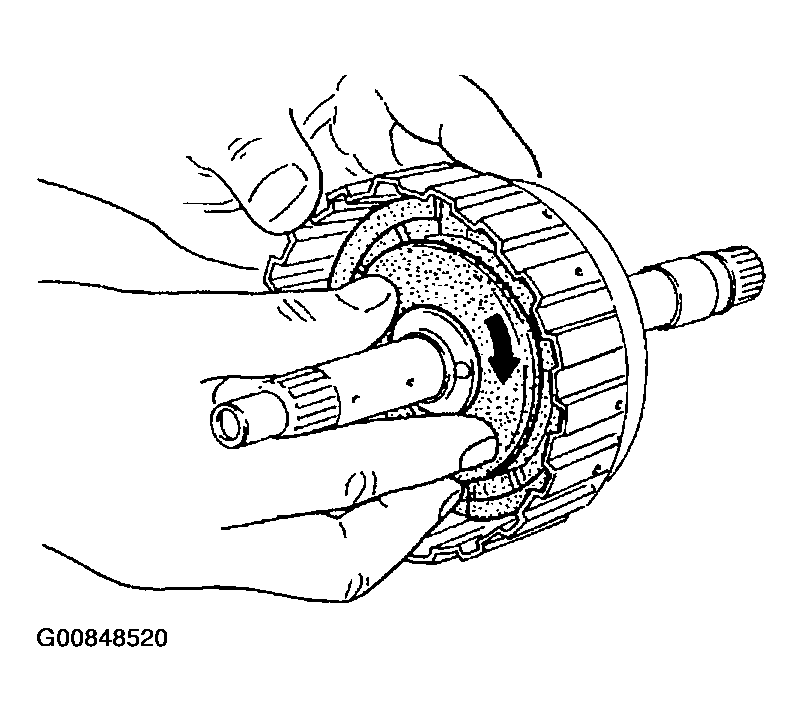

Remove piston from high clutch drum by turning it.

Fig 5: Disassembly (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

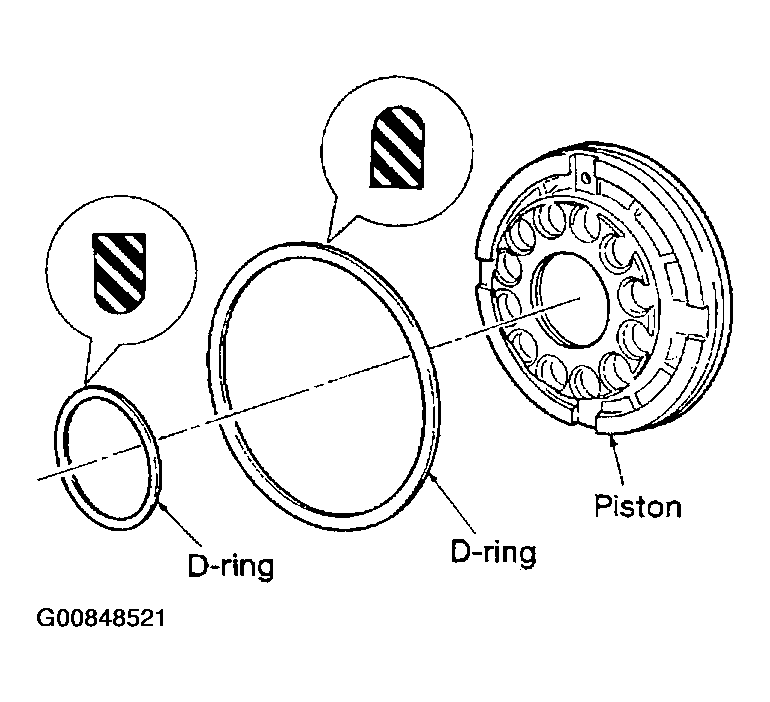

Remove D-rings from piston.

Fig 6: Disassembly (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
