High Clutch: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

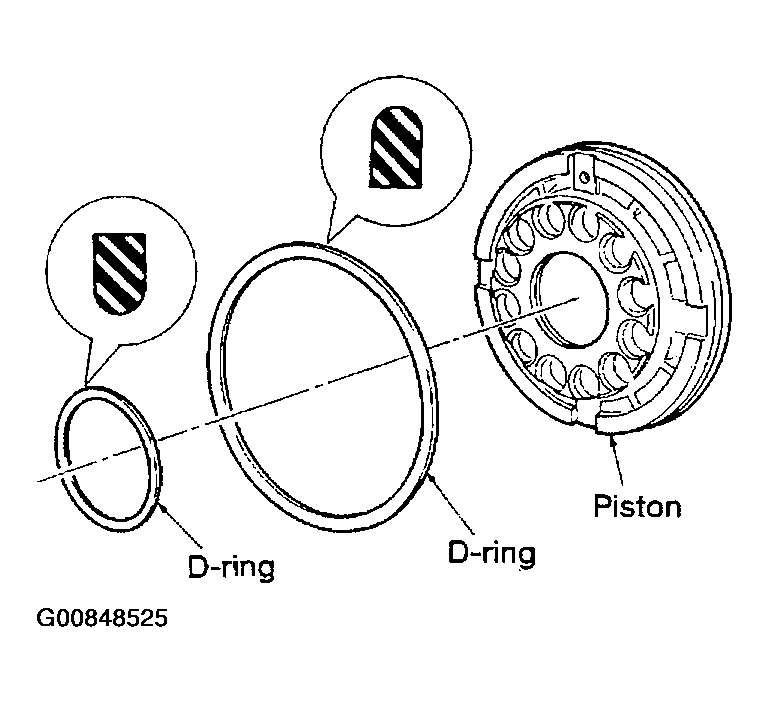

  1. Install D-rings on piston.
    • Apply ATF to both parts.
      Fig 1: Assembly (1 Of 10)
      G00848525Courtesy of NISSAN MOTOR CO., U.S.A.

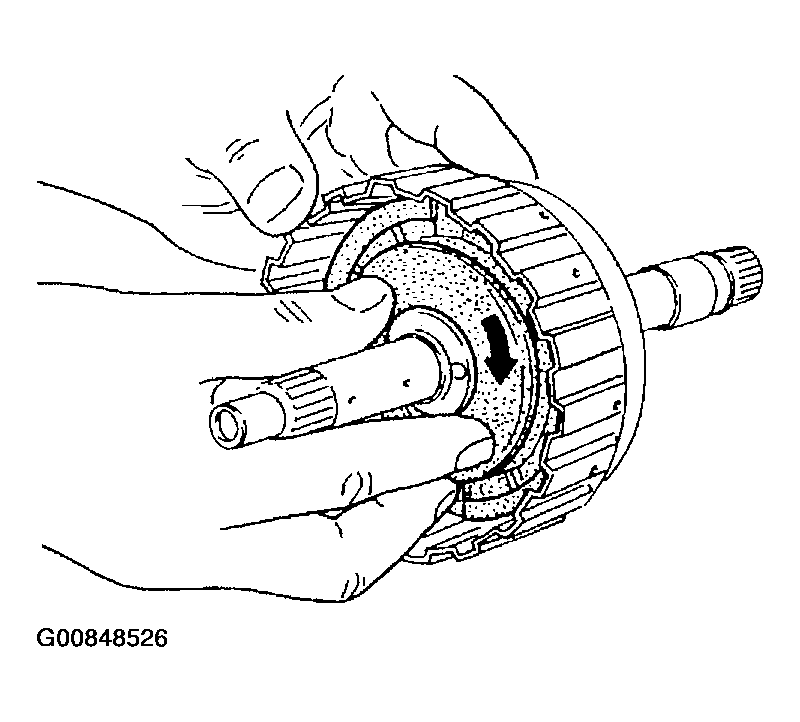

  2. Install piston assembly by turning it slowly.
    • Apply ATF to inner surface of drum.
      Fig 2: Assembly (2 Of 10)
      G00848526Courtesy of NISSAN MOTOR CO., U.S.A.

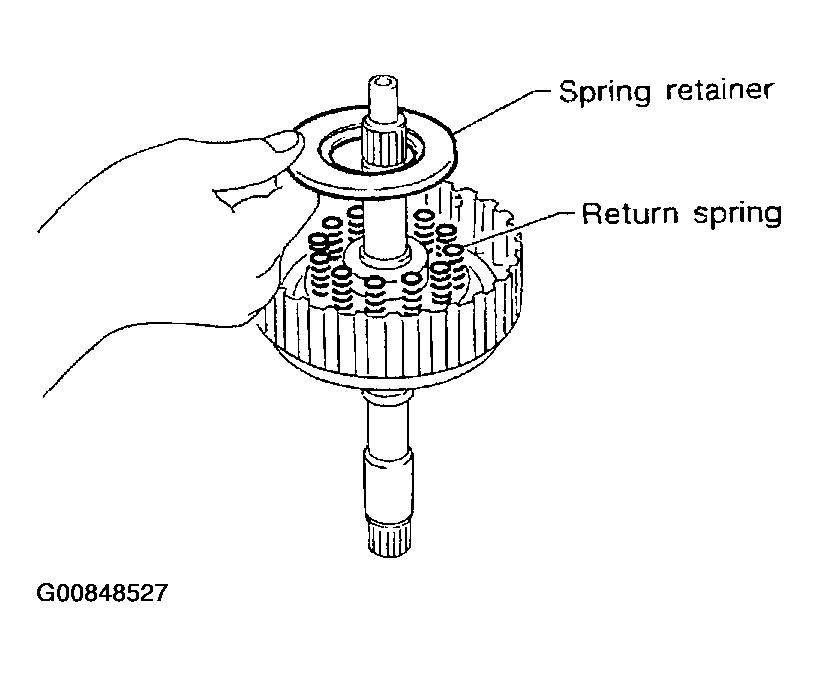

  3. Install return springs and spring retainer on piston.
    Fig 3: Assembly (3 Of 10)
    G00848527Courtesy of NISSAN MOTOR CO., U.S.A.

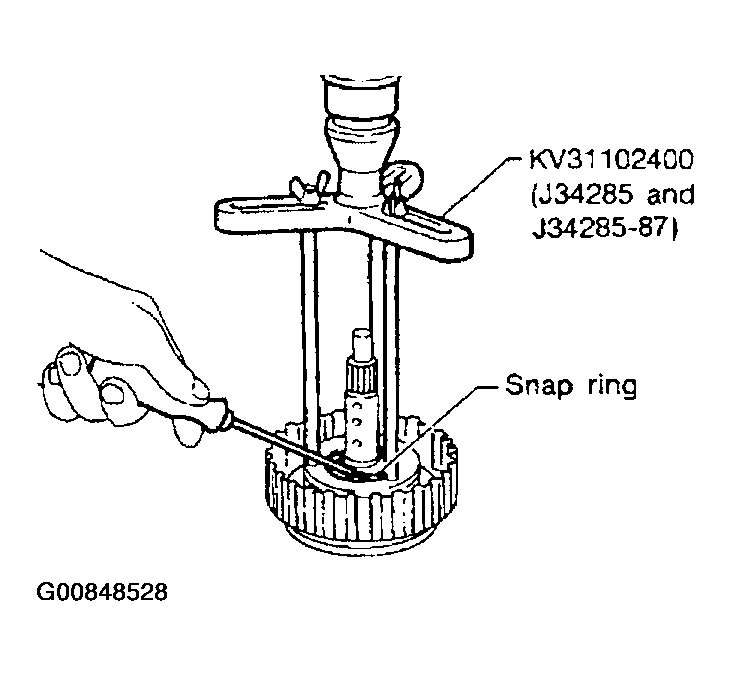

  4. Set Tool on spring retainer and install snap ring while compressing return springs.
    Fig 4: Assembly (4 Of 10)
    G00848528Courtesy of NISSAN MOTOR CO., U.S.A.

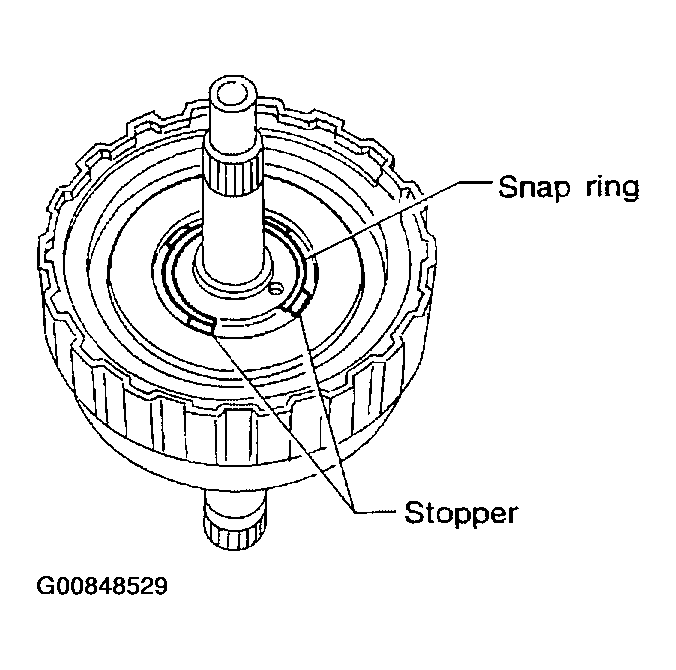

    • Set Tool directly over return springs.
    • Do not expand snap ring excessively.
    • Do not align snap ring gap with spring retainer stopper.
      Fig 5: Assembly (5 Of 10)
      G00848529Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install drive plates, driven plates and retaining plate.
    • Take care with the order and direction of plates.

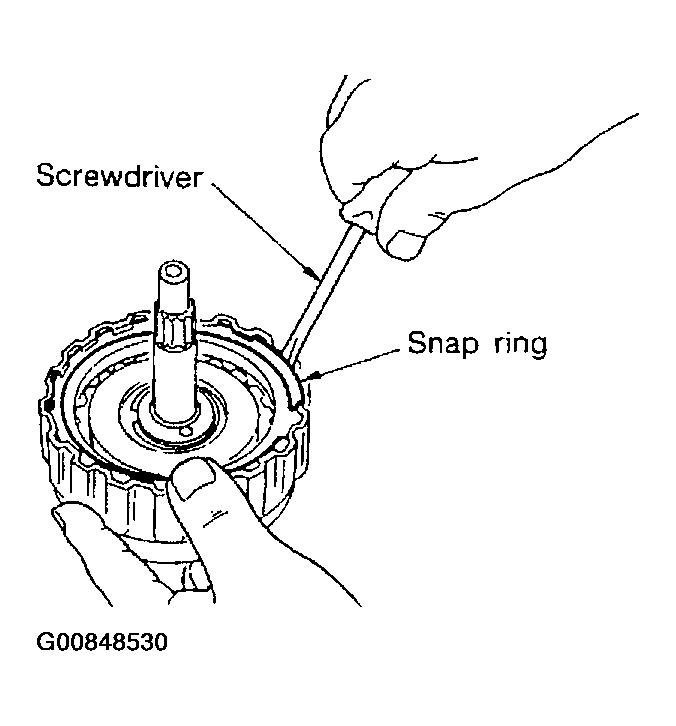

  6. Install snap ring.
    • Do not expand snap ring excessively.
      Fig 6: Assembly (6 Of 10)
      G00848530Courtesy of NISSAN MOTOR CO., U.S.A.

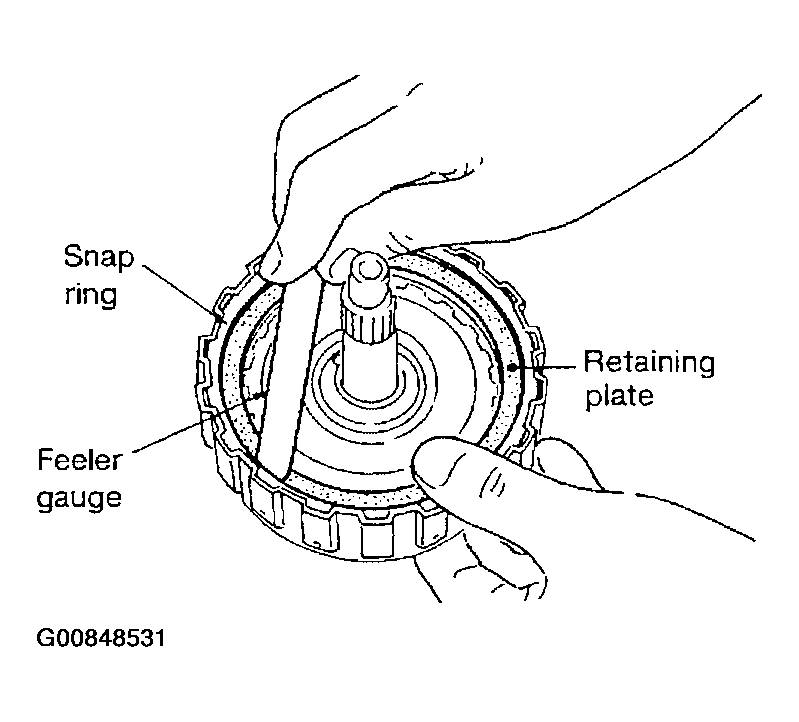

  7. Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

    Specified clearance

    Standard : 1.8 - 2.2 mm (0.071 - 0.087 in)

    Allowable limit : 2.8 mm (0.110 in)

    Retaining plate

    Refer to "HIGH CLUTCH ".

    Fig 7: Assembly (7 Of 10)
    G00848531Courtesy of NISSAN MOTOR CO., U.S.A.

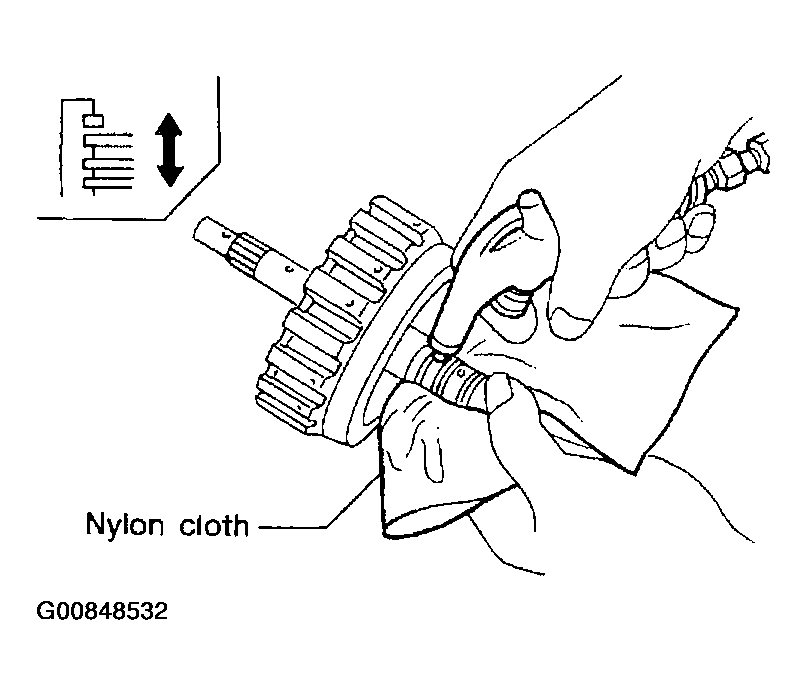

  8. Check operation of high clutch.
    Fig 8: Assembly (8 Of 10)
    G00848532Courtesy of NISSAN MOTOR CO., U.S.A.

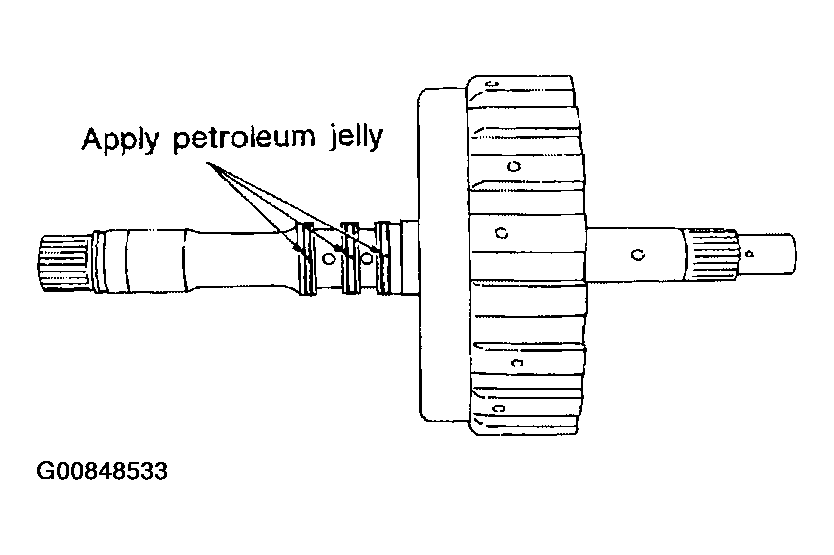

  9. Install seal rings to input shaft.
    • Apply petroleum jelly to seal rings.
    • Always replace when removed.
      Fig 9: Assembly (9 Of 10)
      G00848533Courtesy of NISSAN MOTOR CO., U.S.A.

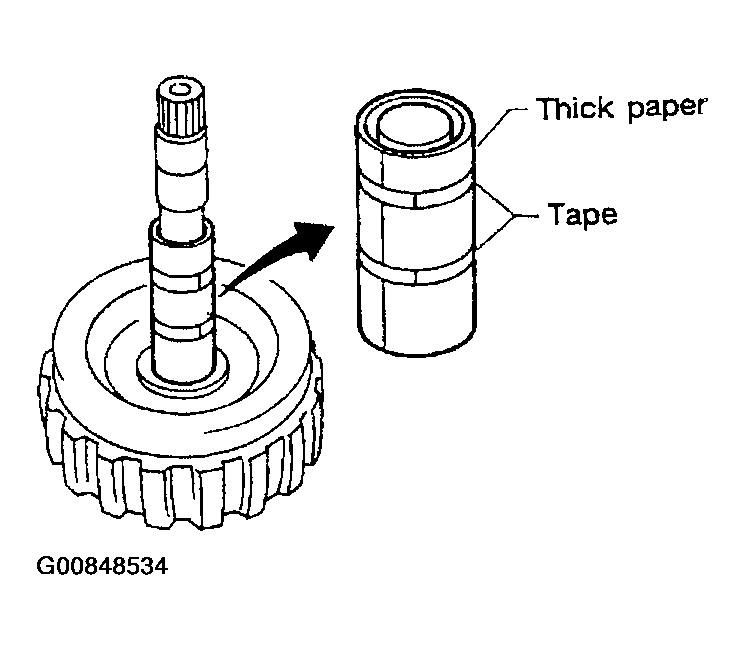

    • Roll paper around seal rings to prevent seal rings from spreading.
      Fig 10: Assembly (10 Of 10)
      G00848534Courtesy of NISSAN MOTOR CO., U.S.A.
