Forward And Overrun Clutches: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

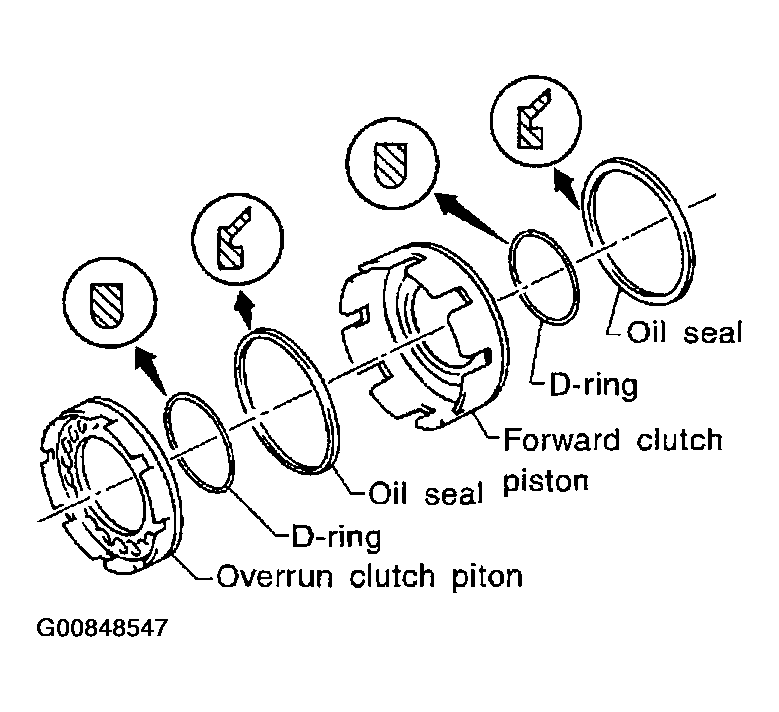

Install D-rings and oil seals on forward clutch piston and overrun clutch piston.
- Take care with direction of oil seal.
- Apply ATF to both parts.

  Fig 1: Assembly (1 Of 12)
  Courtesy of NISSAN MOTOR CO., U.S.A.

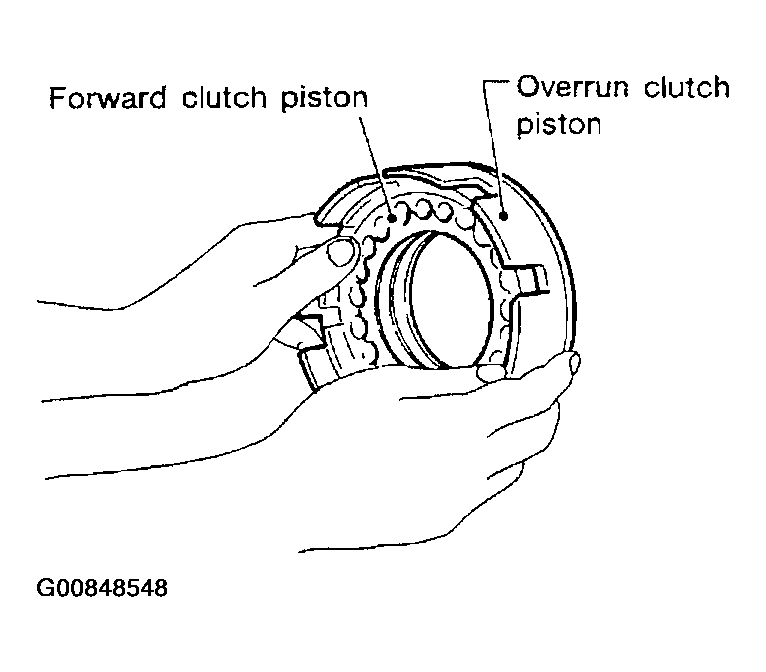

Install overrun clutch piston assembly on forward clutch piston by turning it slowly.
- Apply ATF to inner surface of forward clutch piston

  Fig 2: Assembly (2 Of 12)
  Courtesy of NISSAN MOTOR CO., U.S.A.

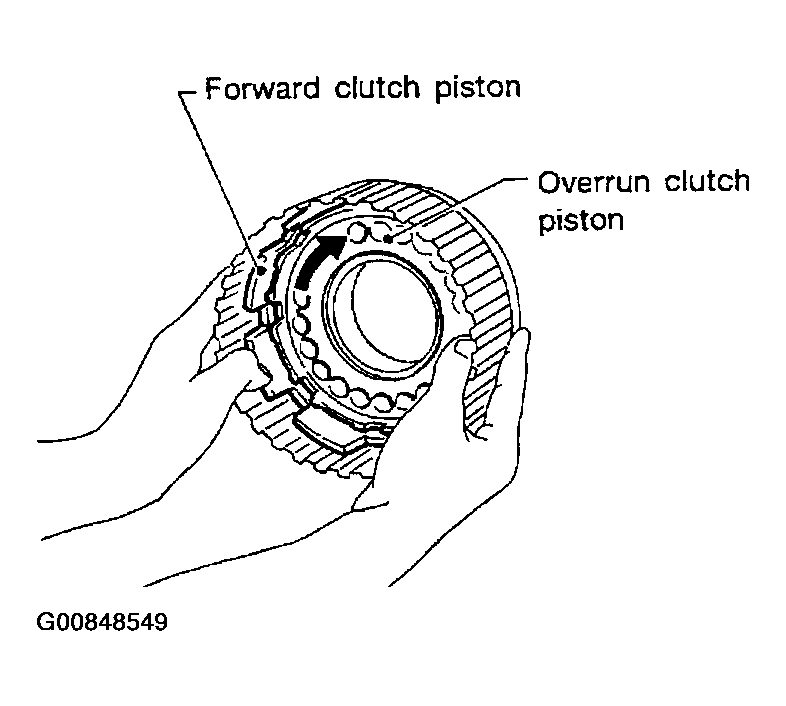

Install forward clutch piston assembly on forward clutch drum by turning it slowly.
- Apply ATF to inner surface of drum.

  Fig 3: Assembly (3 Of 12)
  Courtesy of NISSAN MOTOR CO., U.S.A.

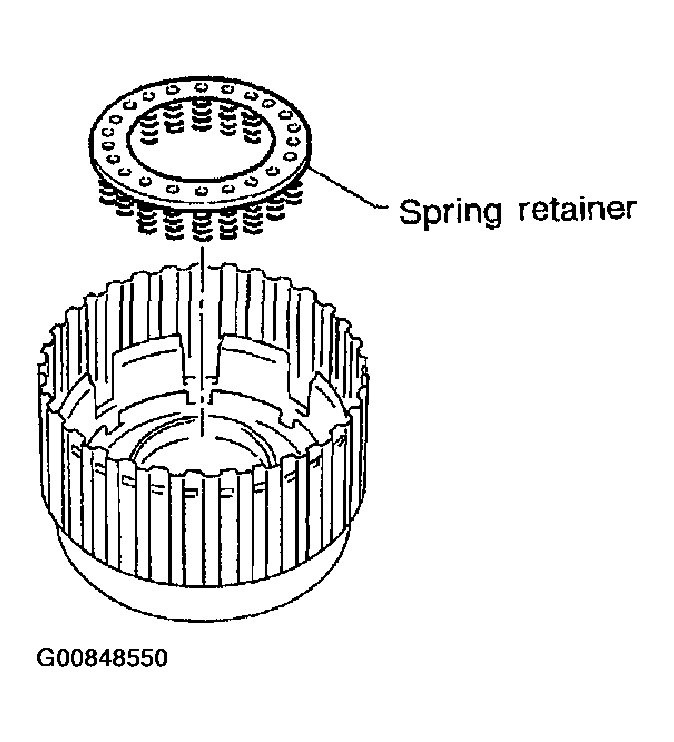

Install return spring on overrun clutch piston.

Fig 4: Assembly (4 Of 12)
Courtesy of NISSAN MOTOR CO., U.S.A.

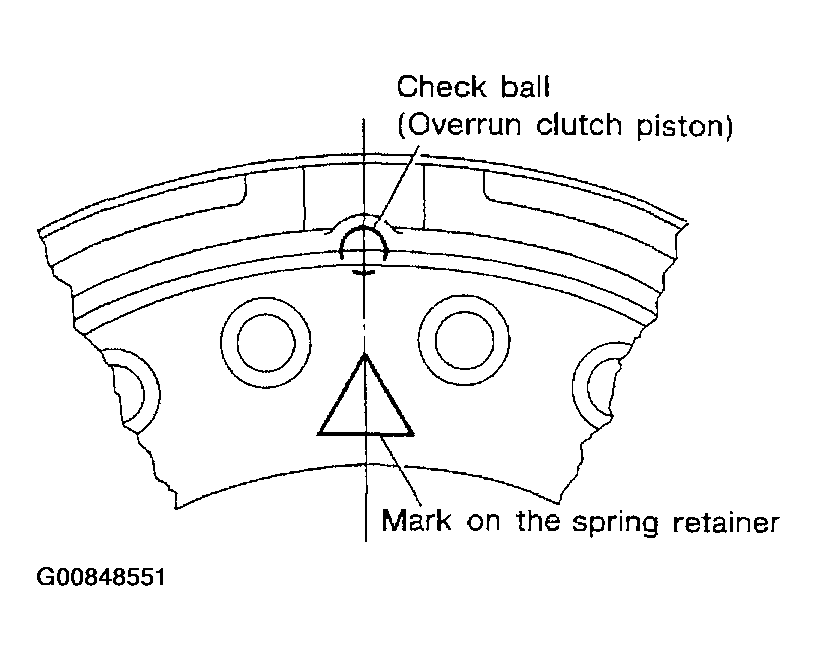

- Align the mark on spring retainer with check ball in overrun clutch piston.

  Fig 5: Assembly (5 Of 12)
  Courtesy of NISSAN MOTOR CO., U.S.A.

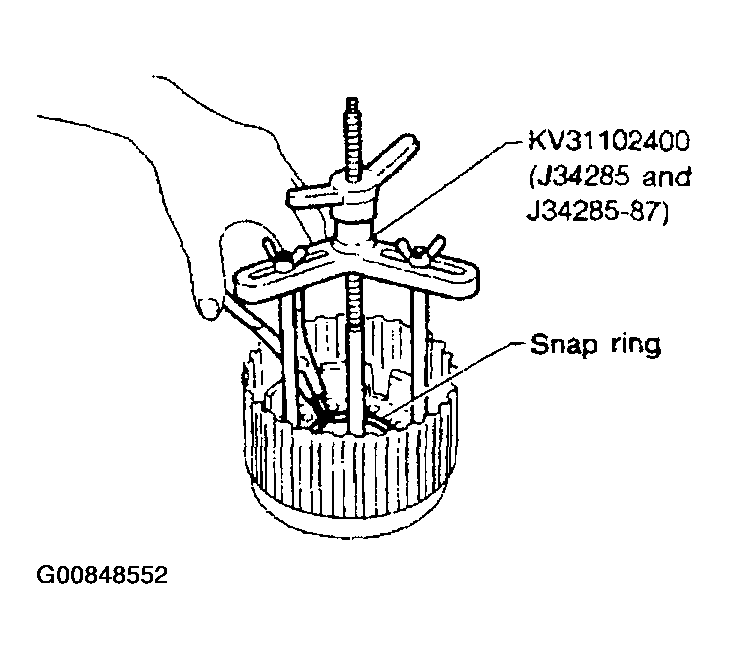

Set Tool on spring retainer and install snap ring while compressing return springs.

Fig 6: Assembly (6 Of 12)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Set Tool directly over return springs.
- Do not expand snap ring excessively.

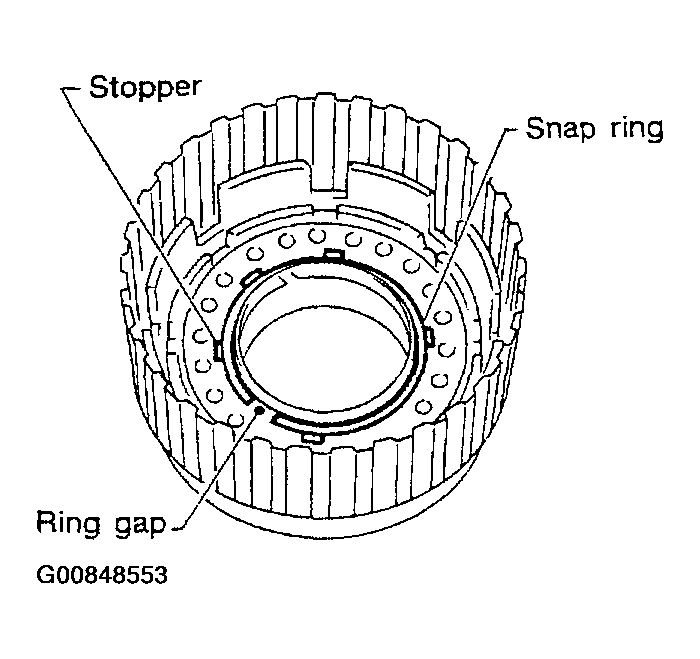

- Do not align snap ring gap with spring retainer stopper.

  Fig 7: Assembly (7 Of 12)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate for overrun clutch.
- Take care with order of plates.

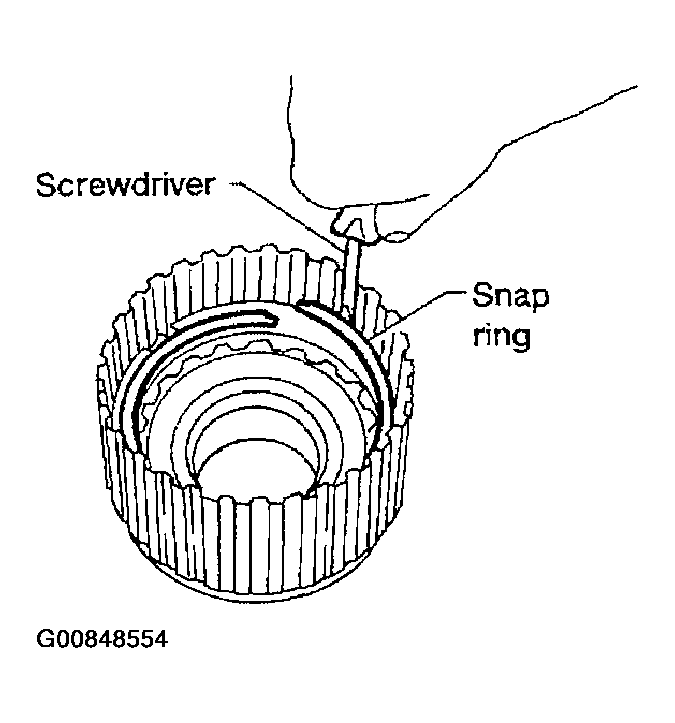

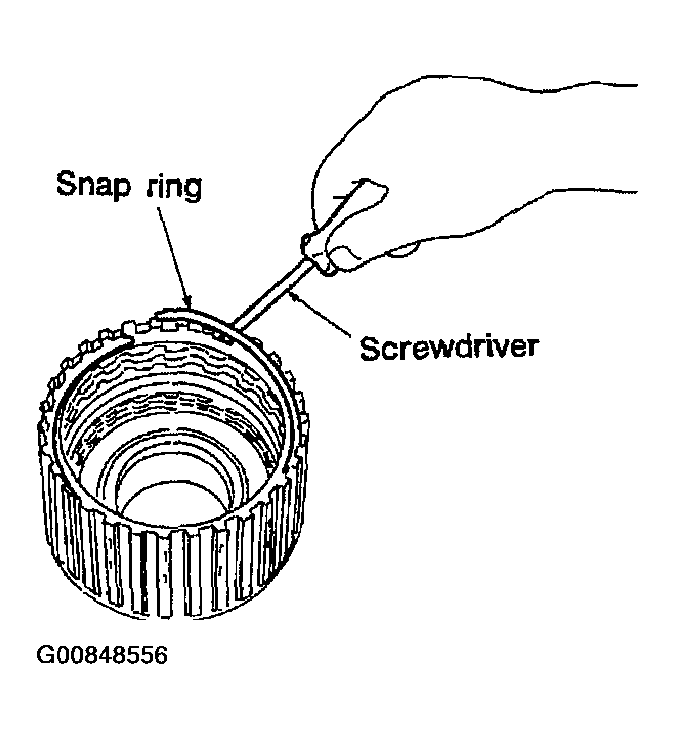

Install snap ring for overrun clutch.
- Do not expand snap ring excessively.

  Fig 8: Assembly (8 Of 12)
  Courtesy of NISSAN MOTOR CO., U.S.A.

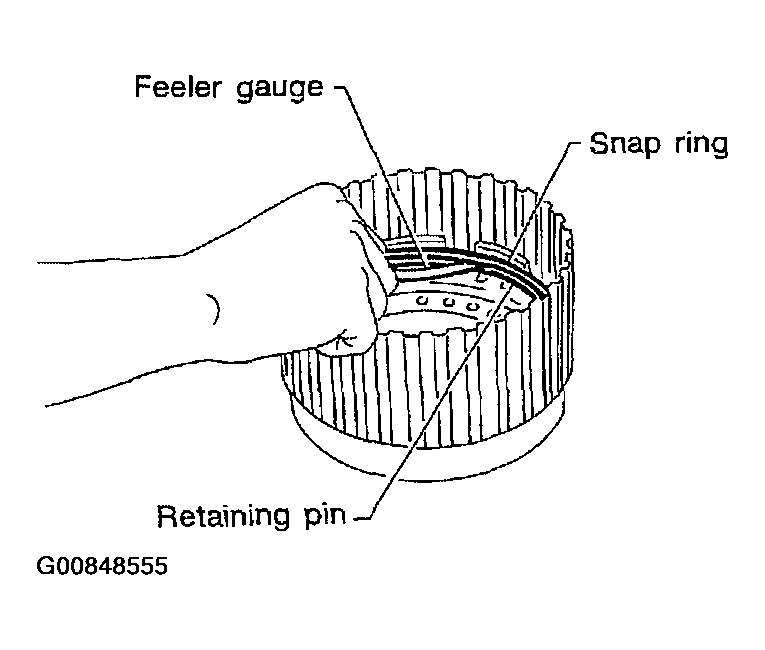

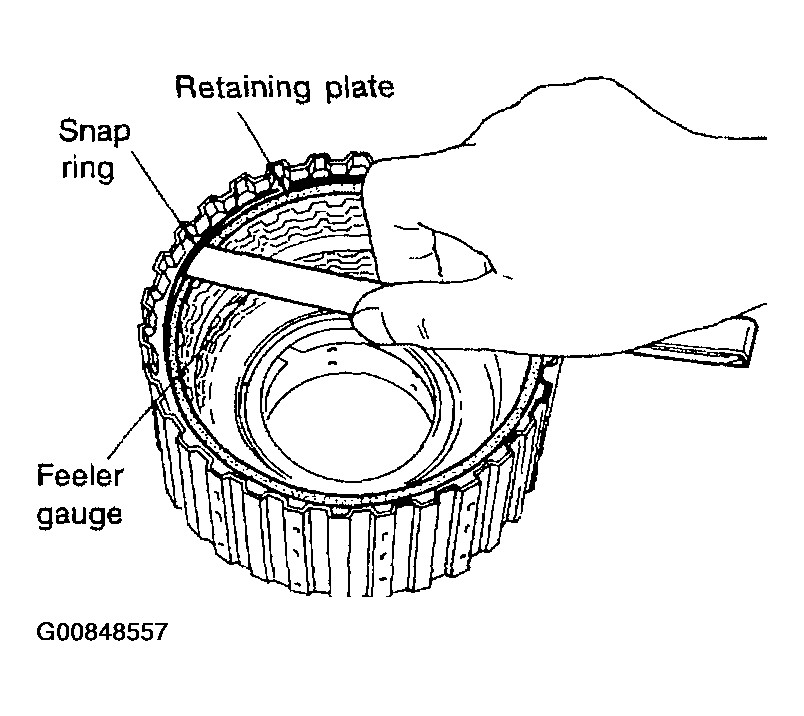

Measure clearance between overrun clutch retaining plate and snap ring.
If not within allowable limit, select proper retaining plate.

Specified clearance

Standard : 0.7 - 1.1 mm (0.028 - 0.043 in)

Allowable limit : 1.7 mm (0.067 in)

Overrun clutch retaining plate Refer to "OVERRUN CLUTCH ".

Fig 9: Assembly (9 Of 12)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates, retaining plate and dish plate for forward clutch.
- Take care with order of plates.
Install snap ring for forward clutch.
- Do not expand snap ring excessively.

  Fig 10: Assembly (10 Of 12)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between forward clutch retaining plate and snap ring.
If not within allowable limit, select proper retaining plate.

Specified clearance

Standard : 0.45 - 0.85 mm (0.0177 - 0.0335 in)

Allowable limit : 1.85 mm (0.0728 in)

Forward clutch retaining plate: Refer to "FORWARD CLUTCH ".

Fig 11: Assembly (11 Of 12)
Courtesy of NISSAN MOTOR CO., U.S.A.

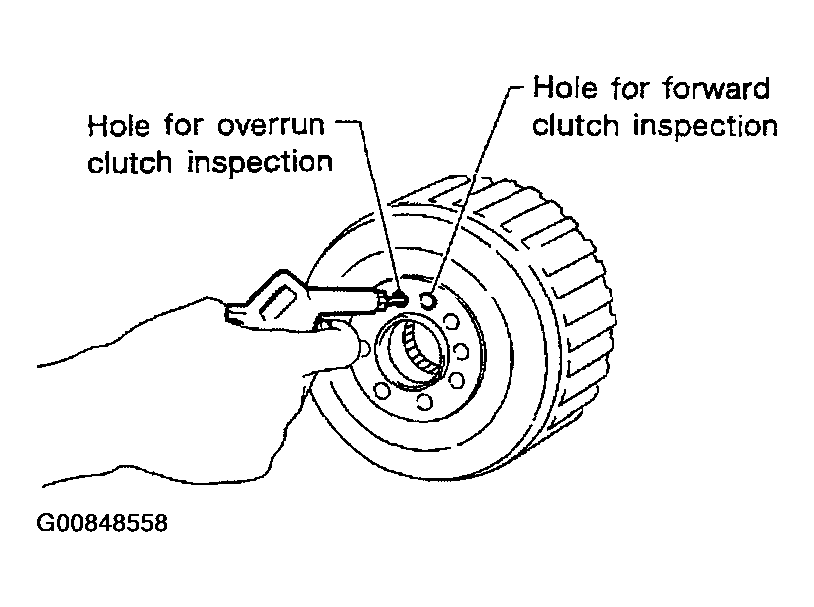

Check operation of forward clutch.
Check operation of overrun clutch.

Fig 12: Assembly (12 Of 12)
Courtesy of NISSAN MOTOR CO., U.S.A.
