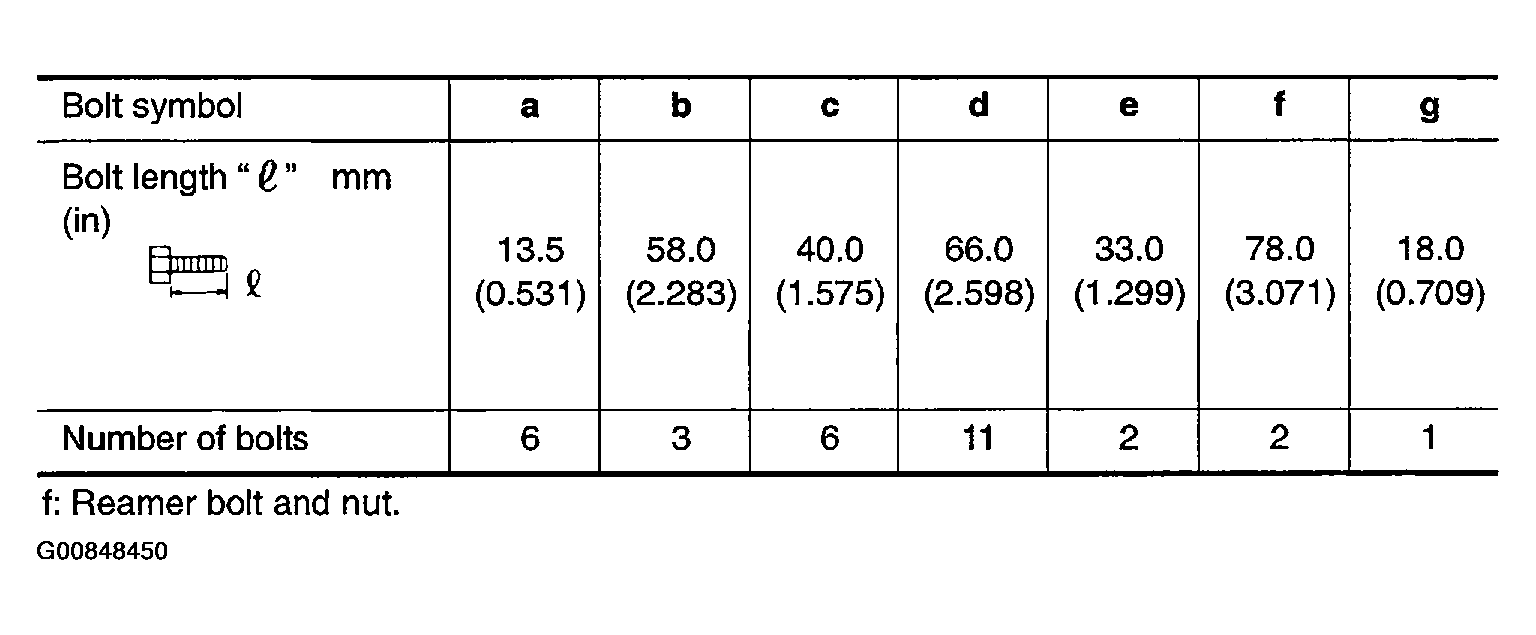

Bolt Length, Number And Location:

Fig 1: Bolt Length, Number And Location Table

Courtesy of NISSAN MOTOR CO., U.S.A.

f: Reamer bolt and nut.

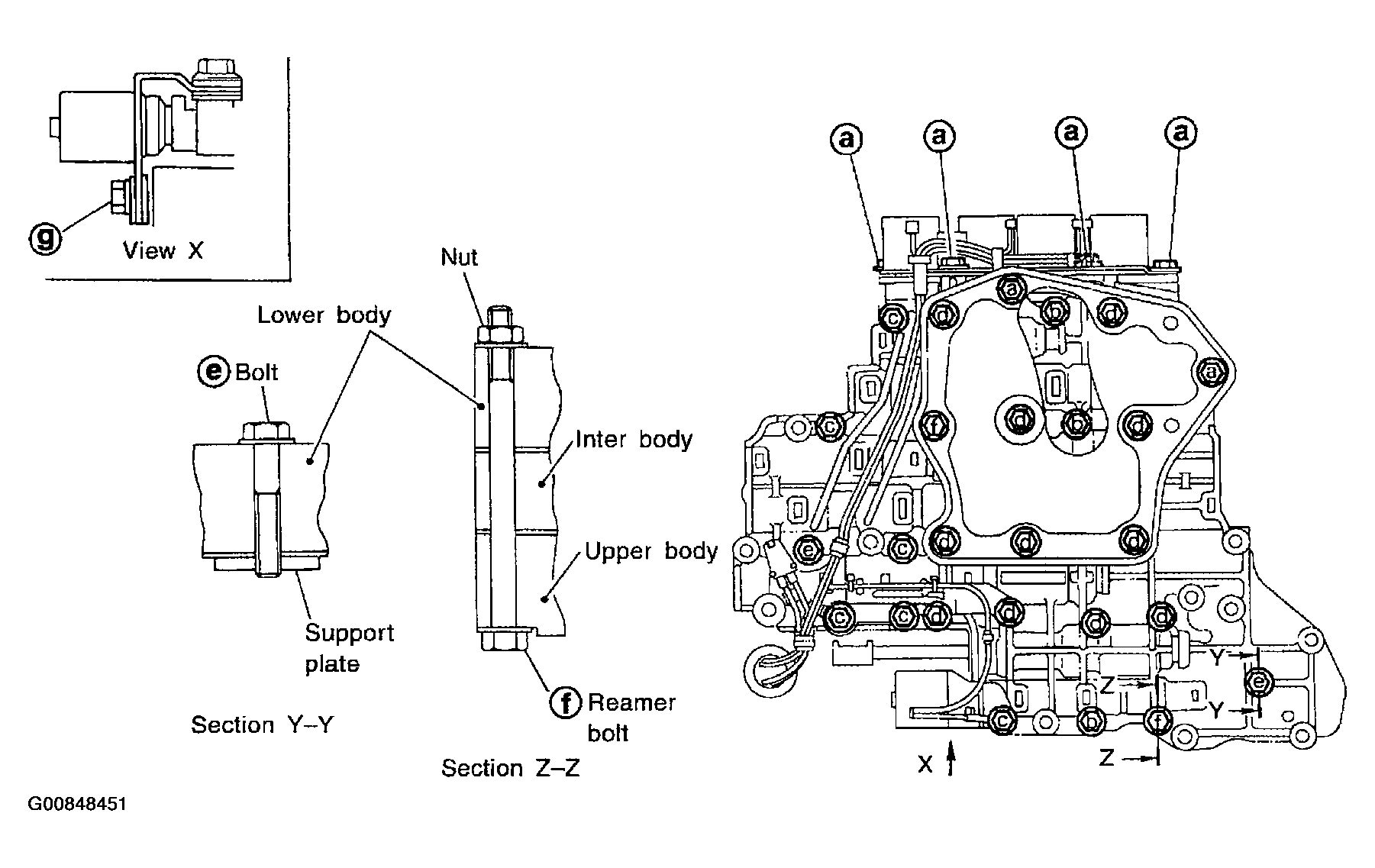

Fig 2: Bolt Location

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove bolts a, d  and nut f  and remove oil strainer from control valve assembly.

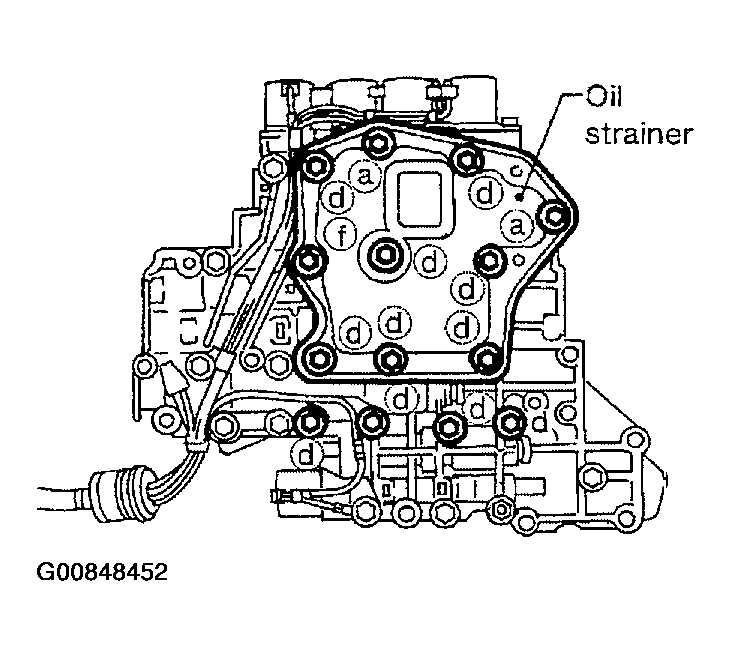

   Fig 3: Removing Oil Strainer

   Courtesy of NISSAN MOTOR CO., U.S.A.

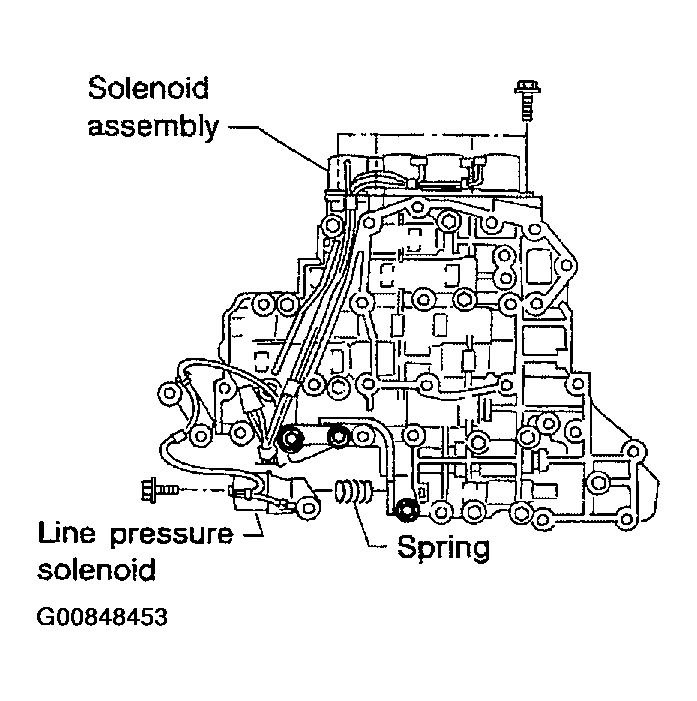

2. Remove solenoid valve assembly and line pressure solenoid valve from control valve assembly.
   Fig 4: Remove Solenoid Valve Assembly And Line Pressure Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

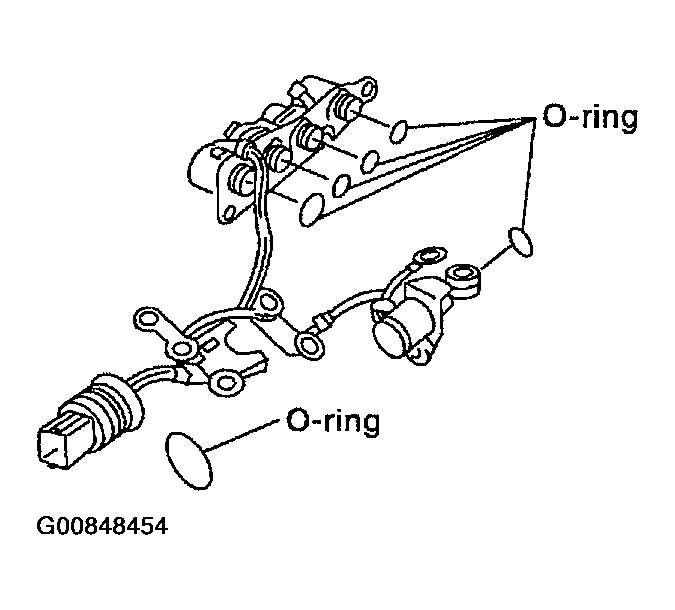

3. Remove O-rings from solenoid valves and terminal body.
   Fig 5: Remove O-Rings From Solenoid Valves And Terminal Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Place upper body facedown, and remove bolts b, c  and nut f.

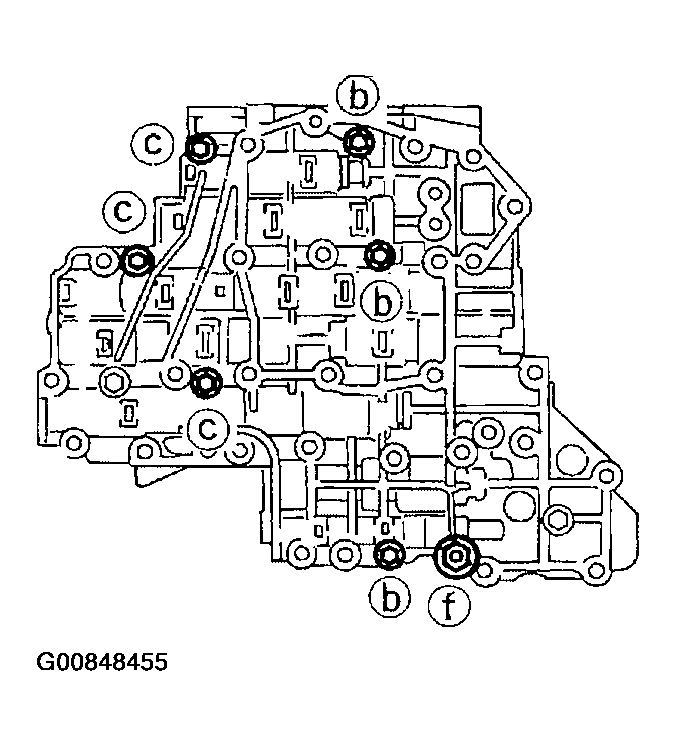

   Fig 6: Place Upper Body Facedown, And Remove Bolts & Nut Listed

   Courtesy of NISSAN MOTOR CO., U.S.A.

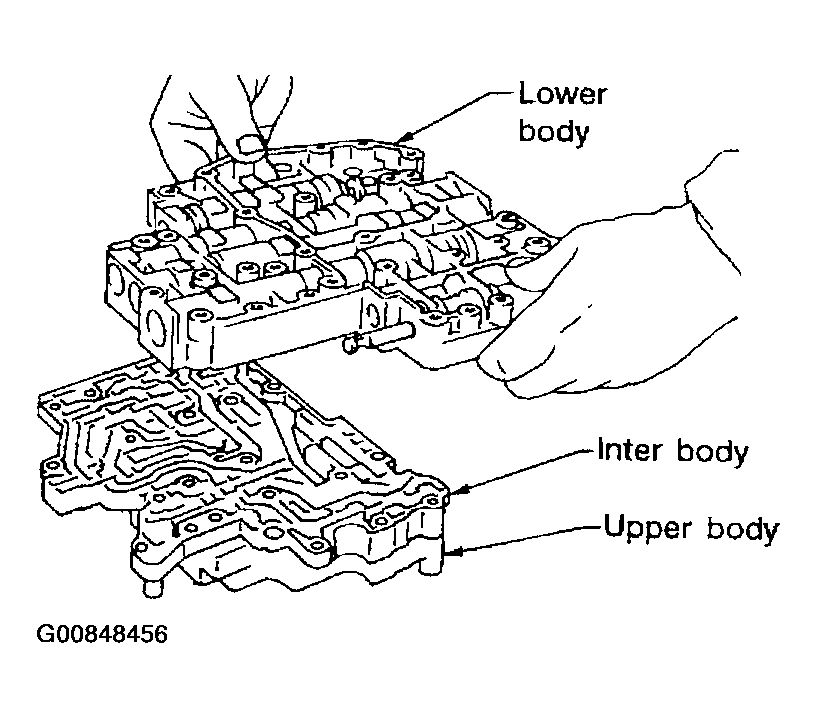

5. Remove inter body from lower body.
   Fig 7: Remove Inter Body From Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Turn over lower body, and remove accumulator support plate.

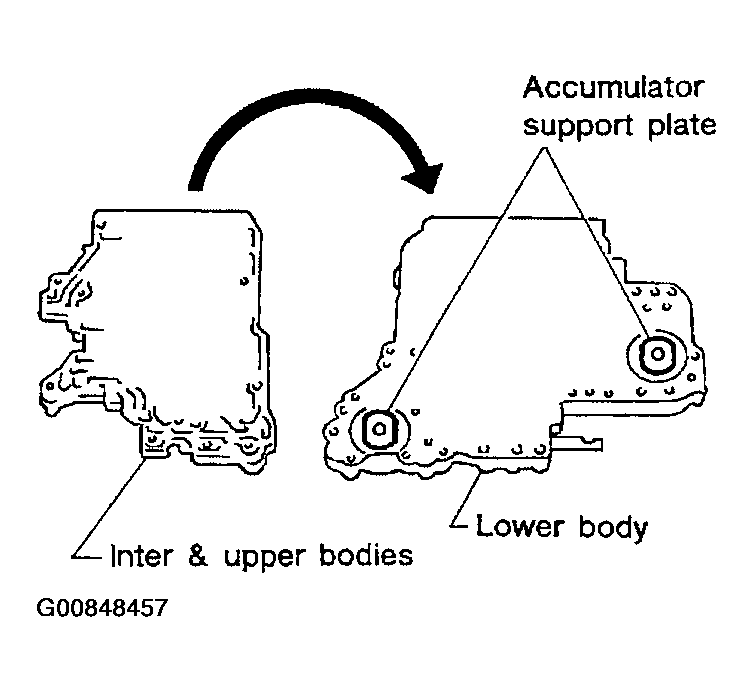

   Fig 8: Remove Accumulator Support Plate

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Remove bolts e  , separating plate and separating gasket from lower body.

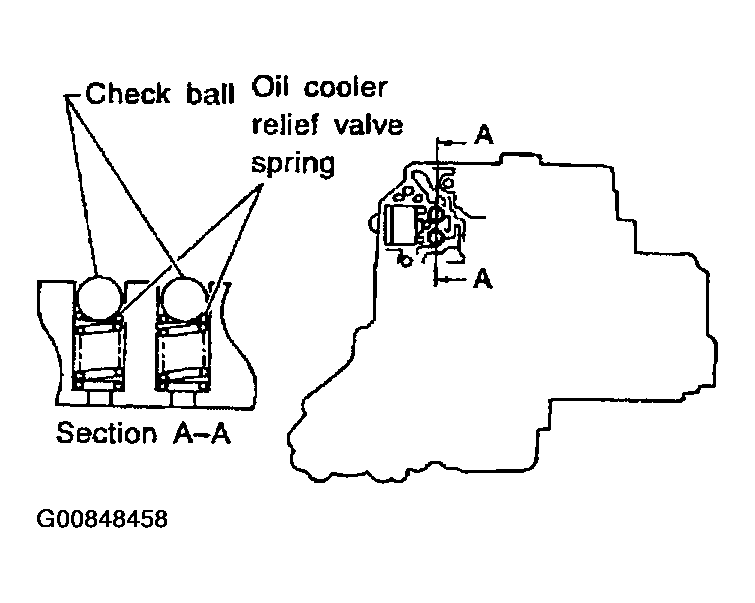

8. Remove check balls and oil cooler relief valve springs from lower body.
   • Be careful not to lose check balls and oil cooler relief valve springs.
     Fig 9: Remove Check Balls And Oil Cooler Relief Valve Springs

     Courtesy of NISSAN MOTOR CO., U.S.A.

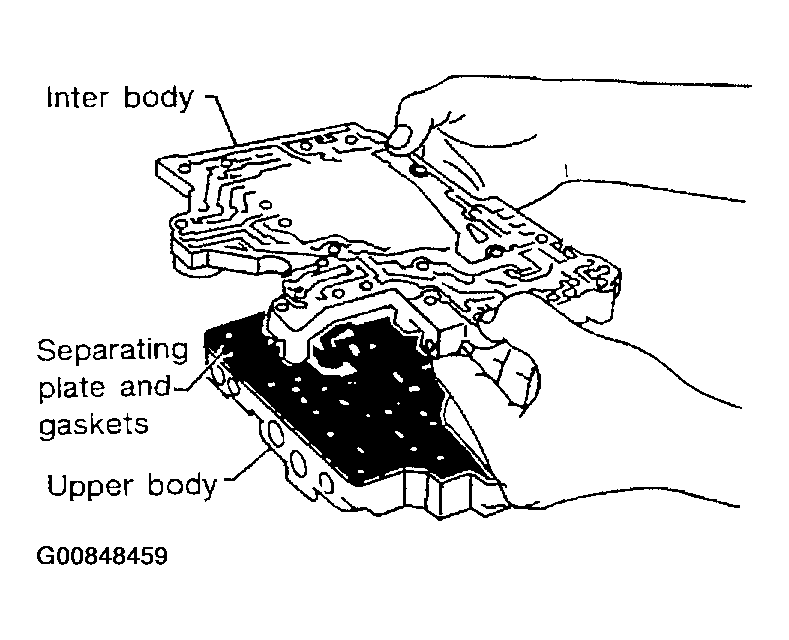

9. Remove inter body from upper body.
   Fig 10: Remove Inter Body From Upper Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. Check to see that steel balls are properly positioned in inter body and then remove them.
    • Be careful not to lose steel balls.
      Fig 11: Check Steel Ball Positions In Inter Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
11. Check to see that steel balls are properly positioned in upper body and then remove them.
    • Be careful not to lose steel balls.

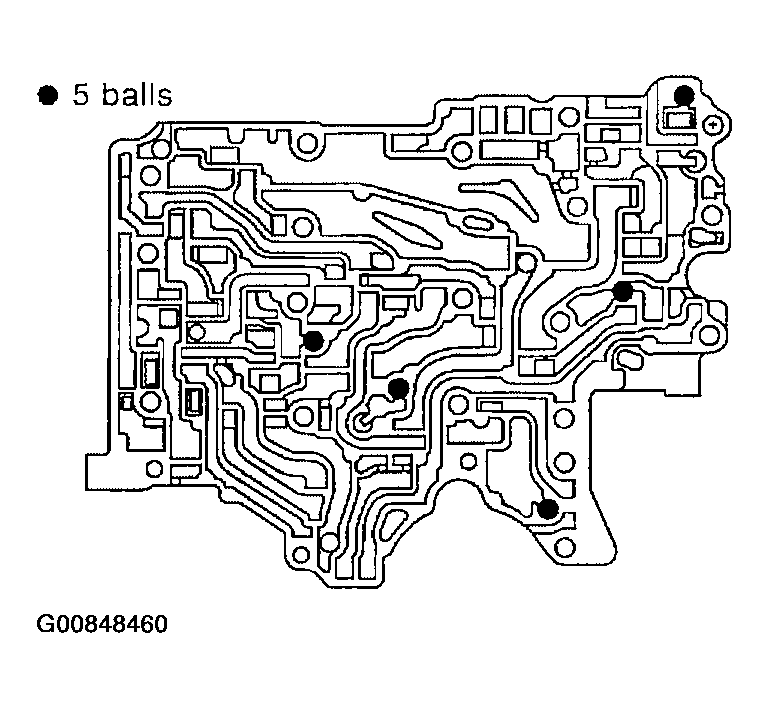

      Fig 12: Check Steel Ball Positions In Upper Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
