Bolt Length, Number And Location:

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

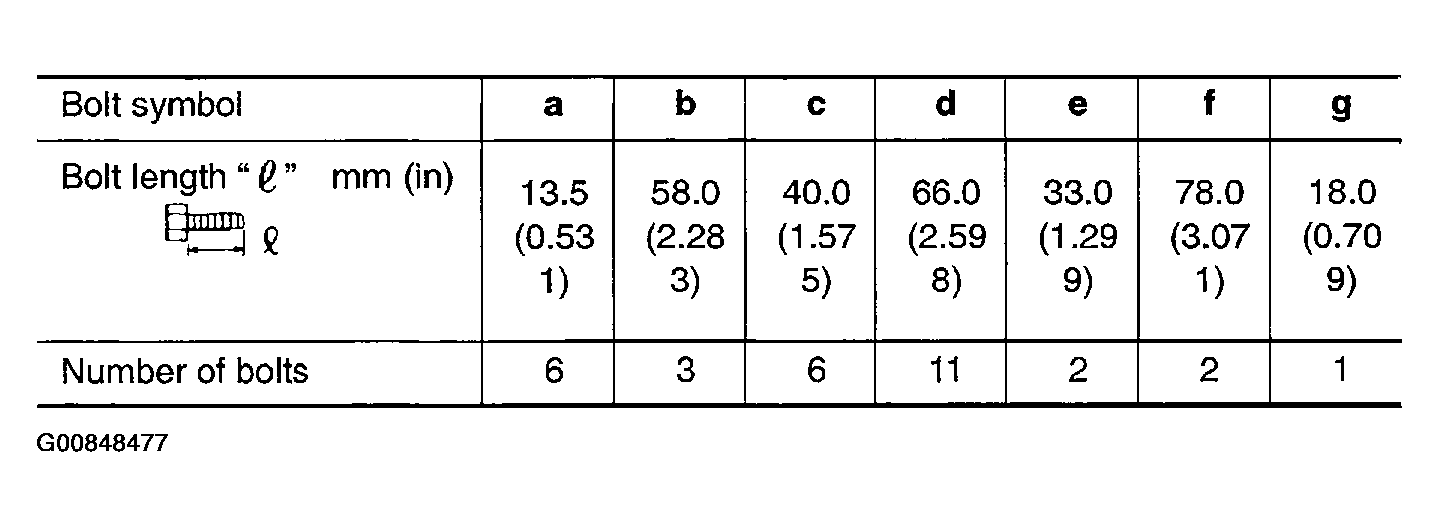

Fig 1: Bolt Length, Number And Location Table

Courtesy of NISSAN MOTOR CO., U.S.A.

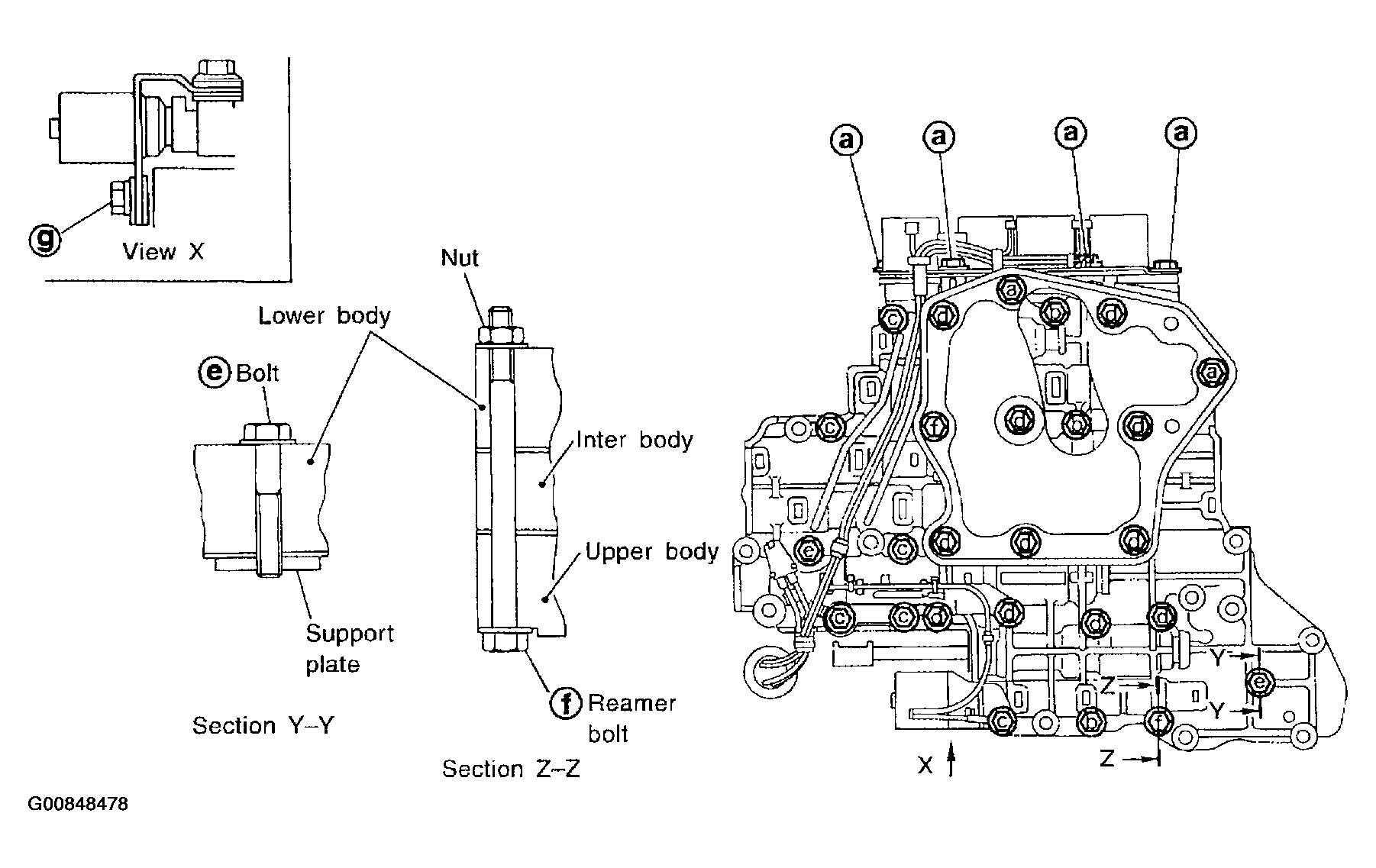

Fig 2: Bolt Location

Courtesy of NISSAN MOTOR CO., U.S.A.

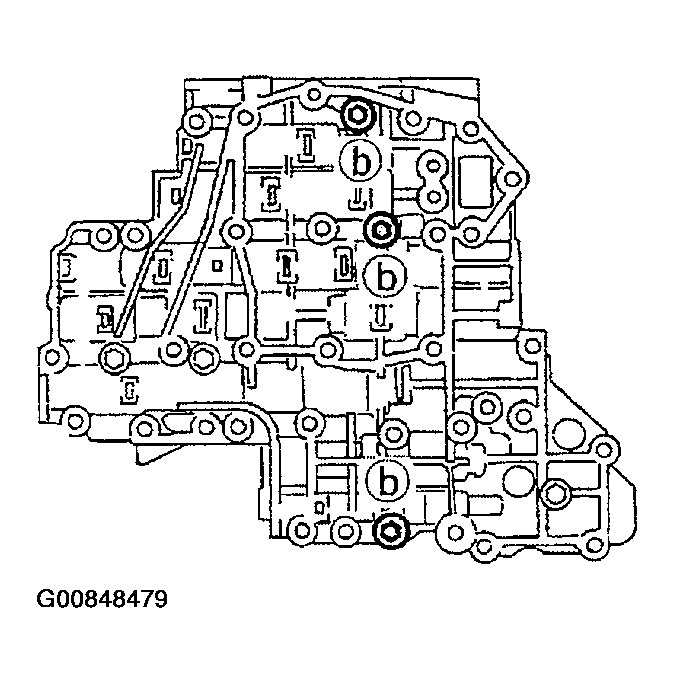

Install and tighten bolts b to specified torque.
: 7 - 9 N-m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

Fig 3: Assembly (12 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

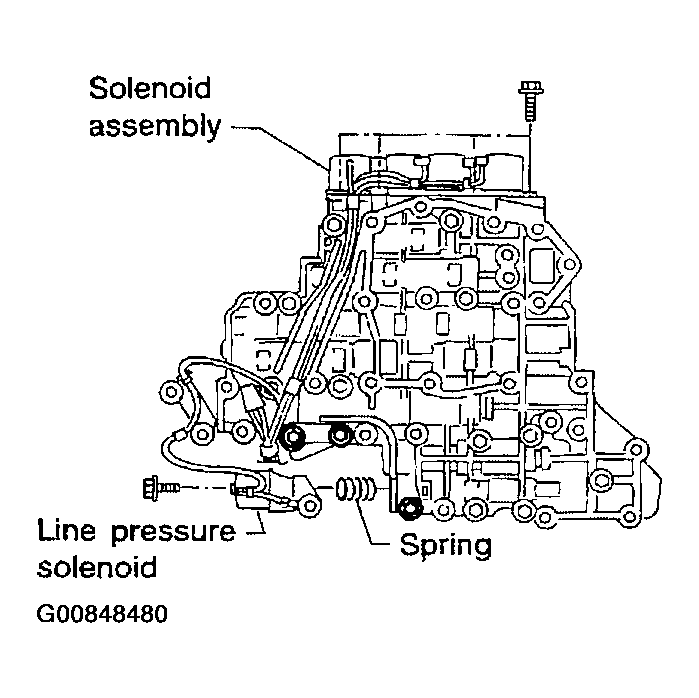

Install solenoid valve assembly and line pressure solenoid valve to lower body.

Fig 4: Assembly (13 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

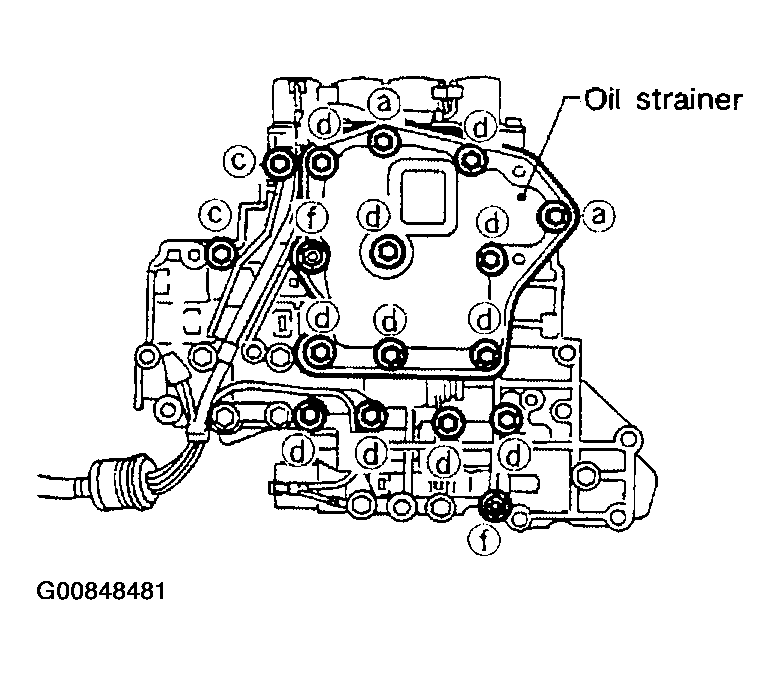

Set oil strainer, then tighten bolts a, c, d and nuts f to specified torque.
: 7 - 9 N-m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

Fig 5: Assembly (14 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

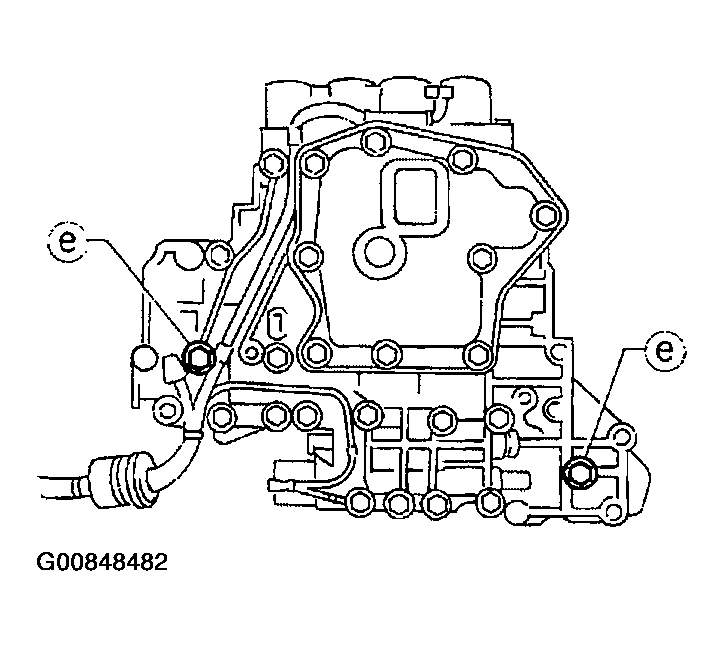

Tighten bolts e to specified torque.
: 3.4 - 4.4 N-m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)

Fig 6: Assembly (15 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
