Band Servo Piston Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

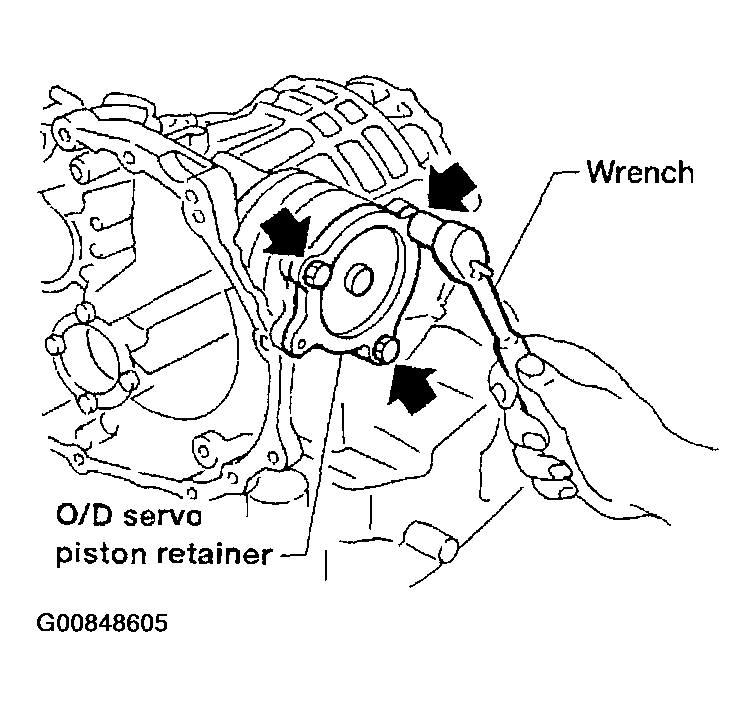

Remove band servo piston fixing bolts.

Fig 1: Disassembly (1 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

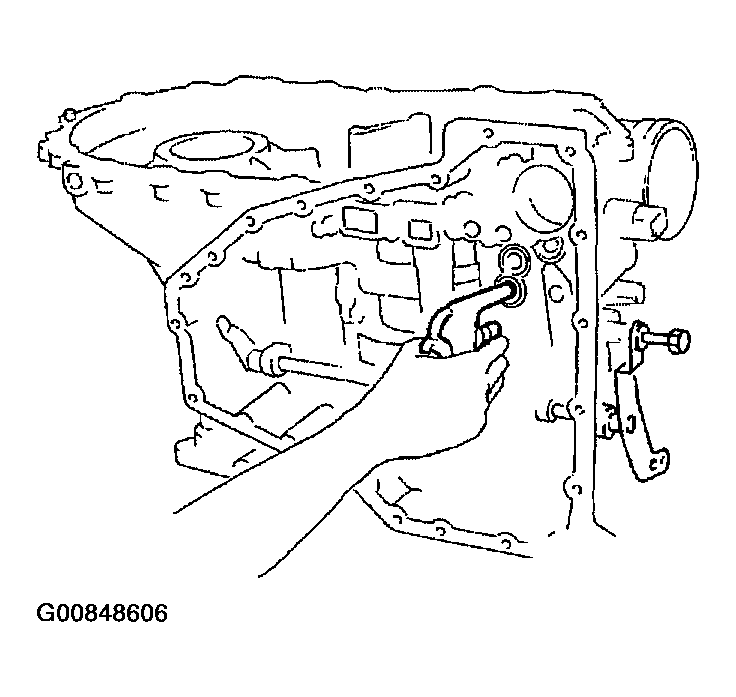

Apply compressed air to oil hole in transmission case to remove O/D servo piston retainer and band servo piston assembly.
- Hold band servo piston assembly with a rag or nylon waste.

  Fig 2: Disassembly (2 Of 10)
  Courtesy of NISSAN MOTOR CO., U.S.A.

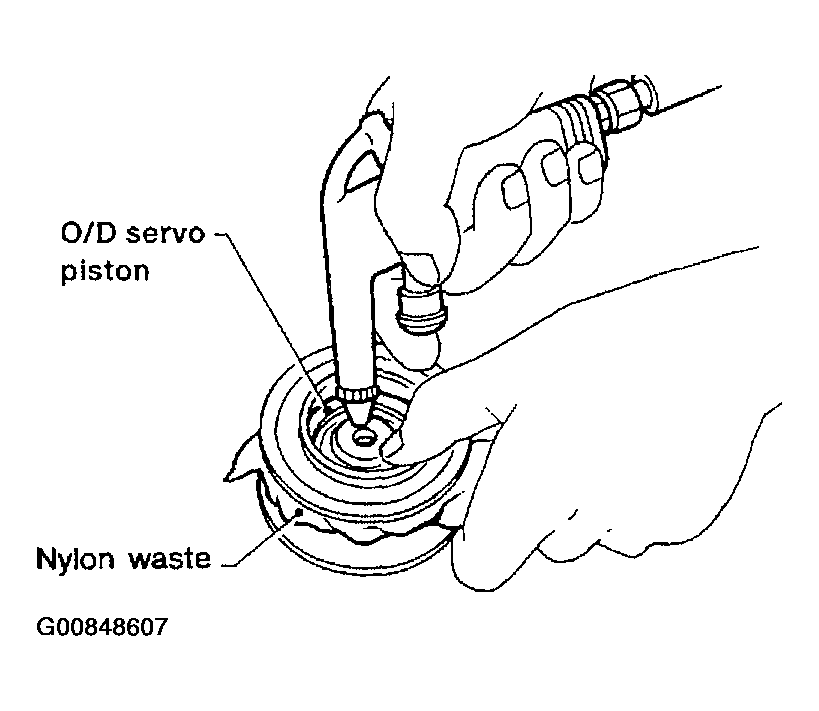

Apply compressed air to oil hole in O/D servo piston retainer to remove O/D servo piston from retainer.
- Hold O/D band servo piston while applying compressed air.

  Fig 3: Disassembly (3 Of 10)
  Courtesy of NISSAN MOTOR CO., U.S.A.

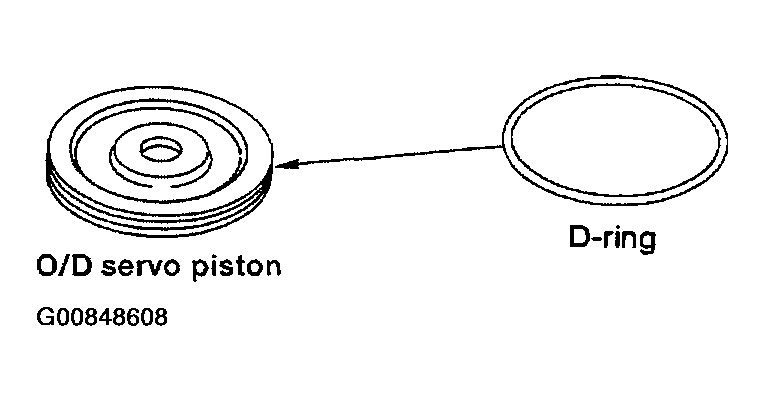

Remove D-ring from O/D servo piston.

Fig 4: Disassembly (4 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

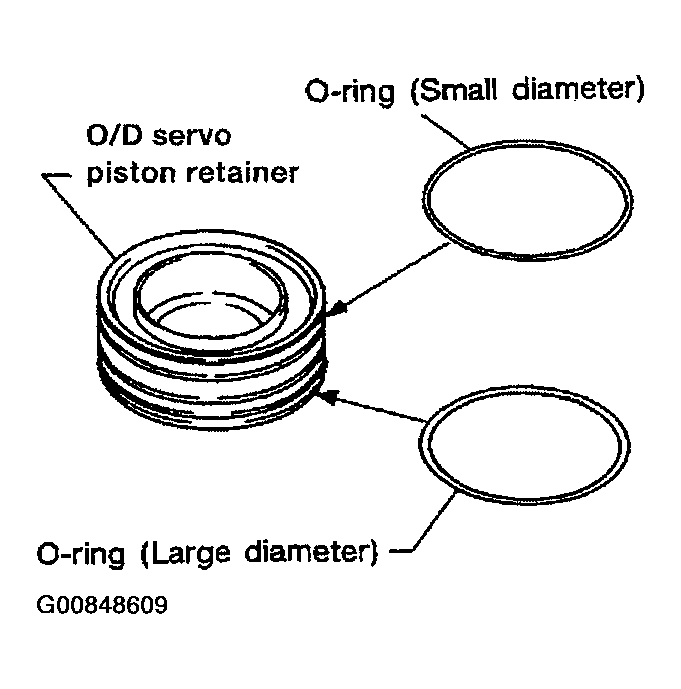

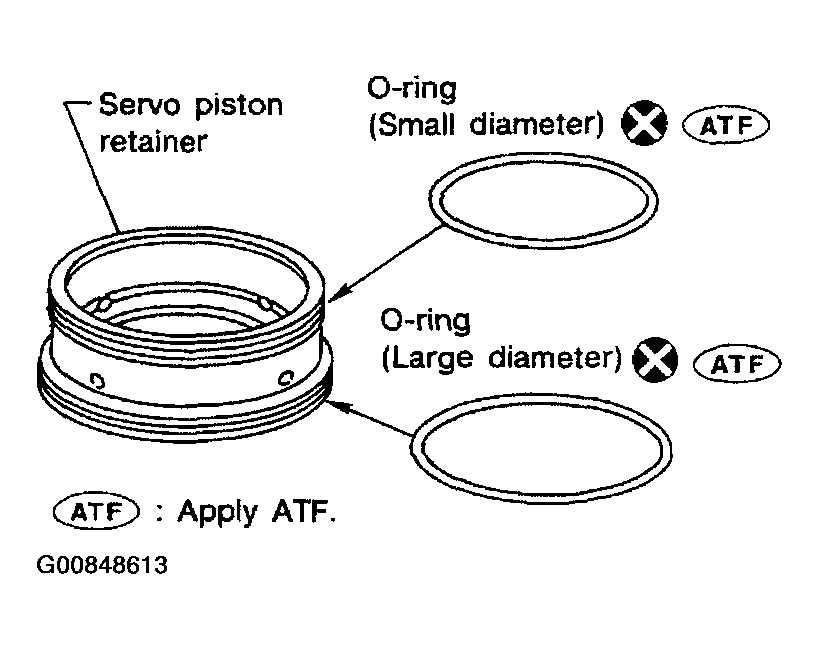

Remove O-rings from O/D servo piston retainer.

Fig 5: Disassembly (5 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

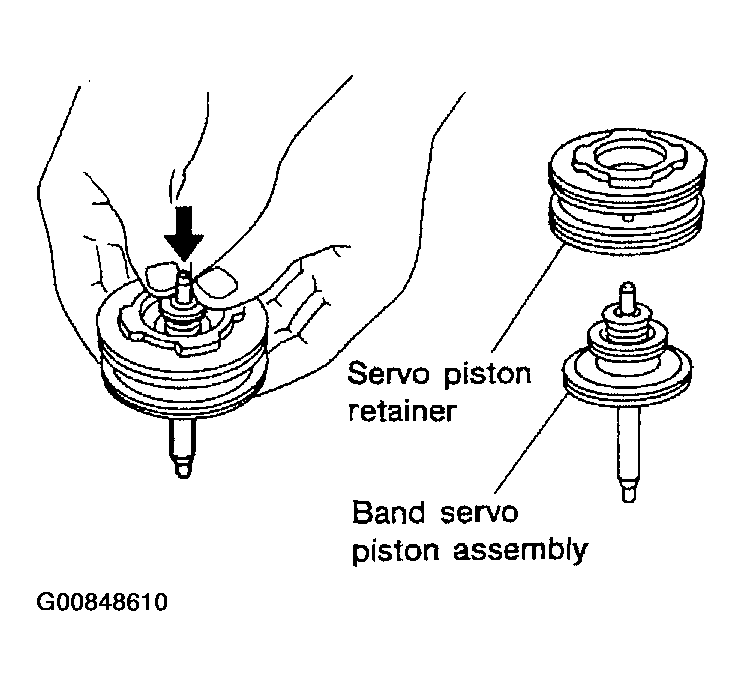

Remove band servo piston assembly from servo piston retainer by pushing it forward.

Fig 6: Disassembly (6 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

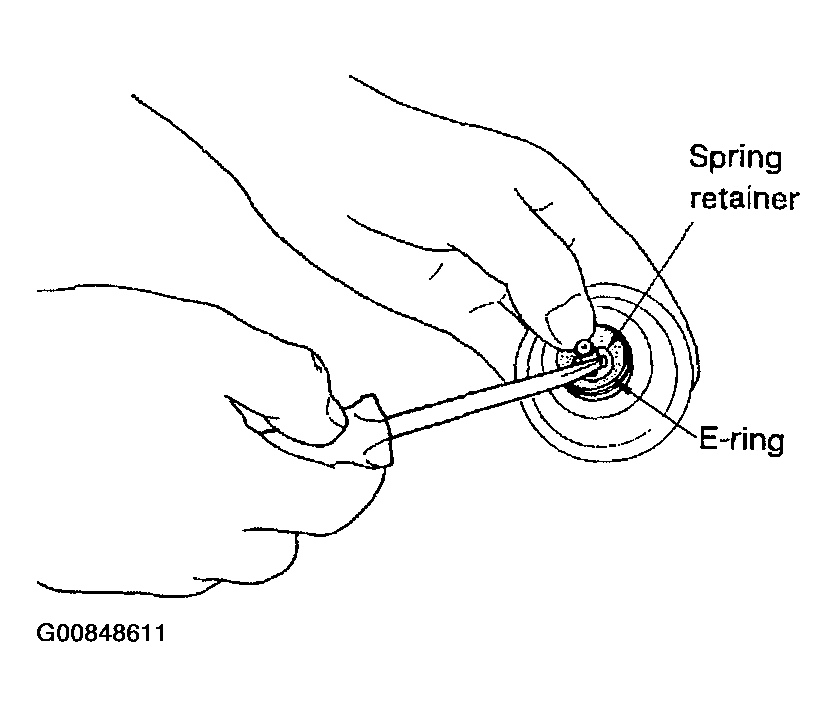

Place piston stem end on a wooden block. While pushing servo piston spring retainer down, remove E-ring.

Fig 7: Disassembly (7 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

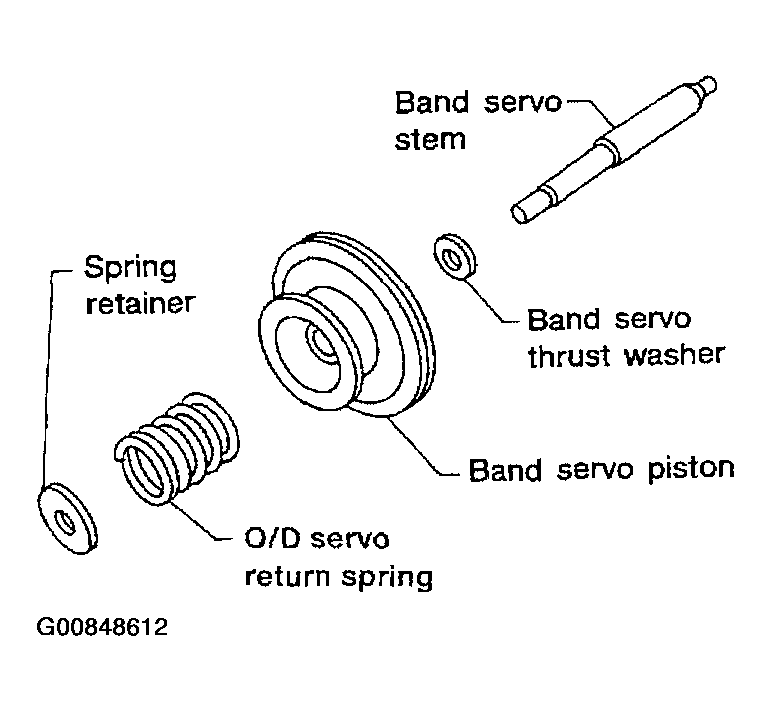

Remove O/D servo return spring, band servo thrust washer and band servo piston stem from band servo piston.

Fig 8: Disassembly (8 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-rings from servo piston retainer.

Fig 9: Disassembly (9 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

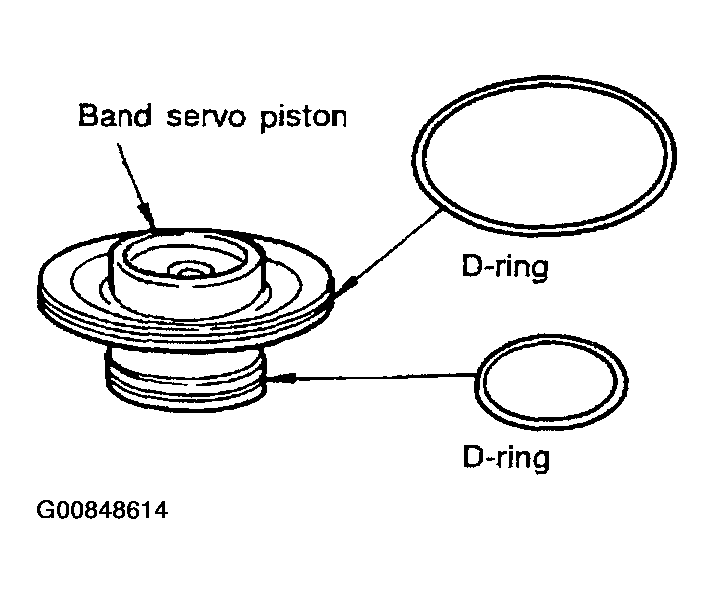

Remove D-rings from band servo piston.

Fig 10: Disassembly (10 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.
