D , 2 And 1 Positions

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

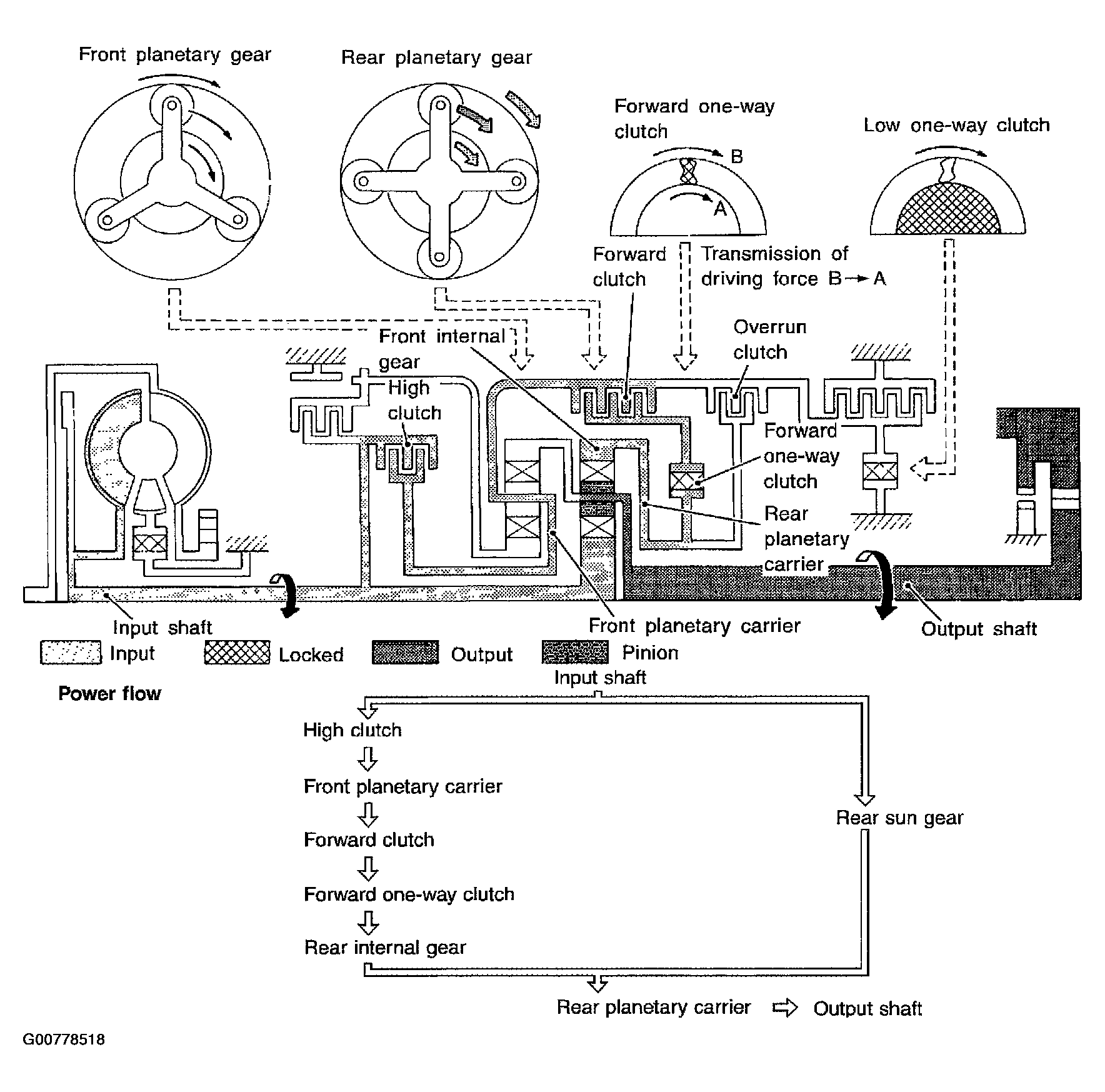

Fig 1: D₂ , 2₂ and 1₂ Positions (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

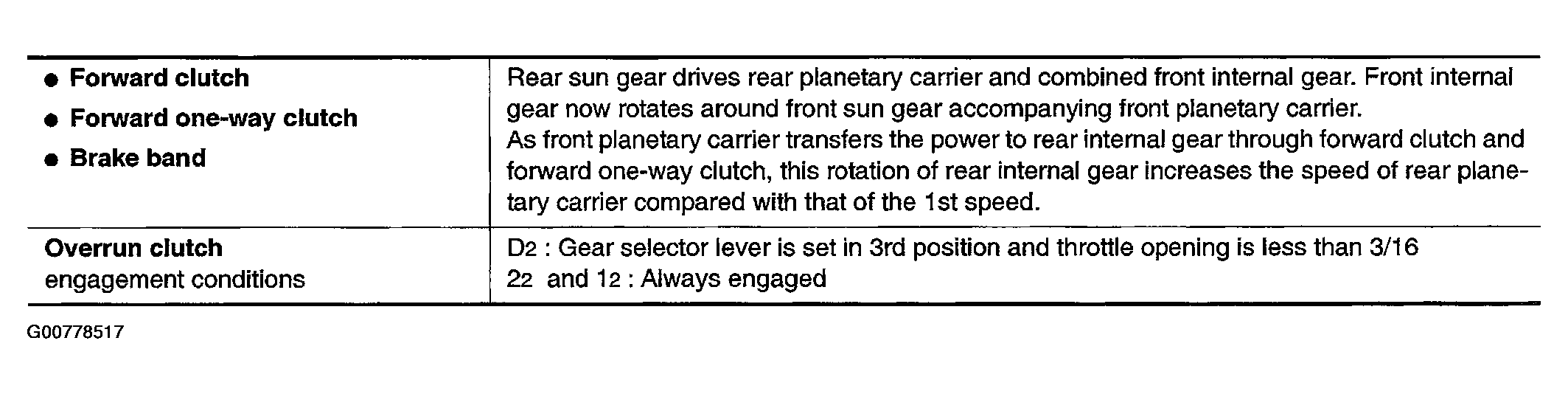

Fig 2: D₂ , 2₂ and 1₂ Positions (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

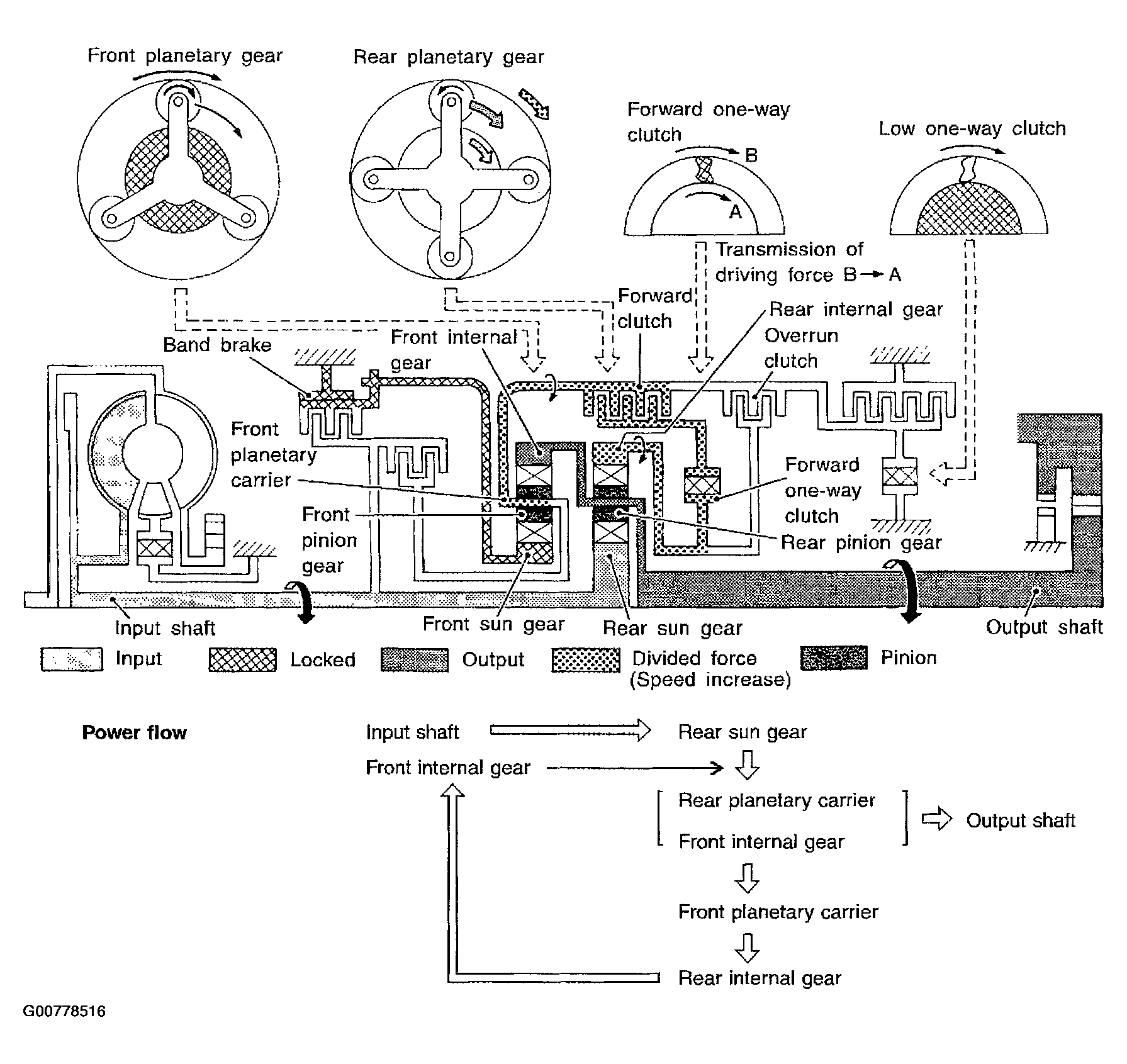

Fig 1: D₃ , 2₃ and 1₃ Positions (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

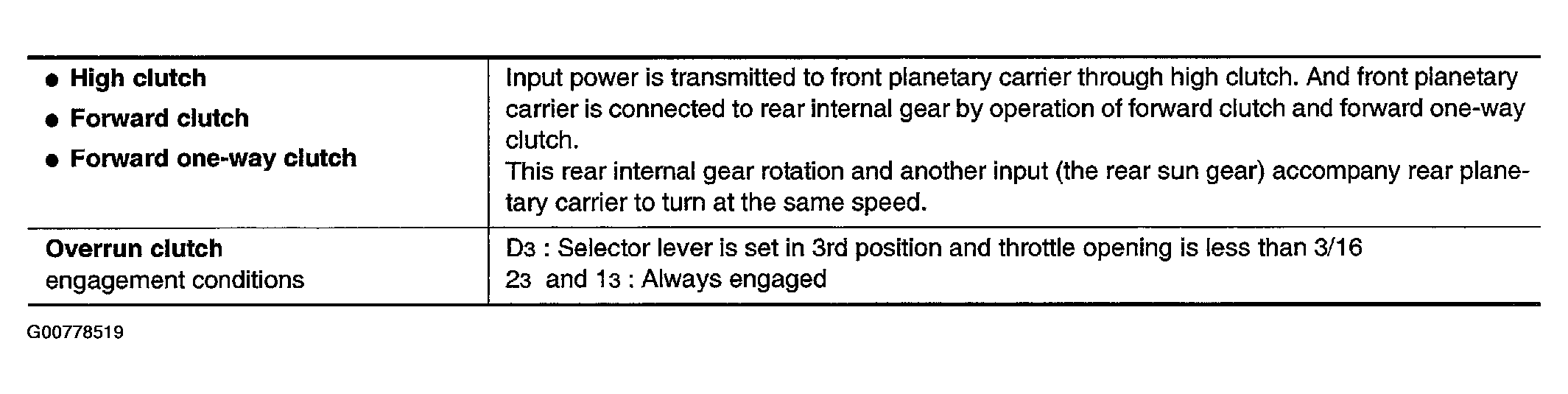

Fig 2: D₃ , 2₃ and 1₃ Positions (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
