D And 2 Positions

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

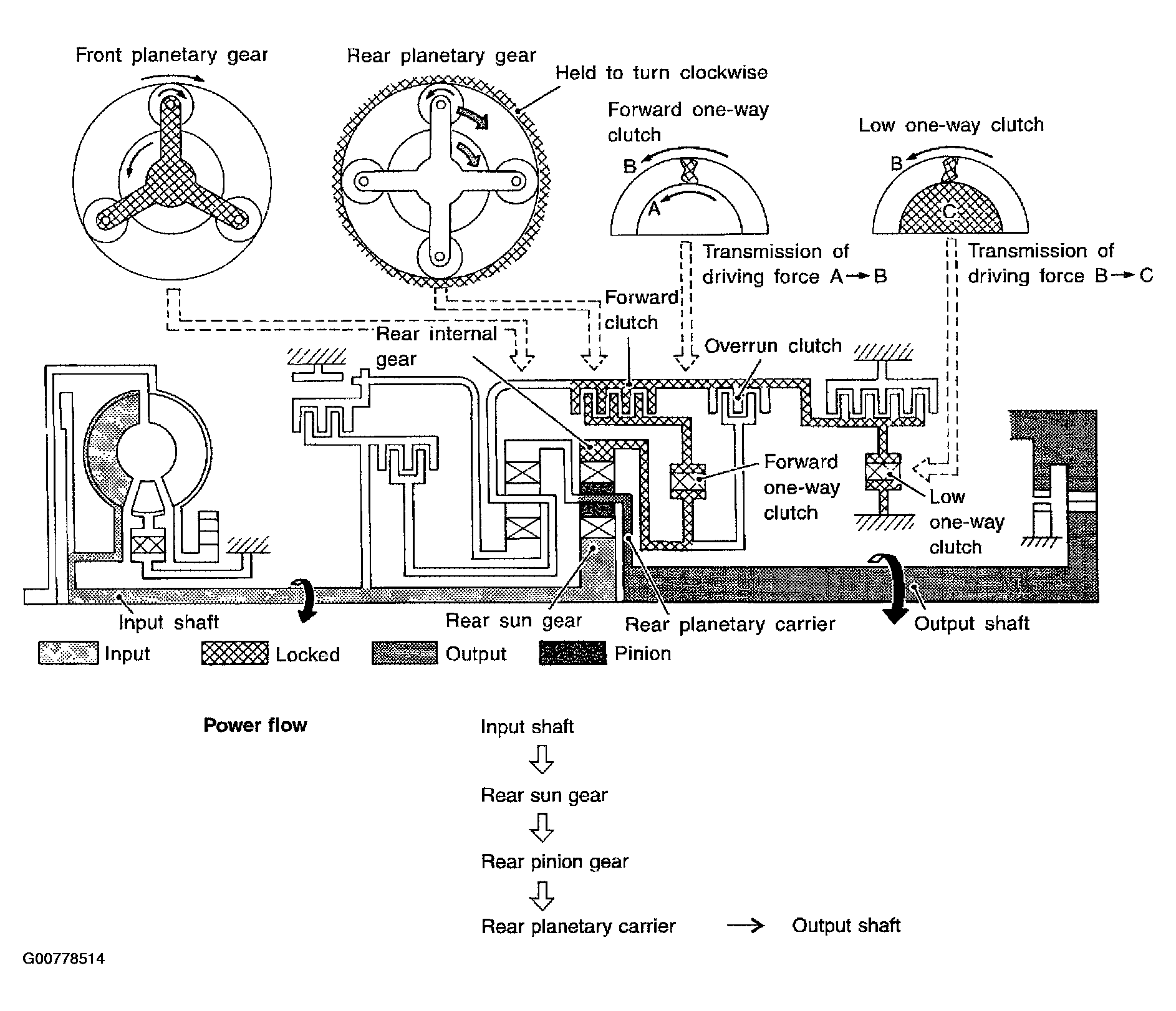

Fig 1: D1 and 21 Positions (1 Of 2)
G00778514Courtesy of NISSAN MOTOR CO., U.S.A.

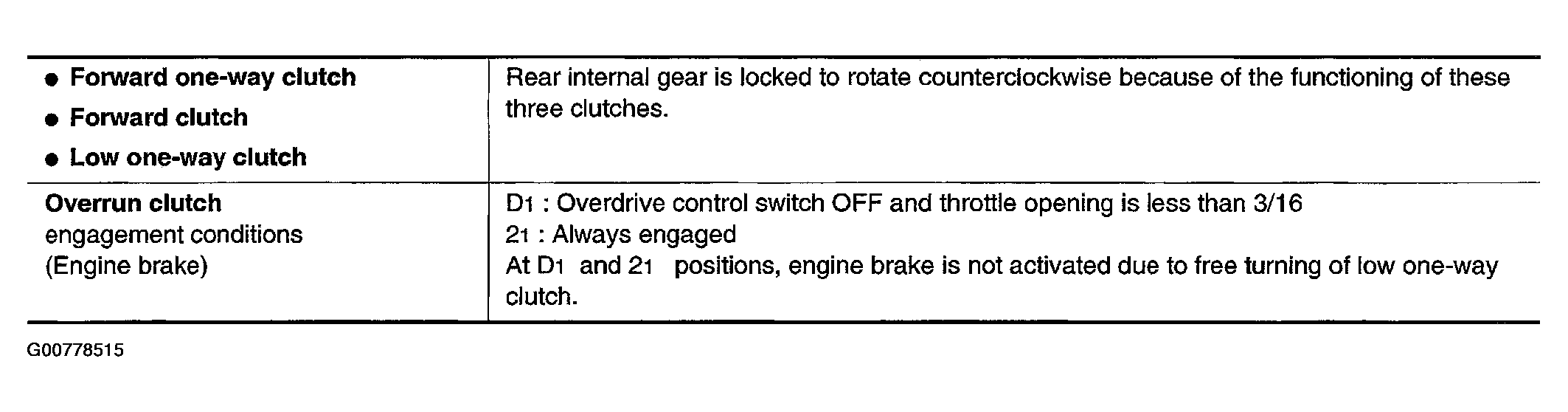

Fig 2: D1 and 21 Positions (2 Of 2)
G00778515Courtesy of NISSAN MOTOR CO., U.S.A.
