Turbine Revolution Sensor Replacement

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electrical connector.
  2. Remove bolt, and turbine revolution sensor from A/T.
  3. Reinstall any part removed.
    • Always use new sealing parts.

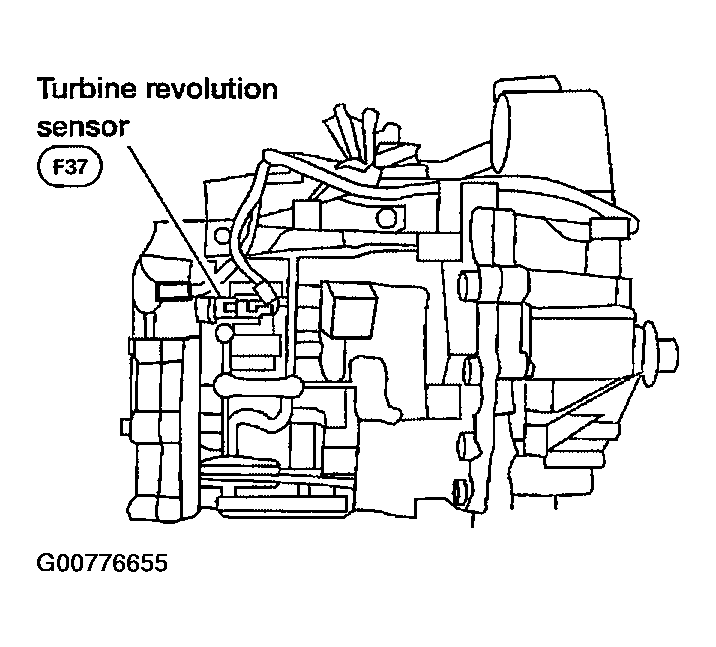

Fig 1: Turbine Revolution Sensor Replacement
G00776655Courtesy of NISSAN MOTOR CO., U.S.A.
