Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control cable from manual shaft.
  2. Set manual shaft in N position.
  3. Loosen park/neutral position (PNP) switch fixing bolts.

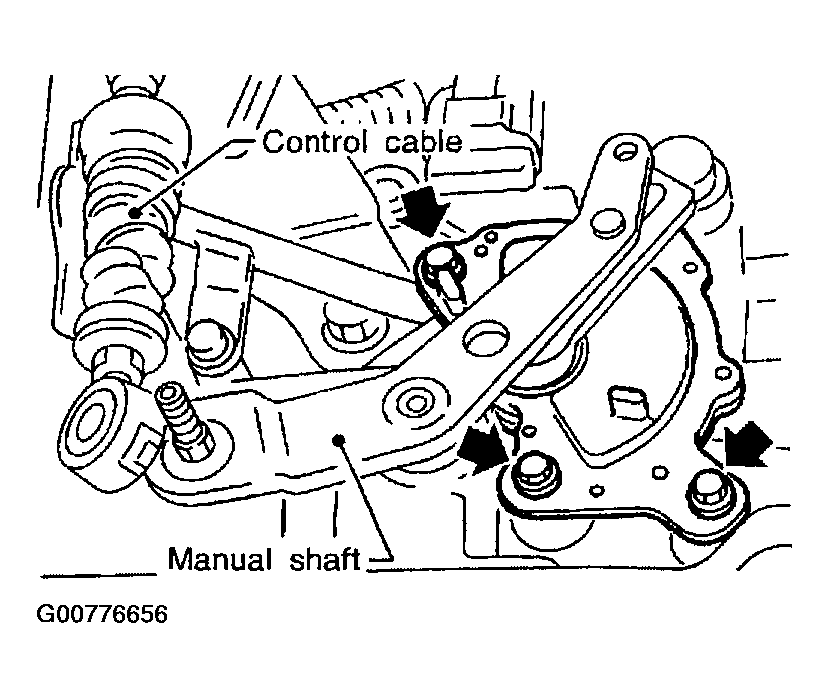

    Fig 1: Park/Neutral Position (PNP) Switch Adjustment (1 Of 2)
    G00776656Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Insert pin into adjustment holes in both park/neutral position (PNP) switch and manual shaft as near vertical as possible.
  5. Reinstall any part removed.
  6. Check continuity of park/neutral position (PNP) switch. Refer to "DIAGNOSTIC PROCEDURE ".

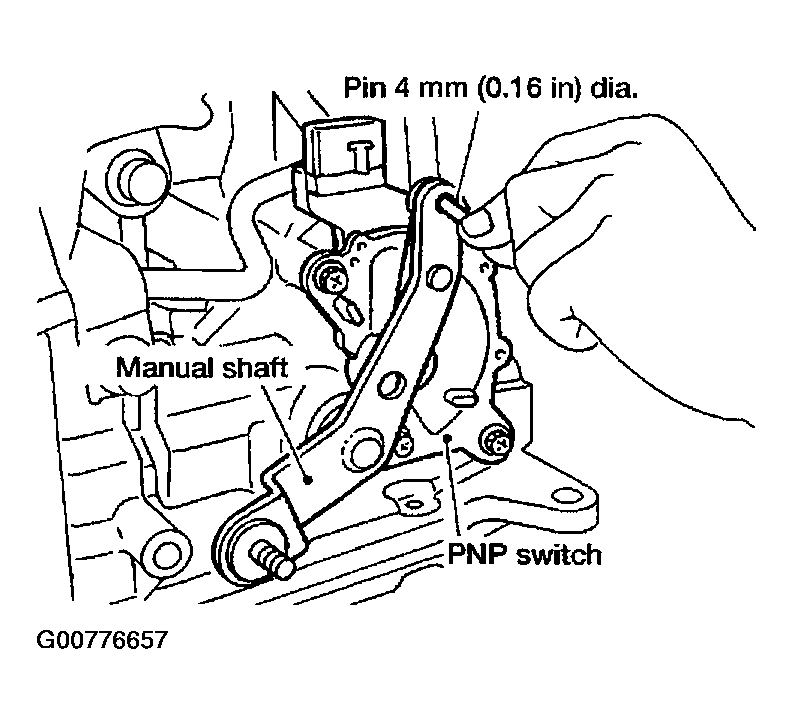

    Fig 2: Park/neutral position (PNP) Switch Adjustment (2 Of 2)
    G00776657Courtesy of NISSAN MOTOR CO., U.S.A.
