Differential Side Oil Seal Replacement

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive shaft assembly. Refer to "AXLE SHAFT ".
Remove oil seal.

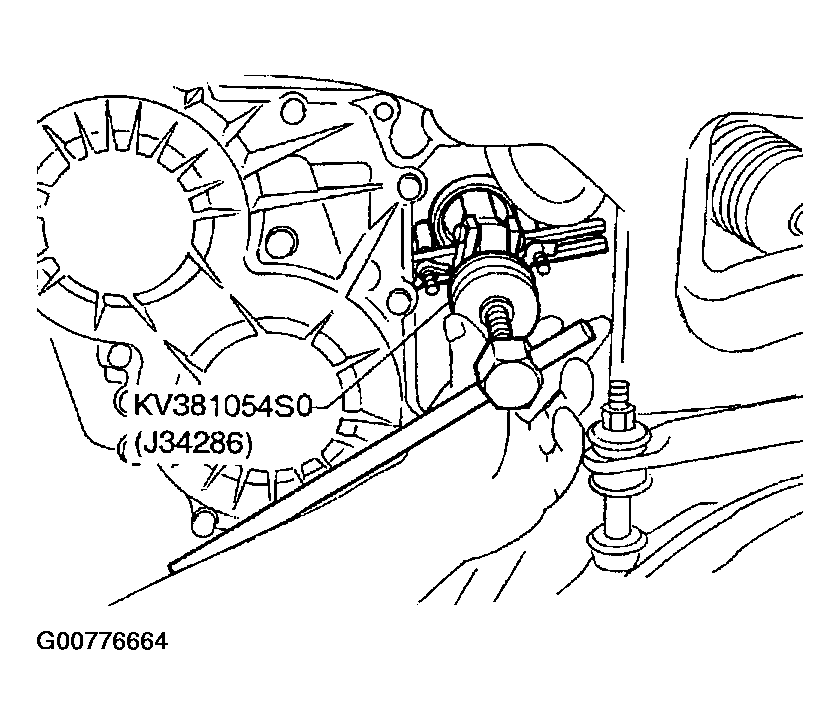

Fig 1: Removing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil seal.
- Apply ATF before installing.

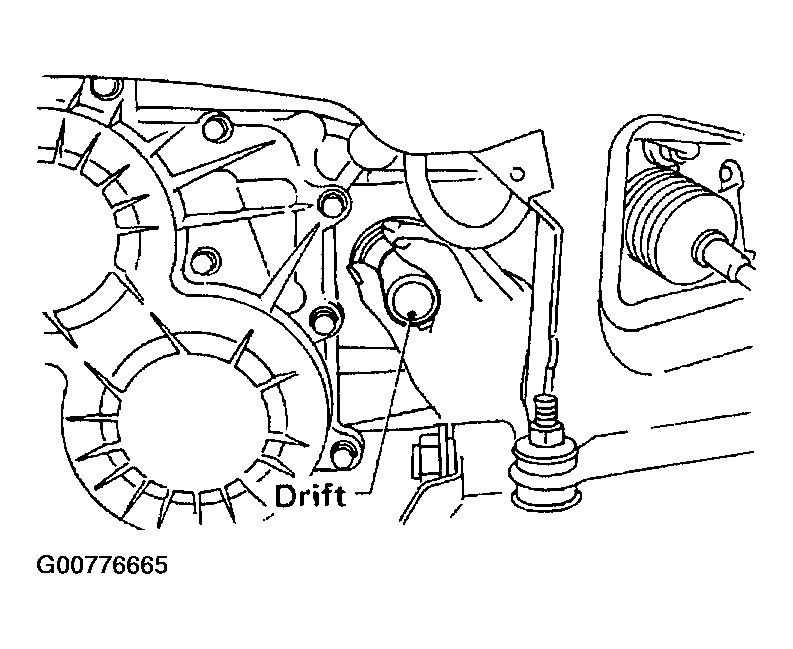

  Fig 2: Installing oil seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install oil seals so dimension A is within specification
A : -0.5 mm (-0.02 in) to 0.5 mm (0.02 in)

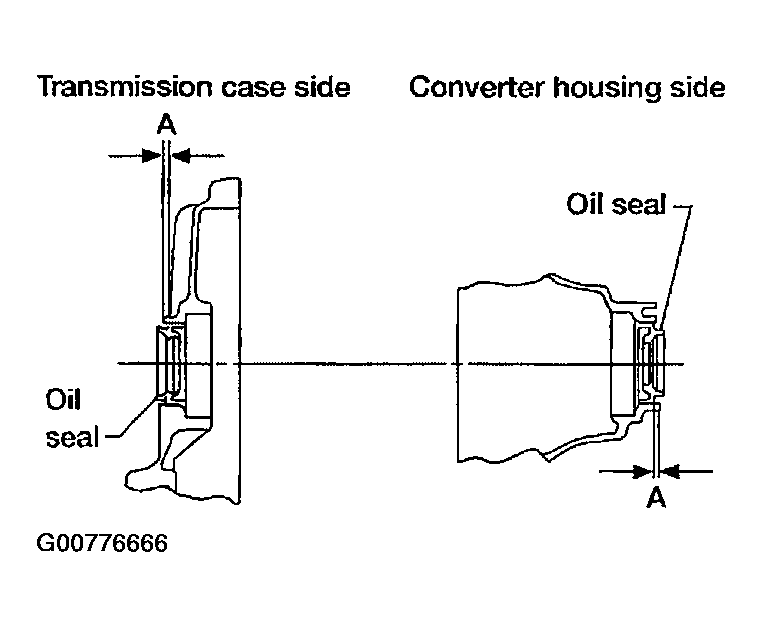

Fig 3: Proper Installation Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Reinstall any part removed.
