2. Judgement Procedure Step 1

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to OFF position.
  2. Turn ignition switch to ON position. (Do not start engine.)
  3. Depress the brake pedal, then move gear selector lever from P to D position.
  4. Wait 3 seconds.

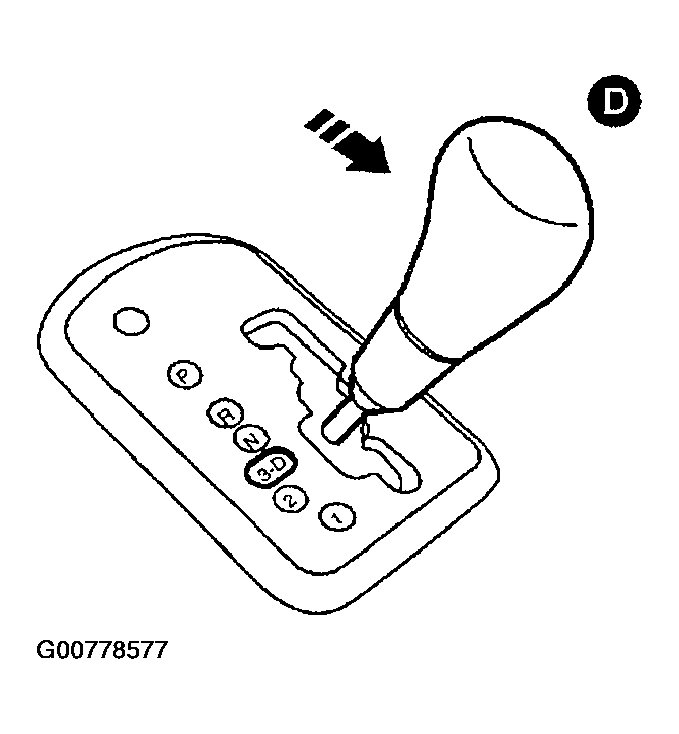

    Fig 1: Depress The Brake Pedal, Then Move Gear Selector Lever From P To D Position
    G00778577Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Move selector lever to 2nd position.
  6. Release accelerator pedal and brake pedal.

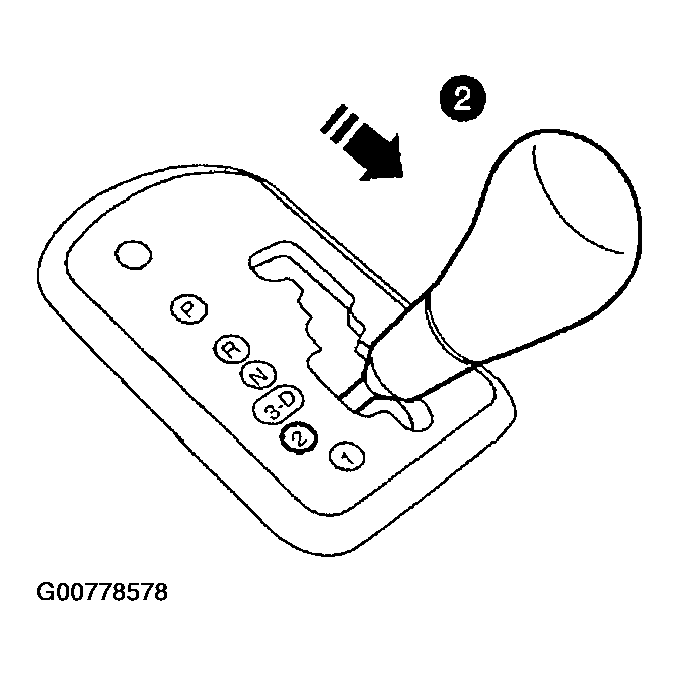

    Fig 2: Move Selector Lever To 2nd Position
    G00778578Courtesy of NISSAN MOTOR CO., U.S.A.
  1. >> GO TO 3.
