1. Check A/T Check Indicator Lamp

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move selector lever to P position.

    Start engine and warm it up to normal engine operating temperature.

  2. Turn ignition switch to OFF position.
  3. Wait 5 seconds.
  4. Turn ignition switch to ON position. (Do not start engine.)

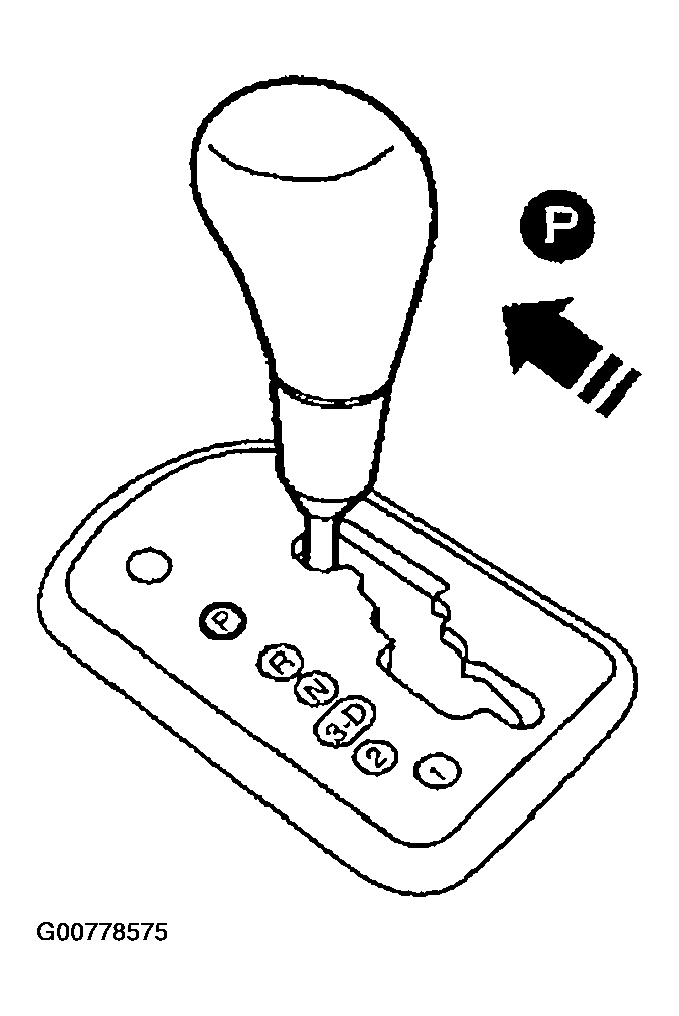

    Fig 1: Move Selector Lever To "P" Position
    G00778575Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Does A/T CHECK indicator lamp come on for about 2 seconds?

Yes or No

  1. Yes >> GO TO 2.
  2. No >> Stop procedure. Perform "A/T CHECK INDICATOR LAMP DOES NOT COME ON " before proceeding.

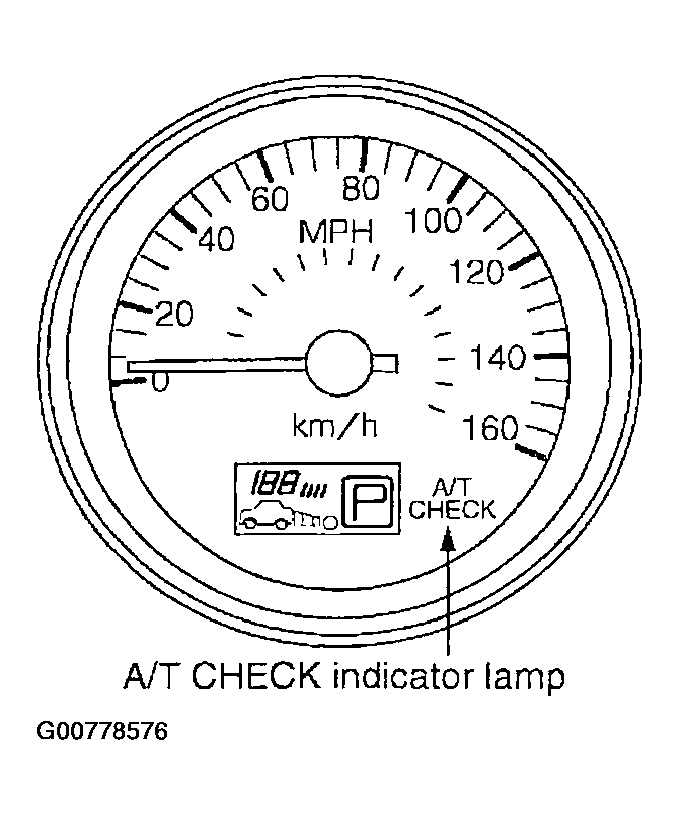

Fig 2: Check A/T Check Indicator Lamp
G00778576Courtesy of NISSAN MOTOR CO., U.S.A.
