Judgement Of Self-Diagnosis Code

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

A/T CHECK indicator lamp:

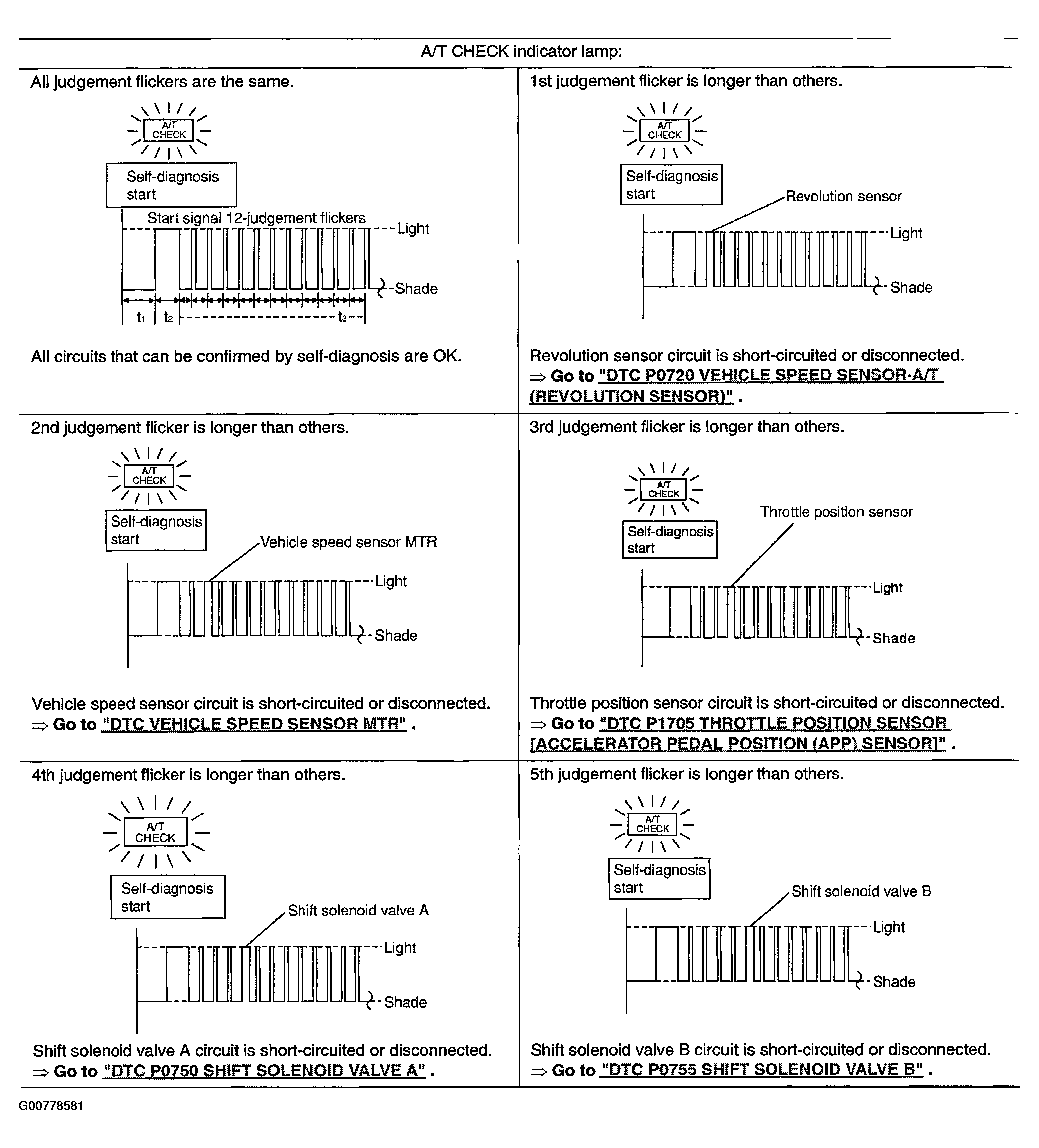

Fig 1: Judgement Of Self-Diagnosis Code (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

A/T CHECK indicator lamp:

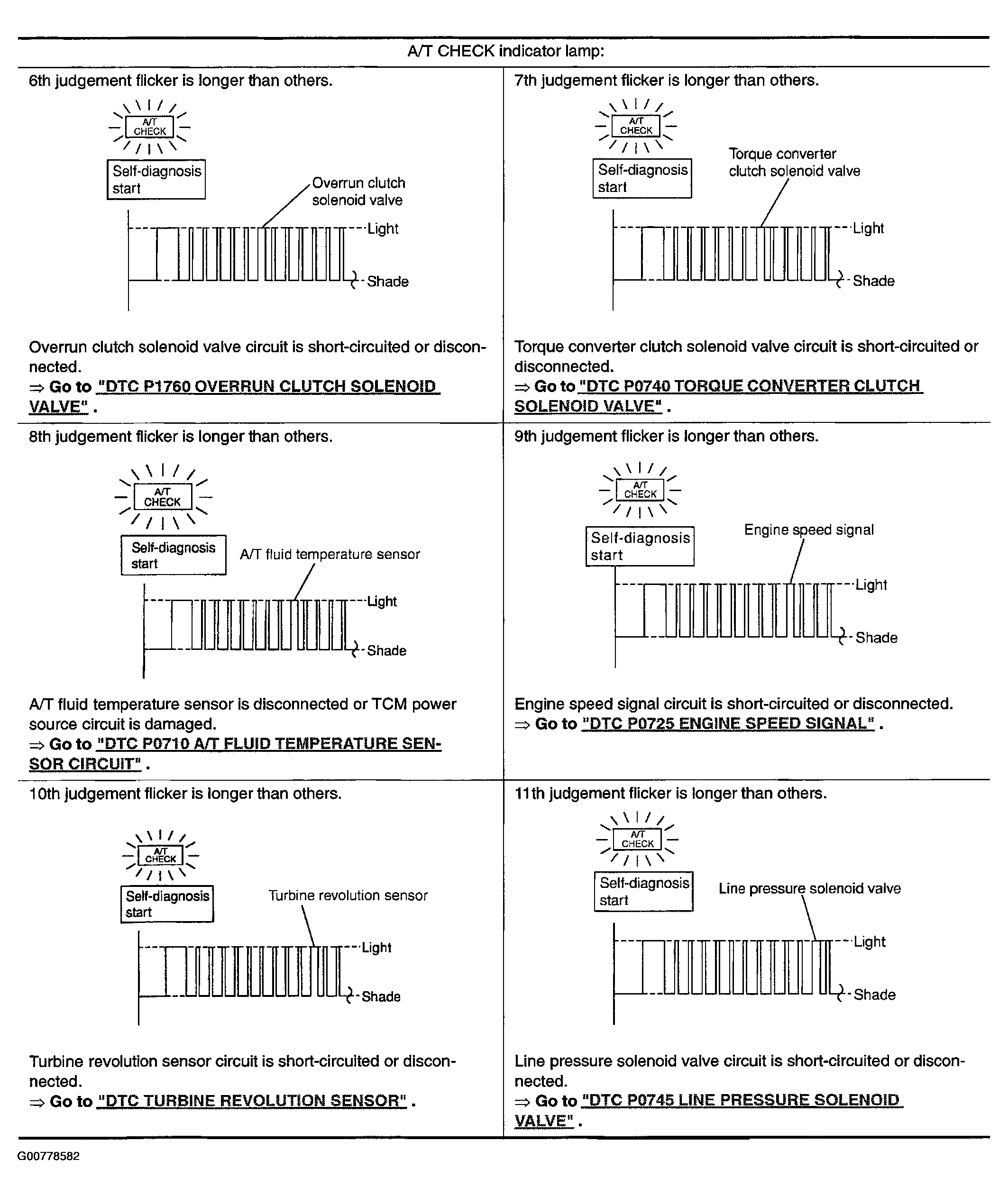

Fig 2: Judgement Of Self-Diagnosis Code (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

A/T CHECK indicator lamp:

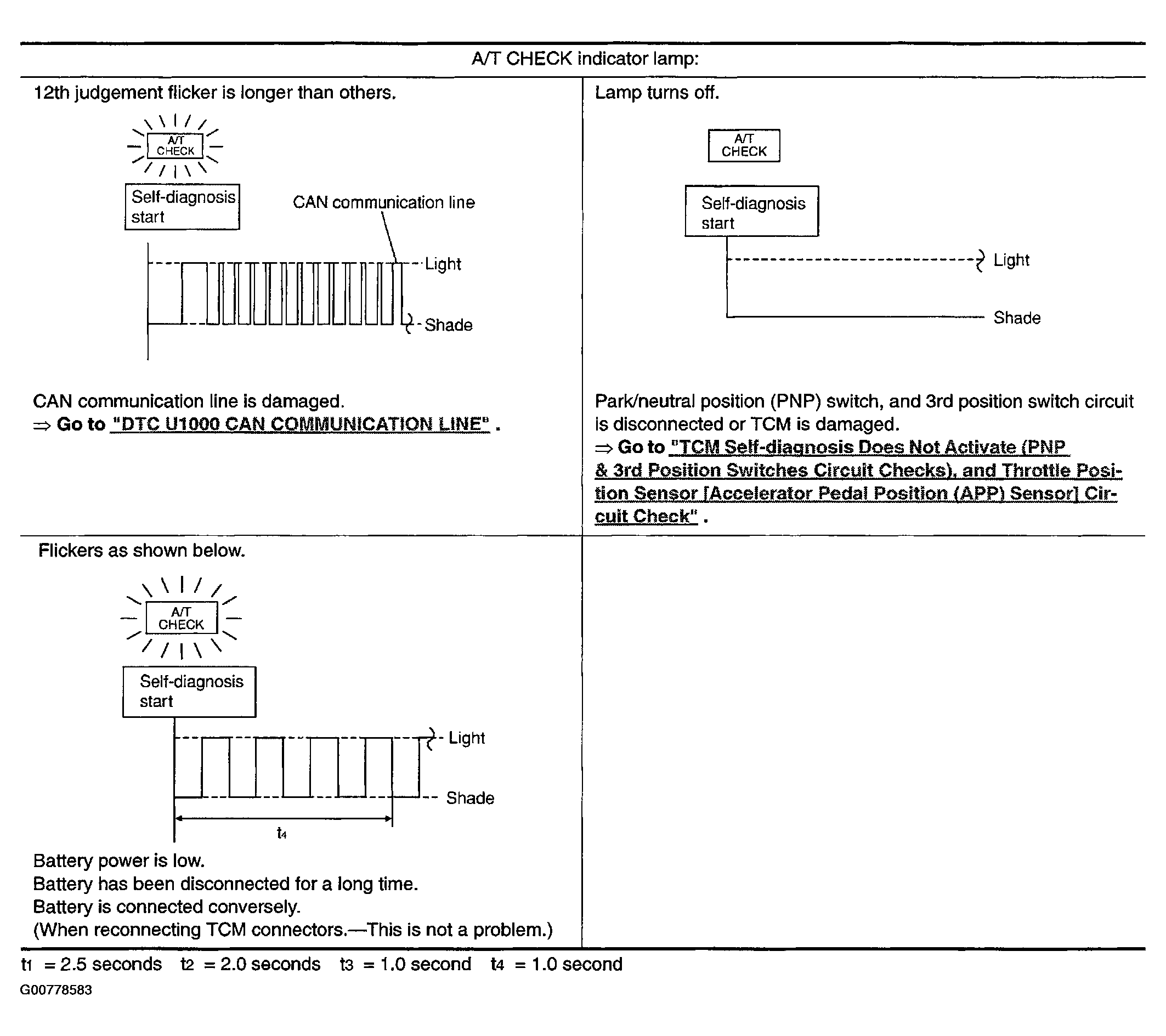

Fig 3: Judgement Of Self-Diagnosis Code (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
