Self-Diagnostic Result Test Mode

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

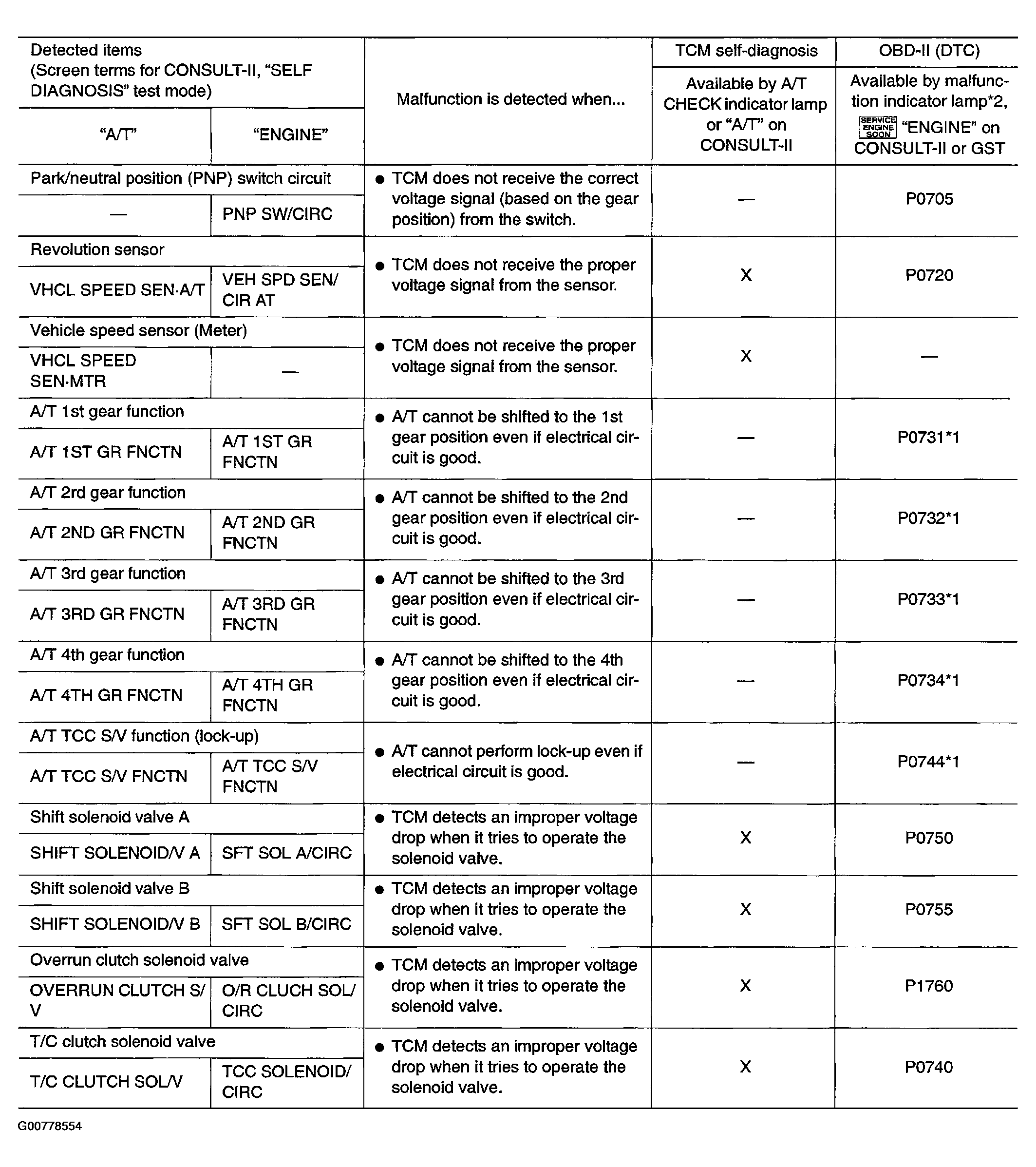

Fig 1: Self-Diagnostic Result Test Mode (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

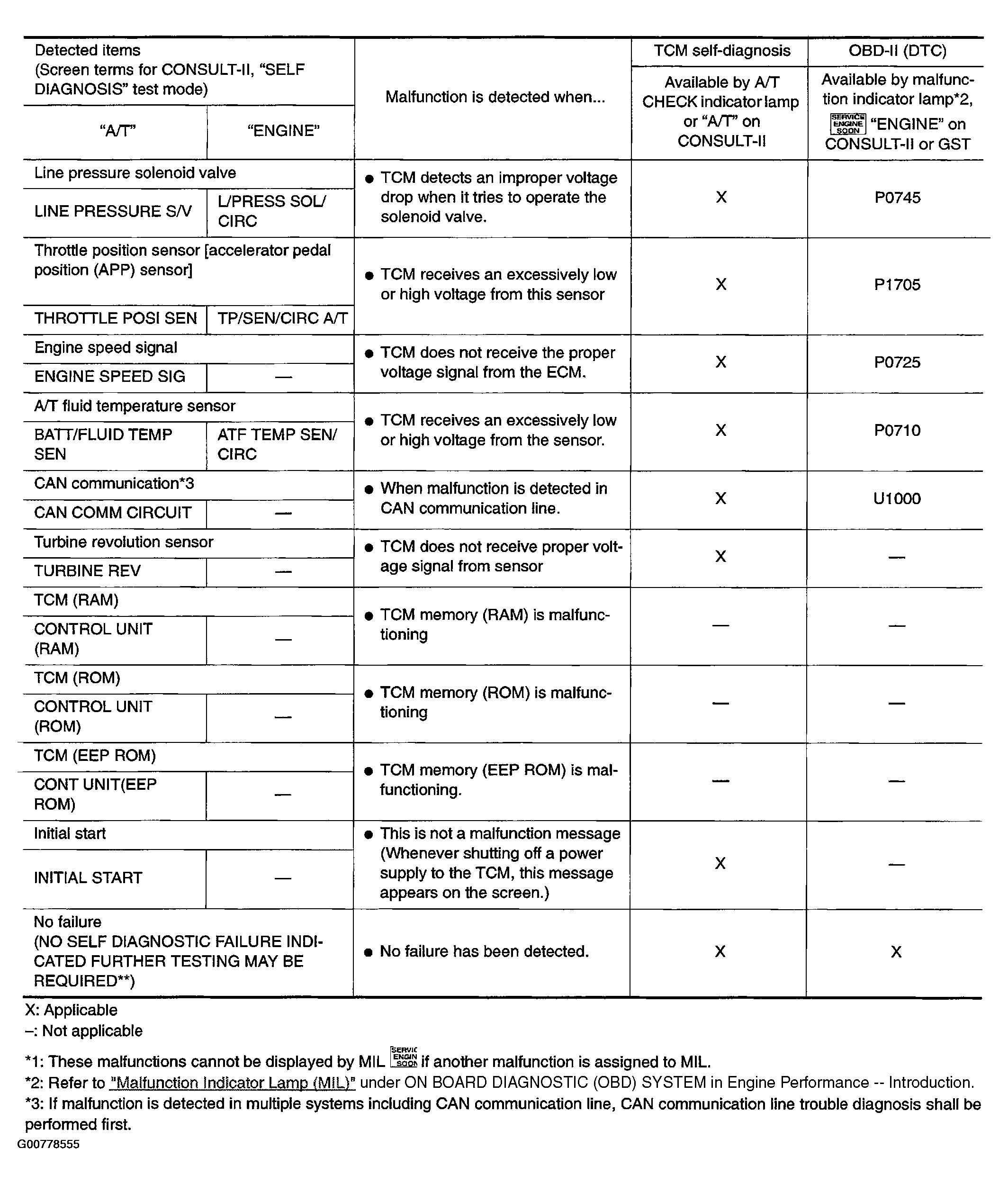

Fig 2: Self-Diagnostic Result Test Mode (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
