With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine

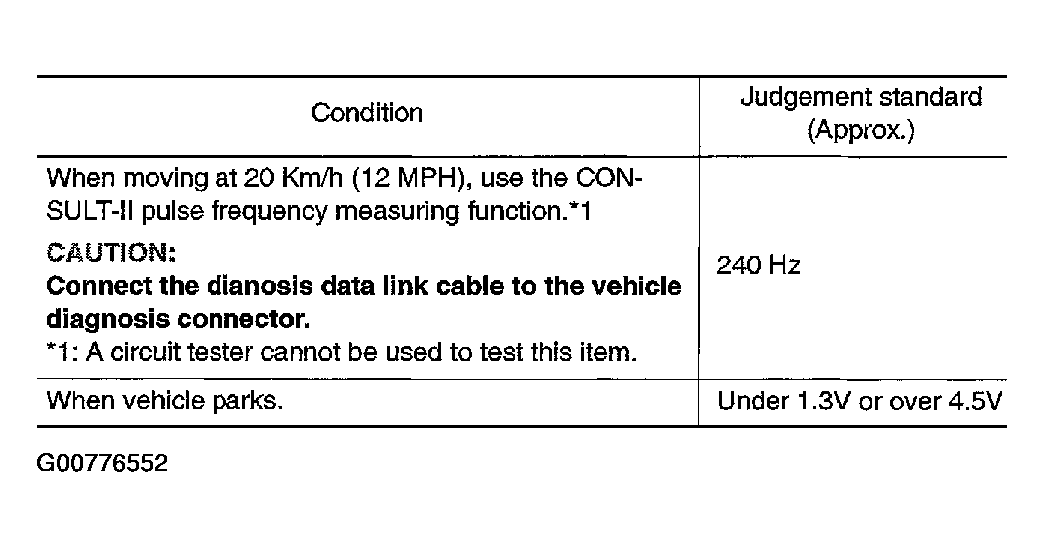

    Fig 1: Test Parameters
    G00776552Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 4 .
  2. NG : GO TO 3.
