With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" With CONSULT-II.
  2. Start engine.
  3. Accelerate vehicle to a speed of more than 10 km/h (6 MPH) with selector lever in D position.

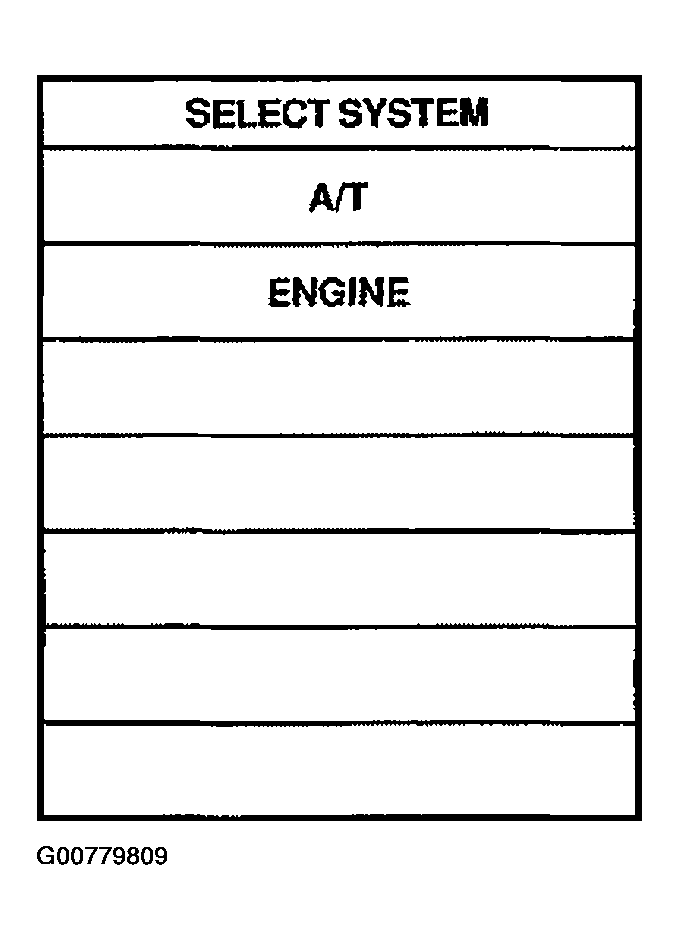

    Fig 1: CONSULT-II Display Screen
    G00779809Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Release accelerator pedal completely with selector lever in 3 position.

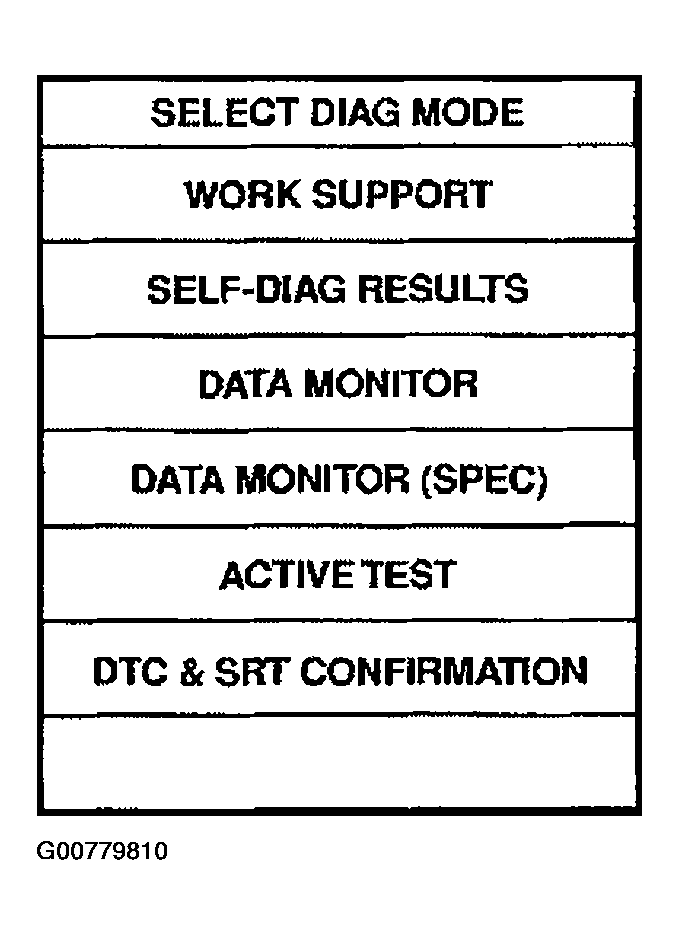

    Fig 2: CONSULT-II Display Screen
    G00779810Courtesy of NISSAN MOTOR CO., U.S.A.
