DTC P1760 Overrun Clutch Solenoid Valve: Description

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the park/neutral position (PNP) switch, 3rd position switch, vehicle speed and ECM (throttle opening). The overrun clutch operation will then be controlled.

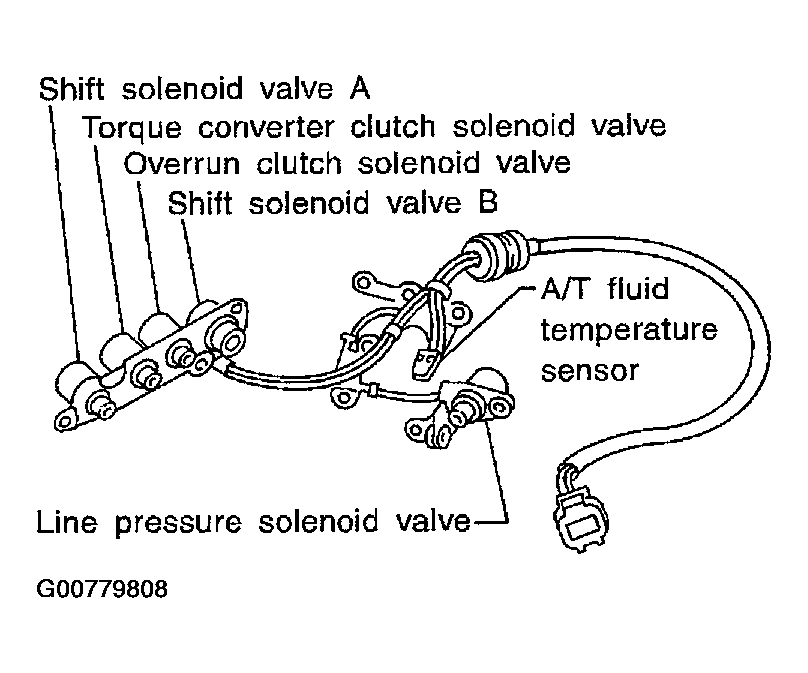

Fig 1: Identifying Valve Location
G00779808Courtesy of NISSAN MOTOR CO., U.S.A.
