2. Check Valve Operation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
Check the following items:

Shift solenoid valve B
Operation check
- Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.
Harness of terminal cord assembly for short or open

OK or NG

OK : GO TO 3.
NG : Repair or replace damaged parts.

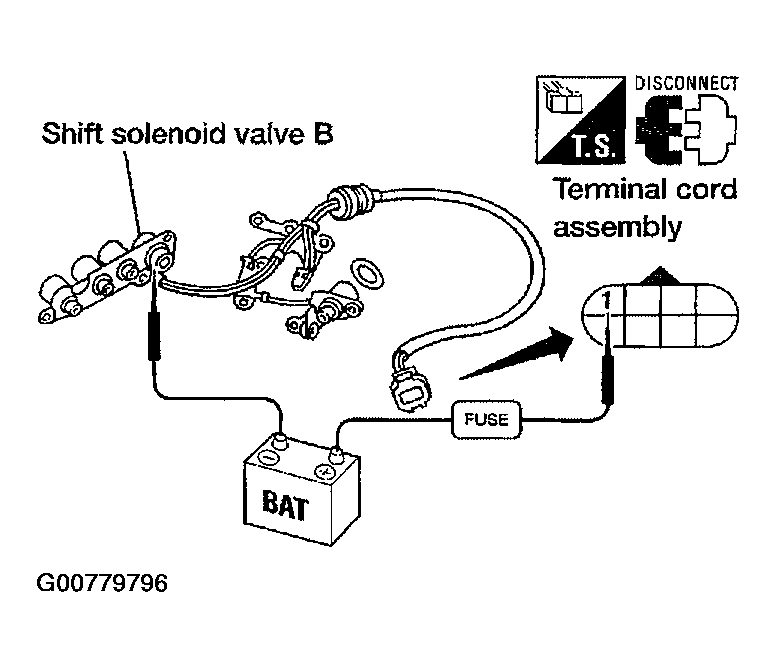

Fig 1: Checking valve Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
