Wiring Diagram - At - SSV/A

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

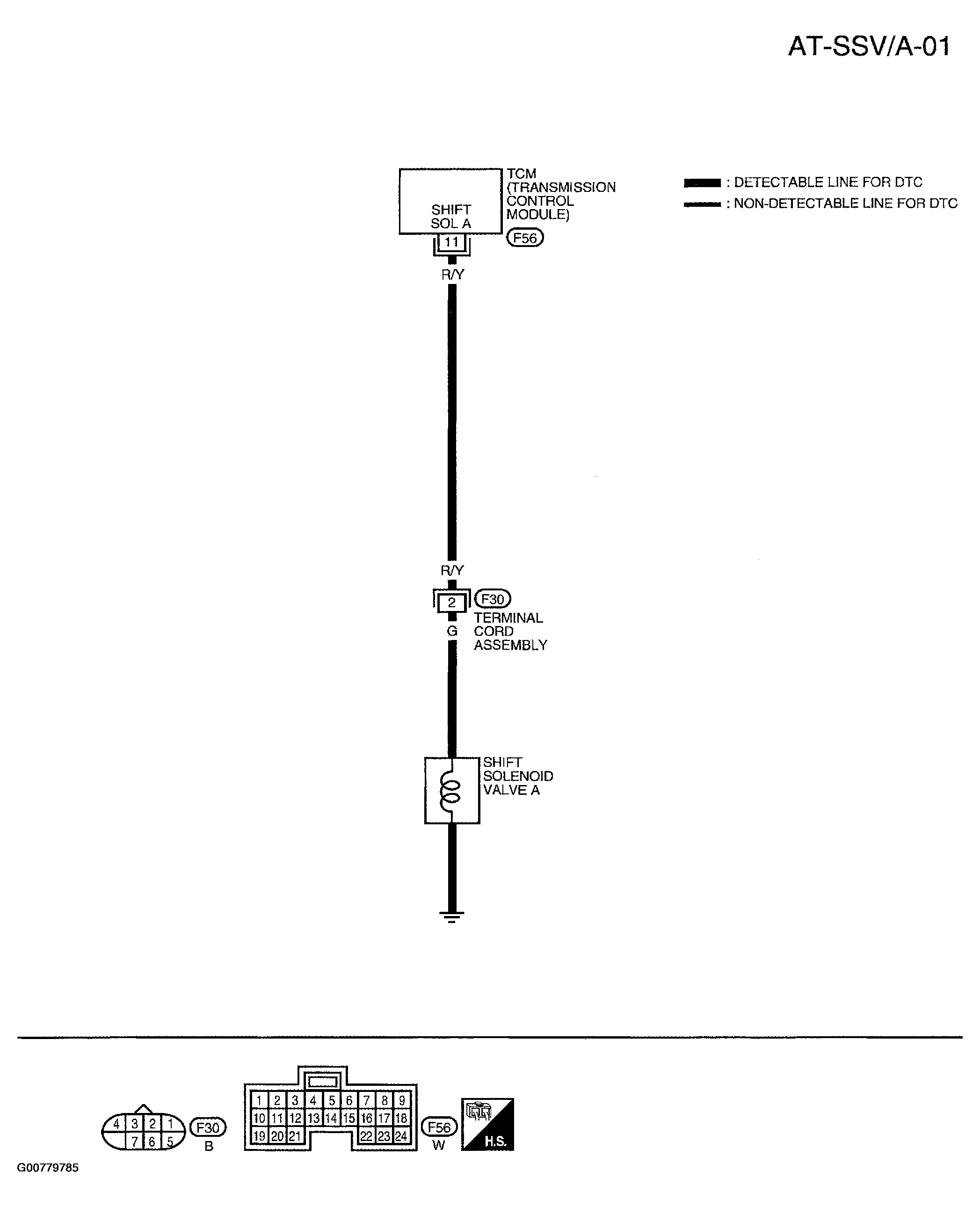

Fig 1: Wiring Diagram - AT-SSV/A-01

Courtesy of NISSAN MOTOR CO., U.S.A.

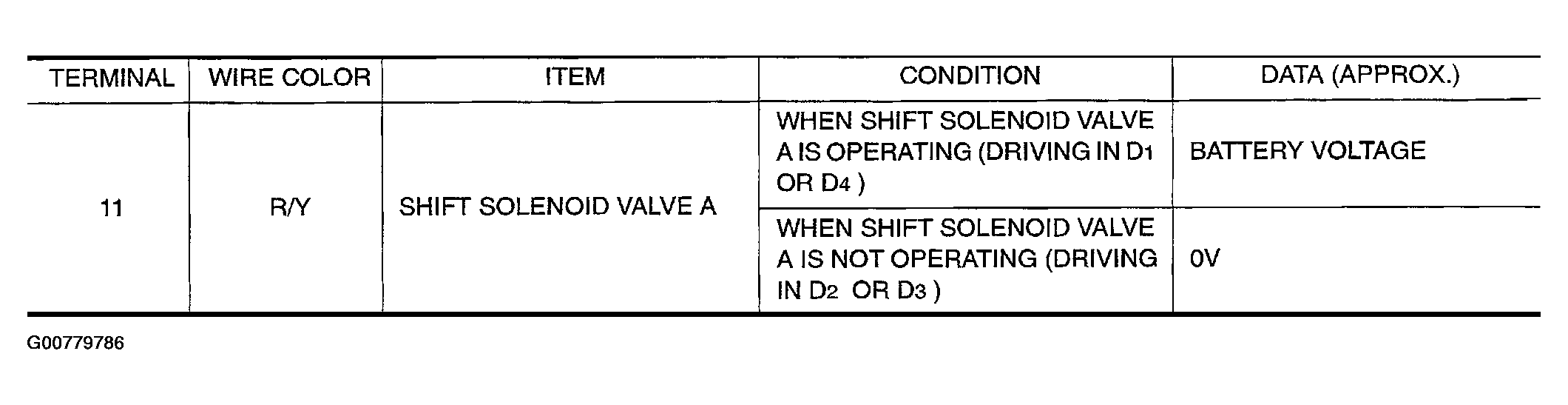

TCM Terminals And Reference Value Measured Between Each Terminal And 25 Or 48 (TCM Ground)

Fig 2: TCM Terminals And Reference Value

Courtesy of NISSAN MOTOR CO., U.S.A.
