With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" With CONSULT-II.

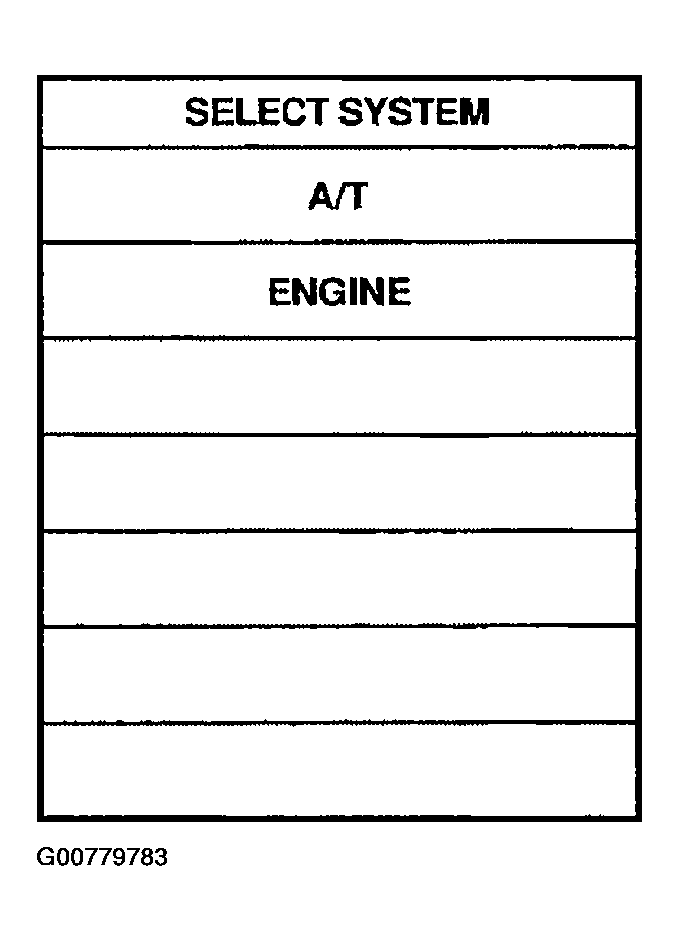

    Fig 1: CONSULT-II Display Screen
    G00779783Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.
  3. Drive vehicle in D position and allow the transmission to shift 1 --> 2 ("GEAR").

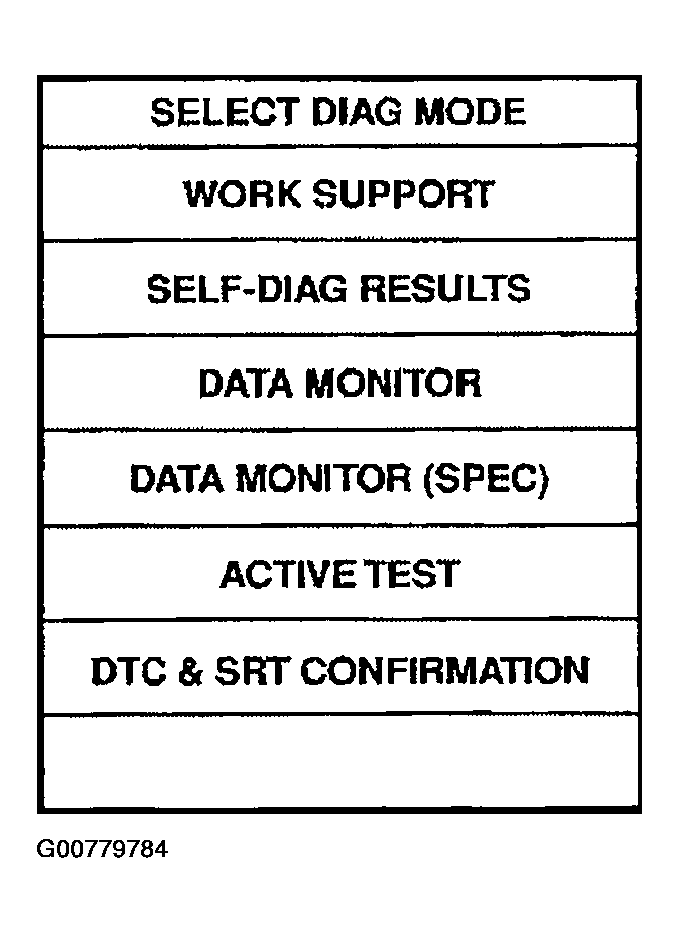

    Fig 2: CONSULT-II Display Screen
    G00779784Courtesy of NISSAN MOTOR CO., U.S.A.
