1. Check Valve Resistance

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to OFF position.
  2. Disconnect terminal cord assembly connector in engine compartment.
  3. Check resistance between terminal cord assembly harness connector F30 terminal 2(G) and ground.

    Resistance :20 - 30Ω

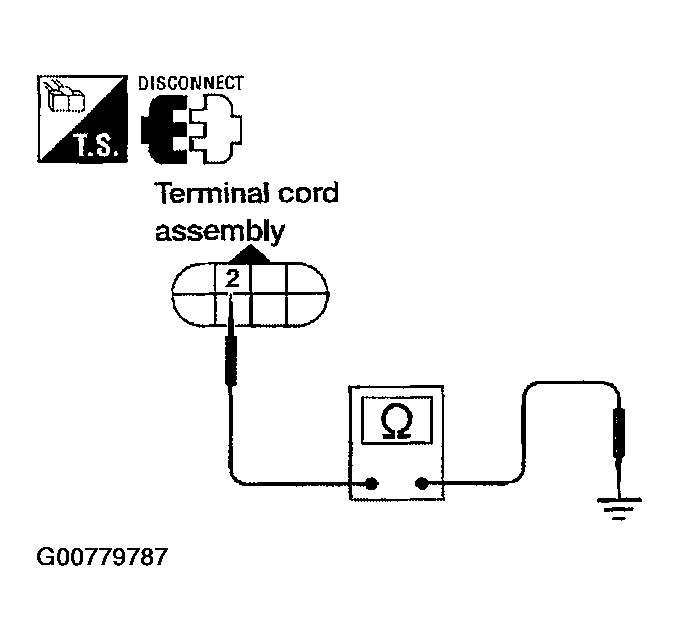

    Fig 1: Checking Valve Resistance
    G00779787Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 3 .
  2. NG : GO TO 2.
