4. Detect Malfunctioning Item

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the following items:

Dropping resistor
Check resistance between two terminals.
Resistance :12Ω
Harness for short or open between TCM harness connector F56 terminal 2(W/B) and terminal cord assembly

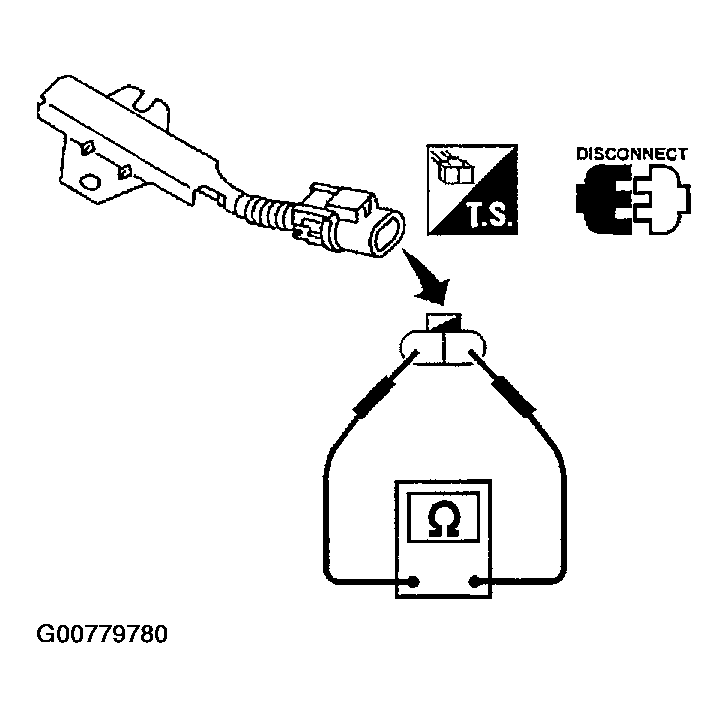

Fig 1: Checking Dropping Resistor Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 5.
NG : Repair or replace damaged parts.
