3. Check Power Source And Dropping Resistor Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch to OFF position.
  2. Disconnect TCM harness connector.
  3. Check resistance between terminal cord assembly harness connector F30 terminal 4 (P) and TCM harness connector F56 terminal 2 (W/B).

    Resistance : 10 - 15Ω

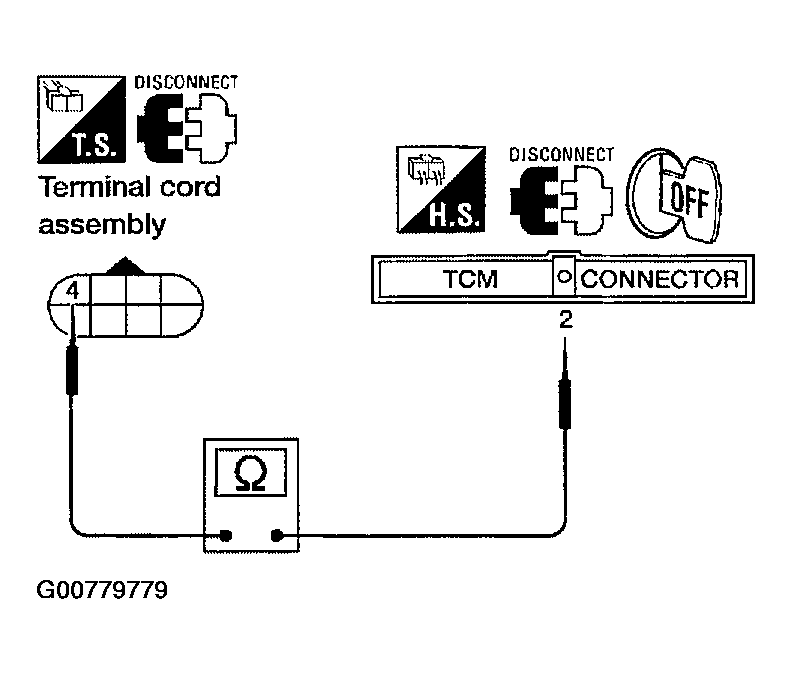

    Fig 1: Checking Power Source And Dropping Resistor Circuit
    G00779779Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 5 .
  2. NG : GO TO 4.
