2. Check Line Pressure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Perform line pressure test.

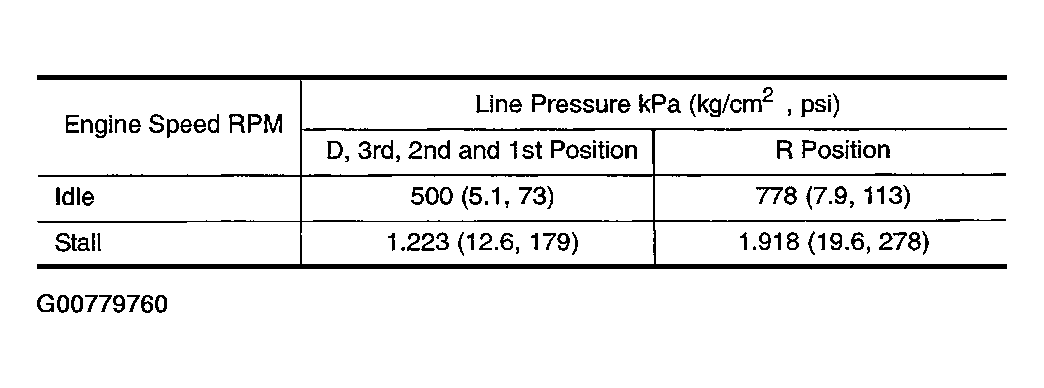

Fig 1: Line Pressure Test Specifications Table
G00779760Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Line Pressure Test ".

OK or NG

  1. OK : GO TO 3.
  2. NG : GO TO 6 .
